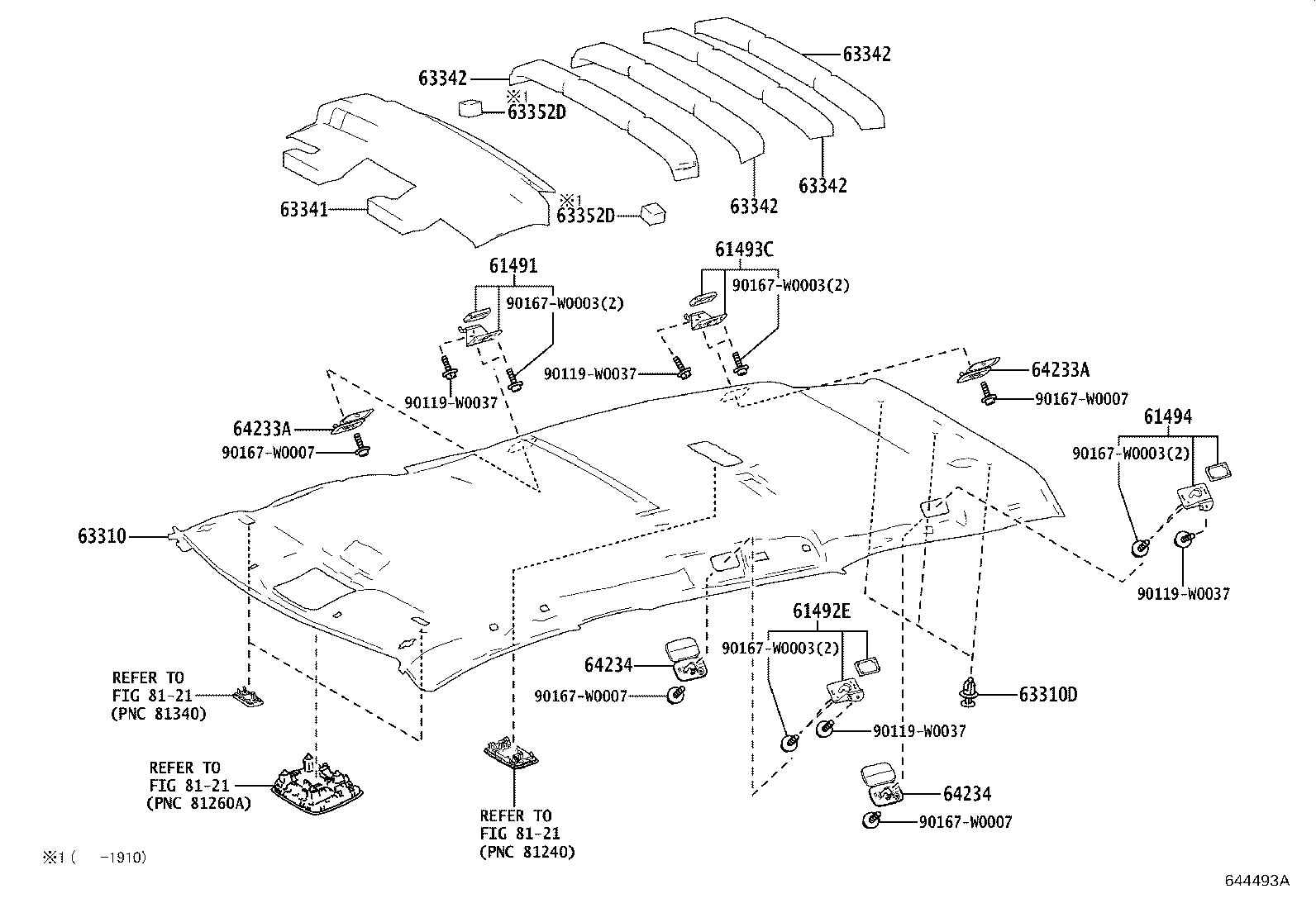

NRE210L-DWFDZW (2019)
Toyota Corolla (Ukp)
(1902- )WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61491 - BRACKET, SIDE PANEL STRENGTH, NO.1 | ||||
| 61491-02060 |
MZEH12,NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF)&SUN VISOR-*DRP(VANITY MIRROR) & W/O(VANITY LAMP) |
1 | ||
| 61491-02060 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 61492E - BRACKET, SIDE PANEL STRENGTH, NO.2 | ||||
| 61492-02020 |
MZEH12,NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF)&SUN VISOR-*DRP(VANITY MIRROR) & W/O(VANITY LAMP) |
1 | ||
| 61492-02020 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 61493C - BRACKET, SIDE PANEL STRENGTH, NO.3 | ||||
| 61493-02010 |
MZEH12,NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF)&SUN VISOR-*DRP(VANITY MIRROR) & W/O(VANITY LAMP) |
1 | ||
| 61493-02010 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 61494 - BRACKET, SIDE PANEL STRENGTH, NO.4 | ||||
| 61494-02010 |
MZEH12,NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF)&SUN VISOR-*DRP(VANITY MIRROR) & W/O(VANITY LAMP) |
1 | ||
| 61494-02010 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-02N60B0 |
MZEH12..LHD..WG;NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF)&SUN VISOR-*DRP(VANITY MIRROR) & W/O(VANITY LAMP),COOL GRAY,TRIM1# |
1 | ||
| 63310-02N50B0 |
NRE210,ZWE211..LHD..WG..D COOL GRAY,TRIM1# |
1 | ||
| 63310-02N50C1 |
NRE210,ZWE211..LHD..WG..D BLACK,TRIM2# |
1 | ||
| 63310-02N60C1 |
NRE210..WG..(G,N);NRE210..RHD..WG..D;MZEH12,ZWE211..LHD..WG..(G,N) BLACK,TRIM2# |
1 | ||
| 63310-02N60B0 |
NRE210..WG..(G,N);NRE210..RHD..WG..D;MZEH12,ZWE211..LHD..WG..(G,N) COOL GRAY,TRIM1# |
1 | ||
| 63310-02N70B0 |
MZEH12..LHD..WG;NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF),COOL GRAY,TRIM1# |
1 | ||
| 63310-02N70C1 |
MZEH12..LHD..WG;NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF),BLACK,TRIM2# |
1 | ||
| 63310-02N60C1 |
MZEH12..LHD..WG;NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF)&SUN VISOR-*DRP(VANITY MIRROR) & W/O(VANITY LAMP),BLACK,TRIM2# |
1 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 90467-05168C0 |
MZEH12,NRE210,ZWE211 BLACK,TRIM2# |
3 | ||
| 90467-05168B2 |
MZEH12,NRE210,ZWE211 COOL GRAY,TRIM1# |
3 | ||
| 90467-05168C0 |
MZEH12,NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF)&SUN VISOR-*DRP(VANITY MIRROR) & W/O(VANITY LAMP),BLACK,TRIM2# |
3 | ||
| 90467-05168B2 |
MZEH12,NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF)&SUN VISOR-*DRP(VANITY MIRROR) & W/O(VANITY LAMP),COOL GRAY,TRIM1# |
3 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-02570 |
MZEH12,NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF)&SUN VISOR-*DRP(VANITY MIRROR) & W/O(VANITY LAMP) |
1 | ||
| 63341-02570 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-02760 |
MZEH12,NRE210,ZWE211..WG |
4 | ||
| 63342-02760 |
MZEH12,NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF)&SUN VISOR-*DRP(VANITY MIRROR) & W/O(VANITY LAMP) |
4 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-02760 |
MZEH12,NRE210,ZWE211..WG |
4 | ||
| 63342-02760 |
MZEH12,NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF)&SUN VISOR-*DRP(VANITY MIRROR) & W/O(VANITY LAMP) |
4 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-02760 |
MZEH12,NRE210,ZWE211..WG |
4 | ||
| 63342-02760 |
MZEH12,NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF)&SUN VISOR-*DRP(VANITY MIRROR) & W/O(VANITY LAMP) |
4 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-02760 |
MZEH12,NRE210,ZWE211..WG |
4 | ||
| 63342-02760 |
MZEH12,NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF)&SUN VISOR-*DRP(VANITY MIRROR) & W/O(VANITY LAMP) |
4 | ||
| 63352D - PAD, ROOF HEADLINING, NO.2 | ||||
| 63352-02130 |
MZEH12,NRE210,ZWE211 |
2 | ||
| 63352-02130 |
MZEH12,NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF)&SUN VISOR-*DRP(VANITY MIRROR) & W/O(VANITY LAMP) |
2 | ||
| 63352D - PAD, ROOF HEADLINING, NO.2 | ||||
| 63352-02130 |
MZEH12,NRE210,ZWE211 |
2 | ||
| 63352-02130 |
MZEH12,NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF)&SUN VISOR-*DRP(VANITY MIRROR) & W/O(VANITY LAMP) |
2 | ||
| 64233A - HOOK, ROOM PARTITION NET, REAR RH | ||||
| 64233-02020B1 |
MZEH12,NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF)&SUN VISOR-*DRP(VANITY MIRROR) & W/O(VANITY LAMP),COOL GRAY,TRIM1# |
2 | ||
| 64233-02020B1 |
MZEH12,NRE210,ZWE211..WG COOL GRAY,TRIM1# |
2 | ||
| 64233-02020C0 |
MZEH12,NRE210,ZWE211..WG BLACK,TRIM2# |
2 | ||
| 64233-02020C0 |
MZEH12,NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF)&SUN VISOR-*DRP(VANITY MIRROR) & W/O(VANITY LAMP),BLACK,TRIM2# |
2 | ||
| 64233A - HOOK, ROOM PARTITION NET, REAR RH | ||||
| 64233-02020C0 |
MZEH12,NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF)&SUN VISOR-*DRP(VANITY MIRROR) & W/O(VANITY LAMP),BLACK,TRIM2# |
2 | ||
| 64233-02020B1 |
MZEH12,NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF)&SUN VISOR-*DRP(VANITY MIRROR) & W/O(VANITY LAMP),COOL GRAY,TRIM1# |
2 | ||
| 64233-02020B1 |
MZEH12,NRE210,ZWE211..WG COOL GRAY,TRIM1# |
2 | ||
| 64233-02020C0 |
MZEH12,NRE210,ZWE211..WG BLACK,TRIM2# |
2 | ||
| 64234 - HOOK, ROOM PARTITION NET, REAR LH | ||||
| 64234-02020B1 |
MZEH12,NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF)&SUN VISOR-*DRP(VANITY MIRROR) & W/O(VANITY LAMP),COOL GRAY,TRIM1# |
2 | ||
| 64234-02020B1 |
MZEH12,NRE210,ZWE211..WG COOL GRAY,TRIM1# |
2 | ||
| 64234-02020C0 |
MZEH12,NRE210,ZWE211..WG BLACK,TRIM2# |
2 | ||
| 64234-02020C0 |
MZEH12,NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF)&SUN VISOR-*DRP(VANITY MIRROR) & W/O(VANITY LAMP),BLACK,TRIM2# |
2 | ||
| 64234 - HOOK, ROOM PARTITION NET, REAR LH | ||||
| 64234-02020B1 |
MZEH12,NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF)&SUN VISOR-*DRP(VANITY MIRROR) & W/O(VANITY LAMP),COOL GRAY,TRIM1# |
2 | ||
| 64234-02020B1 |
MZEH12,NRE210,ZWE211..WG COOL GRAY,TRIM1# |
2 | ||
| 64234-02020C0 |
MZEH12,NRE210,ZWE211..WG BLACK,TRIM2# |
2 | ||
| 64234-02020C0 |
MZEH12,NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF)&SUN VISOR-*DRP(VANITY MIRROR) & W/O(VANITY LAMP),BLACK,TRIM2# |
2 | ||
| Common parts | ||||
| 90119-W0037 | ||||
| 90167-W0003 | ||||
| 90167-W0007 | ||||
| Linked diagrams | ||||
| 8121 | ||||
(1902- )WG

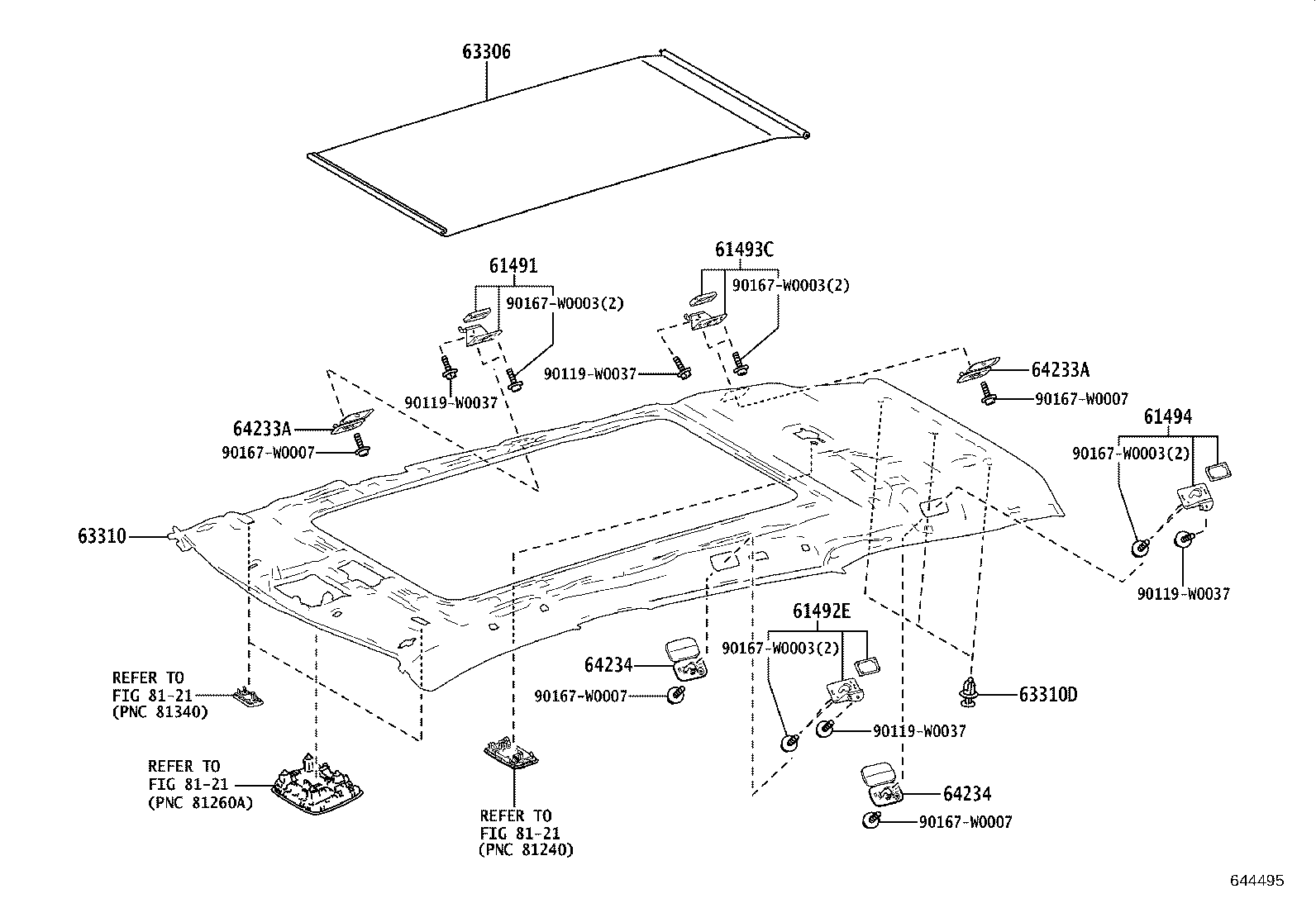

PANORAMA ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61491 - BRACKET, SIDE PANEL STRENGTH, NO.1 | ||||
| 61491-02060 |
MZEH12,NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF)&SUN VISOR-*DRP(VANITY MIRROR) & W/O(VANITY LAMP) |
1 | ||
| 61491-02060 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 61492E - BRACKET, SIDE PANEL STRENGTH, NO.2 | ||||
| 61492-02020 |
MZEH12,NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF)&SUN VISOR-*DRP(VANITY MIRROR) & W/O(VANITY LAMP) |
1 | ||
| 61492-02020 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 61493C - BRACKET, SIDE PANEL STRENGTH, NO.3 | ||||
| 61493-02010 |
MZEH12,NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF)&SUN VISOR-*DRP(VANITY MIRROR) & W/O(VANITY LAMP) |
1 | ||
| 61493-02010 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 61494 - BRACKET, SIDE PANEL STRENGTH, NO.4 | ||||
| 61494-02010 |
MZEH12,NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF)&SUN VISOR-*DRP(VANITY MIRROR) & W/O(VANITY LAMP) |
1 | ||
| 61494-02010 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 63306 - TRIM SUB-ASSY, SUNSHADE | ||||
| 63306-02170B0 |
MZEH12,NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF),COOL GRAY,TRIM1# |
1 | ||
| 63306-02170C0 |
MZEH12,NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF),BLACK,TRIM2# |
1 | ||
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-02N60B0 |
MZEH12..LHD..WG;NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF)&SUN VISOR-*DRP(VANITY MIRROR) & W/O(VANITY LAMP),COOL GRAY,TRIM1# |
1 | ||
| 63310-02N50B0 |
NRE210,ZWE211..LHD..WG..D COOL GRAY,TRIM1# |
1 | ||
| 63310-02N50C1 |
NRE210,ZWE211..LHD..WG..D BLACK,TRIM2# |
1 | ||
| 63310-02N60C1 |
NRE210..WG..(G,N);NRE210..RHD..WG..D;MZEH12,ZWE211..LHD..WG..(G,N) BLACK,TRIM2# |
1 | ||
| 63310-02N60B0 |
NRE210..WG..(G,N);NRE210..RHD..WG..D;MZEH12,ZWE211..LHD..WG..(G,N) COOL GRAY,TRIM1# |
1 | ||
| 63310-02N70B0 |
MZEH12..LHD..WG;NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF),COOL GRAY,TRIM1# |
1 | ||
| 63310-02N70C1 |
MZEH12..LHD..WG;NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF),BLACK,TRIM2# |
1 | ||
| 63310-02N60C1 |
MZEH12..LHD..WG;NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF)&SUN VISOR-*DRP(VANITY MIRROR) & W/O(VANITY LAMP),BLACK,TRIM2# |
1 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 90467-05168C0 |
MZEH12,NRE210,ZWE211 BLACK,TRIM2# |
3 | ||
| 90467-05168B2 |
MZEH12,NRE210,ZWE211 COOL GRAY,TRIM1# |
3 | ||
| 90467-05168C0 |
MZEH12,NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF)&SUN VISOR-*DRP(VANITY MIRROR) & W/O(VANITY LAMP),BLACK,TRIM2# |
3 | ||
| 90467-05168B2 |
MZEH12,NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF)&SUN VISOR-*DRP(VANITY MIRROR) & W/O(VANITY LAMP),COOL GRAY,TRIM1# |
3 | ||
| 64233A - HOOK, ROOM PARTITION NET, REAR RH | ||||
| 64233-02020C0 |
MZEH12,NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF)&SUN VISOR-*DRP(VANITY MIRROR) & W/O(VANITY LAMP),BLACK,TRIM2# |
2 | ||
| 64233-02020B1 |
MZEH12,NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF)&SUN VISOR-*DRP(VANITY MIRROR) & W/O(VANITY LAMP),COOL GRAY,TRIM1# |
2 | ||
| 64233-02020B1 |
MZEH12,NRE210,ZWE211..WG COOL GRAY,TRIM1# |
2 | ||
| 64233-02020C0 |
MZEH12,NRE210,ZWE211..WG BLACK,TRIM2# |
2 | ||
| 64233A - HOOK, ROOM PARTITION NET, REAR RH | ||||
| 64233-02020C0 |
MZEH12,NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF)&SUN VISOR-*DRP(VANITY MIRROR) & W/O(VANITY LAMP),BLACK,TRIM2# |
2 | ||
| 64233-02020B1 |
MZEH12,NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF)&SUN VISOR-*DRP(VANITY MIRROR) & W/O(VANITY LAMP),COOL GRAY,TRIM1# |
2 | ||
| 64233-02020B1 |
MZEH12,NRE210,ZWE211..WG COOL GRAY,TRIM1# |
2 | ||
| 64233-02020C0 |
MZEH12,NRE210,ZWE211..WG BLACK,TRIM2# |
2 | ||
| 64234 - HOOK, ROOM PARTITION NET, REAR LH | ||||
| 64234-02020B1 |
MZEH12,NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF)&SUN VISOR-*DRP(VANITY MIRROR) & W/O(VANITY LAMP),COOL GRAY,TRIM1# |
2 | ||
| 64234-02020B1 |
MZEH12,NRE210,ZWE211..WG COOL GRAY,TRIM1# |
2 | ||
| 64234-02020C0 |
MZEH12,NRE210,ZWE211..WG BLACK,TRIM2# |
2 | ||
| 64234-02020C0 |
MZEH12,NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF)&SUN VISOR-*DRP(VANITY MIRROR) & W/O(VANITY LAMP),BLACK,TRIM2# |
2 | ||
| 64234 - HOOK, ROOM PARTITION NET, REAR LH | ||||
| 64234-02020B1 |
MZEH12,NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF)&SUN VISOR-*DRP(VANITY MIRROR) & W/O(VANITY LAMP),COOL GRAY,TRIM1# |
2 | ||
| 64234-02020B1 |
MZEH12,NRE210,ZWE211..WG COOL GRAY,TRIM1# |
2 | ||
| 64234-02020C0 |
MZEH12,NRE210,ZWE211..WG BLACK,TRIM2# |
2 | ||
| 64234-02020C0 |
MZEH12,NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF)&SUN VISOR-*DRP(VANITY MIRROR) & W/O(VANITY LAMP),BLACK,TRIM2# |
2 | ||
| Common parts | ||||
| 90119-W0037 | ||||
| 90167-W0003 | ||||
| 90167-W0007 | ||||
| Linked diagrams | ||||
| 8121 | ||||
