NRE210L-DWFDZW (2019)
Toyota Corolla (Ukp)
(1902- )WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62111A - TRIM SUB-ASSY, COWL SIDE, RH | ||||
| 62111-02410C0 |
MZEH12,NRE210,ZWE211 BLACK,TRIM1#,2# |
1 | ||
| 62112A - TRIM SUB-ASSY, COWL SIDE, LH | ||||
| 62112-02410C0 |
MZEH12,NRE210,ZWE211 BLACK,TRIM1#,2# |
1 | ||
| 62117B - CLIP, NO.1(FOR COWL SIDE TRIM) | ||||
| 90467-06147 |
MZEH12,NRE210,ZWE211 |
2 | ||
| 62117B - CLIP, NO.1(FOR COWL SIDE TRIM) | ||||
| 90467-06147 |
MZEH12,NRE210,ZWE211 |
2 | ||
| 62117C - CLIP, NO.2(FOR COWL SIDE TRIM) | ||||
| 90467-10167 |
MZEH12,NRE210,ZWE211 |
4 | ||
| 62117C - CLIP, NO.2(FOR COWL SIDE TRIM) | ||||
| 90467-10167 |
MZEH12,NRE210,ZWE211 |
4 | ||
| 62170A - AIR BAG ASSY, CURTAIN SHIELD, RH | ||||
| 62170-02280 |
MZEH12,NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 62170-02440 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 62170B - BOLT, W/WASHER | ||||
| 90119-W0037 |
MZEH12,NRE210,ZWE211..WG |
10 | ||
| 62170B - BOLT, W/WASHER | ||||
| 90119-W0037 |
MZEH12,NRE210,ZWE211..WG |
10 | ||
| 62170B - BOLT, W/WASHER | ||||
| 90119-W0037 |
MZEH12,NRE210,ZWE211..WG |
10 | ||
| 62180A - AIR BAG ASSY, CURTAIN SHIELD, LH | ||||
| 62180-02270 |
MZEH12,NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 62180-02440 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62210-02340C1 |
NRE210..G LIGHT GRADE&WIRELESS DOOR LOCK-WITH & WITHOUT(ANSWER BACK BUZZER)&LUGGAGE & BACK DOOR RELEASE-ELECTRIC TYPE&SEAT HEATER-WITHOUT&AUDIO-WITHOUT(SPEAKER),BLACK,TRIM2# |
1 | ||
| 62210-02340C1 |
NRE210..G LIGHT GRADE&WIRELESS DOOR LOCK-WITH & WITHOUT(ANSWER BACK BUZZER)&SEAT HEATER-WITHOUT&AUDIO-WITHOUT(SPEAKER),BLACK,TRIM2# |
1 | ||
| 62210-02350C1 |
MZEH12,NRE210,ZWE211..G BLACK,TRIM2# |
1 | ||
| 62210-02340C1 |
MZEH12,NRE210,ZWE211..D,N BLACK,TRIM2# |
1 | ||
| 62210-02340B0 |
MZEH12,NRE210,ZWE211..D,N COOL GRAY,TRIM1# |
1 | ||
| 62210-02350B0 |
MZEH12,NRE210,ZWE211..G COOL GRAY,TRIM1# |
1 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62220-02340C1 |
NRE210..G LIGHT GRADE&WIRELESS DOOR LOCK-WITH & WITHOUT(ANSWER BACK BUZZER)&LUGGAGE & BACK DOOR RELEASE-ELECTRIC TYPE&SEAT HEATER-WITHOUT&AUDIO-WITHOUT(SPEAKER),BLACK,TRIM2# |
1 | ||
| 62220-02350C1 |
MZEH12,NRE210,ZWE211..G BLACK,TRIM2# |
1 | ||
| 62220-02350B0 |
MZEH12,NRE210,ZWE211..G COOL GRAY,TRIM1# |
1 | ||
| 62220-02340B0 |
MZEH12,NRE210,ZWE211..D,N COOL GRAY,TRIM1# |
1 | ||
| 62220-02340C1 |
MZEH12,NRE210,ZWE211..D,N BLACK,TRIM2# |
1 | ||
| 62220-02340C1 |
NRE210..G LIGHT GRADE&WIRELESS DOOR LOCK-WITH & WITHOUT(ANSWER BACK BUZZER)&SEAT HEATER-WITHOUT&AUDIO-WITHOUT(SPEAKER),BLACK,TRIM2# |
1 | ||
| 62217G - CLIP, FRONT PILLAR GARNISH | ||||
| 62217-42050 |
MZEH12,NRE210,ZWE211 |
4 | ||
| 62311B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH | ||||
| 62311-02300 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 62312B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH | ||||
| 62312-02340 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 62331A - WEATHERSTRIP, REAR DOOR OPENING TRIM, RH | ||||
| 62331-02370 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 62332A - WEATHERSTRIP, REAR DOOR OPENING TRIM, LH | ||||
| 62332-02370 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 62411B - GARNISH, CENTER PILLAR, UPPER RH | ||||
| 62410-02330C0 |
MZEH12,NRE210,ZWE211 BLACK,TRIM1#,2# |
1 | ||
| 62412B - GARNISH, CENTER PILLAR, UPPER LH | ||||
| 62412-02420C0 |
MZEH12,NRE210,ZWE211 BLACK,TRIM1#,2# |
1 | ||
| 62413A - GARNISH, CENTER PILLAR, LOWER RH | ||||
| 62413-02360C0 |
MZEH12,NRE210,ZWE211 BLACK,TRIM1#,2# |
1 | ||
| 62413C - CLIP (FOR CENTER LOWER GARNISH) | ||||
| 90467-A0033 |
MZEH12,NRE210,ZWE211 |
4 | ||
| 62414A - GARNISH, CENTER PILLAR, LOWER LH | ||||
| 62414-02360C0 |
MZEH12,NRE210,ZWE211 BLACK,TRIM1#,2# |
1 | ||
| 62471A - GARNISH, ROOF SIDE, INNER RH | ||||
| 62470-02640C0 |
NRE210,ZWE211..WG BLACK,TRIM1#,2# |
1 | ||
| 62471J - CLIP (FOR ROOF SIDE GARNISH) | ||||
| 90467-10188 |
MZEH12,NRE210,ZWE211 COLOR:BLUE |
2 | ||
| 62472A - GARNISH, ROOF SIDE, INNER LH | ||||
| 62480-02640C0 |
NRE210,ZWE211..WG BLACK,TRIM1#,2# |
1 | ||
| 62472G - CLIP(FOR ROOF SIDE GARNISH) | ||||
| 90467-09240 |
MZEH12,NRE210,ZWE211..WG COLOR:RED |
6 | ||
| 62472G - CLIP(FOR ROOF SIDE GARNISH) | ||||
| 90467-09240 |
MZEH12,NRE210,ZWE211..WG COLOR:RED |
6 | ||
| 62489A - CLIP, ROOF SIDE INNER GARNISH | ||||
| 62489-28010 |
MZEH12,NRE210,ZWE211 |
2 | ||
| 62535G - BRACKET, QUARTER TRIM PANEL, NO.2 | ||||
| 62535-02020 |
MZEH12,NRE210,ZWE211..WG |
4 | ||
| 62551E - CLIP(FOR REAR SEAT SIDE GARNISH) | ||||
| 62217-13010 |
MZEH12,NRE210,ZWE211 |
2 | ||
| 62551F - GARNISH, REAR SEAT SIDE, RH | ||||
| 62551-02730C0 |
NRE210,ZWE211..WG BLACK,TRIM1#,2# |
1 | ||
| 62552F - GARNISH, REAR SEAT SIDE, LH | ||||
| 62552-02770C0 |
NRE210,ZWE211..WG BLACK,TRIM1#,2# |
1 | ||
| 67913 - PLATE, FRONT DOOR SCUFF, RH | ||||
| 67913-02390C0 |
MZEH12,NRE210,ZWE211 BLACK,TRIM1#,2# |
1 | ||
| 67913B - PLATE, FRONT DOOR SCUFF, RH | ||||
| 67913-YY500 |
NRE210..EUR DOOR SCUFF PLATE-RESIN(ILA) |
1 | ||
| 67913-YY410 |
MZEH12,NRE210,ZWE211..WG..N DOOR SCUFF PLATE-RESIN(CROSS PACKAGE) |
1 | ||
| 67913-YY410 |
MZEH12,NRE210,ZWE211..WG..N CROSS PACKAGE&DOOR SCUFF PLATE-RESIN(CROSS PACKAGE) |
1 | ||
| 67913-YY501 |
MZEH12,NRE210,ZWE211..EUR DOOR SCUFF PLATE-RESIN(ILA) |
1 | ||
| 67914 - PLATE, FRONT DOOR SCUFF, LH | ||||
| 67914-02370C0 |
MZEH12,NRE210,ZWE211 BLACK,TRIM1#,2# |
1 | ||
| 67914B - PLATE, FRONT DOOR SCUFF, LH | ||||
| 67914-YY080 |
MZEH12,NRE210,ZWE211..WG..N CROSS PACKAGE&DOOR SCUFF PLATE-RESIN(CROSS PACKAGE) |
1 | ||
| 67914-YY220 |
NRE210..EUR DOOR SCUFF PLATE-RESIN(ILA) |
1 | ||
| 67914-YY080 |
MZEH12,NRE210,ZWE211..WG..N DOOR SCUFF PLATE-RESIN(CROSS PACKAGE) |
1 | ||
| 67914-YY221 |
MZEH12,NRE210,ZWE211..EUR DOOR SCUFF PLATE-RESIN(ILA) |
1 | ||
| 67917A - PLATE, REAR DOOR SCUFF, RH | ||||
| 67917-02450C0 |
NRE210..WG BLACK,TRIM1#,2# |
1 | ||
| 67917A - PLATE, REAR DOOR SCUFF, RH | ||||
| 67917-02450C0 |
NRE210..WG BLACK,TRIM1#,2# |
1 | ||
| 67917C - PLATE, REAR DOOR SCUFF, RH | ||||
| 67917-YY240 |
MZEH12,NRE210,ZWE211..WG..N CROSS PACKAGE&DOOR SCUFF PLATE-RESIN(CROSS PACKAGE) |
1 | ||
| 67917-YY240 |
MZEH12,NRE210,ZWE211..WG..N DOOR SCUFF PLATE-RESIN(CROSS PACKAGE) |
1 | ||
| 67918A - PLATE, REAR DOOR SCUFF, LH | ||||
| 67918-02470C0 |
NRE210..WG BLACK,TRIM1#,2# |
1 | ||
| 67918A - PLATE, REAR DOOR SCUFF, LH | ||||
| 67918-02470C0 |
NRE210..WG BLACK,TRIM1#,2# |
1 | ||
| 67918D - PLATE, REAR DOOR SCUFF, LH | ||||
| 67918-YY100 |
MZEH12,NRE210,ZWE211..WG..N DOOR SCUFF PLATE-RESIN(CROSS PACKAGE) |
1 | ||
| 67918-YY100 |
MZEH12,NRE210,ZWE211..WG..N CROSS PACKAGE&DOOR SCUFF PLATE-RESIN(CROSS PACKAGE) |
1 | ||
| 67923A - CLAMP, DOOR SCUFF PLATE, NO.1 | ||||
| 67923-20090 |
MZEH12,NRE210,ZWE211 |
2 | ||
| 67923A - CLAMP, DOOR SCUFF PLATE, NO.1 | ||||
| 67923-20090 |
MZEH12,NRE210,ZWE211 |
2 | ||
| Common parts | ||||
| 90119-06A06 | ||||
| 90119-W0037 | ||||
| 90467-10167 | ||||
| 90467-10216 | ||||
| 90467-18017 | ||||
| 90467-W0005 | ||||

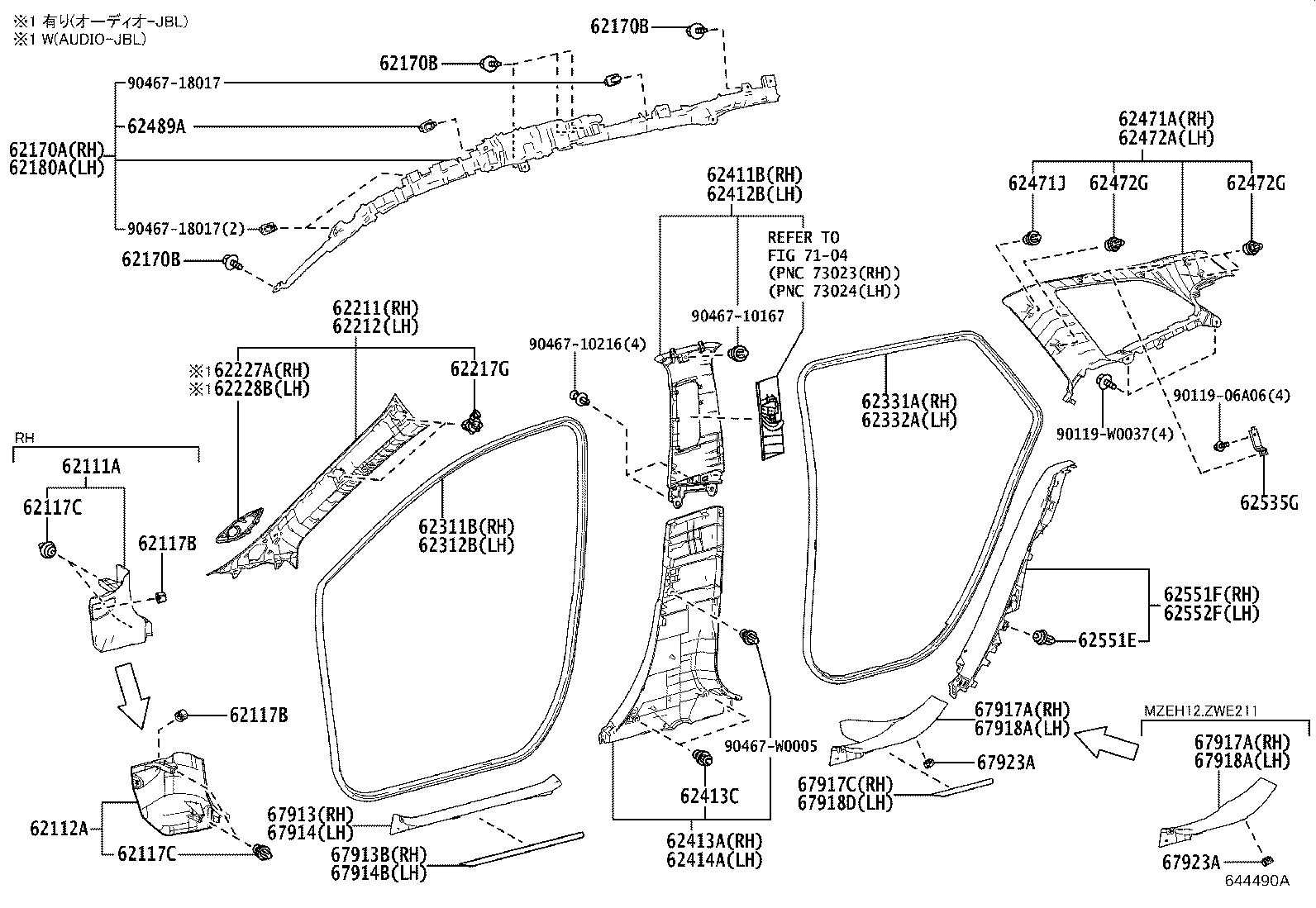

| Linked diagrams | ||||
| 7104 | ||||
