NRE210L-DHXNZW (2019)

Toyota Corolla (Ukp)

Production Jan 2019 - Sep 9999
Engine 8NRFTS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1901- )

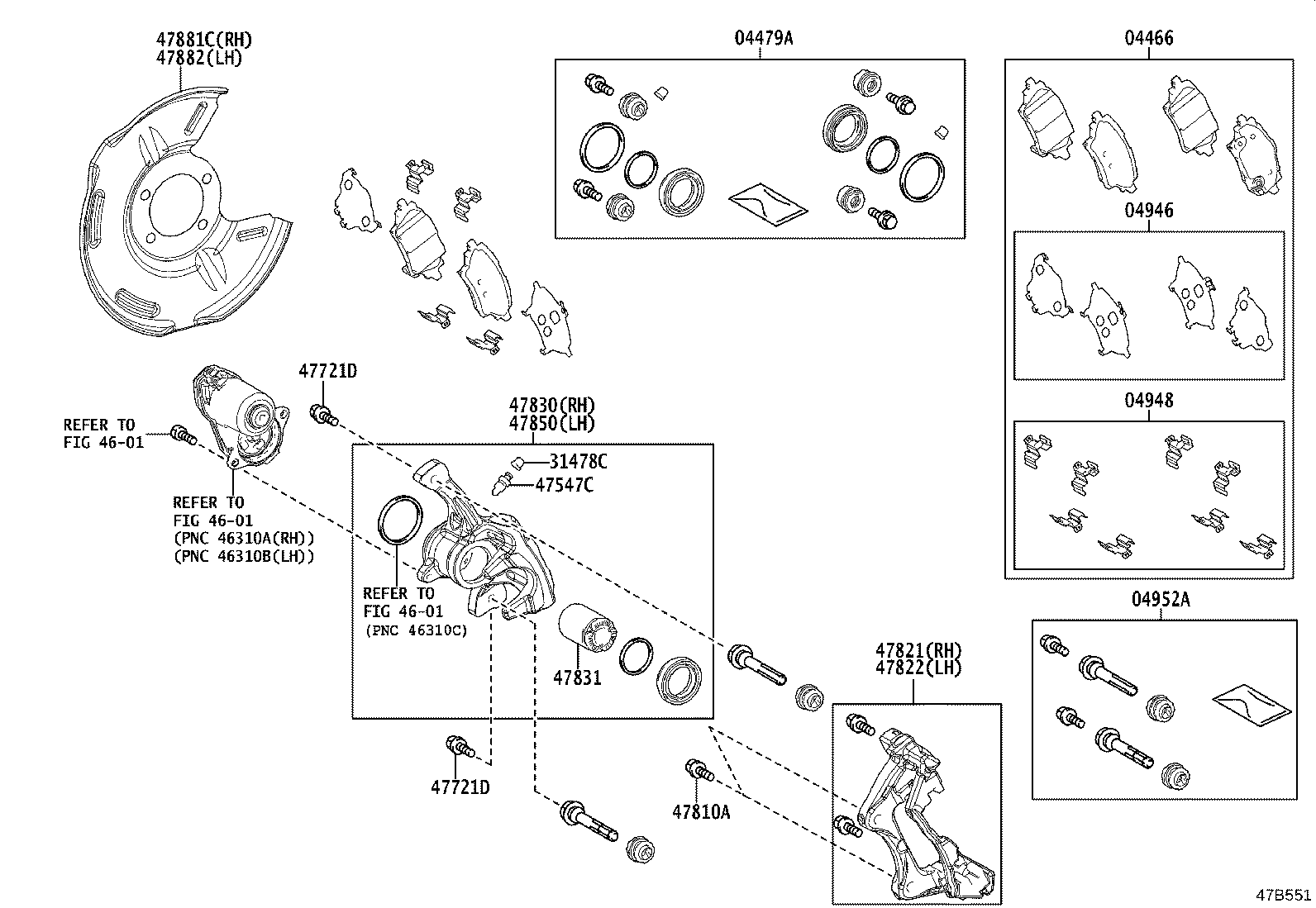

Click highlighted areas on diagram

diagram 04466 04479A 04946 04948 04952A 31478C 4601 4601 4601 47547C 47721D 47721D 47810A 47821 47822 47830 47831 47850 47881C 47882
Part # Description Qty Price
04466 - PAD KIT, DISC BRAKE, REAR
04466-02401

MZEH12,NRE210,ZWE211

MARK NBK D6360

 1
04466-02400

MZEH12,NRE210,ZWE211

MARK NBK D6360

 1
04479A - CYLINDER KIT, DISC BRAKE, REAR
04479-F4010

MZEH12,NRE210,ZWE211

 1
04946 - SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)
04946-02140

MZEH12,NRE210,ZWE211

 1
04948 - FITTING KIT, DISC BRAKE, REAR
04948-F4010

MZEH12,NRE210,ZWE211

 1
04952A - PIN KIT, REAR DISC BRAKE CYLINDER SLIDE
04952-F4020

MZEH12,NRE210,ZWE211

 2
31478C - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE)
90069-39027

MZEH12,NRE210,ZWE211

 2
47547C - PLUG, BLEEDER(FOR REAR DISC BRAKE)
47547-F4030

MZEH12,NRE210,ZWE211

 2
47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)
90069-31417

MZEH12,NRE210,ZWE211

*8-1.00PX22-10

 4
47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)
90069-31417

MZEH12,NRE210,ZWE211

*8-1.00PX22-10

 4
47810A - BOLT, HEXAGON(FOR REAR CALIPER)
90105-12174

MZEH12,NRE210,ZWE211

 4
47821 - MOUNTING, REAR DISC BRAKE CYLINDER, RH
47821-09100

MZEH12,NRE210,ZWE211

 1
47822 - MOUNTING, REAR DISC BRAKE CYLINDER, LH
47822-09100

MZEH12,NRE210,ZWE211

 1
47830 - CYLINDER ASSY, DISC BRAKE, REAR RH
47830-02360

MZEH12,NRE210,ZWE211

 1
47831 - PISTON, REAR DISC BRAKE
47831-F4030

MZEH12,NRE210,ZWE211

 2
47850 - CYLINDER ASSY, DISC BRAKE, REAR LH
47850-02350

MZEH12,NRE210,ZWE211

 1
47881C - COVER, DISC BRAKE DUST, REAR RH
47881-02190

MZEH12,NRE210,ZWE211

 1
47882 - COVER, DISC BRAKE DUST, REAR LH
47882-02190

MZEH12,NRE210,ZWE211

 1
Linked diagrams
4601
