NRE210L-DHXDZ (2019)
Toyota Corolla (Ukp)

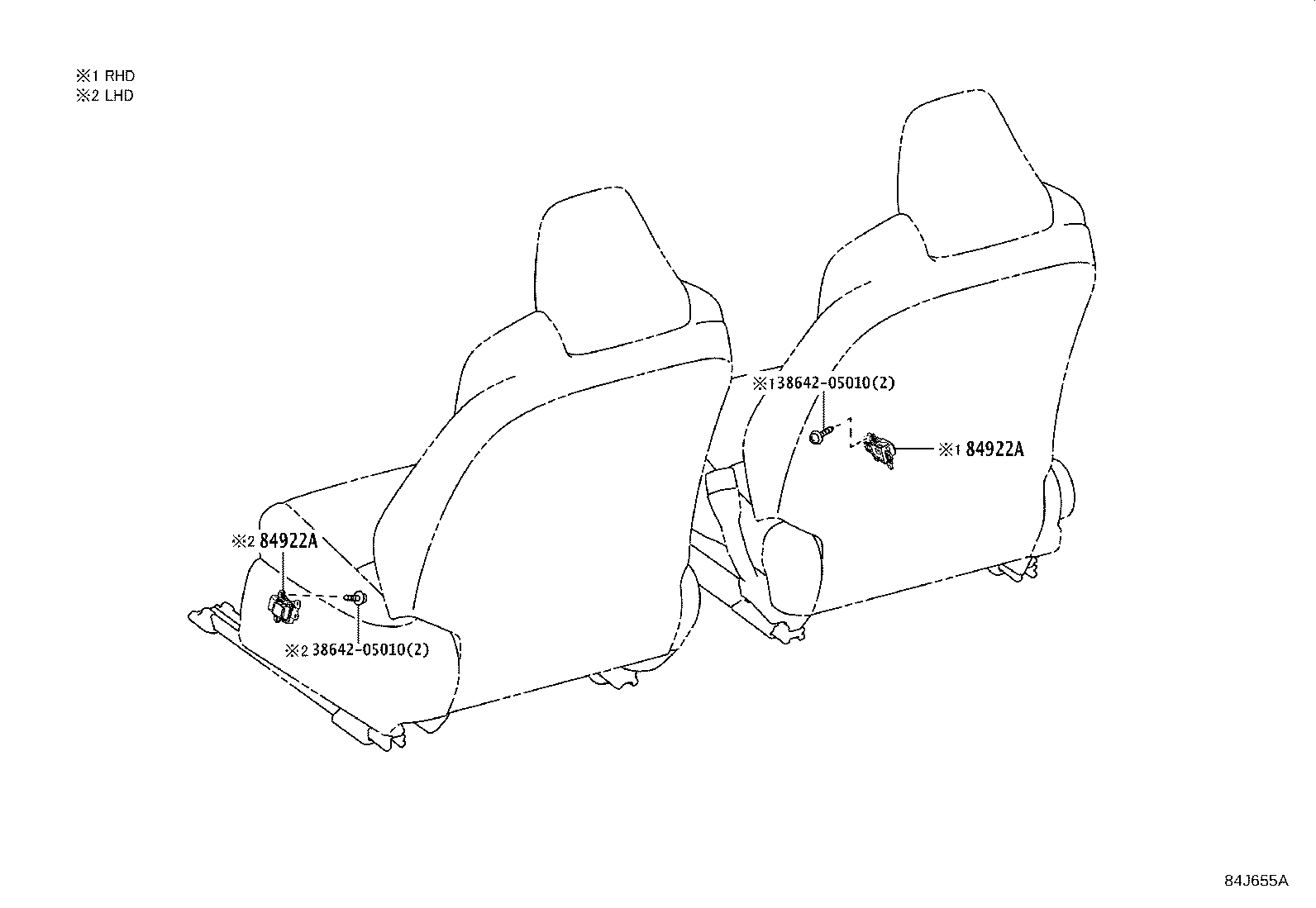

ILLUST NO. 7 OF10(1901- )
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84922A - SWITCH, FRONT POWER SEAT(FOR LUMBAR) | ||||
| 84920-02050C0 |
MZEH12,NRE210..LHD..G LIGHT GRADE&SEAT COVER MATERIAL-SPORTY FABRIC A&SEAT HEATER-WITHOUT,BLACK,TRIM1#,2# |
1 | ||
| 84920-02050C0 |
MZEH12,NRE210,ZWE211..LHD..G BLACK,TRIM1#,2# |
1 | ||
| 84920-02050C0 |
MZEH12,NRE210,ZWE211..LHD..G LIGHT GRADE&SEAT HEATER-WITHOUT,BLACK,TRIM1#,2# |
1 | ||
| 84920-02050C0 |
NRE210..LHD..G LIGHT GRADE&SEAT COVER MATERIAL-SPORTY FABRIC A,BLACK,TRIM1#,2# |
1 | ||
| 84920-02050C0 |
ZWE211..LHD..WG..N;MZEH12,NRE210..LHD..N SEAT LUMBAR SUPPORT-WIHT,BLACK,TRIM1#,2# |
1 | ||
| 84922A - SWITCH, FRONT POWER SEAT(FOR LUMBAR) | ||||
| 84920-02050C0 |
MZEH12,NRE210..LHD..G LIGHT GRADE&SEAT COVER MATERIAL-SPORTY FABRIC A&SEAT HEATER-WITHOUT,BLACK,TRIM1#,2# |
1 | ||
| 84920-02050C0 |
MZEH12,NRE210,ZWE211..LHD..G BLACK,TRIM1#,2# |
1 | ||
| 84920-02050C0 |
MZEH12,NRE210,ZWE211..LHD..G LIGHT GRADE&SEAT HEATER-WITHOUT,BLACK,TRIM1#,2# |
1 | ||
| 84920-02050C0 |
NRE210..LHD..G LIGHT GRADE&SEAT COVER MATERIAL-SPORTY FABRIC A,BLACK,TRIM1#,2# |
1 | ||
| 84920-02050C0 |
ZWE211..LHD..WG..N;MZEH12,NRE210..LHD..N SEAT LUMBAR SUPPORT-WIHT,BLACK,TRIM1#,2# |
1 | ||
| Common parts | ||||
| 38642-05010 | ||||

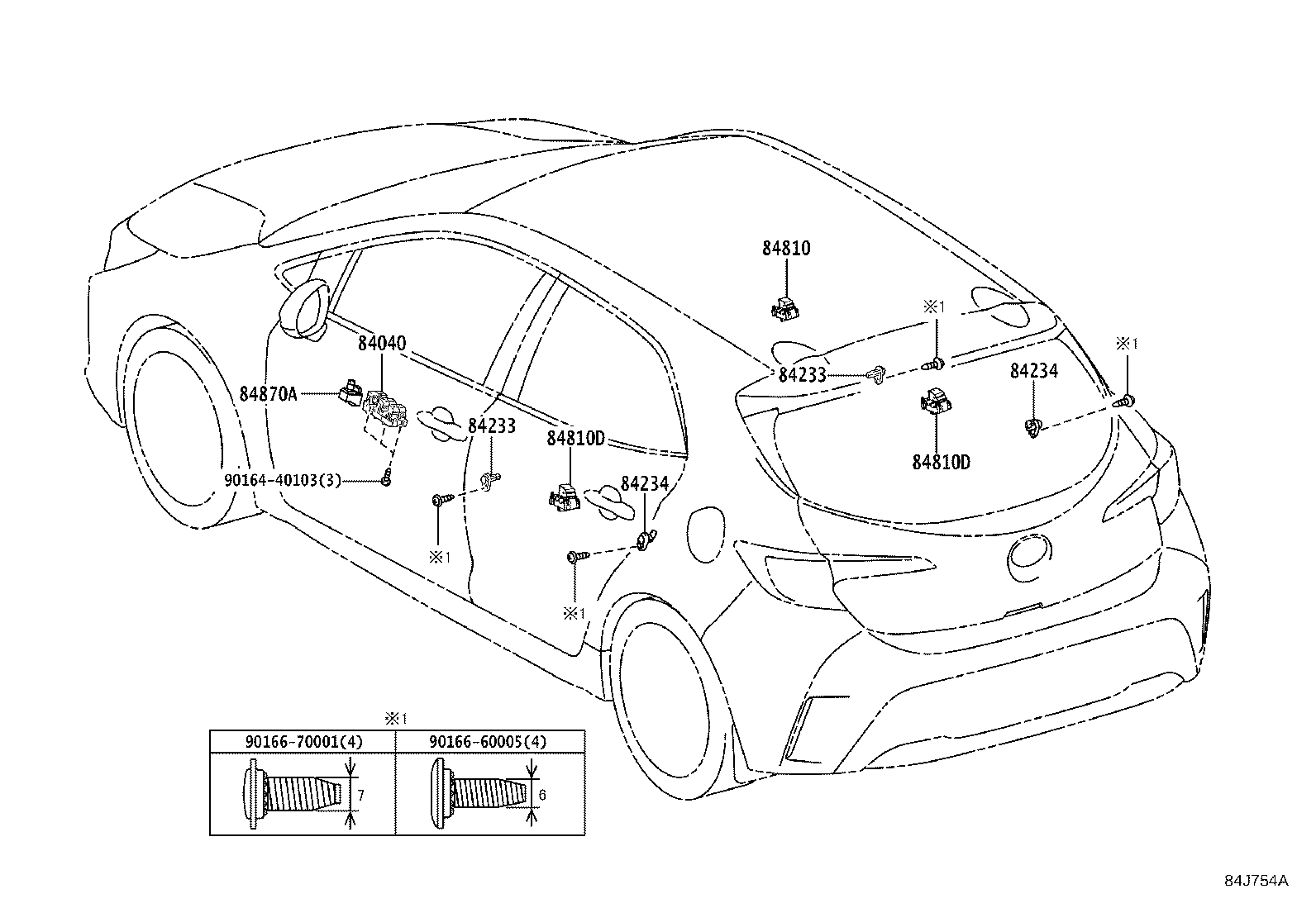

ILLUST NO. 8 OF10(1901- )LHD..HB
DOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84040 - MASTER SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84040-02280 |
NRE210,ZWE211..LHD..D |
1 | ||
| 84040-02160 |
MZEH12,NRE210,ZWE211..LHD..N POWER WINDOW-FRONT & REAR(ALL ONE-TOUCH UP/DOWN) |
1 | ||
| 84040-02160 |
MZEH12,NRE210,ZWE211..LHD..G |
1 | ||
| 84040-02370 |
MZEH12,NRE210,ZWE211..LHD..N |
1 | ||
| 84040-02370 |
NRE210..GEN MID |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-0D030 |
MZEH12,NRE210,ZWE211 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-0D030 |
MZEH12,NRE210,ZWE211 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-0D040 |
MZEH12,NRE210,ZWE211 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-0D040 |
MZEH12,NRE210,ZWE211 |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-02240 |
NRE210,ZWE211..D |
1 | ||
| 84810-02250 |
MZEH12,NRE210,ZWE211..G,N |
1 | ||
| 84810-02250 |
NRE210..GEN MID |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-02250 |
NRE210..GEN MID |
2 | ||
| 84810-02240 |
NRE210,ZWE211..D |
2 | ||
| 84810-02250 |
MZEH12,NRE210,ZWE211..G,N |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-02250 |
NRE210..GEN MID |
2 | ||
| 84810-02240 |
NRE210,ZWE211..D |
2 | ||
| 84810-02250 |
MZEH12,NRE210,ZWE211..G,N |
2 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-02490 |
MZEH12,NRE210,ZWE211..LHD..N OUTSIDE REAR VIEW MIRROR-*AREM & *MIH |
1 | ||
| 84872-02450 |
NRE210,ZWE211..LHD..D |
1 | ||
| 84872-02490 |
MZEH12,NRE210,ZWE211..LHD..G |
1 | ||
| 84872-02470 |
MZEH12,NRE210,ZWE211..LHD..N |
1 | ||
| 84872-02470 |
MZEH12,NRE210,ZWE211..LHD..G OUTSIDE REAR VIEW MIRROR-*RCM & *MIH |
1 | ||
| 84872-02490 |
MZEH12,NRE210,ZWE211..LHD..N OUTSIDE REAR VIEW MIRROR-*AREM & *MIH & *BSM |
1 | ||
| 84872-02470 |
NRE210..GEN MID |
1 | ||
| Common parts | ||||
| 90164-40103 | ||||
| 90166-60005 | ||||
| 90166-70001 | ||||

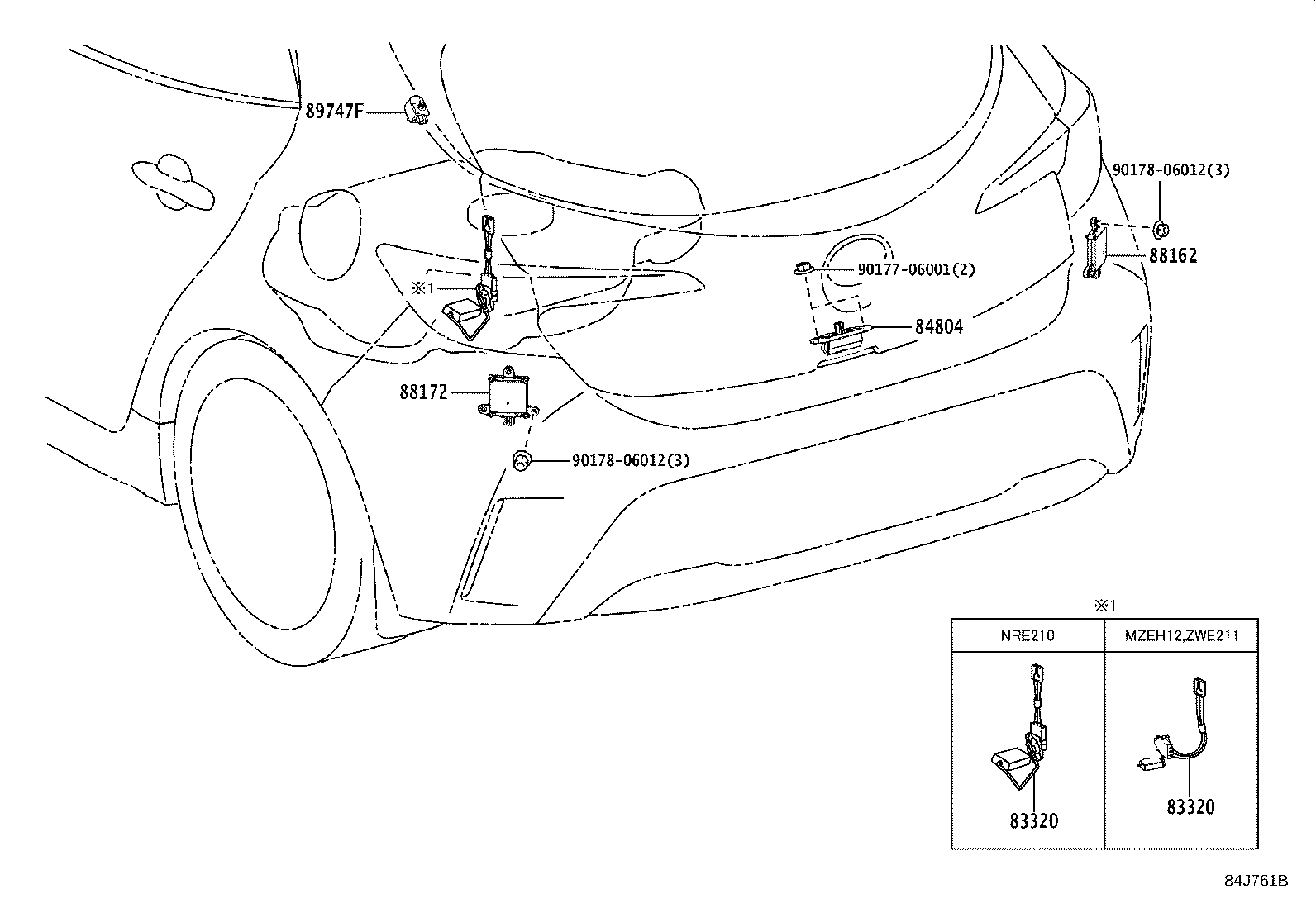

ILLUST NO. 9 OF10(1901- )HB
FLOOR & BACK DOOR 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-10250 |
NRE210 |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-10250 |
NRE210 |
1 | ||
| 84804 - SWITCH SUB-ASSY, BACK DOOR OPENER | ||||
| 84804-12050 |
MZEH12,NRE210,ZWE211..HB..G |
1 | ||
| 84804-12050 |
MZEH12,NRE210,ZWE211..HB..N WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 84804-12060 |
MZEH12,NRE210,ZWE211..HB..(D,N) |
1 | ||
| 84804-12060 |
NRE210..HB..G WIRELESS DOOR LOCK-WITH & WITHOUT(ANSWER BACK BUZZER) |
1 | ||
| 88162 - SENSOR, BLIND SPOT MONITOR, RH | ||||
| 88162-02020 |
MZEH12,NRE210,ZWE211..HB..(G,N) LANE CHANGE ASSIST-WITH(*BSM & LANE CHANGE ASSIST & *RCTA) |
1 | ||
| 88162-02020 |
MZEH12,NRE210,ZWE211..HB..(G,N) LANE CHANGE ASSIST-WITH(*BSM & LANE CHANGE ASSIST) |
1 | ||
| 88172 - SENSOR, BLIND SPOT MONITOR, LH | ||||
| 88162-02020 |
MZEH12,NRE210,ZWE211..HB..(G,N) LANE CHANGE ASSIST-WITH(*BSM & LANE CHANGE ASSIST) |
1 | ||
| 88162-02020 |
MZEH12,NRE210,ZWE211..HB..(G,N) LANE CHANGE ASSIST-WITH(*BSM & LANE CHANGE ASSIST & *RCTA) |
1 | ||
| 89747F - BUZZER, BLIND SPOT MONITOR | ||||
| 89747-52010 |
MZEH12,NRE210,ZWE211..G,N LANE CHANGE ASSIST-WITH(*BSM & LANE CHANGE ASSIST & *RCTA) |
1 | ||
| Common parts | ||||
| 90177-06001 | ||||
| 90178-06012 | ||||

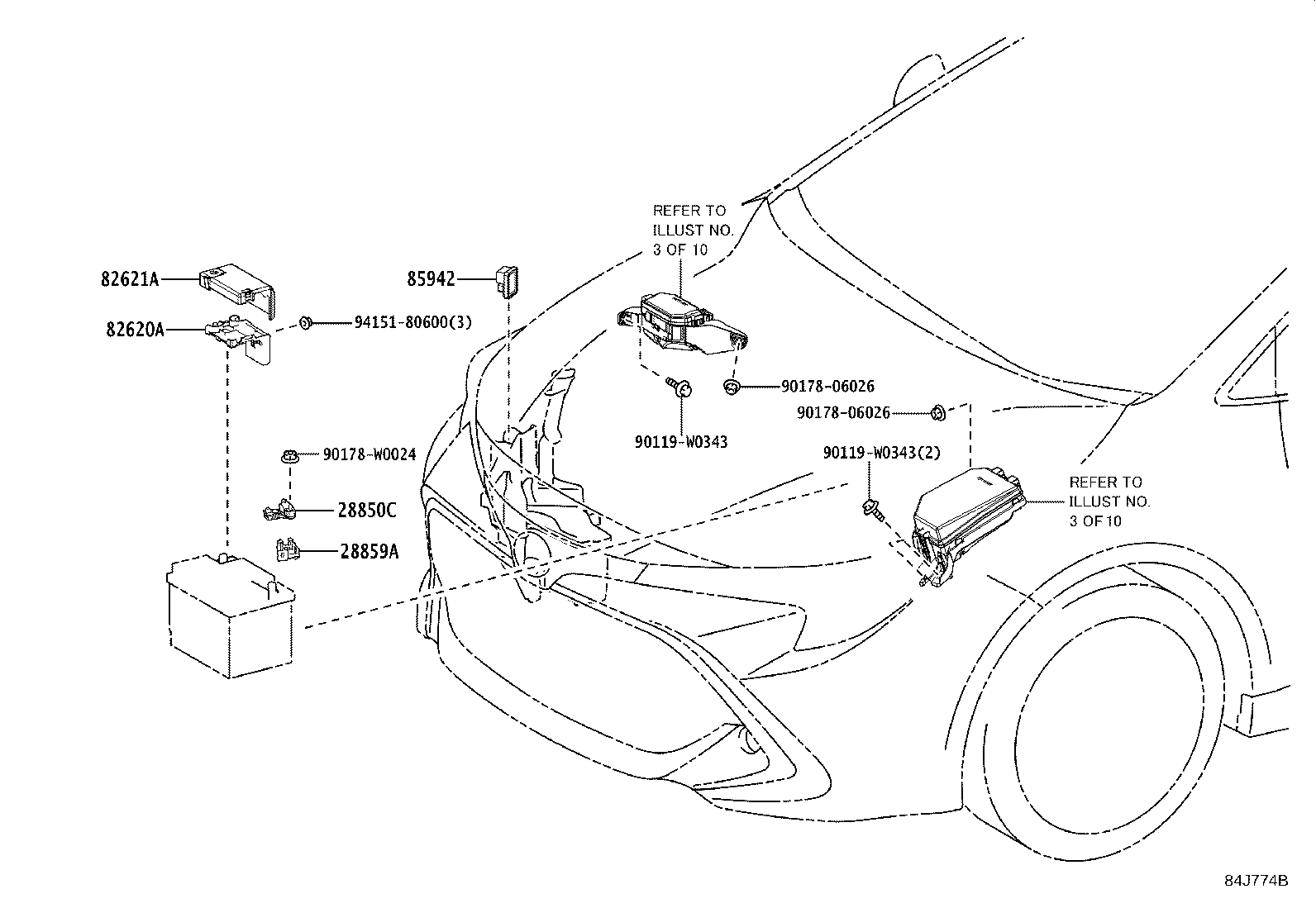

ILLUST NO. 2 OF10(1901- )NRE210
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-12310 |
NRE210..LHD..CVT..N ISRAEL SPEC&LIGHT GRADE&ACTIVE SAFETY PACKAGE-WITHOUT |
1 | ||
| 82620-12310 |
NRE210..D,N LIGHT GRADE |
1 | ||
| 82620-12310 |
NRE210 |
1 | ||
| 82620-12310 |
NRE210..LHD..CVT..N TURKEY SPEC&LIGHT GRADE&ACTIVE SAFETY PACKAGE-WITHOUT |
1 | ||
| 82620-12310 |
NRE210..LHD..CVT..N WVTA SPEC(OUTSIDE EU)&LIGHT GRADE&ACTIVE SAFETY PACKAGE-WITHOUT |
1 | ||
| 82620-12310 |
NRE210..G LIGHT GRADE&HEADLAMP-MULTI REFLECTOR & WITH(*AHB) |
1 | ||
| 82620-12310 |
NRE210..LHD..HB..CVT..N LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&ACTIVE SAFETY PACKAGE-WITHOUT&HEADLAMP-PROJECTOR |
1 | ||
| 82620-12310 |
NRE210..LHD..HB..CVT..N LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&HEADLAMP-PROJECTOR & WITH(*AHB) |
1 | ||
| 82620-12310 |
NRE210..LHD..HB..CVT..N LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&HEADLAMP-PROJECTOR |
1 | ||
| 82620-12310 |
NRE210..LHD..HB..CVT..(G,N) LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&HEADLAMP-PROJECTOR & WITH(*AHS) |
1 | ||
| 82620-12310 |
NRE210..LHD..HB..CVT..G LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM) |
1 | ||
| 82621A - COVER, FUSIBLE LINK | ||||
| 82621-F4010 |
NRE210 |
1 | ||
| 85942 - RELAY, HEADLAMP CLEANER CONTROL | ||||
| 85942-53020 |
MZEH12,NRE210,ZWE211..LHD..(G,N) HEADLAMP-PROJECTOR & WITH(*AHS)&HEADLAMP CLEANER-WITH |
1 | ||
| Common parts | ||||
| 90119-W0343 | ||||
| 90178-06026 | ||||
| 90178-W0024 | ||||
| 94151-80600 | ||||

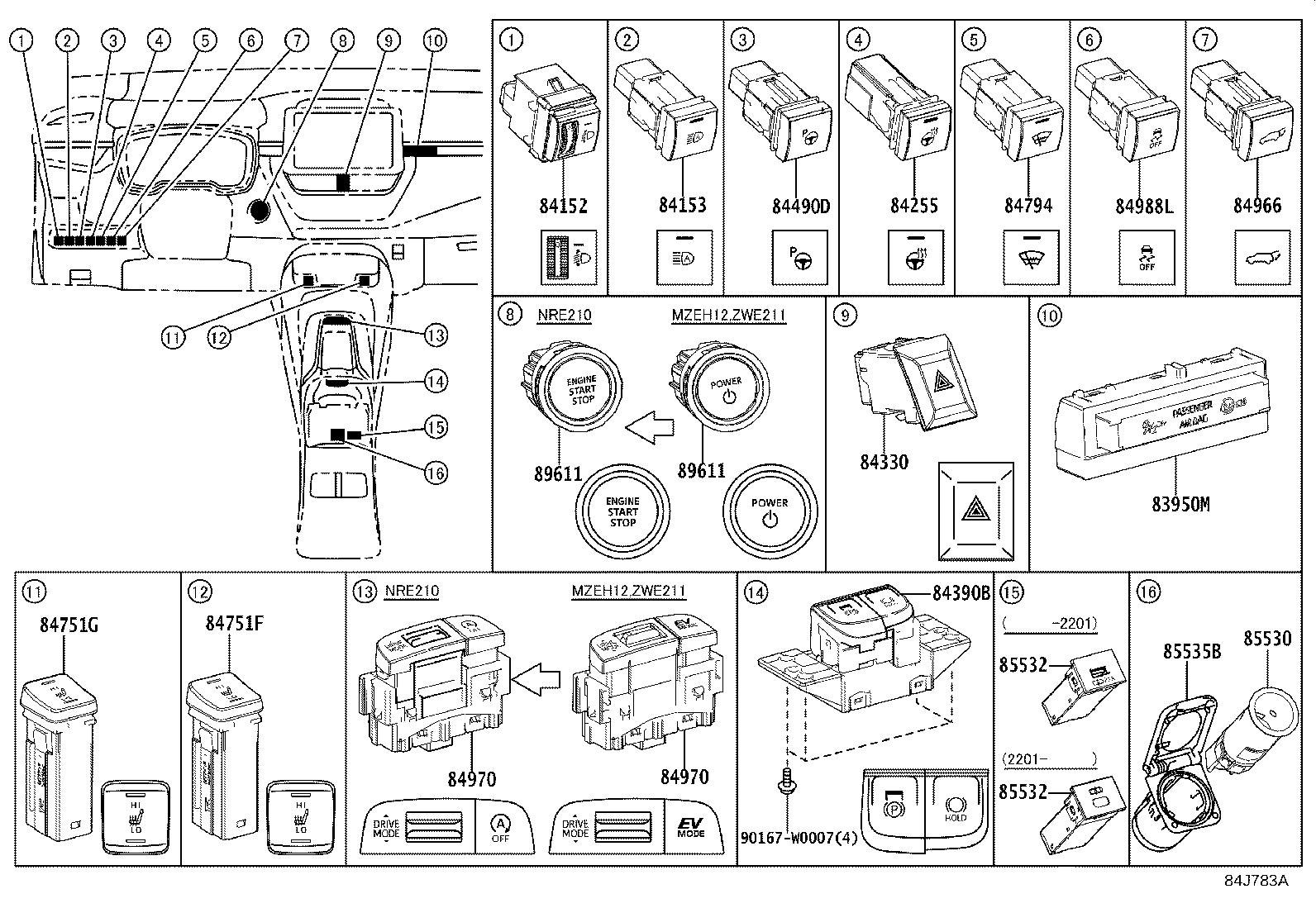

ILLUST NO. 5 OF10(1901- )LHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83950M - LAMP ASSY, TELLTALE | ||||
| 83950-02520 |
MZEH12,NRE210,ZWE211..LHD |
1 | ||
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-02160 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 84152-02160 |
MZEH12,NRE210,ZWE211..G,N HEADLAMP-PROJECTOR & WITH(*AHS) |
1 | ||
| 84153 - SWITCH, AUTO HIGH BEAM | ||||
| 84153-02110 |
NRE210..LHD..HB..G OUTSIDE EUROPE&EGYPT SPEC |
1 | ||
| 84153-02110 |
NRE210..LHD..HB..G OUTSIDE EUROPE&NEW CALEDONIA SPEC |
1 | ||
| 84153-12010 |
MZEH12,NRE210,ZWE211..G,N HEADLAMP-PROJECTOR |
1 | ||
| 84153-12010 |
NRE210..LHD..HB..G OUTSIDE EUROPE&NEW CALEDONIA SPEC |
1 | ||
| 84153-02110 |
ZWE211..LHD..HB;NRE210..LHD..HB..G;ZWE211..LHD..WG..(D,N);NRE210..LHD..(D,N)..EUR ACTIVE SAFETY PACKAGE-WITHOUT |
1 | ||
| 84153-12010 |
ZWE211..LHD..HB;NRE210..LHD..HB..G;ZWE211..LHD..WG..(D,N);NRE210..LHD..(D,N)..EUR ACTIVE SAFETY PACKAGE-WITHOUT |
1 | ||
| 84153-02110 |
NRE210,ZWE211..LHD..HB..G OUTSIDE EUROPE&ALGERIA SPEC |
1 | ||
| 84153-12010 |
NRE210,ZWE211..LHD..HB..G OUTSIDE EUROPE&ALGERIA SPEC |
1 | ||
| 84153-02110 |
MZEH12,NRE210,ZWE211..G,N HEADLAMP-PROJECTOR |
1 | ||
| 84153-12010 |
NRE210..LHD..HB..G OUTSIDE EUROPE&EGYPT SPEC |
1 | ||
| 84255 - SWITCH, STEERING HEATER | ||||
| 84255-33010 |
NRE210..LHD..(G,N) COLD AREA SPEC |
1 | ||
| 84255-33010 |
NRE210..G,N;MZEH12,ZWE211..RHD..(G,N) SUB COLD AREA SPEC |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-02400 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 84390B - SWITCH ASSY, ELECTRIC PARKING BRAKE | ||||
| 84390-02020 |
NRE210,ZWE211..LHD..D |
1 | ||
| 84390-02060 |
MZEH12,NRE210,ZWE211..LHD..(G,N) |
1 | ||
| 84390-02060 |
NRE210..GEN MID |
1 | ||
| 84490D - SWITCH ASSY, IPA MAIN | ||||
| 84490-02100 |
NRE210..GEN;NRE210..6F..N CLEARANCE & BACK SONAR-WITH(*IPA) |
1 | ||
| 84490-02100 |
MZEH12,NRE210,ZWE211..G |
1 | ||
| 84490-02100 |
MZEH12,NRE210,ZWE211..CVT..N CLEARANCE & BACK SONAR-WITH(*ICS & *IPA) |
1 | ||
| 84490-02100 |
MZEH12,NRE210,ZWE211..G CLEARANCE & BACK SONAR-WITHOUT |
1 | ||
| 84751F - SWITCH, SEAT HEATER | ||||
| 84751-02080 |
MZEH12,NRE210,ZWE211..G RIGHT SIDE |
1 | ||
| 84751-02080 |
MZEH12,NRE210,ZWE211..G LIGHT GRADE,RIGHT SIDE |
1 | ||
| 84751-02080 |
MZEH12,NRE210..G SEAT HEATER-WITHOUT,RIGHT SIDE |
1 | ||
| 84751G - SWITCH, SEAT HEATER | ||||
| 84751-02090 |
MZEH12,NRE210,ZWE211..G LEFT SIDE |
1 | ||
| 84751-02090 |
MZEH12,NRE210..G SEAT HEATER-WITHOUT,LEFT SIDE |
1 | ||
| 84751-02090 |
MZEH12,NRE210,ZWE211..G LIGHT GRADE,LEFT SIDE |
1 | ||
| 84794 - SWITCH, FR WIPER DEICER | ||||
| 84871-02010 |
MZEH12,NRE210,ZWE211..G,N STEERING WHEEL-3-SPOKE, LEATHER, WITH(STEERING HEATER) |
1 | ||
| 84970 - SWITCH ASSY, COMBINATION | ||||
| 84970-02290 |
NRE210..6F;NRE210..LHD..HB..CVT |
1 | ||
| 84970 - SWITCH ASSY, COMBINATION | ||||
| 84970-02290 |
NRE210..6F;NRE210..LHD..HB..CVT |
1 | ||
| 84988L - SWITCH, VSC OFF | ||||
| 84988-02090 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-0D021 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 85532 - SOCKET, USB CHARGER | ||||
| 85532-12020 |
MZEH12,NRE210,ZWE211..G;MZEH12,NRE210,ZWE211..WG..N |
1 | ||
| 85532-12020 |
NRE210..GEN MID |
1 | ||
| 85532-12020 |
MZEH12,NRE210,ZWE211..G;MZEH12,NRE210,ZWE211..WG..N LIGHT GRADE |
1 | ||
| 85532 - SOCKET, USB CHARGER | ||||
| 85532-12020 |
MZEH12,NRE210,ZWE211..G;MZEH12,NRE210,ZWE211..WG..N |
1 | ||
| 85532-12020 |
NRE210..GEN MID |
1 | ||
| 85532-12020 |
MZEH12,NRE210,ZWE211..G;MZEH12,NRE210,ZWE211..WG..N LIGHT GRADE |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-12060 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-02170 |
NRE210..G |
1 | ||
| 89611-02170 |
NRE210..N WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 89611-02170 |
NRE210..G WIRELESS DOOR LOCK-WITH & WITHOUT(ANSWER BACK BUZZER) |
1 | ||
| 89611-02170 |
NRE210..G WIRELESS DOOR LOCK-WITH |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-02170 |
NRE210..G |
1 | ||
| 89611-02170 |
NRE210..N WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 89611-02170 |
NRE210..G WIRELESS DOOR LOCK-WITH & WITHOUT(ANSWER BACK BUZZER) |
1 | ||
| 89611-02170 |
NRE210..G WIRELESS DOOR LOCK-WITH |
1 | ||
| Common parts | ||||
| 90167-W0007 | ||||
ILLUST NO. 4 OF10(1901- )LHD
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371E - RELAY, IGNITION, NO.4 | ||||
| 90080-87021 |
2ZRFXE..ZWE211..WG..G;8NRFTS..NRE210..RHD..G;8NRFTS..NRE210..LHD..HB..G LIGHT GRADE |
1 | ||
| 90080-87021 |
M20AFXS,8NRFTS,2ZRFXE..MZEH12,NRE210,ZWE211..G |
1 | ||
| 90080-87021 |
8NRFTS..NRE210..G SEAT HEATER-WITHOUT |
1 | ||
| 90080-87021 |
8NRFTS..NRE210..G;2ZRFXE..ZWE211..HB..G;M20AFXS..MZEH12..RHD..G;M20AFXS..MZEH12..LHD..HB..G LIGHT GRADE&AVS(TEMS)-WITHOUT |
1 | ||

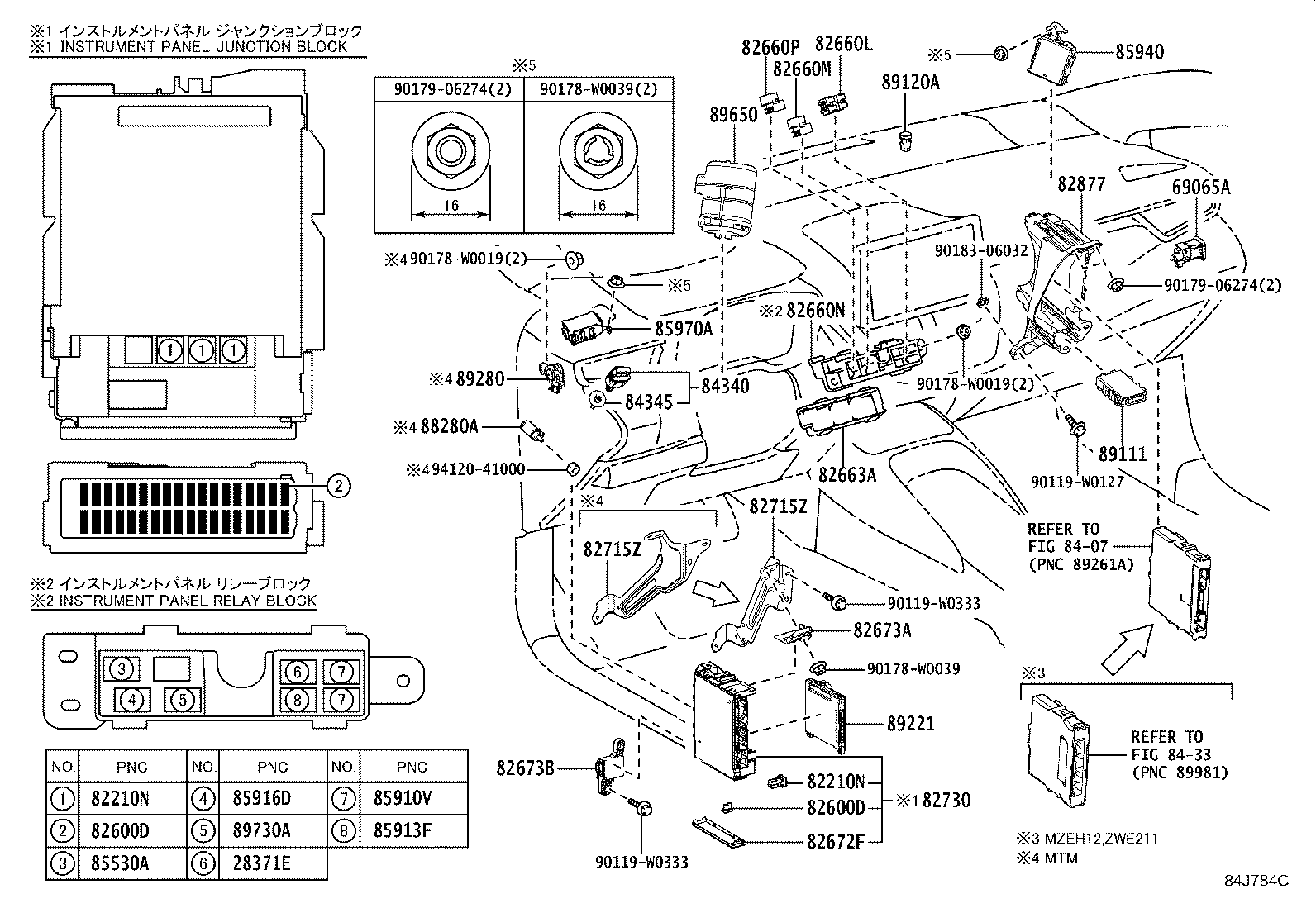

| 69065A - CYLINDER SUB-ASSY, AIR BAG CUT OFF SWITCH | ||||
| 69065-02010 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
MZEH12,NRE210,ZWE211 30A,TERM.:FEMALE,PNK |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
MZEH12,NRE210,ZWE211 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09023 |
MZEH12,NRE210,ZWE211 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09019 |
MZEH12,NRE210,ZWE211 5A,MINI FUSE,TAN |
1 | ||
| 90982-09021 |
MZEH12,NRE210,ZWE211 10A,MINI FUSE,RED |
1 | ||
| 90982-09022 |
MZEH12,NRE210,ZWE211 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09020 |
MZEH12,NRE210,ZWE211 7.5A,MINI FUSE,BROWN |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09023 |
MZEH12,NRE210,ZWE211 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09019 |
MZEH12,NRE210,ZWE211 5A,MINI FUSE,TAN |
1 | ||
| 90982-09021 |
MZEH12,NRE210,ZWE211 10A,MINI FUSE,RED |
1 | ||
| 90982-09022 |
MZEH12,NRE210,ZWE211 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09020 |
MZEH12,NRE210,ZWE211 7.5A,MINI FUSE,BROWN |
1 | ||
| 82660L - BLOCK ASSY, RELAY | ||||
| 82660-08020 |
NRE210..GEN LIGHT GRADE |
1 | ||
| 82660-08020 |
NRE210..N LIGHT GRADE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&AUDIO-WITHOUT(SPEAKER) |
1 | ||
| 82660-08020 |
NRE210..G LIGHT GRADE&WIRELESS DOOR LOCK-WITH&AUDIO-WITHOUT(SPEAKER) |
1 | ||
| 82660-08020 |
NRE210..LHD..HB..CVT..G LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&WIRELESS DOOR LOCK-WITH& WITHOUT(ANSWER BACK BUZZER) |
1 | ||
| 82660-08020 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 82660-08020 |
NRE210..LHD..HB..CVT..N LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&AUDIO-RADIO LESS 6SPEAKER |
1 | ||
| 82660-08020 |
NRE210..LHD..HB..CVT..N LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&DATA COMMUNICATION MODULE-WITHOUT |
1 | ||
| 82660-08020 |
NRE210..LHD..HB..CVT..G LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&WIRELESS DOOR LOCK-WITH& WITHOUT(ANSWER BACK BUZZER)&AUDIO-RADIO LESS 6SPEAKER |
1 | ||
| 82660-08020 |
NRE210..LHD..HB..CVT..N LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&AUDIO-RADIO LESS 6SPEAKER&DATA COMMUNICATION MODULE-WITHOUT |
1 | ||
| 82660-08020 |
NRE210..LHD..HB..CVT..(G,N) LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&AUDIO-RADIO LESS 6SPEAKER |
1 | ||
| 82660-08020 |
NRE210..LHD..HB..CVT..G LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&AUDIO-RADIO LESS 6SPEAKER&DATA COMMUNICATION MODULE-WITHOUT |
1 | ||
| 82660-08020 |
NRE210..LHD..HB..CVT..N LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 82660-08020 |
NRE210..GEN LIGHT GRADE&AUDIO-T1 (8INCH) & 6SPEAKER |
1 | ||
| 82660-08020 |
NRE210..LHD..HB..CVT..G LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&DATA COMMUNICATION MODULE-WITHOUT |
1 | ||
| 82660M - BLOCK ASSY, RELAY | ||||
| 82660-0C110 |
NRE210..GEN LIGHT GRADE |
1 | ||
| 82660-0C110 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 82660-0C110 |
NRE210..G LIGHT GRADE&WIRELESS DOOR LOCK-WITH&AUDIO-WITHOUT(SPEAKER) |
1 | ||
| 82660-0C110 |
NRE210..LHD..HB..CVT..N LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&AUDIO-RADIO LESS 6SPEAKER |
1 | ||
| 82660-0C110 |
NRE210..N LIGHT GRADE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&AUDIO-WITHOUT(SPEAKER) |
1 | ||
| 82660-0C110 |
NRE210..GEN LIGHT GRADE&AUDIO-T1 (8INCH) & 6SPEAKER |
1 | ||
| 82660-0C110 |
NRE210..LHD..HB..CVT..G LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&WIRELESS DOOR LOCK-WITH& WITHOUT(ANSWER BACK BUZZER) |
1 | ||
| 82660-0C110 |
NRE210..LHD..HB..CVT..N LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&AUDIO-RADIO LESS 6SPEAKER&DATA COMMUNICATION MODULE-WITHOUT |
1 | ||
| 82660-0C110 |
NRE210..LHD..HB..CVT..(G,N) LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&AUDIO-RADIO LESS 6SPEAKER |
1 | ||
| 82660-0C110 |
NRE210..LHD..HB..CVT..G LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&DATA COMMUNICATION MODULE-WITHOUT |
1 | ||
| 82660-0C110 |
NRE210..LHD..HB..CVT..N LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&DATA COMMUNICATION MODULE-WITHOUT |
1 | ||
| 82660-0C110 |
NRE210..LHD..HB..CVT..N LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 82660-0C110 |
NRE210..LHD..HB..CVT..G LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&AUDIO-RADIO LESS 6SPEAKER&DATA COMMUNICATION MODULE-WITHOUT |
1 | ||
| 82660-0C110 |
NRE210..LHD..HB..CVT..G LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&WIRELESS DOOR LOCK-WITH& WITHOUT(ANSWER BACK BUZZER)&AUDIO-RADIO LESS 6SPEAKER |
1 | ||
| 82660N - BLOCK ASSY, RELAY | ||||
| 82660-12460 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 82660-12460 |
NRE210..GEN LIGHT GRADE |
1 | ||
| 82660-12460 |
NRE210..G LIGHT GRADE&WIRELESS DOOR LOCK-WITH&AUDIO-WITHOUT(SPEAKER) |
1 | ||
| 82660-12460 |
NRE210..GEN LIGHT GRADE&AUDIO-T1 (8INCH) & 6SPEAKER |
1 | ||
| 82660-12460 |
NRE210..LHD..HB..CVT..N LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&AUDIO-RADIO LESS 6SPEAKER&DATA COMMUNICATION MODULE-WITHOUT |
1 | ||
| 82660-12460 |
NRE210..LHD..HB..CVT..G LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&AUDIO-RADIO LESS 6SPEAKER&DATA COMMUNICATION MODULE-WITHOUT |
1 | ||
| 82660-12460 |
NRE210..LHD..HB..CVT..G LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&WIRELESS DOOR LOCK-WITH& WITHOUT(ANSWER BACK BUZZER) |
1 | ||
| 82660-12460 |
NRE210..N LIGHT GRADE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&AUDIO-WITHOUT(SPEAKER) |
1 | ||
| 82660-12460 |
NRE210..LHD..HB..CVT..G LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&DATA COMMUNICATION MODULE-WITHOUT |
1 | ||
| 82660-12460 |
NRE210..LHD..HB..CVT..N LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&DATA COMMUNICATION MODULE-WITHOUT |
1 | ||
| 82660-12460 |
NRE210..LHD..HB..CVT..G LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&WIRELESS DOOR LOCK-WITH& WITHOUT(ANSWER BACK BUZZER)&AUDIO-RADIO LESS 6SPEAKER |
1 | ||
| 82660-12460 |
NRE210..LHD..HB..CVT..N LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&AUDIO-RADIO LESS 6SPEAKER |
1 | ||
| 82660-12460 |
NRE210..LHD..HB..CVT..(G,N) LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&AUDIO-RADIO LESS 6SPEAKER |
1 | ||
| 82660-12460 |
NRE210..LHD..HB..CVT..N LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 82660P - BLOCK ASSY, RELAY | ||||
| 82660-52010 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 82660-52010 |
NRE210..GEN LIGHT GRADE |
1 | ||
| 82660-52010 |
NRE210..GEN LIGHT GRADE&AUDIO-T1 (8INCH) & 6SPEAKER |
1 | ||
| 82660-52010 |
NRE210..N LIGHT GRADE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&AUDIO-WITHOUT(SPEAKER) |
1 | ||
| 82660-52010 |
NRE210..G LIGHT GRADE&WIRELESS DOOR LOCK-WITH&AUDIO-WITHOUT(SPEAKER) |
1 | ||
| 82660-52010 |
NRE210..LHD..HB..CVT..(G,N) LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&AUDIO-RADIO LESS 6SPEAKER |
1 | ||
| 82660-52010 |
NRE210..LHD..HB..CVT..G LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&WIRELESS DOOR LOCK-WITH& WITHOUT(ANSWER BACK BUZZER) |
1 | ||
| 82660-52010 |
NRE210..LHD..HB..CVT..G LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&DATA COMMUNICATION MODULE-WITHOUT |
1 | ||
| 82660-52010 |
NRE210..LHD..HB..CVT..N LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 82660-52010 |
NRE210..LHD..HB..CVT..N LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&DATA COMMUNICATION MODULE-WITHOUT |
1 | ||
| 82660-52010 |
NRE210..LHD..HB..CVT..G LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&AUDIO-RADIO LESS 6SPEAKER&DATA COMMUNICATION MODULE-WITHOUT |
1 | ||
| 82660-52010 |
NRE210..LHD..HB..CVT..N LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&AUDIO-RADIO LESS 6SPEAKER |
1 | ||
| 82660-52010 |
NRE210..LHD..HB..CVT..G LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&WIRELESS DOOR LOCK-WITH& WITHOUT(ANSWER BACK BUZZER)&AUDIO-RADIO LESS 6SPEAKER |
1 | ||
| 82660-52010 |
NRE210..LHD..HB..CVT..N LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&AUDIO-RADIO LESS 6SPEAKER&DATA COMMUNICATION MODULE-WITHOUT |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-12150 |
NRE210..GEN LIGHT GRADE |
1 | ||
| 82663-12150 |
NRE210..LHD..HB..CVT..N LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 82663-12150 |
NRE210..GEN LIGHT GRADE&AUDIO-T1 (8INCH) & 6SPEAKER |
1 | ||
| 82663-12150 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 82663-12150 |
NRE210..N LIGHT GRADE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&AUDIO-WITHOUT(SPEAKER) |
1 | ||
| 82663-12150 |
NRE210..LHD..HB..CVT..N LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&AUDIO-RADIO LESS 6SPEAKER&DATA COMMUNICATION MODULE-WITHOUT |
1 | ||
| 82663-12150 |
NRE210..LHD..HB..CVT..N LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&AUDIO-RADIO LESS 6SPEAKER |
1 | ||
| 82663-12150 |
NRE210..LHD..HB..CVT..(G,N) LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&AUDIO-RADIO LESS 6SPEAKER |
1 | ||
| 82663-12150 |
NRE210..LHD..HB..CVT..N LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&DATA COMMUNICATION MODULE-WITHOUT |
1 | ||
| 82663-12150 |
NRE210..LHD..HB..CVT..G LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&AUDIO-RADIO LESS 6SPEAKER&DATA COMMUNICATION MODULE-WITHOUT |
1 | ||
| 82663-12150 |
NRE210..G LIGHT GRADE&WIRELESS DOOR LOCK-WITH&AUDIO-WITHOUT(SPEAKER) |
1 | ||
| 82663-12150 |
NRE210..LHD..HB..CVT..G LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&WIRELESS DOOR LOCK-WITH& WITHOUT(ANSWER BACK BUZZER) |
1 | ||
| 82663-12150 |
NRE210..LHD..HB..CVT..G LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&DATA COMMUNICATION MODULE-WITHOUT |
1 | ||
| 82663-12150 |
NRE210..LHD..HB..CVT..G LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&WIRELESS DOOR LOCK-WITH& WITHOUT(ANSWER BACK BUZZER)&AUDIO-RADIO LESS 6SPEAKER |
1 | ||
| 82672F - COVER, JUNCTION BLOCK | ||||
| 82672-02110 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-02270 |
MZEH12,NRE210,ZWE211..LHD |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-F4020 |
MZEH12,NRE210,ZWE211..LHD |
1 | ||
| 82715Z - BRACKET, WIRING HARNESS CLAMP | ||||
| 82715-0Z150 |
MZEH12,NRE210,ZWE211..LHD..CVT |
1 | ||
| 82715Z - BRACKET, WIRING HARNESS CLAMP | ||||
| 82715-0Z150 |
MZEH12,NRE210,ZWE211..LHD..CVT |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-02P80 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 82877 - BOX, COMPUTER INTEGRATION, RH | ||||
| 82877-F4010 |
MZEH12,NRE210,ZWE211..LHD |
1 | ||
| 82877-F4020 |
MZEH12,NRE210,ZWE211..LHD |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-09370 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 85913F - RELAY, STEERING HEATER | ||||
| 90987-02027 |
NRE210..G,N;MZEH12,ZWE211..RHD..(G,N) SUB COLD AREA SPEC |
1 | ||
| 90987-02027 |
NRE210..LHD..(G,N) COLD AREA SPEC |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90080-87021 |
MZEH12,NRE210,ZWE211..G |
1 | ||
| 90080-87021 |
MZEH12,NRE210,ZWE211..G FRONT FOG & DRIVING LAMP-WITHOUT |
1 | ||
| 90080-87021 |
NRE210..GEN FRONT FOG & DRIVING LAMP-WITH |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-12230 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 89111 - COMPUTER, NETWORK GATEWAY | ||||
| 89111-02040 |
NRE210 |
1 | ||
| 89120A - SENSOR, AUTOMATIC LIGHT CONTROL | ||||
| 89121-F4010 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89220-02Q80 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(AUTO)&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&HEADLAMP-PROJECTOR & WITH(*AHS)&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH & *BSM |
1 | ||
| 89220-02Q80 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(AUTO)&HEADLAMP-PROJECTOR & WITH(*AHS)&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH & *BSM |
1 | ||
| 89220-02Q60 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N WIRELESS DOOR LOCK-WITH(SMART ENTRY)&HEADLAMP-PROJECTOR & WITH(*AHB)&OUTSIDE REARVIEW MIRROR-*AREM & *MIH & *BSM |
1 | ||
| 89220-02R00 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N WIRELESS DOOR LOCK-WITH(SMART ENTRY)&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH & *BSM |
1 | ||
| 89220-02Q80 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N WIRELESS DOOR LOCK-WITH(SMART ENTRY)&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&HEADLAMP-PROJECTOR & WITH(*AHS)&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH & *BSM |
1 | ||
| 89220-02Q60 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N WIRELESS DOOR LOCK-WITH(SMART ENTRY)&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&HEADLAMP-PROJECTOR & WITH(*AHB)&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH & *BSM |
1 | ||
| 89220-02Q60 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(AUTO)&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&HEADLAMP-PROJECTOR & WITH(*AHB)&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH & *BSM |
1 | ||
| 89220-02R10 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N NTA SPEC(EUROPE)&INTERMITTENT WIPER-WITH(AUTO)&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&HEADLAMP-PROJECTOR |
1 | ||
| 89220-02R10 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N NTA SPEC(EUROPE)&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&HEADLAMP-PROJECTOR&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH |
1 | ||
| 89220-02R10 |
MZEH12,NRE210,ZWE211..LHD..CVT..N NTA SPEC(EUROPE)&INTERMITTENT WIPER-WITH(AUTO)&HEADLAMP-PROJECTOR&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH |
1 | ||
| 89220-02R10 |
MZEH12,NRE210,ZWE211..LHD..CVT..N NTA SPEC(EUROPE)&INTERMITTENT WIPER-WITH(AUTO)&HEADLAMP-PROJECTOR |
1 | ||
| 89220-02R10 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N NTA SPEC(EUROPE)&INTERMITTENT WIPER-WITH(AUTO)&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&HEADLAMP-PROJECTOR&OUTSIDE REAR VIEW MIRROR-*AREM &*MIH |
1 | ||
| 89220-02R10 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N NTA SPEC(EUROPE)&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&HEADLAMP-PROJECTOR |
1 | ||
| 89220-02R00 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(AUTO)&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH & *BSM |
1 | ||
| 89220-02Q80 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N WIRELESS DOOR LOCK-WITH(SMART ENTRY)&HEADLAMP-PROJECTOR & WITH(*AHS)&OUTSIDE REARVIEW MIRROR-*AREM & *MIH & *BSM |
1 | ||
| 89220-02R00 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(AUTO)&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH & *BSM |
1 | ||
| 89220-02R10 |
MZEH12,NRE210,ZWE211..LHD..CVT..N NTA SPEC(EUROPE)&HEADLAMP-PROJECTOR&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH |
1 | ||
| 89220-02R20 |
MZEH12,NRE210,ZWE211..LHD..CVT..N NTA SPEC(EUROPE)&HEADLAMP-MULTI REFLECTOR |
1 | ||
| 89220-02R10 |
MZEH12,NRE210,ZWE211..LHD..CVT..(G,N) NTA SPEC(EUROPE)&HEADLAMP-PROJECTOR |
1 | ||
| 89220-02R30 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N NTA SPEC(EUROPE)&INTERMITTENT WIPER-WITH(AUTO)&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&HEADLAMP-MULTI REFLECTOR&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH |
1 | ||
| 89220-02Q60 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(AUTO)&HEADLAMP-PROJECTOR & WITH(*AHB)&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH & *BSM |
1 | ||
| 89220-02R30 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N NTA SPEC(EUROPE)&INTERMITTENT WIPER-WITH(AUTO)&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&HEADLAMP-MULTI REFLECTOR |
1 | ||
| 89220-02R30 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N NTA SPEC(EUROPE)&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&HEADLAMP-MULTI REFLECTOR |
1 | ||
| 89220-02R00 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N WIRELESS DOOR LOCK-WITH(SMART ENTRY)&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH & *BSM |
1 | ||
| 89220-02R30 |
MZEH12,NRE210,ZWE211..LHD..CVT..N NTA SPEC(EUROPE)&HEADLAMP-MULTI REFLECTOR&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH |
1 | ||
| 89220-02R30 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N NTA SPEC(EUROPE)&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&HEADLAMP-MULTI REFLECTOR&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH |
1 | ||
| 89220-02R30 |
MZEH12,NRE210,ZWE211..LHD..CVT..N NTA SPEC(EUROPE)&INTERMITTENT WIPER-WITH(AUTO)&HEADLAMP-MULTI REFLECTOR&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH |
1 | ||
| 89220-02R30 |
MZEH12,NRE210,ZWE211..LHD..CVT..N NTA SPEC(EUROPE)&INTERMITTENT WIPER-WITH(AUTO)&HEADLAMP-MULTI REFLECTOR |
1 | ||
| 89220-02S10 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N ISRAEL SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(AUTO)&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&HEADLAMP-PROJECTOR & WITH(*AHS)&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH & *BSM |
1 | ||
| 89220-02S10 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N ISRAEL SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&HEADLAMP-PROJECTOR & WITH(*AHS)&OUTSIDE REAR VIEWMIRROR-*AREM & *MIH & *BSM |
1 | ||
| 89220-02R30 |
MZEH12,NRE210,ZWE211..LHD..CVT..G NTA SPEC(EUROPE)&HEADLAMP-MULTI REFLECTOR |
1 | ||
| 89220-02S30 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N ISRAEL SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(AUTO)&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH & *BSM |
1 | ||
| 89220-02R90 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N ISRAEL SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(AUTO)&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&HEADLAMP-PROJECTOR & WITH(*AHB)&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH & *BSM |
1 | ||
| 89220-02R90 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N ISRAEL SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(AUTO)&HEADLAMP-PROJECTOR & WITH(*AHB)&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH & *BSM |
1 | ||
| 89220-02R90 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N ISRAEL SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&HEADLAMP-PROJECTOR & WITH(*AHB)&OUTSIDE REAR VIEWMIRROR-*AREM & *MIH & *BSM |
1 | ||
| 89220-02S10 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N ISRAEL SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(AUTO)&HEADLAMP-PROJECTOR & WITH(*AHS)&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH & *BSM |
1 | ||
| 89220-02S30 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N ISRAEL SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH & *BSM |
1 | ||
| 89220-02S10 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N ISRAEL SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&HEADLAMP-PROJECTOR & WITH(*AHS)&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH & *BSM |
1 | ||
| 89220-02S40 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N TURKEY SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(AUTO)&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&HEADLAMP-PROJECTOR&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH & *BSM |
1 | ||
| 89220-02S40 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N TURKEY SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&HEADLAMP-PROJECTOR&OUTSIDE REAR VIEW MIRROR-*AREM& *MIH & *BSM |
1 | ||
| 89220-02S40 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N TURKEY SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(AUTO)&HEADLAMP-PROJECTOR&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH & *BSM |
1 | ||
| 89220-02S30 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N ISRAEL SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&OUTSIDE REAR VIEW MIRROR-*AREM &*MIH & *BSM |
1 | ||
| 89220-02S60 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N TURKEY SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(AUTO)&HEADLAMP-PROJECTOR & WITH(*AHS)&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH & *BSM |
1 | ||
| 89220-02S40 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N TURKEY SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&HEADLAMP-PROJECTOR & WITH(*AHB)&OUTSIDE REAR VIEWMIRROR-*AREM & *MIH & *BSM |
1 | ||
| 89220-02S30 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N ISRAEL SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(AUTO)&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH & *BSM |
1 | ||
| 89220-02S60 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N TURKEY SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&HEADLAMP-PROJECTOR & WITH(*AHS)&OUTSIDE REAR VIEWMIRROR-*AREM & *MIH & *BSM |
1 | ||
| 89220-02S40 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N TURKEY SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&HEADLAMP-PROJECTOR&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH & *BSM |
1 | ||
| 89220-02S40 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N TURKEY SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&HEADLAMP-PROJECTOR & WITH(*AHB)&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH & *BSM |
1 | ||
| 89220-02S60 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N TURKEY SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&HEADLAMP-PROJECTOR & WITH(*AHS)&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH & *BSM |
1 | ||
| 89220-02S80 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N TURKEY SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(AUTO)&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH & *BSM |
1 | ||
| 89220-02R90 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N ISRAEL SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&HEADLAMP-PROJECTOR & WITH(*AHB)&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH & *BSM |
1 | ||
| 89220-02S80 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N TURKEY SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH & *BSM |
1 | ||
| 89220-02S40 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N TURKEY SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(AUTO)&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&HEADLAMP-PROJECTOR & WITH(*AHB)&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH & *BSM |
1 | ||
| 89220-02S80 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N TURKEY SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&OUTSIDE REAR VIEW MIRROR-*AREM &*MIH & *BSM |
1 | ||
| 89220-02S60 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N TURKEY SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(AUTO)&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&HEADLAMP-PROJECTOR & WITH(*AHS)&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH & *BSM |
1 | ||
| 89220-02S40 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N TURKEY SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(AUTO)&HEADLAMP-PROJECTOR & WITH(*AHB)&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH & *BSM |
1 | ||
| 89220-02S80 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N TURKEY SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(AUTO)&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH & *BSM |
1 | ||
| 89220-02T20 |
NRE210..CVT..GEN |
1 | ||
| 89220-02V70 |
NRE210..CVT..GEN CHILE SPEC |
1 | ||
| 89220-02V70 |
NRE210..CVT..GEN PERU SPEC |
1 | ||
| 89220-02R40 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N EU COUNTRY(WITHOUT RSA)&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&HEADLAMP-PROJECTOR & WITH(*AHB)&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH |
1 | ||
| 89220-02Q60 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N INTERMITTENT WIPER-WITH(AUTO)&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&HEADLAMP-PROJECTOR & WITH(*AHB)&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH |
1 | ||
| 89220-02Q60 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N INTERMITTENT WIPER-WITH(AUTO)&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&HEADLAMP-PROJECTOR & WITH(*AHB) |
1 | ||
| 89220-02Q60 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N INTERMITTENT WIPER-WITH(AUTO)&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&HEADLAMP-PROJECTOR |
1 | ||
| 89220-02Q60 |
MZEH12,NRE210,ZWE211..LHD..CVT..N INTERMITTENT WIPER-WITH(AUTO)&HEADLAMP-PROJECTOR |
1 | ||
| 89220-02Q60 |
MZEH12,NRE210,ZWE211..LHD..CVT..N INTERMITTENT WIPER-WITH(AUTO)&HEADLAMP-PROJECTOR & WITH(*AHB) |
1 | ||
| 89220-02Q60 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N INTERMITTENT WIPER-WITH(AUTO)&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&HEADLAMP-PROJECTOR&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH |
1 | ||
| 89220-02Q60 |
MZEH12,NRE210,ZWE211..LHD..CVT..G |
1 | ||
| 89220-02Q60 |
MZEH12,NRE210,ZWE211..LHD..CVT..N HEADLAMP-PROJECTOR |
1 | ||
| 89220-02Q60 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&HEADLAMP-PROJECTOR & WITH(*AHB) |
1 | ||
| 89220-02Q60 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&HEADLAMP-PROJECTOR&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH |
1 | ||
| 89220-02Q60 |
MZEH12,NRE210,ZWE211..LHD..CVT..N INTERMITTENT WIPER-WITH(AUTO)&HEADLAMP-PROJECTOR&OUTSIDE REAR VIEW MIRROR-*AREM &*MIH |
1 | ||
| 89220-02Q60 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&HEADLAMP-PROJECTOR & WITH(*AHB)&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH |
1 | ||
| 89220-02Q60 |
MZEH12,NRE210,ZWE211..LHD..CVT..N HEADLAMP-PROJECTOR & WITH(*AHB) |
1 | ||
| 89220-02Q70 |
MZEH12,NRE210,ZWE211..LHD..CVT..N HEADLAMP-PROJECTOR & WITH(*AHS) |
1 | ||
| 89220-02Q80 |
MZEH12,NRE210,ZWE211..LHD..CVT..G HEADLAMP-PROJECTOR & WITH(*AHS) |
1 | ||
| 89220-02Q60 |
MZEH12,NRE210,ZWE211..LHD..CVT..N INTERMITTENT WIPER-WITH(AUTO)&HEADLAMP-PROJECTOR & WITH(*AHB)&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH |
1 | ||
| 89220-02Q60 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&HEADLAMP-PROJECTOR |
1 | ||
| 89220-02Q80 |
MZEH12,NRE210,ZWE211..LHD..CVT..N INTERMITTENT WIPER-WITH(AUTO)&HEADLAMP-PROJECTOR & WITH(*AHS) |
1 | ||
| 89220-02Q80 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&HEADLAMP-PROJECTOR & WITH(*AHS)&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH |
1 | ||
| 89220-02R00 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N INTERMITTENT WIPER-WITH(AUTO)&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH |
1 | ||
| 89220-02Q60 |
MZEH12,NRE210,ZWE211..LHD..CVT..N HEADLAMP-PROJECTOR & WITH(*AHB)&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH |
1 | ||
| 89220-02Q60 |
MZEH12,NRE210,ZWE211..LHD..CVT..N HEADLAMP-PROJECTOR&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH |
1 | ||
| 89220-02R00 |
MZEH12,NRE210,ZWE211..LHD..CVT..G HEADLAMP-MULTI REFLECTOR |
1 | ||
| 89220-02R00 |
MZEH12,NRE210,ZWE211..LHD..CVT..N INTERMITTENT WIPER-WITH(AUTO)&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH |
1 | ||
| 89220-02Q80 |
MZEH12,NRE210,ZWE211..LHD..CVT..N HEADLAMP-PROJECTOR & WITH(*AHS)&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH |
1 | ||
| 89220-02R00 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N INTERMITTENT WIPER-WITH(AUTO)&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM) |
1 | ||
| 89220-02R00 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH |
1 | ||
| 89220-02R00 |
MZEH12,NRE210,ZWE211..LHD..CVT..G HEADLAMP-MULTI REFLECTOR & WITH(*AHB) |
1 | ||
| 89220-02R00 |
MZEH12,NRE210,ZWE211..LHD..CVT..N OUTSIDE REAR VIEW MIRROR-*AREM & *MIH |
1 | ||
| 89220-02Q80 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N INTERMITTENT WIPER-WITH(AUTO)&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&HEADLAMP-PROJECTOR & WITH(*AHS) |
1 | ||
| 89220-02Q80 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N INTERMITTENT WIPER-WITH(AUTO)&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&HEADLAMP-PROJECTOR & WITH(*AHS)&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH |
1 | ||
| 89220-02R00 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM) |
1 | ||
| 89220-02Q90 |
NRE210..LHD..HB..CVT..G LIGHT GRADE&WIRELESS DOOR LOCK-WITH & WITHOUT(ANSWER BACK BUZZER)&INTERMITTENT WIPER-INTERMITTENT(TIME ADJUSTMENT)&HEADLAMP-MULTI REFLECTOR & WITH(*AHB)&OUTSIDE REAR VIEW MIRROR-*RCM & *MIH&SEAT COVER MATERIAL-SPORTY FABRIC A |
1 | ||
| 89220-02R10 |
NRE210,ZWE211..LHD..HB..CVT..N MOROCCO SPEC&INTERMITTENT WIPER-WITH(AUTO)&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&HEADLAMP-PROJECTOR&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH |
1 | ||
| 89220-02R00 |
MZEH12,NRE210,ZWE211..LHD..CVT..N INTERMITTENT WIPER-WITH(AUTO) |
1 | ||
| 89220-02Q80 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&HEADLAMP-PROJECTOR & WITH(*AHS) |
1 | ||
| 89220-02R10 |
ZWE211..LHD..N;NRE210..LHD..HB..CVT..N MOROCCO SPEC&INTERMITTENT WIPER-WITH(AUTO)&HEADLAMP-PROJECTOR |
1 | ||
| 89220-02R10 |
ZWE211..LHD..N;NRE210..LHD..HB..CVT..N MOROCCO SPEC&INTERMITTENT WIPER-WITH(AUTO)&HEADLAMP-PROJECTOR&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH |
1 | ||
| 89220-02R10 |
ZWE211..LHD..(G,N);NRE210..LHD..HB..CVT..(G,N) MOROCCO SPEC&HEADLAMP-PROJECTOR |
1 | ||
| 89220-02R10 |
NRE210,ZWE211..LHD..HB..CVT..N MOROCCO SPEC&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&HEADLAMP-PROJECTOR |
1 | ||
| 89220-02R10 |
NRE210,ZWE211..LHD..HB..CVT..N MOROCCO SPEC&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&HEADLAMP-PROJECTOR&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH |
1 | ||
| 89220-02R10 |
NRE210,ZWE211..LHD..HB..CVT..N MOROCCO SPEC&INTERMITTENT WIPER-WITH(AUTO)&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&HEADLAMP-PROJECTOR |
1 | ||
| 89220-02Q80 |
MZEH12,NRE210,ZWE211..LHD..CVT..N INTERMITTENT WIPER-WITH(AUTO)&HEADLAMP-PROJECTOR & WITH(*AHS)&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH |
1 | ||
| 89220-02R10 |
NRE210..LHD..HB..CVT..N EGYPT SPEC&INTERMITTENT WIPER-WITH(AUTO)&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&HEADLAMP-PROJECTOR |
1 | ||
| 89220-02R10 |
ZWE211..LHD..N;NRE210..LHD..HB..CVT..N MOROCCO SPEC&HEADLAMP-PROJECTOR&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH |
1 | ||
| 89220-02R10 |
NRE210..LHD..HB..CVT..N EGYPT SPEC&INTERMITTENT WIPER-WITH(AUTO)&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&HEADLAMP-PROJECTOR&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH |
1 | ||
| 89220-02R10 |
NRE210..LHD..HB..CVT..N EGYPT SPEC&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&HEADLAMP-PROJECTOR |
1 | ||
| 89220-02R10 |
NRE210..LHD..HB..CVT..N EGYPT SPEC&INTERMITTENT WIPER-WITH(AUTO)&HEADLAMP-PROJECTOR |
1 | ||
| 89220-02R10 |
NRE210,ZWE211..LHD..HB..CVT..N NEW CALEDONIA SPEC&INTERMITTENT WIPER-WITH(AUTO)&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&HEADLAMP-PROJECTOR&OUTSIDE REAR VIEW MIRROR-*AREM& *MIH |
1 | ||
| 89220-02R10 |
NRE210..LHD..HB..CVT..N EGYPT SPEC&INTERMITTENT WIPER-WITH(AUTO)&HEADLAMP-PROJECTOR&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH |
1 | ||
| 89220-02R10 |
NRE210..LHD..HB..CVT..N EGYPT SPEC&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&HEADLAMP-PROJECTOR&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH |
1 | ||
| 89220-02R10 |
NRE210..LHD..HB..CVT..N EGYPT SPEC&HEADLAMP-PROJECTOR&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH |
1 | ||
| 89220-02R10 |
NRE210..LHD..HB..CVT..(G,N) EGYPT SPEC&HEADLAMP-PROJECTOR |
1 | ||
| 89220-02R10 |
NRE210,ZWE211..LHD..HB..CVT..(G,N) NEW CALEDONIA SPEC&HEADLAMP-PROJECTOR |
1 | ||
| 89220-02R20 |
ZWE211..LHD..N;NRE210..LHD..HB..CVT..N MOROCCO SPEC&HEADLAMP-MULTI REFLECTOR |
1 | ||
| 89220-02R10 |
NRE210,ZWE211..LHD..HB..CVT..N NEW CALEDONIA SPEC&INTERMITTENT WIPER-WITH(AUTO)&HEADLAMP-PROJECTOR&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH |
1 | ||
| 89220-02R10 |
NRE210,ZWE211..LHD..HB..CVT..N NEW CALEDONIA SPEC&INTERMITTENT WIPER-WITH(AUTO)&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&HEADLAMP-PROJECTOR |
1 | ||
| 89220-02R10 |
NRE210,ZWE211..LHD..HB..CVT..N NEW CALEDONIA SPEC&INTERMITTENT WIPER-WITH(AUTO)&HEADLAMP-PROJECTOR |
1 | ||
| 89220-02R10 |
NRE210,ZWE211..LHD..HB..CVT..N NEW CALEDONIA SPEC&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&HEADLAMP-PROJECTOR |
1 | ||
| 89220-02R20 |
NRE210,ZWE211..LHD..HB..CVT..N NEW CALEDONIA SPEC&HEADLAMP-MULTI REFLECTOR |
1 | ||
| 89220-02R10 |
NRE210,ZWE211..LHD..HB..CVT..N NEW CALEDONIA SPEC&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&HEADLAMP-PROJECTOR&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH |
1 | ||
| 89220-02R30 |
NRE210,ZWE211..LHD..HB..CVT..N MOROCCO SPEC&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&HEADLAMP-MULTI REFLECTOR |
1 | ||
| 89220-02R30 |
NRE210,ZWE211..LHD..HB..CVT..N MOROCCO SPEC&INTERMITTENT WIPER-WITH(AUTO)&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&HEADLAMP-MULTI REFLECTOR |
1 | ||
| 89220-02R30 |
ZWE211..LHD..G;NRE210..LHD..HB..CVT..G MOROCCO SPEC&HEADLAMP-MULTI REFLECTOR |
1 | ||
| 89220-02R10 |
NRE210,ZWE211..LHD..HB..CVT..N NEW CALEDONIA SPEC&HEADLAMP-PROJECTOR&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH |
1 | ||
| 89220-02R20 |
NRE210..LHD..HB..CVT..N EGYPT SPEC&HEADLAMP-MULTI REFLECTOR |
1 | ||
| 89220-02R30 |
NRE210,ZWE211..LHD..HB..CVT..N MOROCCO SPEC&INTERMITTENT WIPER-WITH(AUTO)&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&HEADLAMP-MULTI REFLECTOR&OUTSIDE REAR VIEW MIRROR-*AREM& *MIH |
1 | ||
| 89220-02R30 |
ZWE211..LHD..N;NRE210..LHD..HB..CVT..N MOROCCO SPEC&INTERMITTENT WIPER-WITH(AUTO)&HEADLAMP-MULTI REFLECTOR&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH |
1 | ||
| 89220-02R30 |
ZWE211..LHD..N;NRE210..LHD..HB..CVT..N MOROCCO SPEC&INTERMITTENT WIPER-WITH(AUTO)&HEADLAMP-MULTI REFLECTOR |
1 | ||
| 89220-02R30 |
ZWE211..LHD..N;NRE210..LHD..HB..CVT..N MOROCCO SPEC&HEADLAMP-MULTI REFLECTOR&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH |
1 | ||
| 89220-02R30 |
NRE210..LHD..HB..CVT..N EGYPT SPEC&INTERMITTENT WIPER-WITH(AUTO)&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&HEADLAMP-MULTI REFLECTOR&OUTSIDE REAR VIEW MIRROR-*AREM &*MIH |
1 | ||
| 89220-02R30 |
NRE210,ZWE211..LHD..HB..CVT..N MOROCCO SPEC&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&HEADLAMP-MULTI REFLECTOR&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH |
1 | ||
| 89220-02R30 |
NRE210..LHD..HB..CVT..N EGYPT SPEC&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&HEADLAMP-MULTI REFLECTOR&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH |
1 | ||
| 89220-02R30 |
NRE210..LHD..HB..CVT..N EGYPT SPEC&HEADLAMP-MULTI REFLECTOR&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH |
1 | ||
| 89220-02R30 |
NRE210,ZWE211..LHD..HB..CVT..N NEW CALEDONIA SPEC&INTERMITTENT WIPER-WITH(AUTO)&HEADLAMP-MULTI REFLECTOR |
1 | ||
| 89220-02R30 |
NRE210..LHD..HB..CVT..N EGYPT SPEC&INTERMITTENT WIPER-WITH(AUTO)&HEADLAMP-MULTI REFLECTOR |
1 | ||
| 89220-02R30 |
NRE210,ZWE211..LHD..HB..CVT..N NEW CALEDONIA SPEC&INTERMITTENT WIPER-WITH(AUTO)&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&HEADLAMP-MULTI REFLECTOR |
1 | ||
| 89220-02R30 |
NRE210..LHD..HB..CVT..N EGYPT SPEC&INTERMITTENT WIPER-WITH(AUTO)&HEADLAMP-MULTI REFLECTOR&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH |
1 | ||
| 89220-02R30 |
NRE210,ZWE211..LHD..HB..CVT..N NEW CALEDONIA SPEC&INTERMITTENT WIPER-WITH(AUTO)&HEADLAMP-MULTI REFLECTOR&OUTSIDEREAR VIEW MIRROR-*AREM & *MIH |
1 | ||
| 89220-02R30 |
NRE210..LHD..HB..CVT..N EGYPT SPEC&INTERMITTENT WIPER-WITH(AUTO)&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&HEADLAMP-MULTI REFLECTOR |
1 | ||
| 89220-02R30 |
NRE210..LHD..HB..CVT..G EGYPT SPEC&HEADLAMP-MULTI REFLECTOR |
1 | ||
| 89220-02R30 |
NRE210,ZWE211..LHD..HB..CVT..N NEW CALEDONIA SPEC&INTERMITTENT WIPER-WITH(AUTO)&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&HEADLAMP-MULTI REFLECTOR&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH |
1 | ||
| 89220-02R30 |
NRE210,ZWE211..LHD..HB..CVT..N NEW CALEDONIA SPEC&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&HEADLAMP-MULTI REFLECTOR&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH |
1 | ||
| 89220-02R30 |
NRE210..LHD..HB..CVT..N EGYPT SPEC&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&HEADLAMP-MULTI REFLECTOR |
1 | ||
| 89220-02R40 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N EU COUNTRY(WITHOUT RSA)&INTERMITTENT WIPER-WITH(AUTO)&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&HEADLAMP-PROJECTOR & WITH(*AHB) |
1 | ||
| 89220-02R30 |
NRE210,ZWE211..LHD..HB..CVT..G NEW CALEDONIA SPEC&HEADLAMP-MULTI REFLECTOR |
1 | ||
| 89220-02R40 |
MZEH12,NRE210,ZWE211..LHD..CVT..G EU COUNTRY(WITHOUT RSA) |
1 | ||
| 89220-02R40 |
MZEH12,NRE210,ZWE211..LHD..CVT..N EU COUNTRY(WITHOUT RSA)&INTERMITTENT WIPER-WITH(AUTO)&HEADLAMP-PROJECTOR & WITH(*AHB) |
1 | ||
| 89220-02R50 |
MZEH12,NRE210,ZWE211..LHD..CVT..N EU COUNTRY(WITHOUT RSA)&HEADLAMP-PROJECTOR & WITH(*AHS) |
1 | ||
| 89220-02R40 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N EU COUNTRY(WITHOUT RSA)&INTERMITTENT WIPER-WITH(AUTO)&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&HEADLAMP-PROJECTOR & WITH(*AHB)&OUTSIDE REARVIEW MIRROR-*AREM & *MIH |
1 | ||
| 89220-02R40 |
MZEH12,NRE210,ZWE211..LHD..CVT..N EU COUNTRY(WITHOUT RSA)&HEADLAMP-PROJECTOR & WITH(*AHB) |
1 | ||
| 89220-02R30 |
NRE210,ZWE211..LHD..HB..CVT..N NEW CALEDONIA SPEC&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&HEADLAMP-MULTI REFLECTOR |
1 | ||
| 89220-02R60 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N EU COUNTRY(WITHOUT RSA)&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&HEADLAMP-PROJECTOR & WITH(*AHS) |
1 | ||
| 89220-02R60 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N EU COUNTRY(WITHOUT RSA)&INTERMITTENT WIPER-WITH(AUTO)&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&HEADLAMP-PROJECTOR & WITH(*AHS) |
1 | ||
| 89220-02R40 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N EU COUNTRY(WITHOUT RSA)&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&HEADLAMP-PROJECTOR & WITH(*AHB) |
1 | ||
| 89220-02R60 |
MZEH12,NRE210,ZWE211..LHD..CVT..N EU COUNTRY(WITHOUT RSA)&INTERMITTENT WIPER-WITH(AUTO)&HEADLAMP-PROJECTOR & WITH(*AHS)&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH |
1 | ||
| 89220-02R60 |
MZEH12,NRE210,ZWE211..LHD..CVT..N EU COUNTRY(WITHOUT RSA)&INTERMITTENT WIPER-WITH(AUTO)&HEADLAMP-PROJECTOR & WITH(*AHS) |
1 | ||
| 89220-02R60 |
MZEH12,NRE210,ZWE211..LHD..CVT..N EU COUNTRY(WITHOUT RSA)&HEADLAMP-PROJECTOR & WITH(*AHS)&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH |
1 | ||
| 89220-02R60 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N EU COUNTRY(WITHOUT RSA)&INTERMITTENT WIPER-WITH(AUTO)&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&HEADLAMP-PROJECTOR & WITH(*AHS)&OUTSIDE REARVIEW MIRROR-*AREM & *MIH |
1 | ||
| 89220-02R30 |
NRE210,ZWE211..LHD..HB..CVT..N NEW CALEDONIA SPEC&HEADLAMP-MULTI REFLECTOR&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH |
1 | ||
| 89220-02R40 |
MZEH12,NRE210,ZWE211..LHD..CVT..N EU COUNTRY(WITHOUT RSA)&INTERMITTENT WIPER-WITH(AUTO)&HEADLAMP-PROJECTOR & WITH(*AHB)&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH |
1 | ||
| 89220-02R40 |
MZEH12,NRE210,ZWE211..LHD..CVT..N EU COUNTRY(WITHOUT RSA)&HEADLAMP-PROJECTOR & WITH(*AHB)&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH |
1 | ||
| 89220-02R60 |
MZEH12,NRE210,ZWE211..LHD..CVT..G EU COUNTRY(WITHOUT RSA)&HEADLAMP-PROJECTOR & WITH(*AHS) |
1 | ||
| 89220-02R60 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N EU COUNTRY(WITHOUT RSA)&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&HEADLAMP-PROJECTOR & WITH(*AHS)&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH |
1 | ||
| 89220-02R70 |
NRE210..LHD..HB..CVT..G EU COUNTRY(WITHOUT RSA)&LIGHT GRADE&WIRELESS DOOR LOCK-WITH & WITHOUT(ANSWER BACKBUZZER)&INTERMITTENT WIPER-INTERMITTENT(TIME ADJUSTMENT)&HEADLAMP-MULTI REFLECTOR& WITH(*AHB)&OUTSIDE REAR VIEW MIRROR-*RCM & *MIH&SEAT COVER MATERIAL-SPORTY FABRIC A |
1 | ||
| 89220-02R80 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N EU COUNTRY(WITHOUT RSA)&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH |
1 | ||
| 89220-02R80 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N EU COUNTRY(WITHOUT RSA)&INTERMITTENT WIPER-WITH(AUTO)&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH |
1 | ||
| 89220-02R80 |
MZEH12,NRE210,ZWE211..LHD..CVT..N EU COUNTRY(WITHOUT RSA)&INTERMITTENT WIPER-WITH(AUTO)&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH |
1 | ||
| 89220-02R90 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N ISRAEL SPEC&INTERMITTENT WIPER-WITH(AUTO)&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&HEADLAMP-PROJECTOR & WITH(*AHB) |
1 | ||
| 89220-02R80 |
MZEH12,NRE210,ZWE211..LHD..CVT..G EU COUNTRY(WITHOUT RSA)&HEADLAMP-MULTI REFLECTOR & WITH(*AHB) |
1 | ||
| 89220-02R80 |
MZEH12,NRE210,ZWE211..LHD..CVT..N EU COUNTRY(WITHOUT RSA)&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH |
1 | ||
| 89220-02R90 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N ISRAEL SPEC&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&HEADLAMP-PROJECTOR & WITH(*AHB) |
1 | ||
| 89220-02R80 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N EU COUNTRY(WITHOUT RSA)&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM) |
1 | ||
| 89220-02R80 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N EU COUNTRY(WITHOUT RSA)&INTERMITTENT WIPER-WITH(AUTO)&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM) |
1 | ||
| 89220-02R90 |
MZEH12,NRE210,ZWE211..LHD..CVT..N ISRAEL SPEC&HEADLAMP-PROJECTOR & WITH(*AHB)&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH |
1 | ||
| 89220-02R90 |
MZEH12,NRE210,ZWE211..LHD..CVT..N ISRAEL SPEC&INTERMITTENT WIPER-WITH(AUTO)&HEADLAMP-PROJECTOR & WITH(*AHB) |
1 | ||
| 89220-02R90 |
MZEH12,NRE210,ZWE211..LHD..CVT..N ISRAEL SPEC&INTERMITTENT WIPER-WITH(AUTO)&HEADLAMP-PROJECTOR & WITH(*AHB)&OUTSIDEREAR VIEW MIRROR-*AREM & *MIH |
1 | ||
| 89220-02R90 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N ISRAEL SPEC&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&HEADLAMP-PROJECTOR & WITH(*AHB)&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH |
1 | ||
| 89220-02S00 |
MZEH12,NRE210,ZWE211..LHD..CVT..N ISRAEL SPEC&HEADLAMP-PROJECTOR & WITH(*AHS) |
1 | ||
| 89220-02S10 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N ISRAEL SPEC&INTERMITTENT WIPER-WITH(AUTO)&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&HEADLAMP-PROJECTOR & WITH(*AHS)&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH |
1 | ||
| 89220-02S10 |
MZEH12,NRE210,ZWE211..LHD..CVT..N ISRAEL SPEC&HEADLAMP-PROJECTOR & WITH(*AHS)&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH |
1 | ||
| 89220-02R90 |
MZEH12,NRE210,ZWE211..LHD..CVT..N ISRAEL SPEC&HEADLAMP-PROJECTOR & WITH(*AHB) |
1 | ||
| 89220-02R80 |
MZEH12,NRE210,ZWE211..LHD..CVT..N EU COUNTRY(WITHOUT RSA)&INTERMITTENT WIPER-WITH(AUTO) |
1 | ||
| 89220-02S10 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N ISRAEL SPEC&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&HEADLAMP-PROJECTOR & WITH(*AHS)&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH |
1 | ||
| 89220-02S10 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N ISRAEL SPEC&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&HEADLAMP-PROJECTOR & WITH(*AHS) |
1 | ||
| 89220-02S10 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N ISRAEL SPEC&INTERMITTENT WIPER-WITH(AUTO)&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&HEADLAMP-PROJECTOR & WITH(*AHS) |
1 | ||
| 89220-02R90 |
MZEH12,NRE210,ZWE211..LHD..CVT..G ISRAEL SPEC |
1 | ||
| 89220-02R90 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N ISRAEL SPEC&INTERMITTENT WIPER-WITH(AUTO)&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&HEADLAMP-PROJECTOR & WITH(*AHB)&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH |
1 | ||
| 89220-02S10 |
MZEH12,NRE210,ZWE211..LHD..CVT..N ISRAEL SPEC&INTERMITTENT WIPER-WITH(AUTO)&HEADLAMP-PROJECTOR & WITH(*AHS) |
1 | ||
| 89220-02S30 |
MZEH12,NRE210,ZWE211..LHD..CVT..N ISRAEL SPEC&INTERMITTENT WIPER-WITH(AUTO) |
1 | ||
| 89220-02S30 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N ISRAEL SPEC&INTERMITTENT WIPER-WITH(AUTO)&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH |
1 | ||
| 89220-02S10 |
MZEH12,NRE210,ZWE211..LHD..CVT..G ISRAEL SPEC&HEADLAMP-PROJECTOR & WITH(*AHS) |
1 | ||
| 89220-02S10 |
MZEH12,NRE210,ZWE211..LHD..CVT..N ISRAEL SPEC&INTERMITTENT WIPER-WITH(AUTO)&HEADLAMP-PROJECTOR & WITH(*AHS)&OUTSIDEREAR VIEW MIRROR-*AREM & *MIH |
1 | ||
| 89220-02S30 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N ISRAEL SPEC&INTERMITTENT WIPER-WITH(AUTO)&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM) |
1 | ||
| 89220-02S30 |
MZEH12,NRE210,ZWE211..LHD..CVT..G ISRAEL SPEC&HEADLAMP-MULTI REFLECTOR & WITH(*AHB) |
1 | ||
| 89220-02S30 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N ISRAEL SPEC&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH |
1 | ||
| 89220-02S40 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N TURKEY SPEC&INTERMITTENT WIPER-WITH(AUTO)&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&HEADLAMP-PROJECTOR |
1 | ||
| 89220-02S40 |
MZEH12,NRE210,ZWE211..LHD..CVT..G TURKEY SPEC |
1 | ||
| 89220-02S40 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N TURKEY SPEC&INTERMITTENT WIPER-WITH(AUTO)&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&HEADLAMP-PROJECTOR&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH |
1 | ||
| 89220-02S30 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N ISRAEL SPEC&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM) |
1 | ||
| 89220-02S40 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N TURKEY SPEC&INTERMITTENT WIPER-WITH(AUTO)&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&HEADLAMP-PROJECTOR & WITH(*AHB) |
1 | ||
| 89220-02S30 |
MZEH12,NRE210,ZWE211..LHD..CVT..N ISRAEL SPEC&INTERMITTENT WIPER-WITH(AUTO)&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH |
1 | ||
| 89220-02S40 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N TURKEY SPEC&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&HEADLAMP-PROJECTOR |
1 | ||
| 89220-02S40 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N TURKEY SPEC&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&HEADLAMP-PROJECTOR & WITH(*AHB) |
1 | ||
| 89220-02S40 |
MZEH12,NRE210,ZWE211..LHD..CVT..N TURKEY SPEC&INTERMITTENT WIPER-WITH(AUTO)&HEADLAMP-PROJECTOR&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH |
1 | ||
| 89220-02S20 |
NRE210..LHD..HB..CVT..G ISRAEL SPEC&LIGHT GRADE&WIRELESS DOOR LOCK-WITH & WITHOUT(ANSWER BACK BUZZER)&INTERMITTENT WIPER-INTERMITTENT(TIME ADJUSTMENT)&HEADLAMP-MULTI REFLECTOR & WITH(*AHB)&OUTSIDE REAR VIEW MIRROR-*RCM & *MIH&SEAT COVER MATERIAL-SPORTY FABRIC A |
1 | ||
| 89220-02S40 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N TURKEY SPEC&INTERMITTENT WIPER-WITH(AUTO)&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&HEADLAMP-PROJECTOR & WITH(*AHB)&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH |
1 | ||
| 89220-02S40 |
MZEH12,NRE210,ZWE211..LHD..CVT..N TURKEY SPEC&HEADLAMP-PROJECTOR |
1 | ||
| 89220-02S30 |
MZEH12,NRE210,ZWE211..LHD..CVT..N ISRAEL SPEC&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH |
1 | ||
| 89220-02S40 |
MZEH12,NRE210,ZWE211..LHD..CVT..N TURKEY SPEC&INTERMITTENT WIPER-WITH(AUTO)&HEADLAMP-PROJECTOR & WITH(*AHB) |
1 | ||
| 89220-02S40 |
MZEH12,NRE210,ZWE211..LHD..CVT..N TURKEY SPEC&HEADLAMP-PROJECTOR & WITH(*AHB) |
1 | ||
| 89220-02S40 |
MZEH12,NRE210,ZWE211..LHD..CVT..N TURKEY SPEC&INTERMITTENT WIPER-WITH(AUTO)&HEADLAMP-PROJECTOR |
1 | ||
| 89220-02S40 |
MZEH12,NRE210,ZWE211..LHD..CVT..N TURKEY SPEC&HEADLAMP-PROJECTOR & WITH(*AHB)&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH |
1 | ||
| 89220-02S50 |
MZEH12,NRE210,ZWE211..LHD..CVT..N TURKEY SPEC&HEADLAMP-PROJECTOR & WITH(*AHS) |
1 | ||
| 89220-02S40 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N TURKEY SPEC&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&HEADLAMP-PROJECTOR&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH |
1 | ||
| 89220-02S40 |
MZEH12,NRE210,ZWE211..LHD..CVT..N TURKEY SPEC&INTERMITTENT WIPER-WITH(AUTO)&HEADLAMP-PROJECTOR & WITH(*AHB)&OUTSIDEREAR VIEW MIRROR-*AREM & *MIH |
1 | ||
| 89220-02S40 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N TURKEY SPEC&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&HEADLAMP-PROJECTOR & WITH(*AHB)&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH |
1 | ||
| 89220-02S60 |
MZEH12,NRE210,ZWE211..LHD..CVT..N TURKEY SPEC&INTERMITTENT WIPER-WITH(AUTO)&HEADLAMP-PROJECTOR & WITH(*AHS) |
1 | ||
| 89220-02S60 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N TURKEY SPEC&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&HEADLAMP-PROJECTOR & WITH(*AHS)&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH |
1 | ||
| 89220-02S80 |
MZEH12,NRE210,ZWE211..LHD..CVT..N TURKEY SPEC&INTERMITTENT WIPER-WITH(AUTO)&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH |
1 | ||
| 89220-02S40 |
MZEH12,NRE210,ZWE211..LHD..CVT..N TURKEY SPEC&HEADLAMP-PROJECTOR&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH |
1 | ||
| 89220-02S80 |
MZEH12,NRE210,ZWE211..LHD..CVT..G TURKEY SPEC&HEADLAMP-MULTI REFLECTOR |
1 | ||
| 89220-02S60 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N TURKEY SPEC&INTERMITTENT WIPER-WITH(AUTO)&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&HEADLAMP-PROJECTOR & WITH(*AHS) |
1 | ||
| 89220-02S60 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N TURKEY SPEC&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&HEADLAMP-PROJECTOR & WITH(*AHS) |
1 | ||
| 89220-02S80 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N TURKEY SPEC&INTERMITTENT WIPER-WITH(AUTO)&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM) |
1 | ||
| 89220-02S60 |
MZEH12,NRE210,ZWE211..LHD..CVT..N TURKEY SPEC&INTERMITTENT WIPER-WITH(AUTO)&HEADLAMP-PROJECTOR & WITH(*AHS)&OUTSIDEREAR VIEW MIRROR-*AREM & *MIH |
1 | ||
| 89220-02S60 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N TURKEY SPEC&INTERMITTENT WIPER-WITH(AUTO)&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&HEADLAMP-PROJECTOR & WITH(*AHS)&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH |
1 | ||
| 89220-02S70 |
NRE210..LHD..HB..CVT..G TURKEY SPEC&LIGHT GRADE&WIRELESS DOOR LOCK-WITH & WITHOUT(ANSWER BACK BUZZER)&INTERMITTENT WIPER-INTERMITTENT(TIME ADJUSTMENT)&HEADLAMP-MULTI REFLECTOR & WITH(*AHB)&OUTSIDE REAR VIEW MIRROR-*RCM & *MIH&SEAT COVER MATERIAL-SPORTY FABRIC A |
1 | ||
| 89220-02S80 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N TURKEY SPEC&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM) |
1 | ||
| 89220-02S60 |
MZEH12,NRE210,ZWE211..LHD..CVT..N TURKEY SPEC&HEADLAMP-PROJECTOR & WITH(*AHS)&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH |
1 | ||
| 89220-02S80 |
MZEH12,NRE210,ZWE211..LHD..CVT..N TURKEY SPEC&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH |
1 | ||
| 89220-02S80 |
MZEH12,NRE210,ZWE211..LHD..CVT..N TURKEY SPEC&INTERMITTENT WIPER-WITH(AUTO) |
1 | ||
| 89220-02S80 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N TURKEY SPEC&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH |
1 | ||
| 89220-02S60 |
MZEH12,NRE210,ZWE211..LHD..CVT..G TURKEY SPEC&HEADLAMP-PROJECTOR & WITH(*AHS) |
1 | ||
| 89220-02S80 |
MZEH12,NRE210,ZWE211..LHD..CVT..G TURKEY SPEC&HEADLAMP-MULTI REFLECTOR & WITH(*AHB) |
1 | ||
| 89220-02S80 |
MZEH12,NRE210,ZWE211..LHD..HB..CVT..N TURKEY SPEC&INTERMITTENT WIPER-WITH(AUTO)&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-12J50 |
NRE210..G;ZWE211..HB..G JTEKT/DENSO,TIRE & DISC WHEEL-195/65R15 STEEL SUMMER TIRE |
1 | ||
| 89650-12J50 |
NRE210..G;ZWE211..HB..G JTEKT/DENSO,TIRE & DISC WHEEL-205/55R16 ALUMINUM ROUGH ROAD SPORT |
1 | ||
| 89650-12J50 |
ZWE211..WG..G;NRE210,ZWE211..D,N JTEKT/DENSO |
1 | ||
| 89650-12J60 |
ZWE211..WG..G;NRE210,ZWE211..N JTEKT/DENSO,TIRE & DISC WHEEL-225/45R17 ALUMINUM ROUGH ROAD SPEC |
1 | ||
| 89650-12J50 |
NRE210..G;ZWE211..HB..G JTEKT/DENSO,TIRE & DISC WHEEL-205/55R16 SUMMER ALUMINUM SPORT |
1 | ||
| 89650-12J60 |
ZWE211..WG..G;NRE210,ZWE211..N JTEKT/DENSO,TIRE & DISC WHEEL-225/45R17 ALUMINUM ROUGH ROAD SPEC |
1 | ||
| 89650-12J60 |
NRE210..G;ZWE211..HB..G JTEKT/DENSO |
1 | ||
| 89650-12J50 |
NRE210..LHD..G;ZWE211..LHD..HB..G JTEKT/DENSO,TIRE & DISC WHEEL-195/65R15 STEEL ROUGH ROAD SPEC |
1 | ||
| 89650-12J60 |
NRE210..N;ZWE211..HB..N JTEKT/DENSO,TIRE & DISC WHEEL-225/40R18 ALUMINUM SUMMER TIRE |
1 | ||
| 89650-12L60 |
NRE210..LHD..G;ZWE211..LHD..HB..G JTEKT/DENSO,TIRE & DISC WHEEL-195/65R15 STEEL ROUGH ROAD SPEC |
1 | ||
| 89650-12L60 |
NRE210..G;ZWE211..HB..G JTEKT/DENSO,TIRE & DISC WHEEL-195/65R15 STEEL SUMMER TIRE |
1 | ||
| 89650-12L60 |
ZWE211..WG..G;NRE210,ZWE211..D,N JTEKT/DENSO |
1 | ||
| 89650-12L60 |
NRE210..G;ZWE211..HB..G JTEKT/DENSO,TIRE & DISC WHEEL-205/55R16 SUMMER ALUMINUM SPORT |
1 | ||
| 89650-12L60 |
NRE210..G;ZWE211..HB..G JTEKT/DENSO,TIRE & DISC WHEEL-205/55R16 ALUMINUM ROUGH ROAD SPORT |
1 | ||
| 89650-12L70 |
NRE210..N;ZWE211..HB..N JTEKT/DENSO,TIRE & DISC WHEEL-225/40R18 ALUMINUM SUMMER TIRE |
1 | ||
| 89650-12L70 |
ZWE211..WG..G;NRE210,ZWE211..N JTEKT/DENSO,TIRE & DISC WHEEL-225/45R17 ALUMINUM ROUGH ROAD SPEC |
1 | ||
| 89650-12L70 |
NRE210..G;ZWE211..HB..G JTEKT/DENSO |
1 | ||
| 89650-12L70 |
ZWE211..WG..G;NRE210,ZWE211..N JTEKT/DENSO,TIRE & DISC WHEEL-225/45R17 ALUMINUM ROUGH ROAD SPEC |
1 | ||
| 89650-12L70 |
NRE210,ZWE211..N JTEKT/DENSO,TIRE&DISC WHEEL-225/45R17 ALUMINUM |
1 | ||
| Common parts | ||||
| 90119-W0127 | ||||
| 90119-W0333 | ||||
| 90178-W0019 | ||||
| 90178-W0039 | ||||
| 90179-06274 | ||||
| 90183-06032 | ||||
| 94120-41000 | ||||
| Linked diagrams | ||||
| 8407 | ||||
| 8433 | ||||
ILLUST NO. 1 OF10(1901- )NRE210
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82715 - BRACKET,WIRING HARNESS CLAMP | ||||
| 82715-02Z20 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 82715W - BRACKET, WIRING HARNESS CLAMP | ||||
| 82715-F4030 |
NRE210 |
1 | ||
| 82715X - BRACKET, WIRING HARNESS CLAMP, NO.2 | ||||
| 82715-F4150 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 82715Y - BRACKET, WIRING HARNESS CLAMP, NO.3 | ||||
| 82729-20040 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 83520 - GAGE ASSY,OIL PRESSURE SENDER | ||||
| 83520-60060 |
NRE210 |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-52070 |
NRE210..CVT |
1 | ||
| 89422A - SENSOR, WATER TEMPERATURE | ||||
| 89422-47010 |
NRE210 |
1 | ||
| 89429F - SENSOR, TEMPERATURE | ||||
| 89429-12010 |
NRE210 |
1 | ||
| 89439 - BRACKET, SENSOR | ||||
| 15367-47010 |
NRE210 |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-02210 |
NRE210 |
1 | ||
| 89467C - SENSOR, AIR FUEL RATIO, NO.2 | ||||
| 89467-02270 |
NRE210 |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-50081 |
NRE210 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
NRE210 |
1 | ||
| Common parts | ||||
| 90105-W0086 | ||||
| 90119-W0037 | ||||
| 90430-12221 | ||||
| 90430-18008 | ||||
| 90430-18032 | ||||
| 90468-14043 | ||||
| 90468-15007 | ||||
| 91551-80835 | ||||
| 91651-40620 | ||||
| 91671-80616 | ||||
ILLUST NO. 3 OF10(1901- )NRE210
ENGINE ROOM RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-21020 |
8NRFTS..NRE210 |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08294 |
NRE210..LHD..CVT..N 40A,TERM.:FEMALE,GRN,ISRAEL SPEC&LIGHT GRADE&ACTIVE SAFETY PACKAGE-WITHOUT |
1 | ||
| 90982-08294 |
NRE210..D,N 40A,TERM.:FEMALE,GRN,LIGHT GRADE |
1 | ||
| 90982-08294 |
NRE210..LHD..CVT..N 40A,TERM.:FEMALE,GRN,WVTA SPEC(OUTSIDE EU)&LIGHT GRADE&ACTIVE SAFETY PACKAGE-WITHOUT |
1 | ||
| 90982-08294 |
NRE210 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08294 |
NRE210..LHD..HB..CVT..G 40A,TERM.:FEMALE,GRN,LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM) |
1 | ||
| 90982-08294 |
NRE210..G 40A,TERM.:FEMALE,GRN,LIGHT GRADE&HEADLAMP-MULTI REFLECTOR & WITH(*AHB) |
1 | ||
| 90982-08294 |
NRE210..LHD..HB..CVT..(G,N) 40A,TERM.:FEMALE,GRN,LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&HEADLAMP-PROJECTOR & WITH(*AHS) |
1 | ||
| 90982-08294 |
NRE210..LHD..HB..CVT..N 40A,TERM.:FEMALE,GRN,LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&HEADLAMP-PROJECTOR |
1 | ||
| 90982-08294 |
NRE210..LHD..HB..CVT..N 40A,TERM.:FEMALE,GRN,LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&ACTIVE SAFETY PACKAGE-WITHOUT&HEADLAMP-PROJECTOR |
1 | ||
| 90982-08295 |
MZEH12,NRE210,ZWE211 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08294 |
NRE210..LHD..CVT..N 40A,TERM.:FEMALE,GRN,TURKEY SPEC&LIGHT GRADE&ACTIVE SAFETY PACKAGE-WITHOUT |
1 | ||
| 90982-08294 |
NRE210..LHD..HB..CVT..N 40A,TERM.:FEMALE,GRN,LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&HEADLAMP-PROJECTOR & WITH(*AHB) |
1 | ||
| 90982-08299 |
NRE210 40A-40A-40A,FEMALE |
1 | ||
| 90982-08300 |
MZEH12,NRE210,ZWE211 50A-30A-30A,FEMALE |
1 | ||
| 90982-08296 |
MZEH12,NRE210 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08305 |
MZEH12,NRE210 80A,TERM.:FEMALE,BLK |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09019 |
MZEH12,NRE210,ZWE211 5A,MINI FUSE,TAN |
1 | ||
| 90982-08300 |
NRE210..LHD..HB..CVT..(G,N) 50A-30A-30A,FEMALE,HEADLAMP-PROJECTOR & WITH(*AHS) |
1 | ||
| 90982-09019 |
NRE210..LHD..CVT..N 5A,MINI FUSE,TAN,WVTA SPEC(OUTSIDE EU)&LIGHT GRADE&ACTIVE SAFETY PACKAGE-WITHOUT |
1 | ||
| 90982-09019 |
NRE210..LHD..CVT..N 5A,MINI FUSE,TAN,ISRAEL SPEC&LIGHT GRADE&ACTIVE SAFETY PACKAGE-WITHOUT |
1 | ||
| 90982-09019 |
NRE210..LHD..HB..CVT..G 5A,MINI FUSE,TAN,LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM) |
1 | ||
| 90982-09019 |
NRE210..LHD..CVT..N 5A,MINI FUSE,TAN,TURKEY SPEC&LIGHT GRADE&ACTIVE SAFETY PACKAGE-WITHOUT |
1 | ||
| 90982-09019 |
MZEH12,NRE210,ZWE211..D,N 5A,MINI FUSE,TAN,LIGHT GRADE |
1 | ||
| 90982-09019 |
NRE210..LHD..HB..CVT..N 5A,MINI FUSE,TAN,LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&ACTIVESAFETY PACKAGE-WITHOUT&HEADLAMP-PROJECTOR |
1 | ||
| 90982-09019 |
NRE210..LHD..HB..CVT..(G,N) 5A,MINI FUSE,TAN,LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&HEADLAMP-PROJECTOR & WITH(*AHS) |
1 | ||
| 90982-09020 |
MZEH12,NRE210,ZWE211 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09019 |
MZEH12,NRE210,ZWE211..G 5A,MINI FUSE,TAN,LIGHT GRADE&HEADLAMP-MULTI REFLECTOR & WITH(*AHB) |
1 | ||
| 90982-09023 |
MZEH12,NRE210,ZWE211 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09021 |
MZEH12,NRE210,ZWE211 10A,MINI FUSE,RED |
1 | ||
| 90982-09019 |
NRE210..LHD..HB..CVT..N 5A,MINI FUSE,TAN,LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&HEADLAMP-PROJECTOR & WITH(*AHB) |
1 | ||
| 90982-09019 |
NRE210..LHD..HB..CVT..N 5A,MINI FUSE,TAN,LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&HEADLAMP-PROJECTOR |
1 | ||
| 90982-09022 |
MZEH12,NRE210,ZWE211 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09025 |
MZEH12,NRE210,ZWE211 30A,MINI FUSE,GRN |
1 | ||
| 90982-09024 |
MZEH12,NRE210,ZWE211 25A,MINI FUSE |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
NRE210..LHD..HB..CVT..N LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&ACTIVE SAFETY PACKAGE-WITHOUT&HEADLAMP-PROJECTOR |
1 | ||
| 82616-58010 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 82616-58010 |
NRE210..LHD..HB..CVT..N LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&HEADLAMP-PROJECTOR & WITH(*AHB) |
1 | ||
| 82616-58010 |
NRE210..LHD..HB..CVT..(G,N) LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&HEADLAMP-PROJECTOR & WITH(*AHS) |
1 | ||
| 82616-58010 |
NRE210..LHD..HB..CVT..G LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM) |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-47050 |
NRE210..LHD..CVT..N WVTA SPEC(OUTSIDE EU)&LIGHT GRADE&ACTIVE SAFETY PACKAGE-WITHOUT |
1 | ||
| 82641-47050 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 82641-47050 |
MZEH12,NRE210,ZWE211..G LIGHT GRADE&HEADLAMP-MULTI REFLECTOR & WITH(*AHB) |
1 | ||
| 82641-47050 |
NRE210..LHD..CVT..N TURKEY SPEC&LIGHT GRADE&ACTIVE SAFETY PACKAGE-WITHOUT |
1 | ||
| 82641-47050 |
NRE210..LHD..HB..CVT..N LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&ACTIVE SAFETY PACKAGE-WITHOUT&HEADLAMP-PROJECTOR |
1 | ||
| 82641-47050 |
NRE210..LHD..HB..CVT..G LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM) |
1 | ||
| 82641-47050 |
MZEH12,NRE210,ZWE211..D,N LIGHT GRADE |
1 | ||
| 82641-47050 |
NRE210..LHD..CVT..N ISRAEL SPEC&LIGHT GRADE&ACTIVE SAFETY PACKAGE-WITHOUT |
1 | ||
| 82641-47050 |
NRE210..LHD..HB..CVT..N LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&HEADLAMP-PROJECTOR & WITH(*AHB) |
1 | ||
| 82641-47050 |
NRE210..LHD..HB..CVT..N LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&HEADLAMP-PROJECTOR |
1 | ||
| 82641-47050 |
NRE210..LHD..HB..CVT..(G,N) LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&HEADLAMP-PROJECTOR & WITH(*AHS) |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-12360 |
NRE210 |
1 | ||
| 82660-12360 |
NRE210..LHD..CVT..N WVTA SPEC(OUTSIDE EU)&LIGHT GRADE&ACTIVE SAFETY PACKAGE-WITHOUT |
1 | ||
| 82660-12360 |
NRE210..LHD..CVT..N TURKEY SPEC&LIGHT GRADE&ACTIVE SAFETY PACKAGE-WITHOUT |
1 | ||
| 82660-12360 |
NRE210..D,N LIGHT GRADE |
1 | ||
| 82660-12360 |
NRE210..G LIGHT GRADE&HEADLAMP-MULTI REFLECTOR & WITH(*AHB) |
1 | ||
| 82660-12360 |
NRE210..LHD..HB..CVT..N LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&HEADLAMP-PROJECTOR & WITH(*AHB) |
1 | ||
| 82660-12360 |
NRE210..LHD..HB..CVT..G LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM) |
1 | ||
| 82660-12360 |
NRE210..LHD..HB..CVT..N LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&HEADLAMP-PROJECTOR |
1 | ||
| 82660-12360 |
NRE210..LHD..HB..CVT..N LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&ACTIVE SAFETY PACKAGE-WITHOUT&HEADLAMP-PROJECTOR |
1 | ||
| 82660-12360 |
NRE210..LHD..CVT..N ISRAEL SPEC&LIGHT GRADE&ACTIVE SAFETY PACKAGE-WITHOUT |
1 | ||
| 82660-12360 |
NRE210..LHD..HB..CVT..(G,N) LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&HEADLAMP-PROJECTOR & WITH(*AHS) |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-12390 |
NRE210..LHD..CVT..N WVTA SPEC(OUTSIDE EU)&LIGHT GRADE&ACTIVE SAFETY PACKAGE-WITHOUT |
1 | ||
| 82660-12390 |
NRE210 |
1 | ||
| 82660-12390 |
NRE210..LHD..CVT..N TURKEY SPEC&LIGHT GRADE&ACTIVE SAFETY PACKAGE-WITHOUT |
1 | ||
| 82660-12390 |
NRE210..LHD..CVT..N ISRAEL SPEC&LIGHT GRADE&ACTIVE SAFETY PACKAGE-WITHOUT |
1 | ||
| 82660-12390 |
NRE210..LHD..HB..CVT..G LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM) |
1 | ||
| 82660-12390 |
NRE210..LHD..HB..CVT..N LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&HEADLAMP-PROJECTOR & WITH(*AHB) |
1 | ||
| 82660-12390 |
NRE210..G LIGHT GRADE&HEADLAMP-MULTI REFLECTOR & WITH(*AHB) |
1 | ||
| 82660-12390 |
NRE210..LHD..HB..CVT..N LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&HEADLAMP-PROJECTOR |
1 | ||
| 82660-12390 |
NRE210..LHD..HB..CVT..N LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&ACTIVE SAFETY PACKAGE-WITHOUT&HEADLAMP-PROJECTOR |
1 | ||
| 82660-12390 |
NRE210..D,N LIGHT GRADE |
1 | ||
| 82660-12390 |
NRE210..LHD..HB..CVT..(G,N) LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&HEADLAMP-PROJECTOR & WITH(*AHS) |
1 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-12400 |
NRE210 |
1 | ||
| 82660-12400 |
NRE210..LHD..CVT..N TURKEY SPEC&LIGHT GRADE&ACTIVE SAFETY PACKAGE-WITHOUT |
1 | ||
| 82660-12400 |
NRE210..LHD..CVT..N ISRAEL SPEC&LIGHT GRADE&ACTIVE SAFETY PACKAGE-WITHOUT |
1 | ||
| 82660-12400 |
NRE210..LHD..CVT..N WVTA SPEC(OUTSIDE EU)&LIGHT GRADE&ACTIVE SAFETY PACKAGE-WITHOUT |
1 | ||
| 82660-12400 |
NRE210..LHD..HB..CVT..G LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM) |
1 | ||
| 82660-12400 |
NRE210..G LIGHT GRADE&HEADLAMP-MULTI REFLECTOR & WITH(*AHB) |
1 | ||
| 82660-12400 |
NRE210..D,N LIGHT GRADE |
1 | ||
| 82660-12400 |
NRE210..LHD..HB..CVT..(G,N) LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&HEADLAMP-PROJECTOR & WITH(*AHS) |
1 | ||
| 82660-12400 |
NRE210..LHD..HB..CVT..N LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&ACTIVE SAFETY PACKAGE-WITHOUT&HEADLAMP-PROJECTOR |
1 | ||
| 82660-12400 |
NRE210..LHD..HB..CVT..N LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&HEADLAMP-PROJECTOR |
1 | ||
| 82660-12400 |
NRE210..LHD..HB..CVT..N LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&HEADLAMP-PROJECTOR & WITH(*AHB) |
1 | ||
| 82660E - BLOCK ASSY, RELAY | ||||
| 82660-12470 |
NRE210 |
1 | ||
| 82660-12470 |
NRE210..LHD..CVT..N ISRAEL SPEC&LIGHT GRADE&ACTIVE SAFETY PACKAGE-WITHOUT |
1 | ||
| 82660-12470 |
NRE210..D,N LIGHT GRADE |
1 | ||
| 82660-12470 |
NRE210..LHD..CVT..N TURKEY SPEC&LIGHT GRADE&ACTIVE SAFETY PACKAGE-WITHOUT |
1 | ||
| 82660-12470 |
NRE210..LHD..CVT..N WVTA SPEC(OUTSIDE EU)&LIGHT GRADE&ACTIVE SAFETY PACKAGE-WITHOUT |
1 | ||
| 82660-12470 |
NRE210..LHD..HB..CVT..N LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&ACTIVE SAFETY PACKAGE-WITHOUT&HEADLAMP-PROJECTOR |
1 | ||
| 82660-12470 |
NRE210..G LIGHT GRADE&HEADLAMP-MULTI REFLECTOR & WITH(*AHB) |
1 | ||
| 82660-12470 |
NRE210..LHD..HB..CVT..G LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM) |
1 | ||
| 82660-12470 |
NRE210..LHD..HB..CVT..N LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&HEADLAMP-PROJECTOR |
1 | ||
| 82660-12470 |
NRE210..LHD..HB..CVT..N LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&HEADLAMP-PROJECTOR & WITH(*AHB) |
1 | ||
| 82660-12470 |
NRE210..LHD..HB..CVT..(G,N) LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&HEADLAMP-PROJECTOR & WITH(*AHS) |
1 | ||
| 82660F - BLOCK ASSY, RELAY | ||||
| 82660-12410 |
NRE210..LHD..CVT..N ISRAEL SPEC&LIGHT GRADE&ACTIVE SAFETY PACKAGE-WITHOUT |
1 | ||
| 82660-12410 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 82660-12410 |
NRE210..LHD..HB..CVT..G LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM) |
1 | ||
| 82660-12410 |
NRE210..LHD..CVT..N TURKEY SPEC&LIGHT GRADE&ACTIVE SAFETY PACKAGE-WITHOUT |
1 | ||
| 82660-12410 |
MZEH12,NRE210,ZWE211..D,N LIGHT GRADE |
1 | ||
| 82660-12410 |
NRE210..LHD..HB..CVT..N LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&HEADLAMP-PROJECTOR |
1 | ||
| 82660-12410 |
MZEH12,NRE210,ZWE211..G LIGHT GRADE&HEADLAMP-MULTI REFLECTOR & WITH(*AHB) |
1 | ||
| 82660-12410 |
NRE210..LHD..HB..CVT..N LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&ACTIVE SAFETY PACKAGE-WITHOUT&HEADLAMP-PROJECTOR |
1 | ||
| 82660-12410 |
NRE210..LHD..CVT..N WVTA SPEC(OUTSIDE EU)&LIGHT GRADE&ACTIVE SAFETY PACKAGE-WITHOUT |
1 | ||
| 82660-12410 |
NRE210..LHD..HB..CVT..N LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&HEADLAMP-PROJECTOR & WITH(*AHB) |
1 | ||
| 82660-12410 |
NRE210..LHD..HB..CVT..(G,N) LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&HEADLAMP-PROJECTOR & WITH(*AHS) |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-12350 |
NRE210 |
1 | ||
| 82661-12350 |
NRE210 LIGHT GRADE |
1 | ||
| 82661A - COVER, RELAY BLOCK, NO.2 | ||||
| 82661-12340 |
NRE210 |
1 | ||
| 82661-12340 |
NRE210 LIGHT GRADE |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-02C10 |
NRE210..LHD..HB..CVT..N LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&ACTIVE SAFETY PACKAGE-WITHOUT&HEADLAMP-PROJECTOR |
1 | ||
| 82662-02C10 |
NRE210..LHD..HB..CVT..(G,N) LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&HEADLAMP-PROJECTOR & WITH(*AHS) |
1 | ||
| 82662-02C10 |
NRE210 |
1 | ||
| 82662-02C10 |
NRE210..LHD..HB..CVT..N LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&HEADLAMP-PROJECTOR & WITH(*AHB) |
1 | ||
| 82662-02F60 |
NRE210..G,N HEADLAMP-PROJECTOR & WITH(*AHS) |
1 | ||
| 82662-02C10 |
NRE210..LHD..HB..CVT..G LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM) |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-02C20 |
NRE210..LHD..HB..CVT..N LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&ACTIVE SAFETY PACKAGE-WITHOUT&HEADLAMP-PROJECTOR |
1 | ||
| 82662-02C20 |
NRE210..LHD..HB..CVT..(G,N) LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&HEADLAMP-PROJECTOR & WITH(*AHS) |
1 | ||
| 82662-02C20 |
NRE210..LHD..HB..CVT..N LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&HEADLAMP-PROJECTOR & WITH(*AHB) |
1 | ||
| 82662-02C20 |
NRE210..LHD..HB..CVT..G LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM) |
1 | ||
| 82662-02C20 |
NRE210 |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-12160 |
NRE210..D,N LIGHT GRADE |
1 | ||
| 82663-12160 |
NRE210 |
1 | ||
| 82663-12160 |
NRE210..LHD..CVT..N ISRAEL SPEC&LIGHT GRADE&ACTIVE SAFETY PACKAGE-WITHOUT |
1 | ||
| 82663-12160 |
NRE210..LHD..HB..CVT..G LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM) |
1 | ||
| 82663-12160 |
NRE210..LHD..HB..CVT..N LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&ACTIVE SAFETY PACKAGE-WITHOUT&HEADLAMP-PROJECTOR |
1 | ||
| 82663-12160 |
NRE210..LHD..CVT..N TURKEY SPEC&LIGHT GRADE&ACTIVE SAFETY PACKAGE-WITHOUT |
1 | ||
| 82663-12160 |
NRE210..LHD..HB..CVT..N LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&HEADLAMP-PROJECTOR |
1 | ||
| 82663-12160 |
NRE210..G LIGHT GRADE&HEADLAMP-MULTI REFLECTOR & WITH(*AHB) |
1 | ||
| 82663-12160 |
NRE210..LHD..CVT..N WVTA SPEC(OUTSIDE EU)&LIGHT GRADE&ACTIVE SAFETY PACKAGE-WITHOUT |
1 | ||
| 82663-12160 |
NRE210..LHD..HB..CVT..N LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&HEADLAMP-PROJECTOR & WITH(*AHB) |
1 | ||
| 82663-12160 |
NRE210..LHD..HB..CVT..(G,N) LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&HEADLAMP-PROJECTOR & WITH(*AHS) |
1 | ||
| 82663C - COVER, RELAY BLOCK LOWER, NO.4 | ||||
| 82663-47090 |
NRE210..LHD..CVT..N TURKEY SPEC&LIGHT GRADE&ACTIVE SAFETY PACKAGE-WITHOUT |
1 | ||
| 82663-47090 |
NRE210..LHD..CVT..N WVTA SPEC(OUTSIDE EU)&LIGHT GRADE&ACTIVE SAFETY PACKAGE-WITHOUT |
1 | ||
| 82663-47090 |
NRE210..LHD..CVT..N ISRAEL SPEC&LIGHT GRADE&ACTIVE SAFETY PACKAGE-WITHOUT |
1 | ||
| 82663-47090 |
NRE210..LHD..HB..CVT..G LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM) |
1 | ||
| 82663-47090 |
MZEH12,NRE210,ZWE211..G LIGHT GRADE&HEADLAMP-MULTI REFLECTOR & WITH(*AHB) |
1 | ||
| 82663-47090 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 82663-47090 |
MZEH12,NRE210,ZWE211..D,N LIGHT GRADE |
1 | ||
| 82663-47090 |
NRE210..LHD..HB..CVT..N LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&HEADLAMP-PROJECTOR & WITH(*AHB) |
1 | ||
| 82663-47090 |
NRE210..LHD..HB..CVT..N LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&ACTIVE SAFETY PACKAGE-WITHOUT&HEADLAMP-PROJECTOR |
1 | ||
| 82663-47090 |
NRE210..LHD..HB..CVT..(G,N) LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&HEADLAMP-PROJECTOR & WITH(*AHS) |
1 | ||
| 82663-47090 |
NRE210..LHD..HB..CVT..N LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&HEADLAMP-PROJECTOR |
1 | ||
| 82666 - HOLDER, CONNECTOR | ||||
| 82666-12650 |
NRE210..LHD..HB..CVT..N LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&HEADLAMP-PROJECTOR |
1 | ||
| 82666-12650 |
NRE210 |
1 | ||
| 82666-12650 |
NRE210..LHD..CVT..N ISRAEL SPEC&LIGHT GRADE&ACTIVE SAFETY PACKAGE-WITHOUT |
1 | ||
| 82666-12650 |
NRE210..LHD..CVT..N WVTA SPEC(OUTSIDE EU)&LIGHT GRADE&ACTIVE SAFETY PACKAGE-WITHOUT |
1 | ||
| 82666-12650 |
NRE210..D,N LIGHT GRADE |
1 | ||
| 82666-12650 |
NRE210..LHD..CVT..N TURKEY SPEC&LIGHT GRADE&ACTIVE SAFETY PACKAGE-WITHOUT |
1 | ||
| 82666-12650 |
NRE210..G LIGHT GRADE&HEADLAMP-MULTI REFLECTOR & WITH(*AHB) |
1 | ||
| 82666-12650 |
NRE210..LHD..HB..CVT..N LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&HEADLAMP-PROJECTOR & WITH(*AHB) |
1 | ||
| 82666-12650 |
NRE210..LHD..HB..CVT..N LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&ACTIVE SAFETY PACKAGE-WITHOUT&HEADLAMP-PROJECTOR |
1 | ||
| 82666-12650 |
NRE210..LHD..HB..CVT..(G,N) LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&HEADLAMP-PROJECTOR & WITH(*AHS) |
1 | ||
| 82666-12650 |
NRE210..LHD..HB..CVT..G LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM) |
1 | ||
| 82666H - HOLDER, CONNECTOR, NO.2 | ||||
| 82666-47620 |
NRE210..LHD..CVT..N WVTA SPEC(OUTSIDE EU)&LIGHT GRADE&ACTIVE SAFETY PACKAGE-WITHOUT |
1 | ||
| 82666-47620 |
MZEH12,NRE210,ZWE211..D,N LIGHT GRADE |
1 | ||
| 82666-47620 |
NRE210..LHD..CVT..N ISRAEL SPEC&LIGHT GRADE&ACTIVE SAFETY PACKAGE-WITHOUT |
1 | ||
| 82666-47620 |
NRE210..LHD..HB..CVT..N LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&ACTIVE SAFETY PACKAGE-WITHOUT&HEADLAMP-PROJECTOR |
1 | ||
| 82666-47620 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 82666-47620 |
NRE210..LHD..CVT..N TURKEY SPEC&LIGHT GRADE&ACTIVE SAFETY PACKAGE-WITHOUT |
1 | ||
| 82666-47620 |
NRE210..LHD..HB..CVT..G LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM) |
1 | ||
| 82666-47620 |
NRE210..LHD..HB..CVT..(G,N) LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&HEADLAMP-PROJECTOR & WITH(*AHS) |
1 | ||
| 82666-47620 |
NRE210..LHD..HB..CVT..N LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&HEADLAMP-PROJECTOR |
1 | ||
| 82666-47620 |
MZEH12,NRE210,ZWE211..G LIGHT GRADE&HEADLAMP-MULTI REFLECTOR & WITH(*AHB) |
1 | ||
| 82666-47620 |
NRE210..LHD..HB..CVT..N LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&HEADLAMP-PROJECTOR & WITH(*AHB) |
1 | ||
| 84794A - RELAY, FR WIPER DEICER | ||||
| 90987-02027 |
MZEH12,NRE210,ZWE211..G,N STEERING WHEEL-3-SPOKE, LEATHER, WITH(STEERING HEATER) |
1 | ||
| 85910E - RELAY, INJECTOR | ||||
| 90080-87021 |
NRE210 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90080-87031 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02027 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 87989 - RELAY, MIRROR CONTROL | ||||
| 90080-87020 |
MZEH12,NRE210,ZWE211..G (L) |
2 | ||
| 90080-87020 |
MZEH12,NRE210,ZWE211..N OUTSIDE REAR VIEW MIRROR-*AREM & *MIH,(L) |
2 | ||
| 90080-87020 |
MZEH12,NRE210,ZWE211..N OUTSIDE REAR VIEW MIRROR-*AREM & *MIH & *BSM,(L) |
2 | ||
| 90987-04004 |
MZEH12,NRE210,ZWE211..N OUTSIDE REAR VIEW MIRROR-*AREM & *MIH & *BSM,(J) |
2 | ||
| 90987-04004 |
MZEH12,NRE210,ZWE211..G (J) |
2 | ||
| 90987-04004 |
MZEH12,NRE210,ZWE211..N OUTSIDE REAR VIEW MIRROR-*AREM & *MIH,(J) |
2 | ||
| 89561G - RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.2 | ||||
| 90080-87021 |
NRE210 |
1 | ||
| Common parts | ||||
| 94151-80600 | ||||
ILLUST NO. 6 OF10(1901- )LHD
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-71010 |
NRE210..D,N |
1 | ||
| 84052-71010 |
NRE210..LHD..N GERMANY SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 84052-71010 |
NRE210..LHD..N GERMANY SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY & SENSOR) |
1 | ||
| 84052-71010 |
NRE210..LHD..G GERMANY SPEC&WIRELESS DOOR LOCK-WITH & WITHOUT(ANSWER BACK BUZZER) |
1 | ||
| 84052-71010 |
NRE210..G WIRELESS DOOR LOCK-WITH & WITHOUT(ANSWER BACK BUZZER) |
1 | ||
| 84052-71010 |
NRE210..N WIRELESS DOOR LOCK-WITH(SMART ENTRY & SENSOR) |
1 | ||
| 84052-71010 |
NRE210..N WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-02C50 |
NRE210..GEN CRUISE CONTROL-WITH |
1 | ||
| 84250-02F70 |
NRE210..LHD..WG..6F..G;NRE210..LHD..HB..CVT..N;MZEH12,ZWE211..LHD..(G,N);NRE210..LHD..HB..6F..(G,N) ACTIVE SAFETY PACKAGE-WITHOUT&CRUISE CONTROL-WITH&SPEED LIMITER CONTROL-WITHOUT |
1 | ||
| 84250-02C80 |
NRE210..GEN |
1 | ||
| 84250-02F60 |
ZWE211..LHD..N;NRE210..LHD..6F..N;NRE210..LHD..HB..CVT..N ACTIVE SAFETY PACKAGE-WITHOUT&CRUISE CONTROL-WITHOUT&SPEED LIMITER CONTROL-WITHOUT |
1 | ||
| 84250-02F70 |
NRE210..LHD..CVT..G ACTIVE SAFETY PACKAGE-WITHOUT&SPEED LIMITER CONTROL-WITHOUT |
1 | ||
| 84250-02F80 |
MZEH12,NRE210,ZWE211..G,N |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84308-02080 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 84308-02100 |
NRE210..LHD..(G,N) COLD AREA SPEC |
1 | ||
| 84308-02100 |
NRE210..G,N;MZEH12,ZWE211..RHD..(G,N) SUB COLD AREA SPEC |
1 | ||
| 84319 - HOUSING, STEERING WHEEL SWITCH | ||||
| 84319-02010 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 84329 - SWITCH, TURN SIGNAL | ||||
| 84329-02010 |
NRE210..GEN |
1 | ||
| 84329-02030 |
NRE210..GEN FRONT FOG & DRIVING LAMP-WITH |
1 | ||
| 84329-02020 |
MZEH12,NRE210,ZWE211..G FRONT FOG & DRIVING LAMP-WITHOUT |
1 | ||
| 84329-02040 |
MZEH12,NRE210,ZWE211..G |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-33040 |
NRE210..N WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 84450-33040 |
NRE210..LHD..N GERMANY SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY & SENSOR) |
1 | ||
| 84450-33040 |
NRE210..LHD..G GERMANY SPEC&WIRELESS DOOR LOCK-WITH & WITHOUT(ANSWER BACK BUZZER) |
1 | ||
| 84450-33040 |
NRE210..D,N |
1 | ||
| 84450-33040 |
NRE210..LHD..N GERMANY SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 84450-33040 |
NRE210..N WIRELESS DOOR LOCK-WITH(SMART ENTRY & SENSOR) |
1 | ||
| 84450-33040 |
NRE210..G WIRELESS DOOR LOCK-WITH & WITHOUT(ANSWER BACK BUZZER) |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-02A30 |
MZEH12,NRE210,ZWE211..D,N |
1 | ||
| 84652-02A50 |
MZEH12,NRE210,ZWE211..N INTERMITTENT WIPER-WITH(AUTO) |
1 | ||
| 84652-02A50 |
MZEH12,NRE210,ZWE211..G |
1 | ||
| 84652-02A30 |
MZEH12,NRE210,ZWE211..G INTERMITTENT WIPER-INTERMITTENT(TIME ADJUSTMENT) |
1 | ||
| 85432 - SOLENOID, KEY INTER LOCK | ||||
| 85432-06040 |
NRE210..CVT..N WIRELESS DOOR LOCK-WITH(SMART ENTRY & SENSOR) |
1 | ||
| 85432-06040 |
NRE210..CVT..(D,N) |
1 | ||
| 85432-06040 |
NRE210..LHD..CVT..N GERMANY SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY & SENSOR) |
1 | ||
| 85432-06040 |
NRE210..CVT..N WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 85432-06040 |
NRE210..LHD..CVT..N GERMANY SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 85432-06040 |
NRE210..CVT..G WIRELESS DOOR LOCK-WITH & WITHOUT(ANSWER BACK BUZZER) |
1 | ||
| 89245C - SENSOR, STEERING | ||||
| 8924B-02070 |
MZEH12,NRE210,ZWE211 |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90159-50265 | ||||
| Linked diagrams | ||||
| 4501 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
