NRE210L-DHXDZ (2019)
Toyota Corolla (Ukp)
(1901- )

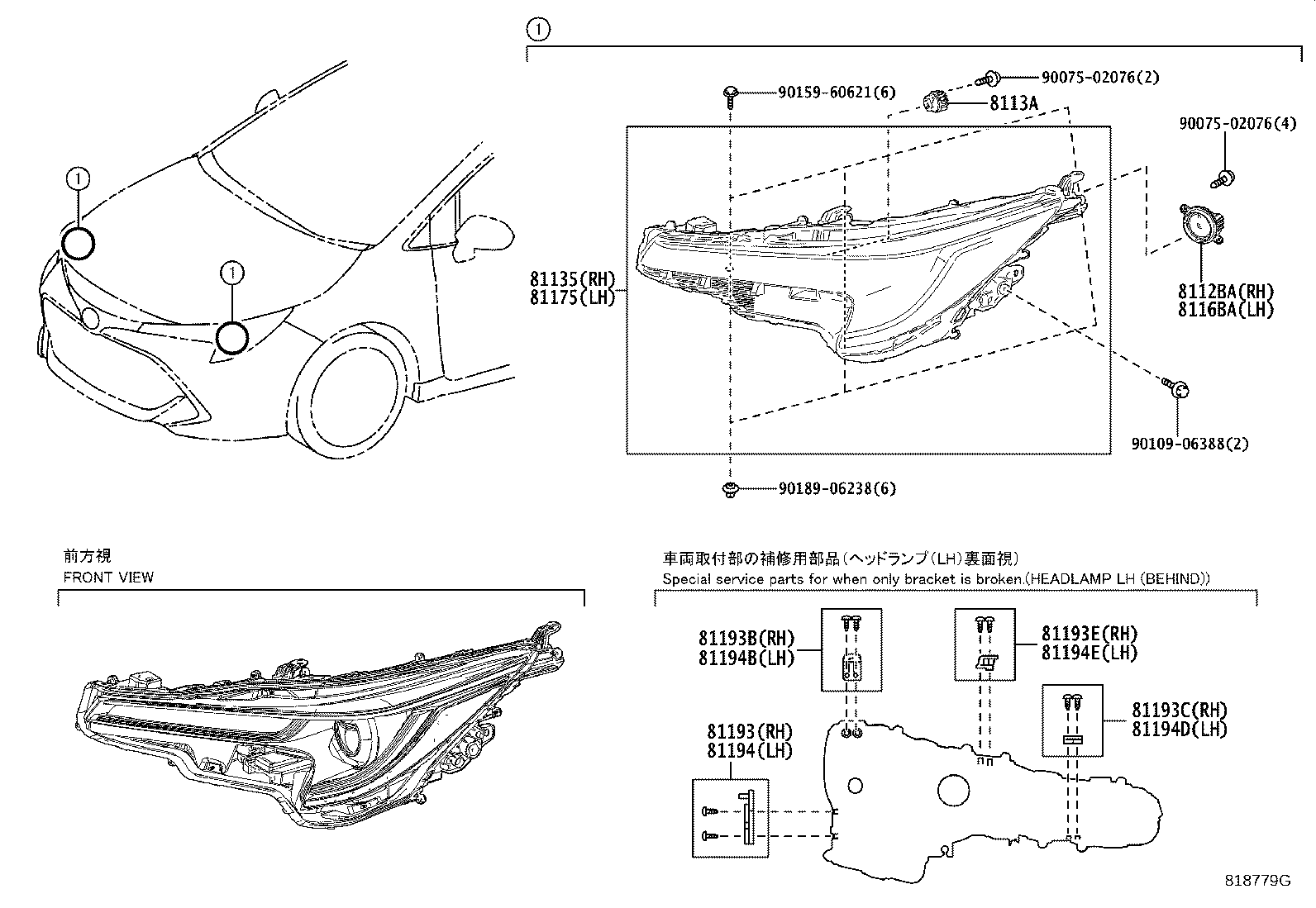

TYPE B:PROJECTOR TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 8112BA - BULB, LED HEADLAMP DAYTIME RUNNING LIGHT, RH | ||||
| 8112B-02S70 |
MZEH12,NRE210,ZWE211..N HEADLAMP-PROJECTOR & WITH(*AHB),TYPE B:REFER ILLUST. |
1 | ||
| 8112B-02S70 |
MZEH12,NRE210,ZWE211..G TYPE B:REFER ILLUST. |
1 | ||
| 8112B-02S70 |
MZEH12,NRE210,ZWE211..LHD..N HEADLAMP-PROJECTOR,TYPE B:REFER ILLUST. |
1 | ||
| 8112B-02S70 |
MZEH12,NRE210,ZWE211..G,N HEADLAMP-PROJECTOR & WITH(*AHS),TYPE C:REFER ILLUST. |
1 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-02S70 |
MZEH12,NRE210,ZWE211..LHD..G TYPE B:REFER ILLUST. |
1 | ||
| 81130-02S80 |
MZEH12,NRE210,ZWE211..LHD..(G,N) HEADLAMP-PROJECTOR & WITH(*AHS),TYPE C:REFER ILLUST. |
1 | ||
| 81130-02S70 |
MZEH12,NRE210,ZWE211..LHD..N HEADLAMP-PROJECTOR & WITH(*AHB),TYPE B:REFER ILLUST. |
1 | ||
| 81130-02S70 |
MZEH12,NRE210,ZWE211..LHD..N HEADLAMP-PROJECTOR,TYPE B:REFER ILLUST. |
1 | ||
| 8113A - LED, HEADLAMP FRONT TURN SIGNAL | ||||
| 8113A-02S60 |
MZEH12,NRE210,ZWE211..G TYPE B:REFER ILLUST. |
2 | ||
| 8113A-02S60 |
MZEH12,NRE210,ZWE211..D,N TYPE A:REFER ILLUST. |
2 | ||
| 8113A-02S60 |
MZEH12,NRE210,ZWE211..LHD..G HEADLAMP-MULTI REFLECTOR,TYPE A:REFER ILLUST. |
2 | ||
| 8113A-02S60 |
MZEH12,NRE210,ZWE211..G HEADLAMP-MULTI REFLECTOR & WITH(*AHB),TYPE A:REFER ILLUST. |
2 | ||
| 8113A-02S60 |
MZEH12,NRE210,ZWE211..LHD..N HEADLAMP-PROJECTOR,TYPE B:REFER ILLUST. |
2 | ||
| 8113A-02S60 |
MZEH12,NRE210,ZWE211..N HEADLAMP-PROJECTOR & WITH(*AHB),TYPE B:REFER ILLUST. |
2 | ||
| 8116BA - BULB, LED HEADLAMP DAYTIME RUNNING LIGHT, LH | ||||
| 8116B-02S70 |
MZEH12,NRE210,ZWE211..G TYPE B:REFER ILLUST. |
1 | ||
| 8116B-02S70 |
MZEH12,NRE210,ZWE211..LHD..N HEADLAMP-PROJECTOR,TYPE B:REFER ILLUST. |
1 | ||
| 8116B-02S70 |
MZEH12,NRE210,ZWE211..N HEADLAMP-PROJECTOR & WITH(*AHB),TYPE B:REFER ILLUST. |
1 | ||
| 8116B-02S70 |
MZEH12,NRE210,ZWE211..G,N HEADLAMP-PROJECTOR & WITH(*AHS),TYPE C:REFER ILLUST. |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-02S70 |
MZEH12,NRE210,ZWE211..LHD..N HEADLAMP-PROJECTOR & WITH(*AHB),TYPE B:REFER ILLUST. |
1 | ||
| 81170-02S80 |
MZEH12,NRE210,ZWE211..LHD..(G,N) HEADLAMP-PROJECTOR & WITH(*AHS),TYPE C:REFER ILLUST. |
1 | ||
| 81170-02S70 |
MZEH12,NRE210,ZWE211..LHD..G TYPE B:REFER ILLUST. |
1 | ||
| 81170-02S70 |
MZEH12,NRE210,ZWE211..LHD..N HEADLAMP-PROJECTOR,TYPE B:REFER ILLUST. |
1 | ||
| 81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-12250 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 81193B - RETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2 | ||||
| 81193-12260 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 81193C - RETAINER, RH HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-12270 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 81193E - RETAINER, HEADLAMP PROTECTOR, UPPER RH NO.3 | ||||
| 81193-12280 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-12250 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 81194B - RETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2 | ||||
| 81194-12260 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 81194D - RETAINER, LH HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-12270 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 81194E - RETAINER, HEADLAMP PROTECTOR, UPPER LH NO.3 | ||||
| 81194-12280 |
MZEH12,NRE210,ZWE211 |
1 | ||
| Common parts | ||||
| 90075-02076 | ||||
| 90109-06388 | ||||
| 90159-60621 | ||||
| 90189-06238 | ||||
(1901- )

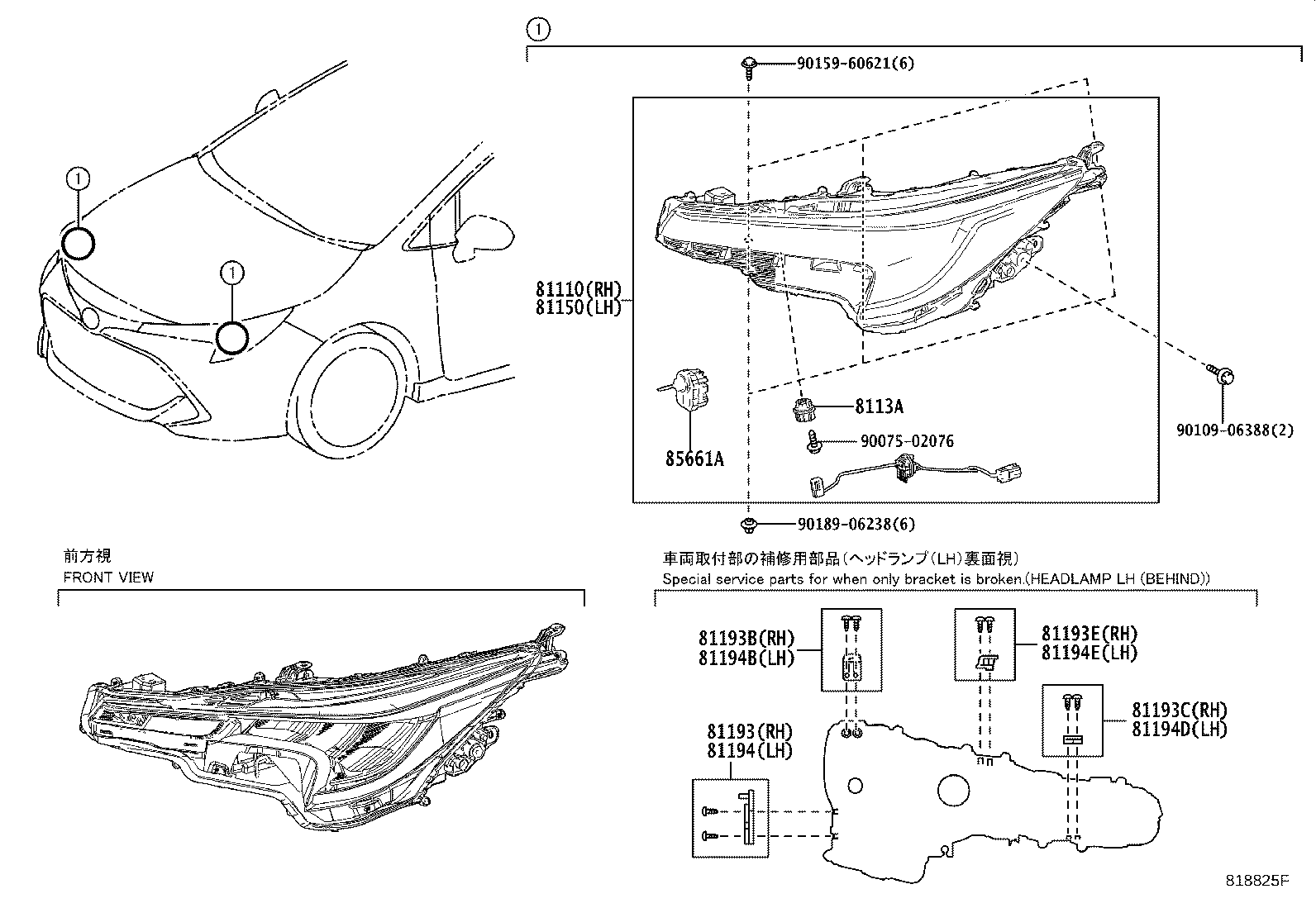

TYPE A:MULTI REFLECTOR TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81110 - HEADLAMP ASSY, RH | ||||
| 00000-00000 |
MZEH12,NRE210,ZWE211..G,N HEADLAMP-PROJECTOR & WITH(*AHS),TYPE C:REFER ILLUST. |
1 | ||
| 00000-00000 |
MZEH12,NRE210,ZWE211..N HEADLAMP-PROJECTOR & WITH(*AHB),TYPE B:REFER ILLUST. |
1 | ||
| 81110-02S60 |
MZEH12,NRE210,ZWE211..LHD..G HEADLAMP-MULTI REFLECTOR,TYPE A:REFER ILLUST. |
1 | ||
| 81110-02S60 |
MZEH12,NRE210,ZWE211..LHD..G HEADLAMP-MULTI REFLECTOR & WITH(*AHB),TYPE A:REFER ILLUST. |
1 | ||
| 81110-02S60 |
MZEH12,NRE210,ZWE211..LHD..(D,N) TYPE A:REFER ILLUST. |
1 | ||
| 00000-00000 |
MZEH12,NRE210,ZWE211..LHD..N HEADLAMP-PROJECTOR,TYPE B:REFER ILLUST. |
1 | ||
| 00000-00000 |
MZEH12,NRE210,ZWE211..G TYPE B:REFER ILLUST. |
1 | ||
| 8113A - LED, HEADLAMP FRONT TURN SIGNAL | ||||
| 8113A-02S60 |
MZEH12,NRE210,ZWE211..G TYPE B:REFER ILLUST. |
2 | ||
| 8113A-02S60 |
MZEH12,NRE210,ZWE211..D,N TYPE A:REFER ILLUST. |
2 | ||
| 8113A-02S60 |
MZEH12,NRE210,ZWE211..LHD..G HEADLAMP-MULTI REFLECTOR,TYPE A:REFER ILLUST. |
2 | ||
| 8113A-02S60 |
MZEH12,NRE210,ZWE211..G HEADLAMP-MULTI REFLECTOR & WITH(*AHB),TYPE A:REFER ILLUST. |
2 | ||
| 8113A-02S60 |
MZEH12,NRE210,ZWE211..LHD..N HEADLAMP-PROJECTOR,TYPE B:REFER ILLUST. |
2 | ||
| 8113A-02S60 |
MZEH12,NRE210,ZWE211..N HEADLAMP-PROJECTOR & WITH(*AHB),TYPE B:REFER ILLUST. |
2 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 00000-00000 |
MZEH12,NRE210,ZWE211..G TYPE B:REFER ILLUST. |
1 | ||
| 00000-00000 |
MZEH12,NRE210,ZWE211..G,N HEADLAMP-PROJECTOR & WITH(*AHS),TYPE C:REFER ILLUST. |
1 | ||
| 00000-00000 |
MZEH12,NRE210,ZWE211..LHD..N HEADLAMP-PROJECTOR,TYPE B:REFER ILLUST. |
1 | ||
| 81150-02S60 |
MZEH12,NRE210,ZWE211..LHD..G HEADLAMP-MULTI REFLECTOR & WITH(*AHB),TYPE A:REFER ILLUST. |
1 | ||
| 81150-02S60 |
MZEH12,NRE210,ZWE211..LHD..G HEADLAMP-MULTI REFLECTOR,TYPE A:REFER ILLUST. |
1 | ||
| 81150-02S60 |
MZEH12,NRE210,ZWE211..LHD..(D,N) TYPE A:REFER ILLUST. |
1 | ||
| 00000-00000 |
MZEH12,NRE210,ZWE211..N HEADLAMP-PROJECTOR & WITH(*AHB),TYPE B:REFER ILLUST. |
1 | ||
| 81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-12250 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 81193B - RETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2 | ||||
| 81193-12260 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 81193C - RETAINER, RH HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-12270 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 81193E - RETAINER, HEADLAMP PROTECTOR, UPPER RH NO.3 | ||||
| 81193-12280 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-12250 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 81194B - RETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2 | ||||
| 81194-12260 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 81194D - RETAINER, LH HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-12270 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 81194E - RETAINER, HEADLAMP PROTECTOR, UPPER LH NO.3 | ||||
| 81194-12280 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 85661A - MOTOR, HEADLAMP LEVELING | ||||
| 85661-68011 |
MZEH12,NRE210,ZWE211..G HEADLAMP-MULTI REFLECTOR & WITH(*AHB),TYPE A:REFER ILLUST. |
2 | ||
| 85661-68011 |
MZEH12,NRE210,ZWE211..D,N TYPE A:REFER ILLUST. |
2 | ||
| 85661-68011 |
MZEH12,NRE210,ZWE211..LHD..G HEADLAMP-MULTI REFLECTOR,TYPE A:REFER ILLUST. |
2 | ||
| Common parts | ||||
| 90075-02076 | ||||
| 90109-06388 | ||||
| 90159-60621 | ||||
| 90189-06238 | ||||
(1901- )

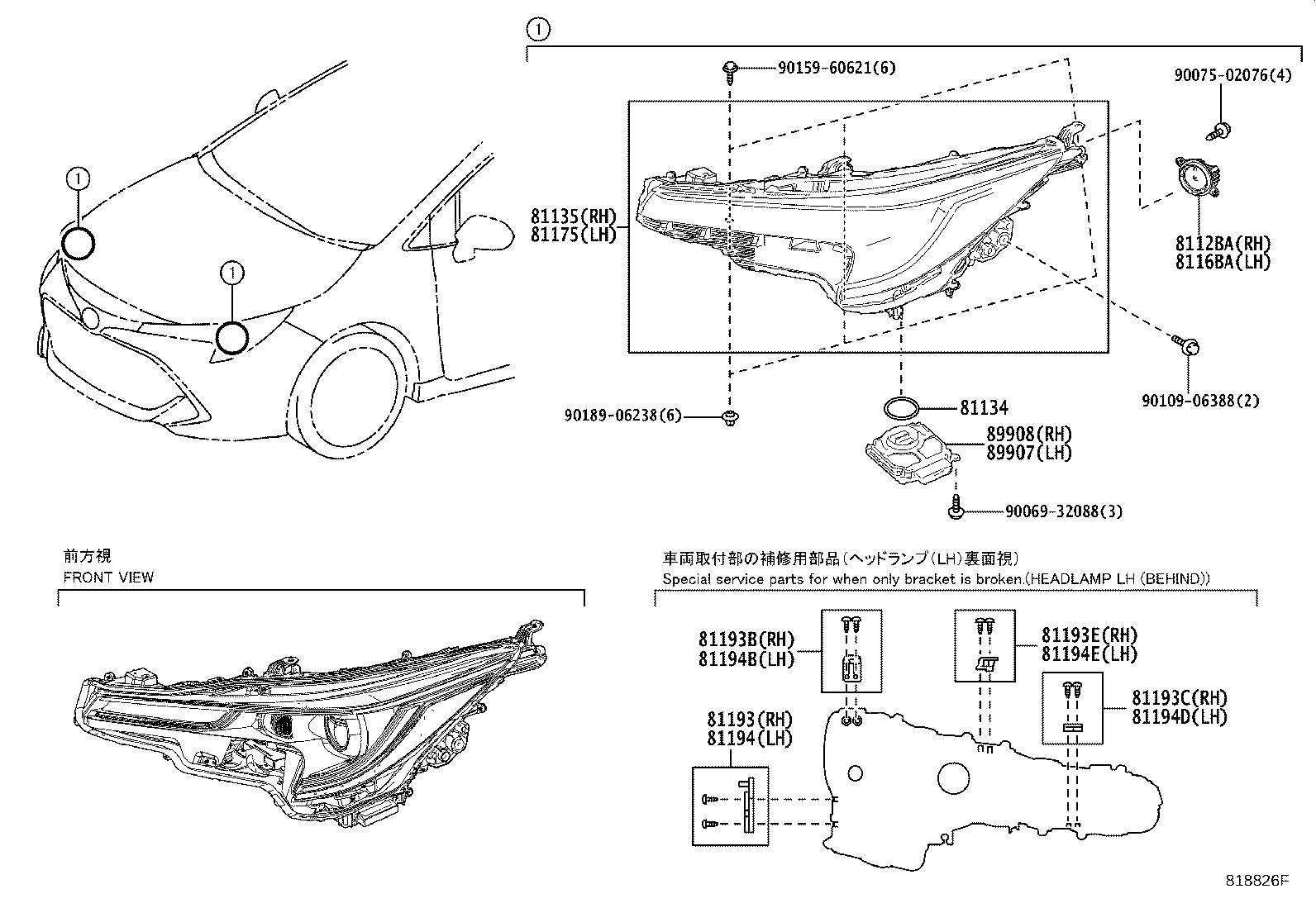

TYPE C:PROJECTOR TYPE & W(*AHS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 8112BA - BULB, LED HEADLAMP DAYTIME RUNNING LIGHT, RH | ||||
| 8112B-02S70 |
MZEH12,NRE210,ZWE211..N HEADLAMP-PROJECTOR & WITH(*AHB),TYPE B:REFER ILLUST. |
1 | ||
| 8112B-02S70 |
MZEH12,NRE210,ZWE211..G TYPE B:REFER ILLUST. |
1 | ||
| 8112B-02S70 |
MZEH12,NRE210,ZWE211..LHD..N HEADLAMP-PROJECTOR,TYPE B:REFER ILLUST. |
1 | ||
| 8112B-02S70 |
MZEH12,NRE210,ZWE211..G,N HEADLAMP-PROJECTOR & WITH(*AHS),TYPE C:REFER ILLUST. |
1 | ||
| 81134 - GASKET, HEADLAMP | ||||
| 90075-23004 |
MZEH12,NRE210,ZWE211..G,N HEADLAMP-PROJECTOR & WITH(*AHS),TYPE C:REFER ILLUST. |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-02S70 |
MZEH12,NRE210,ZWE211..LHD..G TYPE B:REFER ILLUST. |
1 | ||
| 81130-02S80 |
MZEH12,NRE210,ZWE211..LHD..(G,N) HEADLAMP-PROJECTOR & WITH(*AHS),TYPE C:REFER ILLUST. |
1 | ||
| 81130-02S70 |
MZEH12,NRE210,ZWE211..LHD..N HEADLAMP-PROJECTOR & WITH(*AHB),TYPE B:REFER ILLUST. |
1 | ||
| 81130-02S70 |
MZEH12,NRE210,ZWE211..LHD..N HEADLAMP-PROJECTOR,TYPE B:REFER ILLUST. |
1 | ||
| 8116BA - BULB, LED HEADLAMP DAYTIME RUNNING LIGHT, LH | ||||
| 8116B-02S70 |
MZEH12,NRE210,ZWE211..G TYPE B:REFER ILLUST. |
1 | ||
| 8116B-02S70 |
MZEH12,NRE210,ZWE211..LHD..N HEADLAMP-PROJECTOR,TYPE B:REFER ILLUST. |
1 | ||
| 8116B-02S70 |
MZEH12,NRE210,ZWE211..N HEADLAMP-PROJECTOR & WITH(*AHB),TYPE B:REFER ILLUST. |
1 | ||
| 8116B-02S70 |
MZEH12,NRE210,ZWE211..G,N HEADLAMP-PROJECTOR & WITH(*AHS),TYPE C:REFER ILLUST. |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-02S70 |
MZEH12,NRE210,ZWE211..LHD..N HEADLAMP-PROJECTOR & WITH(*AHB),TYPE B:REFER ILLUST. |
1 | ||
| 81170-02S80 |
MZEH12,NRE210,ZWE211..LHD..(G,N) HEADLAMP-PROJECTOR & WITH(*AHS),TYPE C:REFER ILLUST. |
1 | ||
| 81170-02S70 |
MZEH12,NRE210,ZWE211..LHD..G TYPE B:REFER ILLUST. |
1 | ||
| 81170-02S70 |
MZEH12,NRE210,ZWE211..LHD..N HEADLAMP-PROJECTOR,TYPE B:REFER ILLUST. |
1 | ||
| 81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-12250 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 81193B - RETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2 | ||||
| 81193-12260 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 81193C - RETAINER, RH HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-12270 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 81193E - RETAINER, HEADLAMP PROTECTOR, UPPER RH NO.3 | ||||
| 81193-12280 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-12250 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 81194B - RETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2 | ||||
| 81194-12260 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 81194D - RETAINER, LH HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-12270 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 81194E - RETAINER, HEADLAMP PROTECTOR, UPPER LH NO.3 | ||||
| 81194-12280 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 89907 - COMPUTER SUB-ASSY, HEADLAMP, LH | ||||
| 89907-12050 |
MZEH12,NRE210,ZWE211..G,N HEADLAMP-PROJECTOR & WITH(*AHS) |
1 | ||
| 89908 - COMPUTER SUB-ASSY, HEADLAMP, RH | ||||
| 89908-12050 |
MZEH12,NRE210,ZWE211..G,N HEADLAMP-PROJECTOR & WITH(*AHS) |
1 | ||
| Common parts | ||||
| 90069-32088 | ||||
| 90075-02076 | ||||
| 90109-06388 | ||||
| 90159-60621 | ||||
| 90189-06238 | ||||
