NRE210L-DHXDZ (2019)

Toyota Corolla (Ukp)

Production Jan 2019 - Sep 9999
Engine 8NRFTS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1901- )8NRFTS

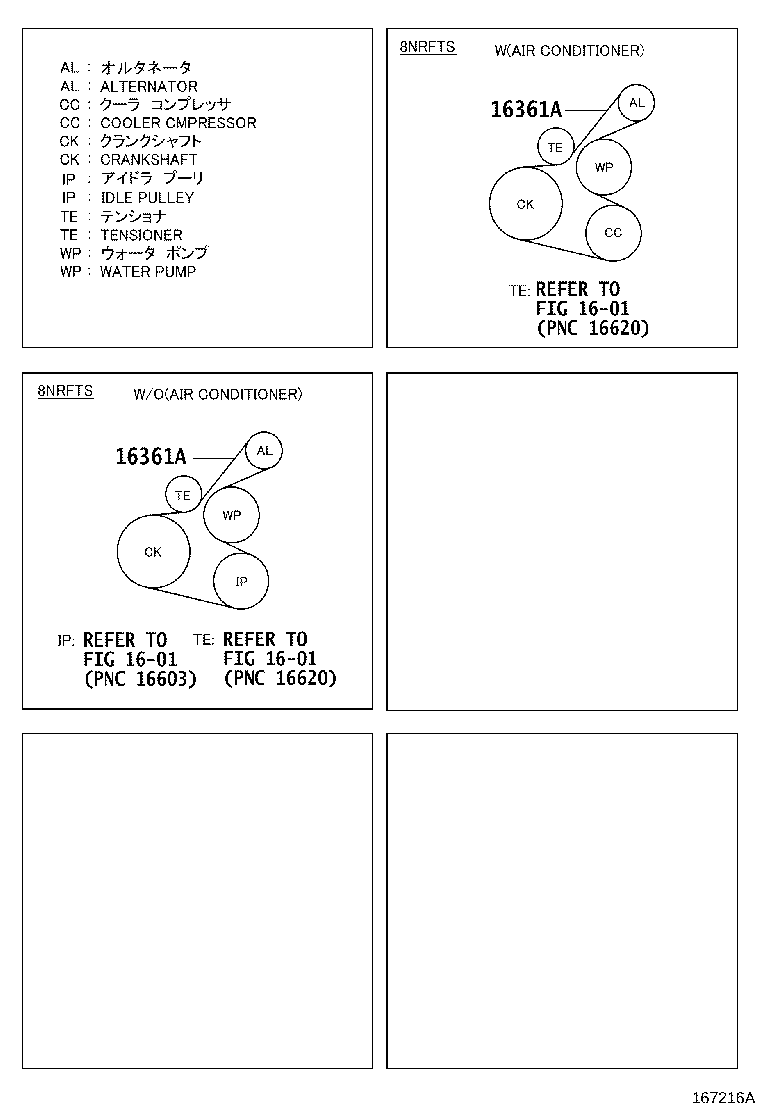

Click highlighted areas on diagram

diagram 1601 1601 1601 16361A 16361A
Part # Description Qty Price
16361A - BELT, V(FOR FAN & ALTERNATOR)
90916-02763

8NRFTS..NRE210..G

WIRELESS DOOR LOCK-WITH & WITHOUT(ANSWER BACK BUZZER)&LUGGAGE & BACK DOOR RELEASE-ELECTRIC TYPE&SEAT HEATER-WITHOUT

 1
90916-02758

8NRFTS..NRE210

 1
16361A - BELT, V(FOR FAN & ALTERNATOR)
90916-02763

8NRFTS..NRE210..G

WIRELESS DOOR LOCK-WITH & WITHOUT(ANSWER BACK BUZZER)&LUGGAGE & BACK DOOR RELEASE-ELECTRIC TYPE&SEAT HEATER-WITHOUT

 1
90916-02758

8NRFTS..NRE210

 1
Linked diagrams
1601
