NRE210L-DHXDZ (2019)

Toyota Corolla (Ukp)

Production Jan 2019 - Sep 9999
Engine 8NRFTS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1901- )8NRFTS

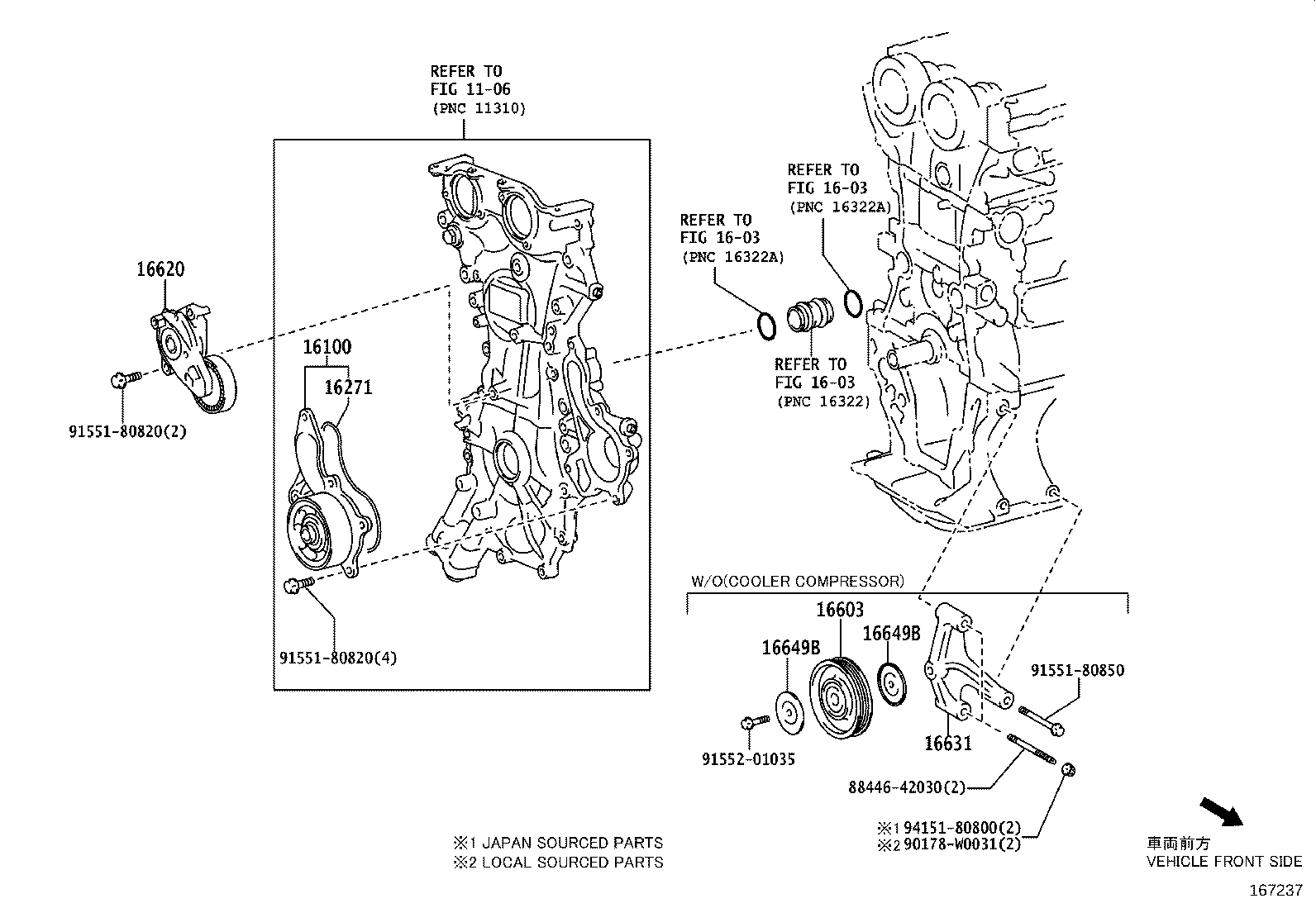

Click highlighted areas on diagram

diagram 1106 1603 1603 1603 16100 16271 16603 16620 16631 16649B 16649B 8844642030 90178W0031 9155180820 9155180820 9155180850 9155201035 9415180800
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-80014

8NRFTS..NRE210

 1
16271 - GASKET, WATER PUMP
16271-47060

8NRFTS..NRE210

 1
16603 - PULLEY SUB-ASSY, IDLER, NO.1
16603-50030

8NRFTS..NRE210..G

WIRELESS DOOR LOCK-WITH & WITHOUT(ANSWER BACK BUZZER)&LUGGAGE & BACK DOOR RELEASE-ELECTRIC TYPE&SEAT HEATER-WITHOUT

 1
16620 - TENSIONER ASSY, V-RIBBED BELT
16620-47061

8NRFTS..NRE210

 1
16631 - BRACKET, IDLER PULLEY
16631-47010

8NRFTS..NRE210..G

WIRELESS DOOR LOCK-WITH & WITHOUT(ANSWER BACK BUZZER)&LUGGAGE & BACK DOOR RELEASE-ELECTRIC TYPE&SEAT HEATER-WITHOUT

 1
16649B - PLATE, IDLER PULLEY COVER
16649-50030

8NRFTS..NRE210..G

WIRELESS DOOR LOCK-WITH & WITHOUT(ANSWER BACK BUZZER)&LUGGAGE & BACK DOOR RELEASE-ELECTRIC TYPE&SEAT HEATER-WITHOUT

 2
16649B - PLATE, IDLER PULLEY COVER
16649-50030

8NRFTS..NRE210..G

WIRELESS DOOR LOCK-WITH & WITHOUT(ANSWER BACK BUZZER)&LUGGAGE & BACK DOOR RELEASE-ELECTRIC TYPE&SEAT HEATER-WITHOUT

 2
Common parts
88446-42030
90178-W0031
91551-80820
91551-80850
91552-01035
94151-80800
Linked diagrams
1106
1603
