NRE210L-DHFNZW (2019)

Toyota Corolla (Ukp)

Production Jan 2019 - Sep 9999
Engine 8NRFTS
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1901- )6F

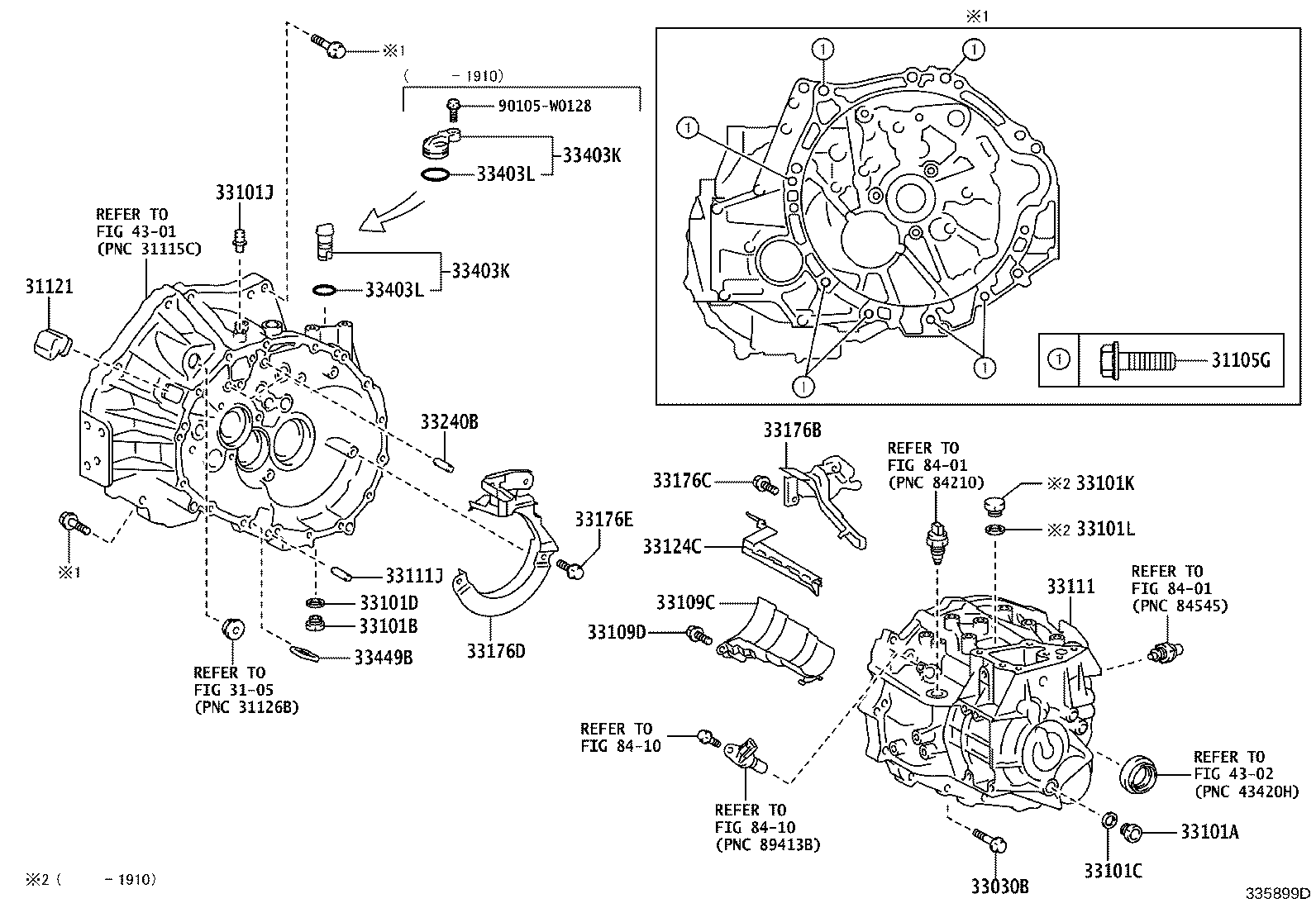

Click highlighted areas on diagram

EC6A

diagram 3105 31105G 31121 33030B 33101A 33101B 33101C 33101D 33101J 33101K 33101L 33109C 33109D 33111 33111J 33124C 33176B 33176C 33176D 33176E 33240B 33403K 33403K 33403L 33403L 33449B 4301 4302 8401 8401 8410 8410 90105W0128
Part # Description Qty Price
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
90119-W0155

NRE210..6F

*10-1.25PX45-30

 7
31121 - COVER, CLUTCH HOUSING, NO.1
31121-05010

NRE210..6F

 1
33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
90105-W0209

NRE210..6F

*8-1.25PX40-22,(L)

 16
91551-10840

NRE210..6F

*8-1.25PX40-22,(J)

 16
33101A - PLUG(FOR MANUAL TRANSMISSION FILLER)
90341-18033

NRE210..6F

 1
33101B - PLUG(FOR MANUAL TRANSMISSION DRAIN)
90341-18023

NRE210..6F

 1
33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
12157-10010

NRE210..6F

 1
33101D - GASKET(FOR MANUAL TRANSMISSION DRAIN PLUG)
12157-10010

NRE210..6F

 1
33101J - PLUG, BREATHER
90930-03133

NRE210..6F

 1
33101K - PLUG(FOR MANUAL TRANSMISSION FILLER)
90341-14032

NRE210..6F

 1
33101L - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
90430-14003

NRE210..6F

 1
33109C - SEPARATOR SUB-ASSY, MANUAL TRANSMISSION OIL
33109-0D011

NRE210..6F

 1
33109D - BOLT(FOR MANUAL TRANSMISSION OIL SEPARATOR)
90105-W0035

NRE210..6F

(L)

 4
91551-80816

NRE210..6F

(J)

 4
91551-80816

NRE210..6F

(J)

 3
90105-W0035

NRE210..6F

(L)

 3
33111 - CASE, MANUAL TRANSMISSION
33111-F4012

NRE210..6F

REFER33-07:PNC 33290

 1
33111-F4013

NRE210..6F

 1
33111-F4010

NRE210..6F

REFER33-07:PNC 33290

 1
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-08054

NRE210..6F

L=23,OD=8

 3
33124C - PIPE, OIL RECEIVER, NO.1(MTM)
33124-F4010

NRE210..6F

 1
33124-K0010

NRE210..6F

 1
33176B - SEPARATOR, TRANSMISSION OIL(MTM)
33176-0D020

NRE210..6F

 1
33176C - BOLT(FOR TRANSMISSION OIL SEPARATOR)
90105-W0035

NRE210..6F

(L)

 2
91551-80816

NRE210..6F

(J)

 2
33176D - SEPARATOR, TRANSMISSION OIL, NO.2(MTM)
33176-0D030

NRE210..6F

 1
33176E - BOLT(FOR TRANSMISSION OIL SEPARATOR NO.2)
90105-W0035

NRE210..6F

(L)

 4
91551-80816

NRE210..6F

(J)

 4
33240B - PIN, STRAIGHT(FOR REVERSE SHIFT ARM BRACKET)
90250-08054

NRE210..6F

 2
33403K - COVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE
33403-35230

NRE210..6F

 1
35150-44010

NRE210..6F

 1
33403K - COVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE
33403-35230

NRE210..6F

 1
35150-44010

NRE210..6F

 1
33403L - RING, O
96711-24030

NRE210..6F

 1
90301-09173

NRE210..6F

 1
33403L - RING, O
96711-24030

NRE210..6F

 1
90301-09173

NRE210..6F

 1
33449B - MAGNET, TRANSMISSION
33449-20010

NRE210..6F

 1
Common parts
90105-W0128
Linked diagrams
3105
4301
4302
8401
8410
