NRE210L-DHFDZW (2019)
Toyota Corolla (Ukp)

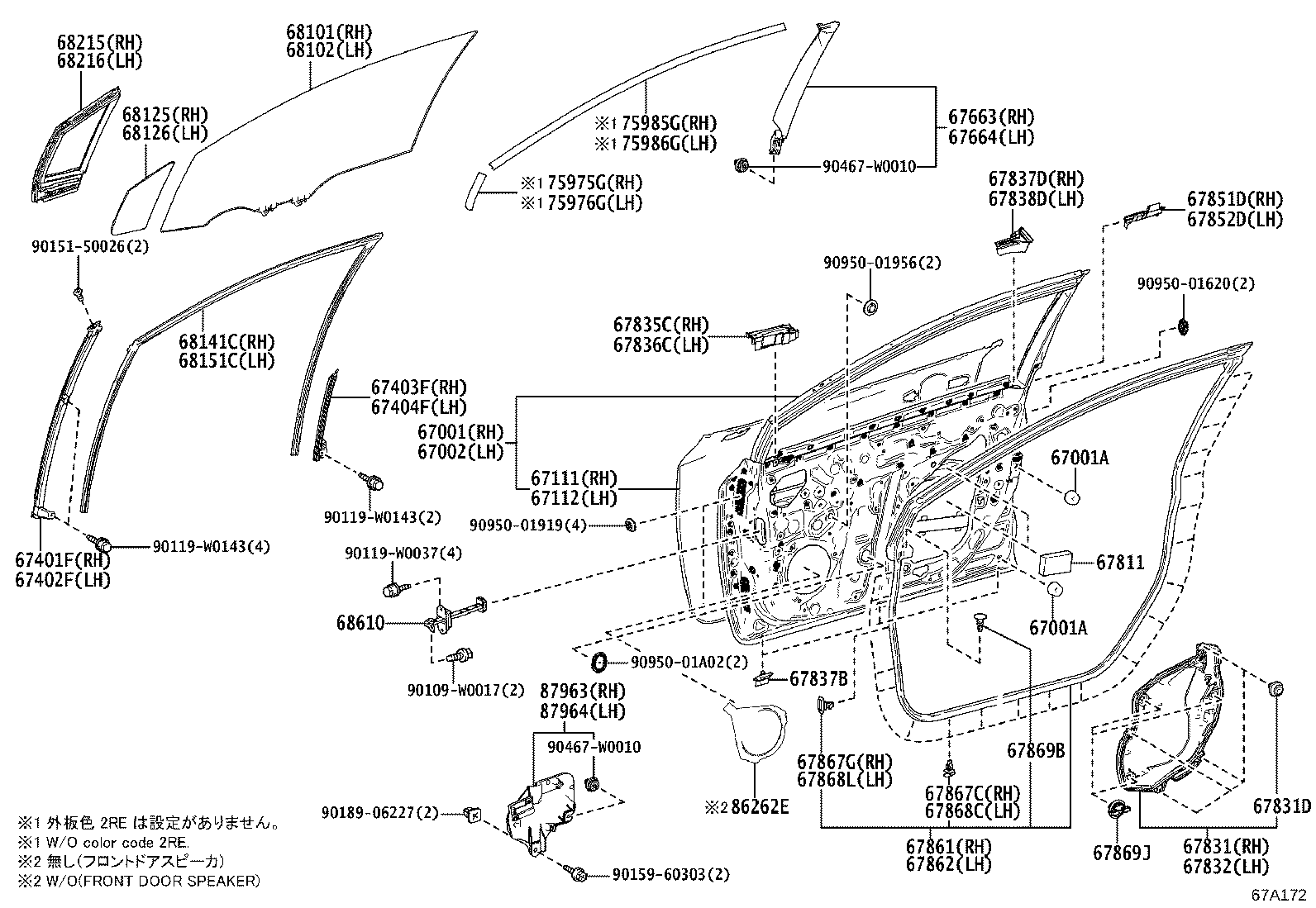

ILLUST NO. 1 OF 2(1901- )
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-02550 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09124 |
MZEH12,NRE210,ZWE211 |
4 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09124 |
MZEH12,NRE210,ZWE211 |
4 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-02540 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-02320 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-02320 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH | ||||
| 67401-12390 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH | ||||
| 67402-12410 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-02250 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-02250 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 67663 - GARNISH, DOOR FRAME, UPPER RH | ||||
| 67663-02030 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 67664 - GARNISH, DOOR FRAME, UPPER LH | ||||
| 67664-02030 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 67811 - PAD, FRONT DOOR SILENCER | ||||
| 67811-12180 |
MZEH12,NRE210,ZWE211 |
4 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-02450 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 67831D - CLIP(FOR FRONT DOOR SERVICE HOLE COVER) | ||||
| 90467-W0010 |
MZEH12,NRE210,ZWE211 |
8 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-02450 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 67835C - COVER, FRONT DOOR SERVICE HOLE, NO.3 RH | ||||
| 67835-02020 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 67836C - COVER, FRONT DOOR SERVICE HOLE, NO.3 LH | ||||
| 67836-02080 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 67837B - SEAL, FRONT DOOR DUST PROOF | ||||
| 67837-47060 |
MZEH12,NRE210,ZWE211 |
6 | ||
| 67837D - SEAL, FRONT DOOR VENT, RH | ||||
| 67837-02080 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 67838D - SEAL, FRONT DOOR VENT, LH | ||||
| 67838-02060 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 67851D - SEAL, FRONT DOOR REAR OUTSIDE, RH | ||||
| 67851-02020 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 67852D - SEAL, FRONT DOOR REAR OUTSIDE, LH | ||||
| 67852-02020 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-02340 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-02340 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
MZEH12,NRE210,ZWE211 |
20 | ||
| 67867G - RETAINER, DOOR WEATHERSTRIP, RH | ||||
| 67867-52030 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
MZEH12,NRE210,ZWE211 |
20 | ||
| 67868L - RETAINER, DOOR WEATHERSTRIP, LH | ||||
| 67867-52030 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 67869B - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 67868-30030 |
MZEH12,NRE210,ZWE211 |
2 | ||
| 67869J - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 67869-F4010 |
MZEH12,NRE210,ZWE211 |
6 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-02561 |
MZEH12..N;NRE210,ZWE211 |
1 | ||
| 68101-02560 |
MZEH12..N;NRE210,ZWE211 |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-02561 |
MZEH12..N;NRE210,ZWE211 |
1 | ||
| 68102-02560 |
MZEH12..N;NRE210,ZWE211 |
1 | ||
| 68125 - GLASS, FRONT DOOR FIX WINDOW, RH | ||||
| 68125-02021 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 68125-02020 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 68126 - GLASS, FRONT DOOR FIX WINDOW, LH | ||||
| 68126-02020 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 68126-02021 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 68141C - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-02390 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 68151C - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-02380 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 68215 - WEATHERSTRIP, FRONT DOOR FIX WINDOW, RH | ||||
| 68215-02020 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 68216 - WEATHERSTRIP, FRONT DOOR FIX WINDOW, LH | ||||
| 68216-02020 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-02350 |
MZEH12,NRE210,ZWE211 |
2 | ||
| 75975G - STRIPE, FRONT DOOR, NO.2 RH | ||||
| 75975-02020 |
MZEH12,NRE210,ZWE211 BLACK OUT-WHEEL HOUSE & DOOR SASH,0 OR 1PIECE,REF.ILL. |
1 | ||
| 75975-02020 |
MZEH12,NRE210,ZWE211..G,N BLACK OUT-WHEEL HOUSE & DOOR SASH&DOOR FRAME MOULDING-BLACK & BLACK PAINT,0 OR 1PIECE,REF.ILL. |
1 | ||
| 75976G - STRIPE, FRONT DOOR, NO.2 LH | ||||
| 75976-02020 |
MZEH12,NRE210,ZWE211..G,N BLACK OUT-WHEEL HOUSE & DOOR SASH&DOOR FRAME MOULDING-BLACK & BLACK PAINT,0 OR 1PIECE,REF.ILL. |
1 | ||
| 75976-02020 |
MZEH12,NRE210,ZWE211 BLACK OUT-WHEEL HOUSE & DOOR SASH,0 OR 1PIECE,REF.ILL. |
1 | ||
| 75985G - STRIPE, FRONT DOOR OUTSIDE, RH | ||||
| 75985-02020 |
MZEH12,NRE210,ZWE211..G,N BLACK OUT-WHEEL HOUSE & DOOR SASH&DOOR FRAME MOULDING-BLACK & BLACK PAINT,0 OR 1PIECE,REF.ILL. |
1 | ||
| 75985-02020 |
MZEH12,NRE210,ZWE211 BLACK OUT-WHEEL HOUSE & DOOR SASH,0 OR 1PIECE,REF.ILL. |
1 | ||
| 75986G - STRIPE, FRONT DOOR OUTSIDE, LH | ||||
| 75986-02020 |
MZEH12,NRE210,ZWE211..G,N BLACK OUT-WHEEL HOUSE & DOOR SASH&DOOR FRAME MOULDING-BLACK & BLACK PAINT,0 OR 1PIECE,REF.ILL. |
1 | ||
| 75986-02020 |
MZEH12,NRE210,ZWE211 BLACK OUT-WHEEL HOUSE & DOOR SASH,0 OR 1PIECE,REF.ILL. |
1 | ||
| 86262E - COVER, SPEAKER, FRONT | ||||
| 86262-17010 |
MZEH12,NRE210,ZWE211..LHD..EUR AUDIO-WITHOUT(SPEAKER)&DATA COMMUNICATION MODULE-WITHOUT |
2 | ||
| 87963 - COVER, OUTER MIRROR INSTALL HOLE, RH | ||||
| 87963-02020 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 87964 - COVER, OUTER MIRROR INSTALL HOLE, LH | ||||
| 87964-02020 |
MZEH12,NRE210,ZWE211 |
1 | ||
| Common parts | ||||
| 90109-W0017 | ||||
| 90119-W0037 | ||||
| 90119-W0143 | ||||
| 90151-50026 | ||||
| 90159-60303 | ||||
| 90189-06227 | ||||
| 90467-W0010 | ||||
| 90950-01620 | ||||
| 90950-01919 | ||||
| 90950-01956 | ||||
| 90950-01A02 | ||||

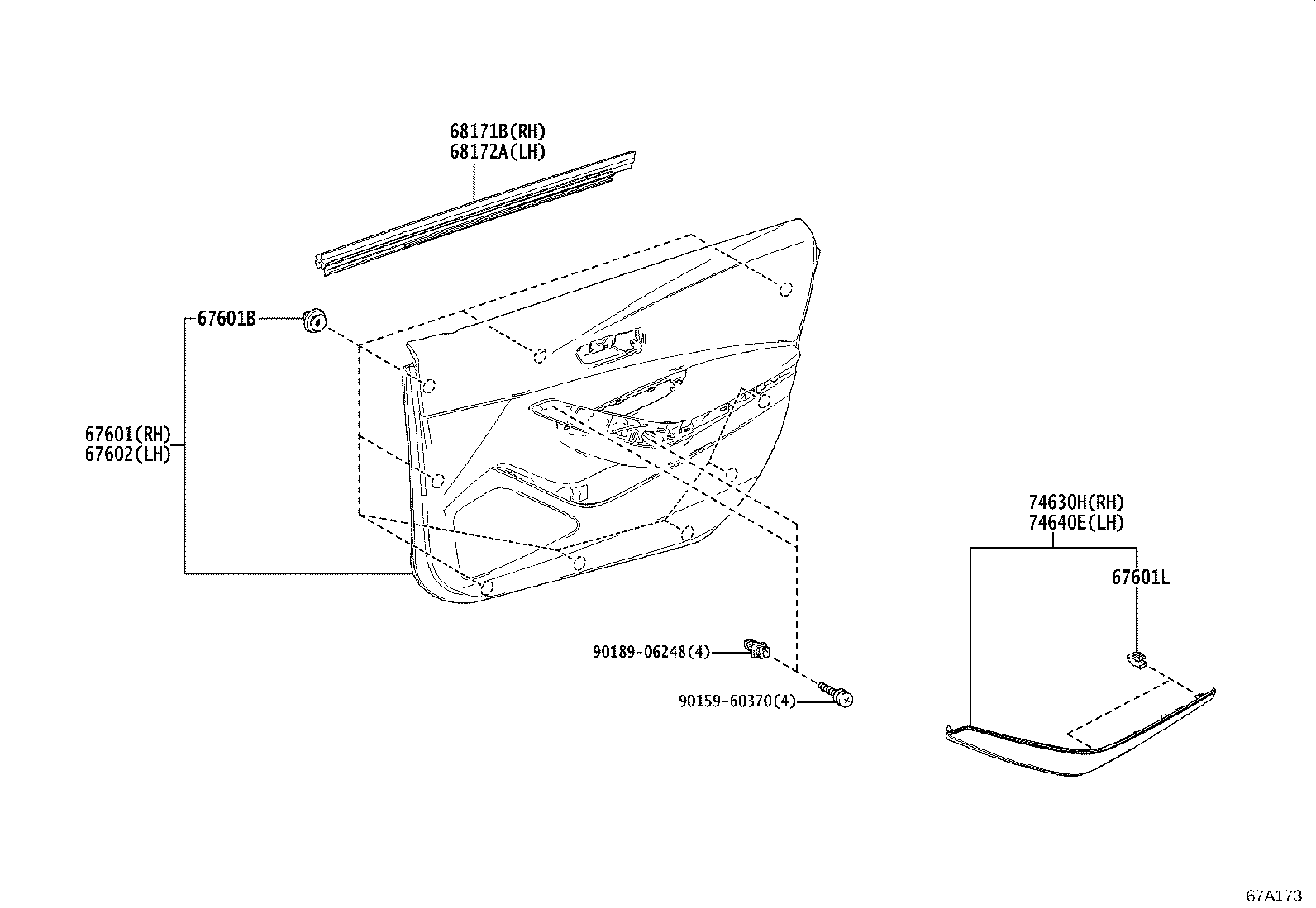

ILLUST NO. 2 OF 2(1901- )
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-02D30C0 |
NRE210,ZWE211..WG..D;NRE210,ZWE211..HB..(D,N) BLACK/COOL GRAY,TRIM1# |
1 | ||
| 67610-02X20C3 |
MZEH12,NRE210,ZWE211..HB..N ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&DOOR ARM REST-PVC LEATHER,BLACK/C.GRAY/BLACK/GRAY,TRIM1# |
1 | ||
| 67610-02D30C1 |
NRE210,ZWE211..WG..D;NRE210,ZWE211..HB..(D,N) BLAC/BLACK,TRIM2# |
1 | ||
| 67610-02X20C5 |
NRE210..HB..N ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&DOOR ARM REST-PVC LEATHER,BLACK/BLACK/BLACK/GRAY,TRIM2# |
1 | ||
| 67610-02D31C0 |
NRE210,ZWE211..WG..D;NRE210,ZWE211..HB..(D,N) BLACK/COOL GRAY,TRIM1# |
1 | ||
| 67610-02D31C1 |
NRE210,ZWE211..WG..D;NRE210,ZWE211..HB..(D,N) BLACK/BLACK,TRIM2# |
1 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-09206 |
MZEH12,NRE210,ZWE211 |
18 | ||
| 67601L - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-05172 |
MZEH12,NRE210,ZWE211 |
4 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-02D30C0 |
NRE210,ZWE211..WG..D;NRE210,ZWE211..HB..(D,N) BLACK/COOL GRAY,TRIM1# |
1 | ||
| 67620-02X20C3 |
MZEH12,NRE210,ZWE211..HB..N ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&DOOR ARM REST-PVC LEATHER,BLACK/C.GRAY/BLACK/GRAY,TRIM1# |
1 | ||
| 67620-02D30C1 |
NRE210,ZWE211..WG..D;NRE210,ZWE211..HB..(D,N) BLACK/BLACK,TRIM2# |
1 | ||
| 67620-02X20C5 |
NRE210..HB..N ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&DOOR ARM REST-PVC LEATHER,BLACK/BLACK/BLACK/GRAY,TRIM2# |
1 | ||
| 67620-02D31C1 |
NRE210,ZWE211..WG..D;NRE210,ZWE211..HB..(D,N) BLACK/BLACK,TRIM2# |
1 | ||
| 67620-02D31C0 |
NRE210,ZWE211..WG..D;NRE210,ZWE211..HB..(D,N) BLACK/COOL GRAY,TRIM1# |
1 | ||
| 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH | ||||
| 68171-02370 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH | ||||
| 68172-02350 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 74630H - GRIP ASSY, FRONT DOOR ASSIST, RH | ||||
| 74630-02230 |
MZEH12,NRE210,ZWE211..N |
1 | ||
| 74630-02250 |
MZEH12,NRE210,ZWE211..G,N DOOR INNER GARNISH-PLATING(DARK GRAY) & PIANO BLACK |
1 | ||
| 74645-02410 |
MZEH12,NRE210,ZWE211..G,N DOOR INNER GARNISH-RESIN & RESIN |
1 | ||
| 74645-02410 |
NRE210,ZWE211..D |
1 | ||
| 74630-02260 |
MZEH12,NRE210,ZWE211..G,N DOOR INNER GARNISH-RED & PIANO BLACK |
1 | ||
| 74630-02090 |
MZEH12,NRE210,ZWE211..N DOOR INNER GARNISH-PLATING & PIANO BLACK |
1 | ||
| 74640E - GRIP ASSY, FRONT DOOR ASSIST, LH | ||||
| 74640-02250 |
MZEH12,NRE210,ZWE211..G,N DOOR INNER GARNISH-PLATING(DARK GRAY) & PIANO BLACK |
1 | ||
| 74640-02080 |
MZEH12,NRE210,ZWE211..N DOOR INNER GARNISH-PLATING & PIANO BLACK |
1 | ||
| 74640-02220 |
MZEH12,NRE210,ZWE211..N |
1 | ||
| 74646-02410 |
MZEH12,NRE210,ZWE211..G,N DOOR INNER GARNISH-RESIN & RESIN |
1 | ||
| 74646-02410 |
NRE210,ZWE211..D |
1 | ||
| 74640-02240 |
MZEH12,NRE210,ZWE211..G,N DOOR INNER GARNISH-RED & PIANO BLACK |
1 | ||
| Common parts | ||||
| 90159-60370 | ||||
| 90189-06248 | ||||
