NRE210L-DHFDZW (2019)
Toyota Corolla (Ukp)

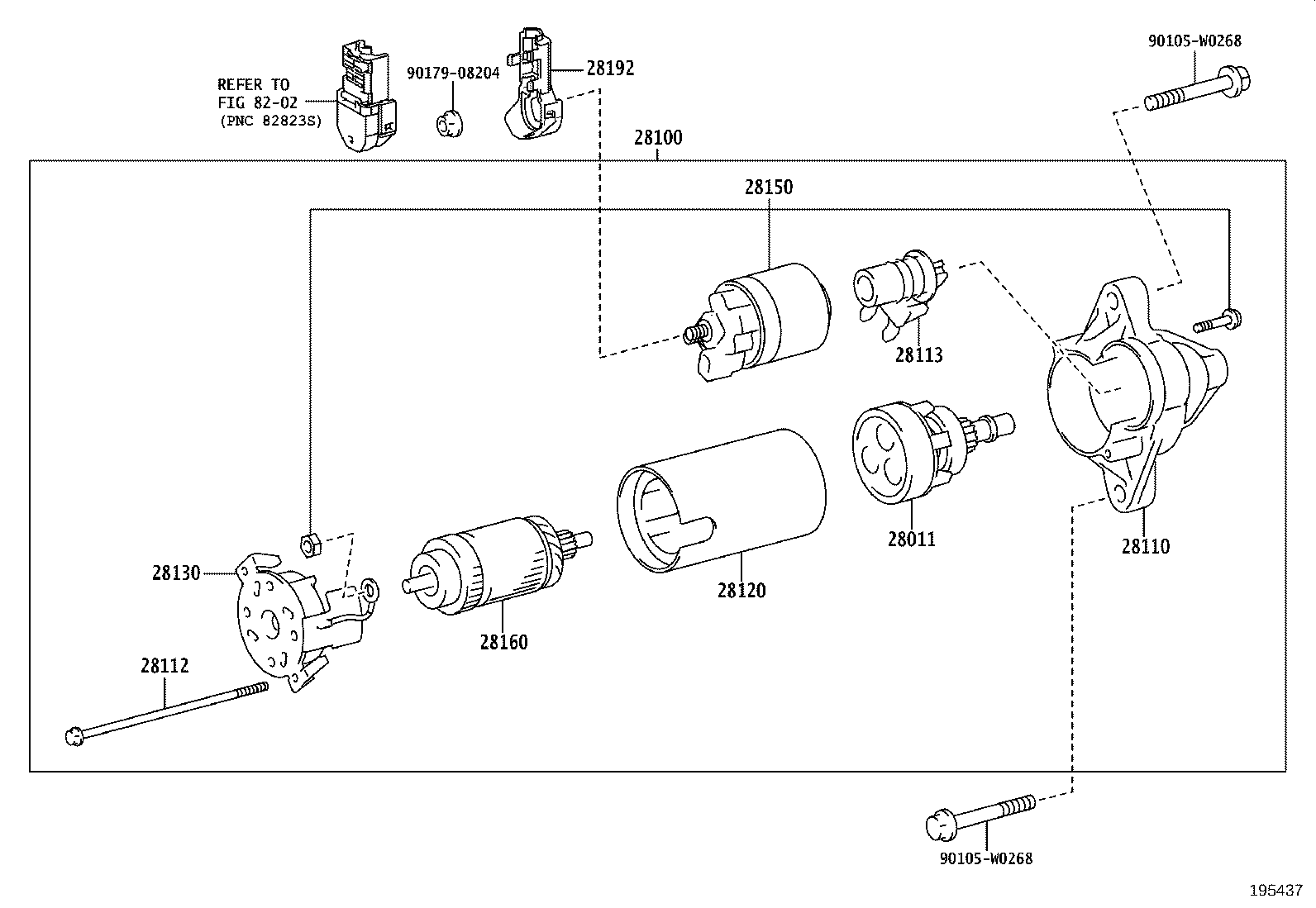

(1901- )8NRFTS..6F ; (1901- )8NRFTS..LHD..HB..CVT
12V 1.2KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-0Y270 |
8NRFTS..NRE210..6F;8NRFTS..NRE210..LHD..HB..CVT |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-0Y240 |
8NRFTS..NRE210..6F..EUR 12V 1.7KW,LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM) |
1 | ||
| 28100-0Y240 |
8NRFTS..NRE210..6F..EUR 12V 1.7KW,LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM)&SUB COLD AREA SPEC |
1 | ||
| 28100-0Y270 |
8NRFTS..NRE210..6F;8NRFTS..NRE210..LHD..HB..CVT 12V 1.2KW |
1 | ||
| 28100-0Y440 |
8NRFTS..NRE210..LHD..6F..EUR 12V 1.6KW,COLD AREA SPEC |
1 | ||
| 28100-0Y240 |
8NRFTS..NRE210..LHD..6F..EUR 12V 1.7KW,LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM)&COLD AREA SPEC |
1 | ||
| 28100-0Y440 |
8NRFTS..NRE210..6F..EUR 12V 1.6KW,SUB COLD AREA SPEC |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-0Y270 |
8NRFTS..NRE210..6F;8NRFTS..NRE210..LHD..HB..CVT |
1 | ||
| 28112 - BOLT, HOUSING SET | ||||
| 28112-0Y270 |
8NRFTS..NRE210..6F;8NRFTS..NRE210..LHD..HB..CVT |
1 | ||
| 28113 - LEVER, STARTER PINION DRIVE | ||||
| 28113-0Y270 |
8NRFTS..NRE210..6F;8NRFTS..NRE210..LHD..HB..CVT |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-0Y270 |
8NRFTS..NRE210..6F;8NRFTS..NRE210..LHD..HB..CVT |
1 | ||
| 28120-47240 |
8NRFTS..NRE210..6F..EUR LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM) |
1 | ||
| 28120-37050 |
8NRFTS..NRE210..LHD..6F..EUR COLD AREA SPEC |
1 | ||
| 28120-47240 |
8NRFTS..NRE210..6F..EUR LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM)&SUB COLD AREA SPEC |
1 | ||
| 28120-47240 |
8NRFTS..NRE210..LHD..6F..EUR LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM)&COLD AREA SPEC |
1 | ||
| 28120-37050 |
8NRFTS..NRE210..6F..EUR SUB COLD AREA SPEC |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-0Y270 |
8NRFTS..NRE210..6F;8NRFTS..NRE210..LHD..HB..CVT |
1 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-47240 |
8NRFTS..NRE210..6F..EUR LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM) |
1 | ||
| 28150-37050 |
8NRFTS..NRE210..6F..EUR SUB COLD AREA SPEC |
1 | ||
| 28150-37050 |
8NRFTS..NRE210..LHD..6F..EUR COLD AREA SPEC |
1 | ||
| 28150-0Y270 |
8NRFTS..NRE210..6F;8NRFTS..NRE210..LHD..HB..CVT |
1 | ||
| 28150-47240 |
8NRFTS..NRE210..6F..EUR LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM)&SUB COLD AREA SPEC |
1 | ||
| 28150-47240 |
8NRFTS..NRE210..LHD..6F..EUR LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM)&COLD AREA SPEC |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-38080 |
8NRFTS..NRE210..LHD..6F..EUR LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM)&COLD AREA SPEC |
1 | ||
| 28160-38080 |
8NRFTS..NRE210..6F..EUR LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM) |
1 | ||
| 28160-36110 |
8NRFTS..NRE210..6F..EUR LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM)&SUB COLD AREA SPEC |
1 | ||
| 28160-47270 |
8NRFTS..NRE210..6F..EUR SUB COLD AREA SPEC |
1 | ||
| 28160-38080 |
8NRFTS..NRE210..6F..EUR LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM)&SUB COLD AREA SPEC |
1 | ||
| 28160-47280 |
8NRFTS..NRE210..6F..EUR SUB COLD AREA SPEC |
1 | ||
| 28160-36110 |
8NRFTS..NRE210..6F..EUR;8NRFTS..NRE210..LHD..HB..CVT..EUR LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM) |
1 | ||
| 28160-0Y270 |
8NRFTS..NRE210..6F;8NRFTS..NRE210..LHD..HB..CVT |
1 | ||
| 28160-36110 |
8NRFTS..NRE210..LHD..6F..EUR LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM)&COLD AREA SPEC |
1 | ||
| 28160-47270 |
8NRFTS..NRE210..LHD..6F..EUR COLD AREA SPEC |
1 | ||
| 28160-47280 |
8NRFTS..NRE210..LHD..6F..EUR COLD AREA SPEC |
1 | ||
| 28192 - COVER, STARTER | ||||
| 28192-47020 |
8NRFTS..NRE210 |
1 | ||
| Common parts | ||||
| 90105-W0268 | ||||
| 90179-08204 | ||||
| Linked diagrams | ||||
| 8202 | ||||

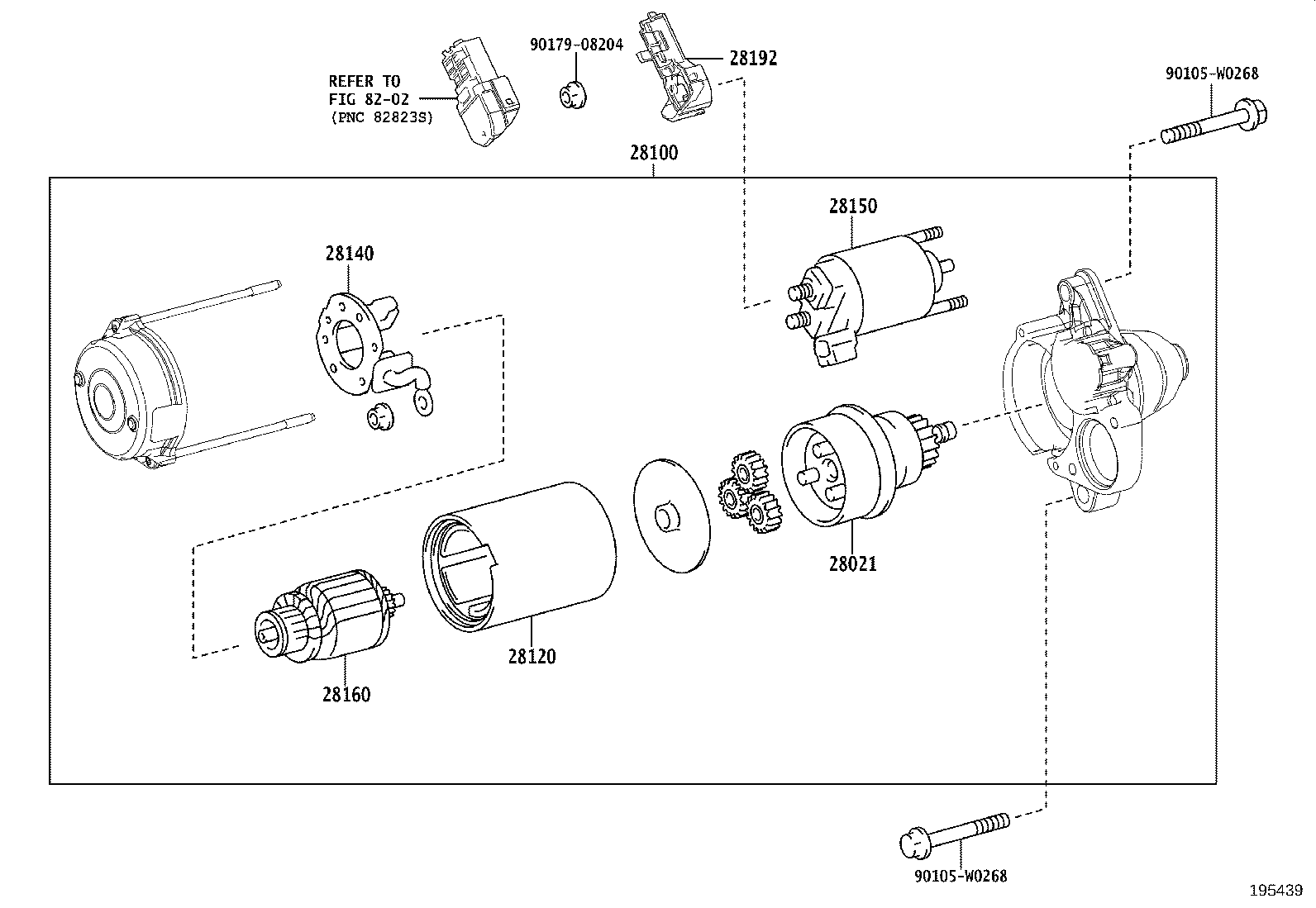

(1901- )8NRFTS..6F..EUR
12V 1.7KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28021 - CLUTCH SUB-ASSY, STARTER CENTER BEARING | ||||
| 28021-21100 |
8NRFTS..NRE210..6F..EUR;8NRFTS..NRE210..LHD..HB..CVT..EUR LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM) |
1 | ||
| 28021-21100 |
8NRFTS..NRE210..6F..EUR LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM)&SUB COLD AREA SPEC |
1 | ||
| 28021-47270 |
8NRFTS..NRE210..LHD..6F..EUR COLD AREA SPEC |
1 | ||
| 28021-21100 |
8NRFTS..NRE210..LHD..6F..EUR LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM)&COLD AREA SPEC |
1 | ||
| 28021-47270 |
8NRFTS..NRE210..6F..EUR SUB COLD AREA SPEC |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-0Y240 |
8NRFTS..NRE210..6F..EUR 12V 1.7KW,LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM) |
1 | ||
| 28100-0Y240 |
8NRFTS..NRE210..6F..EUR 12V 1.7KW,LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM)&SUB COLD AREA SPEC |
1 | ||
| 28100-0Y270 |
8NRFTS..NRE210..6F;8NRFTS..NRE210..LHD..HB..CVT 12V 1.2KW |
1 | ||
| 28100-0Y440 |
8NRFTS..NRE210..LHD..6F..EUR 12V 1.6KW,COLD AREA SPEC |
1 | ||
| 28100-0Y240 |
8NRFTS..NRE210..LHD..6F..EUR 12V 1.7KW,LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM)&COLD AREA SPEC |
1 | ||
| 28100-0Y440 |
8NRFTS..NRE210..6F..EUR 12V 1.6KW,SUB COLD AREA SPEC |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-0Y270 |
8NRFTS..NRE210..6F;8NRFTS..NRE210..LHD..HB..CVT |
1 | ||
| 28120-47240 |
8NRFTS..NRE210..6F..EUR LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM) |
1 | ||
| 28120-37050 |
8NRFTS..NRE210..LHD..6F..EUR COLD AREA SPEC |
1 | ||
| 28120-47240 |
8NRFTS..NRE210..6F..EUR LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM)&SUB COLD AREA SPEC |
1 | ||
| 28120-47240 |
8NRFTS..NRE210..LHD..6F..EUR LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM)&COLD AREA SPEC |
1 | ||
| 28120-37050 |
8NRFTS..NRE210..6F..EUR SUB COLD AREA SPEC |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-21100 |
8NRFTS..NRE210..6F..EUR;8NRFTS..NRE210..LHD..HB..CVT..EUR LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM) |
1 | ||
| 28140-21100 |
8NRFTS..NRE210..LHD..6F..EUR LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM)&COLD AREA SPEC |
1 | ||
| 28140-21100 |
8NRFTS..NRE210..6F..EUR LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM)&SUB COLD AREA SPEC |
1 | ||
| 28140-37050 |
8NRFTS..NRE210..LHD..6F..EUR COLD AREA SPEC |
1 | ||
| 28140-37050 |
8NRFTS..NRE210..6F..EUR SUB COLD AREA SPEC |
1 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-47240 |
8NRFTS..NRE210..6F..EUR LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM) |
1 | ||
| 28150-37050 |
8NRFTS..NRE210..6F..EUR SUB COLD AREA SPEC |
1 | ||
| 28150-37050 |
8NRFTS..NRE210..LHD..6F..EUR COLD AREA SPEC |
1 | ||
| 28150-0Y270 |
8NRFTS..NRE210..6F;8NRFTS..NRE210..LHD..HB..CVT |
1 | ||
| 28150-47240 |
8NRFTS..NRE210..6F..EUR LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM)&SUB COLD AREA SPEC |
1 | ||
| 28150-47240 |
8NRFTS..NRE210..LHD..6F..EUR LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM)&COLD AREA SPEC |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-38080 |
8NRFTS..NRE210..LHD..6F..EUR LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM)&COLD AREA SPEC |
1 | ||
| 28160-38080 |
8NRFTS..NRE210..6F..EUR LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM) |
1 | ||
| 28160-36110 |
8NRFTS..NRE210..6F..EUR LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM)&SUB COLD AREA SPEC |
1 | ||
| 28160-47270 |
8NRFTS..NRE210..6F..EUR SUB COLD AREA SPEC |
1 | ||
| 28160-38080 |
8NRFTS..NRE210..6F..EUR LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM)&SUB COLD AREA SPEC |
1 | ||
| 28160-47280 |
8NRFTS..NRE210..6F..EUR SUB COLD AREA SPEC |
1 | ||
| 28160-36110 |
8NRFTS..NRE210..6F..EUR;8NRFTS..NRE210..LHD..HB..CVT..EUR LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM) |
1 | ||
| 28160-0Y270 |
8NRFTS..NRE210..6F;8NRFTS..NRE210..LHD..HB..CVT |
1 | ||
| 28160-36110 |
8NRFTS..NRE210..LHD..6F..EUR LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM)&COLD AREA SPEC |
1 | ||
| 28160-47270 |
8NRFTS..NRE210..LHD..6F..EUR COLD AREA SPEC |
1 | ||
| 28160-47280 |
8NRFTS..NRE210..LHD..6F..EUR COLD AREA SPEC |
1 | ||
| 28192 - COVER, STARTER | ||||
| 28192-47020 |
8NRFTS..NRE210 |
1 | ||
| Common parts | ||||
| 90105-W0268 | ||||
| 90179-08204 | ||||
| Linked diagrams | ||||
| 8202 | ||||

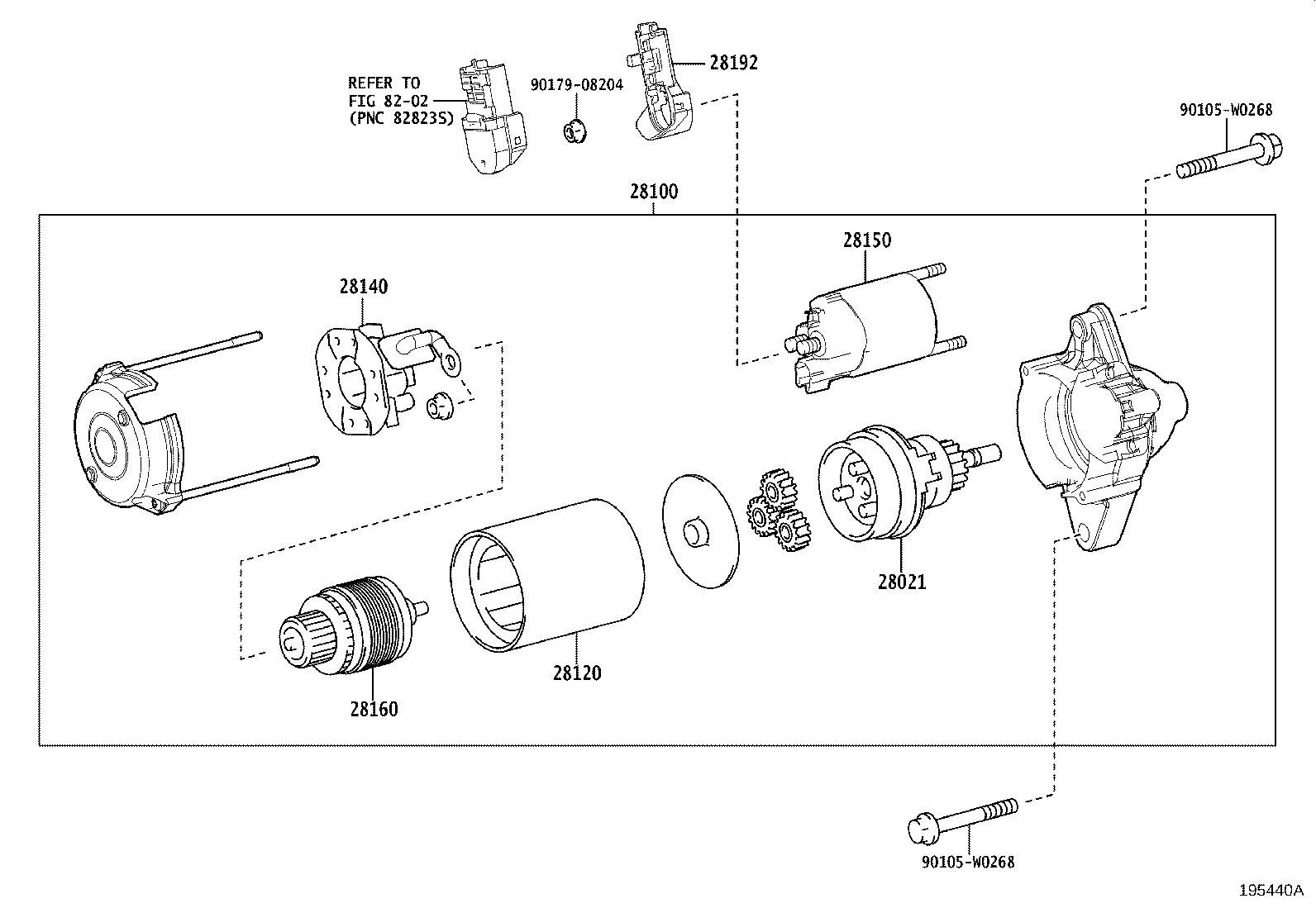

(1901- )8NRFTS..6F..EUR
12V 1.6KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28021 - CLUTCH SUB-ASSY, STARTER CENTER BEARING | ||||
| 28021-21100 |
8NRFTS..NRE210..6F..EUR;8NRFTS..NRE210..LHD..HB..CVT..EUR LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM) |
1 | ||
| 28021-21100 |
8NRFTS..NRE210..6F..EUR LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM)&SUB COLD AREA SPEC |
1 | ||
| 28021-47270 |
8NRFTS..NRE210..LHD..6F..EUR COLD AREA SPEC |
1 | ||
| 28021-21100 |
8NRFTS..NRE210..LHD..6F..EUR LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM)&COLD AREA SPEC |
1 | ||
| 28021-47270 |
8NRFTS..NRE210..6F..EUR SUB COLD AREA SPEC |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-0Y240 |
8NRFTS..NRE210..6F..EUR 12V 1.7KW,LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM) |
1 | ||
| 28100-0Y240 |
8NRFTS..NRE210..6F..EUR 12V 1.7KW,LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM)&SUB COLD AREA SPEC |
1 | ||
| 28100-0Y270 |
8NRFTS..NRE210..6F;8NRFTS..NRE210..LHD..HB..CVT 12V 1.2KW |
1 | ||
| 28100-0Y440 |
8NRFTS..NRE210..LHD..6F..EUR 12V 1.6KW,COLD AREA SPEC |
1 | ||
| 28100-0Y240 |
8NRFTS..NRE210..LHD..6F..EUR 12V 1.7KW,LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM)&COLD AREA SPEC |
1 | ||
| 28100-0Y440 |
8NRFTS..NRE210..6F..EUR 12V 1.6KW,SUB COLD AREA SPEC |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-0Y270 |
8NRFTS..NRE210..6F;8NRFTS..NRE210..LHD..HB..CVT |
1 | ||
| 28120-47240 |
8NRFTS..NRE210..6F..EUR LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM) |
1 | ||
| 28120-37050 |
8NRFTS..NRE210..LHD..6F..EUR COLD AREA SPEC |
1 | ||
| 28120-47240 |
8NRFTS..NRE210..6F..EUR LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM)&SUB COLD AREA SPEC |
1 | ||
| 28120-47240 |
8NRFTS..NRE210..LHD..6F..EUR LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM)&COLD AREA SPEC |
1 | ||
| 28120-37050 |
8NRFTS..NRE210..6F..EUR SUB COLD AREA SPEC |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-21100 |
8NRFTS..NRE210..6F..EUR;8NRFTS..NRE210..LHD..HB..CVT..EUR LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM) |
1 | ||
| 28140-21100 |
8NRFTS..NRE210..LHD..6F..EUR LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM)&COLD AREA SPEC |
1 | ||
| 28140-21100 |
8NRFTS..NRE210..6F..EUR LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM)&SUB COLD AREA SPEC |
1 | ||
| 28140-37050 |
8NRFTS..NRE210..LHD..6F..EUR COLD AREA SPEC |
1 | ||
| 28140-37050 |
8NRFTS..NRE210..6F..EUR SUB COLD AREA SPEC |
1 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-47240 |
8NRFTS..NRE210..6F..EUR LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM) |
1 | ||
| 28150-37050 |
8NRFTS..NRE210..6F..EUR SUB COLD AREA SPEC |
1 | ||
| 28150-37050 |
8NRFTS..NRE210..LHD..6F..EUR COLD AREA SPEC |
1 | ||
| 28150-0Y270 |
8NRFTS..NRE210..6F;8NRFTS..NRE210..LHD..HB..CVT |
1 | ||
| 28150-47240 |
8NRFTS..NRE210..6F..EUR LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM)&SUB COLD AREA SPEC |
1 | ||
| 28150-47240 |
8NRFTS..NRE210..LHD..6F..EUR LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM)&COLD AREA SPEC |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-38080 |
8NRFTS..NRE210..LHD..6F..EUR LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM)&COLD AREA SPEC |
1 | ||
| 28160-38080 |
8NRFTS..NRE210..6F..EUR LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM) |
1 | ||
| 28160-36110 |
8NRFTS..NRE210..6F..EUR LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM)&SUB COLD AREA SPEC |
1 | ||
| 28160-47270 |
8NRFTS..NRE210..6F..EUR SUB COLD AREA SPEC |
1 | ||
| 28160-38080 |
8NRFTS..NRE210..6F..EUR LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM)&SUB COLD AREA SPEC |
1 | ||
| 28160-47280 |
8NRFTS..NRE210..6F..EUR SUB COLD AREA SPEC |
1 | ||
| 28160-36110 |
8NRFTS..NRE210..6F..EUR;8NRFTS..NRE210..LHD..HB..CVT..EUR LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM) |
1 | ||
| 28160-0Y270 |
8NRFTS..NRE210..6F;8NRFTS..NRE210..LHD..HB..CVT |
1 | ||
| 28160-36110 |
8NRFTS..NRE210..LHD..6F..EUR LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM)&COLD AREA SPEC |
1 | ||
| 28160-47270 |
8NRFTS..NRE210..LHD..6F..EUR COLD AREA SPEC |
1 | ||
| 28160-47280 |
8NRFTS..NRE210..LHD..6F..EUR COLD AREA SPEC |
1 | ||
| 28192 - COVER, STARTER | ||||
| 28192-47020 |
8NRFTS..NRE210 |
1 | ||
| Common parts | ||||
| 90105-W0268 | ||||
| 90179-08204 | ||||
| Linked diagrams | ||||
| 8202 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
