ZRE211L-DEXNK (2019)
Toyota Corolla (Tup)
ILLUST NO. 1 OF13(1901- )MZEA11,ZRE21#..LHD
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82115-F2E60 |
ZRE21#..CVT..(D,N)..(GCC,GEN) |
1 | ||
| 82115-F2G10 |
ZRE21#..CVT..(D,N)..(GCC,GEN) BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS |
1 | ||
| 82115-F2E70 |
ZRE21#..CVT..N..GEN HEADLAMP-LED |
1 | ||
| 82115-F2G20 |
ZRE21#..CVT..N..GEN BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS&HEADLAMP-LED |
1 | ||
| 82115-F2G20 |
ZRE211..G BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS |
1 | ||
| 82115-F2E70 |
ZRE211..G |
1 | ||
| 82111-F2M50 |
ZRE21#..LHD..CVT..N..GEN HEADLAMP-LED |
1 | ||
| 82111-F2M50 |
ZRE211..G |
1 | ||
| 82115-F2E71 |
ZRE211..G HEADLAMP CLEANER-WITH |
1 | ||
| 82115-F2E61 |
ZRE21#..LHD..CVT..(D,N)..(GCC,GEN) |
1 | ||
| 82115-F2E71 |
ZRE21#..LHD..CVT..N..GEN HEADLAMP-LED&HEADLAMP CLEANER-WITH |
1 | ||
| 82115-F2G10 |
ZRE21#..LHD..CVT..(D,N)..GEN LEBANON SPEC |
1 | ||
| 82115-F2G10 |
ZRE21#..LHD..CVT..(D,N)..GEN EGYPT SPEC |
1 | ||
| 82115-F2G20 |
ZRE211..G..GEN LEBANON SPEC |
1 | ||
| 82115-F2G20 |
ZRE211..G..GEN EGYPT SPEC |
1 | ||
| 82115-F2G20 |
ZRE21#..LHD..CVT..N..GEN LEBANON SPEC&HEADLAMP-LED |
1 | ||
| 82115-F2G20 |
ZRE211..G..GEN LEBANON SPEC&HEADLAMP CLEANER-WITH |
1 | ||
| 82115-F2G20 |
ZRE21#..LHD..CVT..N..GEN LEBANON SPEC&HEADLAMP-LED&HEADLAMP CLEANER-WITH |
1 | ||
| 82115-F2G20 |
ZRE21#..LHD..CVT..N..GEN EGYPT SPEC&HEADLAMP-LED |
1 | ||
| 82115-F2G20 |
ZRE21#..LHD..CVT..N..GEN EGYPT SPEC&HEADLAMP-LED&HEADLAMP CLEANER-WITH |
1 | ||
| 82115-F2G20 |
ZRE211..G..GEN EGYPT SPEC&HEADLAMP CLEANER-WITH |
1 | ||
| 82116-0ZS90 |
ZRE21#..LHD..CVT..(D,N)..(GCC,GEN) |
1 | ||
| 82116-0ZT00 |
ZRE211..G |
1 | ||
| 82116-0ZT00 |
ZRE21#..LHD..CVT..N..GEN HEADLAMP-LED |
1 | ||
| 82116-0ZV10 |
ZRE21#..LHD..CVT..N..GEN LEBANON SPEC&HEADLAMP-LED |
1 | ||
| 82116-0ZV00 |
ZRE21#..LHD..CVT..(D,N)..GEN EGYPT SPEC |
1 | ||
| 82116-0ZV10 |
ZRE21#..LHD..CVT..N..GEN EGYPT SPEC&HEADLAMP-LED |
1 | ||
| 82116-0ZV10 |
ZRE211..G..GEN LEBANON SPEC |
1 | ||
| 82116-0ZV00 |
ZRE21#..LHD..CVT..(D,N)..GEN LEBANON SPEC |
1 | ||
| 82116-0ZV10 |
ZRE211..G..GEN EGYPT SPEC |
1 | ||
| 82119C - WIRE, ENGINE ROOM, NO.5 | ||||
| 82119-02070 |
ZRE210..N;MZEA11..6F..N;MZEA11..RHD..6F;ZRE210..LHD..D..GEN;MZEA11,ZRE211,ZWE21#..CVT..(D,N) CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82119-02070 |
ZRE210..G..RUS;MZEA11,ZRE211,ZWE21#..G |
1 | ||
| 82286A - WIRE, EARTH, NO.2 | ||||
| 82286-F4030 |
ZRE211,ZWE21#;ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N) |
1 | ||
| 82815A - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-12L00 |
ZRE210..G..RUS;ZRE210..LHD..(D,N);MZEA11,ZRE211..LHD |
1 | ||
| 82815B - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-12L20 |
ZRE210..G..RUS;ZRE210..LHD..(D,N);MZEA11,ZRE211..LHD |
1 | ||
| 82815G - COVER, WIRING HARNESS PROTECTOR NO.5 | ||||
| 82815-F4210 |
ZRE210..G..RUS;ZRE210..LHD..(D,N);MZEA11,ZRE211..LHD |
1 | ||
| 82815H - COVER, WIRING HARNESS PROTECTOR NO.6 | ||||
| 82815-F4230 |
ZRE210..G..RUS;ZRE210..LHD..(D,N);MZEA11,ZRE211..LHD |
1 | ||
| 82815J - COVER, WIRING HARNESS PROTECTOR, NO.7 | ||||
| 82815-F4280 |
MZEA11,ZRE211;ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N) |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-12Y70 |
ZRE210..G..RUS;ZRE210..LHD..(D,N);MZEA11,ZRE211..LHD |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-12Y90 |
ZRE210..G..RUS;ZRE210..LHD..(D,N);MZEA11,ZRE211..LHD |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-F4240 |
ZRE210..G..RUS;ZRE210..LHD..(D,N);MZEA11,ZRE211..LHD |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-F4260 |
ZRE210..G..RUS;ZRE210..LHD..(D,N);MZEA11,ZRE211..LHD |
1 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-F4310 |
MZEA11,ZRE211;ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N) |
1 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-F4320 |
ZRE210..G..RUS;ZRE210..LHD..(D,N);MZEA11,ZRE211..LHD |
1 | ||
| 82817F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-F4470 |
MZEA11,ZRE211;ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N) |
1 | ||
| 82817G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-F4480 |
ZRE210..G..RUS;ZRE210..LHD..(D,N);MZEA11,ZRE211..LHD |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-30650 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# |
2 | ||
| 82824A - CONNECTOR, WIRING HARNESS | ||||
| 82824-02080 |
MZEA11..6F..N;ZRE210..G..RUS;ZWE211..N..EUR;MZEA11..RHD..6F;ZRE210..N..(EUR,GCC,GEN);ZRE210,ZWE211..(D,G)..(GCC,GEN);MZEA11,ZRE211,ZWE213..CVT..(D,N) |
1 | ||
| 82824-02080 |
ZRE211..G..GEN EGYPT SPEC |
1 | ||
| 82824-02080 |
MZEA11..6F..N;ZWE211..N..EUR;MZEA11..RHD..6F;ZRE210..LHD..D..GEN;ZRE210..N..(EUR,GCC,GEN);MZEA11,ZRE211,ZWE213..CVT..(D,N) CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82824-02080 |
ZRE211..G..GEN LEBANON SPEC |
1 | ||
| 82824-02080 |
ZRE21#..LHD..CVT..(D,N)..GEN LEBANON SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82824-02080 |
ZRE21#..LHD..(D,N)..GEN EGYPT SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82824-02080 |
ZRE21#..LHD..(D,N)..GEN EGYPT SPEC |
2 | ||
| 82824-02080 |
ZRE21#..LHD..CVT..(D,N)..GEN LEBANON SPEC |
2 | ||
| 82824A - CONNECTOR, WIRING HARNESS | ||||
| 82824-02080 |
MZEA11..6F..N;ZRE210..G..RUS;ZWE211..N..EUR;MZEA11..RHD..6F;ZRE210..N..(EUR,GCC,GEN);ZRE210,ZWE211..(D,G)..(GCC,GEN);MZEA11,ZRE211,ZWE213..CVT..(D,N) |
1 | ||
| 82824-02080 |
ZRE211..G..GEN EGYPT SPEC |
1 | ||
| 82824-02080 |
MZEA11..6F..N;ZWE211..N..EUR;MZEA11..RHD..6F;ZRE210..LHD..D..GEN;ZRE210..N..(EUR,GCC,GEN);MZEA11,ZRE211,ZWE213..CVT..(D,N) CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82824-02080 |
ZRE211..G..GEN LEBANON SPEC |
1 | ||
| 82824-02080 |
ZRE21#..LHD..CVT..(D,N)..GEN LEBANON SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82824-02080 |
ZRE21#..LHD..(D,N)..GEN EGYPT SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82824-02080 |
ZRE21#..LHD..(D,N)..GEN EGYPT SPEC |
2 | ||
| 82824-02080 |
ZRE21#..LHD..CVT..(D,N)..GEN LEBANON SPEC |
2 | ||
| Common parts | ||||
| 90119-06A06 | ||||
| 90119-06A24 | ||||
| 90119-08D22 | ||||
| 90119-W0343 | ||||
| 90178-06026 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8417 | ||||

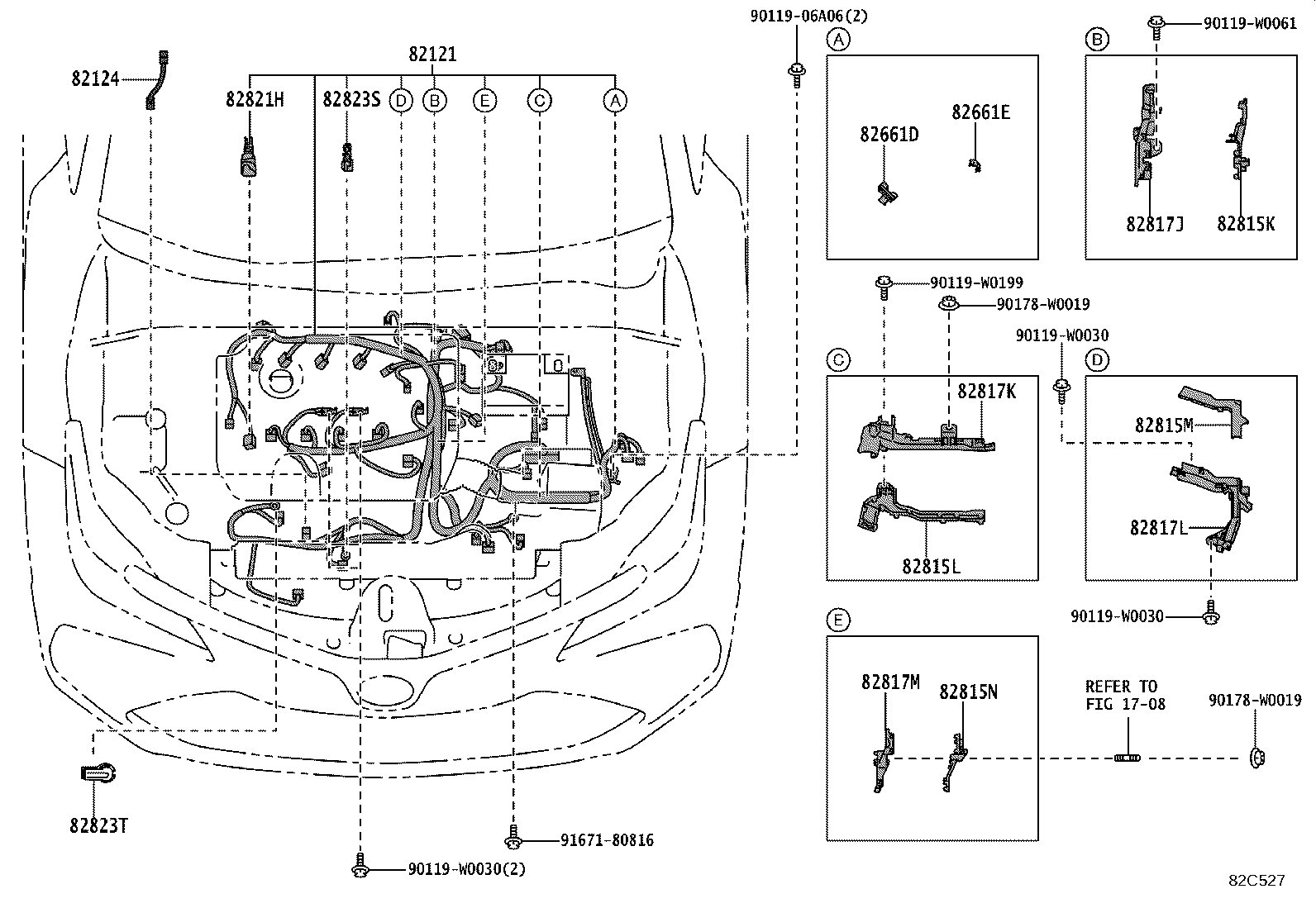

ILLUST NO. 2 OF13(1901- )ZRE211
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-0ZN50 |
ZRE211 |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-12160 |
ZRE211,ZWE21#;ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N) (J) |
1 | ||
| 82124-02090 |
ZRE211,ZWE21#;ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N) (L) |
1 | ||
| 82661D - COVER, RELAY BLOCK, SIDE NO.1 | ||||
| 82661-12340 |
MZEA11,ZRE211;ZRE210..G..RUS;ZRE210..LHD..(D,N)..(EUR,RUS) |
1 | ||
| 82661E - COVER, RELAY BLOCK, SIDE NO.2 | ||||
| 82661-12350 |
MZEA11,ZRE211;ZRE210..G..RUS;ZRE210..LHD..(D,N)..(EUR,RUS) |
1 | ||
| 82815K - COVER, WIRING HARNESS PROTECTOR, NO.8 | ||||
| 82815-12K50 |
ZRE211;ZRE210..G..RUS;ZRE210..LHD..(D,N)..(EUR,RUS) |
1 | ||
| 82815L - COVER, WIRING HARNESS PROTECTOR, NO.9 | ||||
| 82815-12K60 |
ZRE211;ZRE210..G..RUS;ZRE210..LHD..(D,N)..(EUR,RUS) |
1 | ||
| 82815M - COVER, WIRING HARNESS PROTECTOR, NO.10 | ||||
| 82815-02K00 |
ZRE211;ZRE210..LHD..(D,N)..EUR |
1 | ||
| 82815N - COVER, WIRING HARNESS PROTECTOR, NO.11 | ||||
| 82815-F4370 |
ZRE211 |
1 | ||
| 82817J - PROTECTOR, WIRING HARNESS, NO.9 | ||||
| 82817-12V70 |
ZRE211;ZRE210..G..RUS;ZRE210..LHD..(D,N)..(EUR,RUS) |
1 | ||
| 82817K - PROTECTOR, WIRING HARNESS, NO.10 | ||||
| 82817-12V80 |
ZRE211;ZRE210..G..RUS;ZRE210..LHD..(D,N)..(EUR,RUS) |
1 | ||
| 82817L - PROTECTOR, WIRING HARNESS, NO.11 | ||||
| 82817-02U30 |
ZRE211;ZRE210..LHD..(D,N)..EUR |
1 | ||
| 82817M - PROTECTOR, WIRING HARNESS, NO.12 | ||||
| 82817-F4550 |
ZRE211 |
1 | ||
| 82821H - COVER, CONNECTOR | ||||
| 82821-F4010 |
ZRE211;ZRE210..G..RUS;ZRE210..LHD..(D,N)..(EUR,RUS) |
1 | ||
| 82823S - CAP, STARTER TERMINAL | ||||
| 82823-12120 |
MZEA11,ZRE211;ZRE210..G..RUS;ZRE210..LHD..(D,N)..(EUR,RUS) |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
ZRE211;ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N) |
1 | ||
| Common parts | ||||
| 90119-06A06 | ||||
| 90119-W0030 | ||||
| 90119-W0061 | ||||
| 90119-W0199 | ||||
| 90178-W0019 | ||||
| 91671-80816 | ||||
| Linked diagrams | ||||
| 1708 | ||||
ILLUST NO. 4 OF13(1901- )LHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-F2V60 |
ZRE21#..CVT..N..(GCC,GEN);ZRE210..LHD..CVT..D..(EUR,GCC,GEN) |
1 | ||
| 82141-F2V70 |
ZRE21#..CVT..N..(GCC,GEN);ZRE210..LHD..CVT..D..(EUR,GCC,GEN) AUDIO(FOR OVERSEAS MARKET)- T1(8INCH) & *BT & USB & 6SPEAKER |
1 | ||
| 82141-F2W00 |
ZRE21#..CVT..N..GEN WIRELESS DOOR LOCK-W/O(SMART ENTRY), W(PUSH START SWITCH)&STARTING SYSTEM-PUSH START SWITCH |
1 | ||
| 82141-F2W00 |
ZRE21#..CVT..N..GEN WIRELESS DOOR LOCK-WITH(SMART ENTRY)&STARTING SYSTEM-PUSH START SWITCH |
1 | ||
| 82141-F2W10 |
ZRE21#..CVT..N..GEN WIRELESS DOOR LOCK-W/O(SMART ENTRY), W(PUSH START SWITCH)&STARTING SYSTEM-PUSH START SWITCH&AUDIO(FOR OVERSEAS MARKET)- T1(8INCH) & *BT & USB & 6SPEAKER |
1 | ||
| 82141-F2W10 |
ZRE211..G |
1 | ||
| 82141-F2W00 |
ZRE211..G AUDIO(FOR OVERSEAS MARKET)-CD & *BT & USB & 6SPEAKER |
1 | ||
| 82141-F2W10 |
ZRE21#..CVT..N..GEN WIRELESS DOOR LOCK-WITH(SMART ENTRY)&STARTING SYSTEM-PUSH START SWITCH&AUDIO(FOR OVERSEAS MARKET)- T1(8INCH) & *BT & USB & 6SPEAKER |
1 | ||
| 82141-F2V61 |
ZRE21#..LHD..CVT..N..(GCC,GEN);ZRE210..LHD..CVT..D..(EUR,GCC,GEN) |
1 | ||
| 82141-F2V71 |
ZRE21#..LHD..CVT..N..(GCC,GEN);ZRE210..LHD..CVT..D..(EUR,GCC,GEN) AUDIO(FOR OVERSEAS MARKET)- T1(8INCH) & *BT & USB & 6SPEAKER |
1 | ||
| 82141-F2W01 |
ZRE21#..LHD..CVT..N..GEN WIRELESS DOOR LOCK-WITH(SMART ENTRY)&STARTING SYSTEM-PUSH START SWITCH |
1 | ||
| 82141-F2W01 |
ZRE21#..LHD..CVT..N..GEN WIRELESS DOOR LOCK-W/O(SMART ENTRY), W(PUSH START SWITCH)&STARTING SYSTEM-PUSH START SWITCH |
1 | ||
| 82141-F2W11 |
ZRE211..G |
1 | ||
| 82141-F2W01 |
ZRE211..G AUDIO(FOR OVERSEAS MARKET)-CD & *BT & USB & 6SPEAKER |
1 | ||
| 82141-F2W11 |
ZRE21#..LHD..CVT..N..GEN WIRELESS DOOR LOCK-WITH(SMART ENTRY)&STARTING SYSTEM-PUSH START SWITCH&AUDIO(FOR OVERSEAS MARKET)- T1(8INCH) & *BT & USB & 6SPEAKER |
1 | ||
| 82141-F2W11 |
ZRE21#..LHD..CVT..N..GEN WIRELESS DOOR LOCK-W/O(SMART ENTRY), W(PUSH START SWITCH)&STARTING SYSTEM-PUSH START SWITCH&AUDIO(FOR OVERSEAS MARKET)- T1(8INCH) & *BT & USB & 6SPEAKER |
1 | ||
| 82145-F2R70 |
ZRE21#..LHD..CVT..N..(GCC,GEN);ZRE210..LHD..CVT..D..(EUR,GCC,GEN) |
1 | ||
| 82145-F2R80 |
ZRE21#..LHD..CVT..N..(GCC,GEN);ZRE210..LHD..CVT..D..(EUR,GCC,GEN) AUDIO(FOR OVERSEAS MARKET)- T1(8INCH) & *BT & USB & 6SPEAKER |
1 | ||
| 82145-F2S00 |
ZRE21#..LHD..CVT..N..GEN WIRELESS DOOR LOCK-WITH(SMART ENTRY)&STARTING SYSTEM-PUSH START SWITCH |
1 | ||
| 82145-F2S00 |
ZRE21#..LHD..CVT..N..GEN WIRELESS DOOR LOCK-W/O(SMART ENTRY), W(PUSH START SWITCH)&STARTING SYSTEM-PUSH START SWITCH |
1 | ||
| 82145-F2S10 |
ZRE21#..LHD..CVT..N..GEN WIRELESS DOOR LOCK-WITH(SMART ENTRY)&STARTING SYSTEM-PUSH START SWITCH&AUDIO(FOR OVERSEAS MARKET)- T1(8INCH) & *BT & USB & 6SPEAKER |
1 | ||
| 82145-F2S00 |
ZRE211..G AUDIO(FOR OVERSEAS MARKET)-CD & *BT & USB & 6SPEAKER |
1 | ||
| 82145-F2S10 |
ZRE21#..LHD..CVT..N..GEN WIRELESS DOOR LOCK-W/O(SMART ENTRY), W(PUSH START SWITCH)&STARTING SYSTEM-PUSH START SWITCH&AUDIO(FOR OVERSEAS MARKET)- T1(8INCH) & *BT & USB & 6SPEAKER |
1 | ||
| 82145-F2S10 |
ZRE211..G |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82140-02550 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# |
1 | ||
| 82142A - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-02K00 |
ZRE210..G..RUS;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21#..LHD |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-12670 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-12680 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-26180 |
ZRE210..G..RUS;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21#..LHD |
1 | ||
| Common parts | ||||
| 90119-W0037 | ||||
| 90119-W0127 | ||||
| 90159-60546 | ||||
| 90159-W0012 | ||||
| 90159-W0019 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 5 OF13(1901- )
DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-0ZM80 |
ZRE21#..LHD..N..GEN WIRELESS DOOR LOCK-W/O(SMART ENTRY), W(PUSH START SWITCH)&ILLUMINATED ENTRY SYSTEM- WITH(CENTER TRAY & *CUH & DOOR)&OUTSIDE REAR VIEW MIRROR-*AREM & *HEA |
1 | ||
| 82151-0ZM40 |
ZWE21#..LHD..N;ZRE21#..LHD..N..(GCC,GEN);MZEA11,ZRE210..LHD..6F..D..EUR |
1 | ||
| 82151-0ZM70 |
ZRE21#..LHD..N..GEN WIRELESS DOOR LOCK-W/O(SMART ENTRY), W(PUSH START SWITCH)&OUTSIDE REAR VIEW MIRROR-*AREM & *HEA |
1 | ||
| 82151-0ZN50 |
ZWE21#..LHD..N;ZRE21#..LHD..N..GEN WIRELESS DOOR LOCK-WITH(SMART ENTRY)&ILLUMINATED ENTRY SYSTEM- WITH(CENTER TRAY &*CUH & DOOR)&OUTSIDE REAR VIEW MIRROR-*AREM & *HEA |
1 | ||
| 82151-0ZN40 |
ZWE21#..LHD..N;ZRE21#..LHD..N..GEN WIRELESS DOOR LOCK-WITH(SMART ENTRY)&OUTSIDE REAR VIEW MIRROR-*AREM & *HEA |
1 | ||
| 82151-0ZN50 |
MZEA11,ZRE211,ZWE21#..G |
1 | ||
| 82197-02350 |
ZRE21#..LHD..N..(GCC,GEN) OUTSIDE REAR VIEW MIRROR-*273 & *HEA |
1 | ||
| 82197-02390 |
ZRE21#..LHD..N..GEN WIRELESS DOOR LOCK-WITH(SMART ENTRY)&OUTSIDE REAR VIEW MIRROR-*273 & *HEA |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-0ZK90 |
ZWE21#..LHD..N;ZRE21#..LHD..N..(GCC,GEN);MZEA11,ZRE210..LHD..6F..D..EUR |
1 | ||
| 82152-0ZL90 |
ZWE21#..LHD..N;ZRE21#..LHD..N..GEN WIRELESS DOOR LOCK-WITH(SMART ENTRY)&OUTSIDE REAR VIEW MIRROR-*AREM & *HEA |
1 | ||
| 82152-0ZL20 |
ZRE21#..LHD..N..GEN WIRELESS DOOR LOCK-W/O(SMART ENTRY), W(PUSH START SWITCH)&OUTSIDE REAR VIEW MIRROR-*AREM & *HEA |
1 | ||
| 82152-0ZM00 |
MZEA11,ZRE211,ZWE21#..G |
1 | ||
| 82152-0ZM00 |
ZWE21#..LHD..N;ZRE21#..LHD..N..GEN WIRELESS DOOR LOCK-WITH(SMART ENTRY)&ILLUMINATED ENTRY SYSTEM- WITH(CENTER TRAY &*CUH & DOOR)&OUTSIDE REAR VIEW MIRROR-*AREM & *HEA |
1 | ||
| 82198-02140 |
ZRE21#..LHD..N..(GCC,GEN) OUTSIDE REAR VIEW MIRROR-*273 & *HEA |
1 | ||
| 82152-0ZL30 |
ZRE21#..LHD..N..GEN WIRELESS DOOR LOCK-W/O(SMART ENTRY), W(PUSH START SWITCH)&ILLUMINATED ENTRY SYSTEM- WITH(CENTER TRAY & *CUH & DOOR)&OUTSIDE REAR VIEW MIRROR-*AREM & *HEA |
1 | ||
| 82198-02180 |
ZRE21#..LHD..N..GEN WIRELESS DOOR LOCK-WITH(SMART ENTRY)&OUTSIDE REAR VIEW MIRROR-*273 & *HEA |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-02F40 |
ZRE211,ZWE211..G..(GCC,GEN) |
1 | ||
| 82153-02F40 |
MZEA11..6F..N;MZEA11..RHD..6F;MZEA11,ZWE21#..CVT..(D,N);ZRE21#..LHD..N..(EUR,GCC,GEN) ILLUMINATED ENTRY SYSTEM- WITH(CENTER TRAY & *CUH & DOOR) |
1 | ||
| 82153-02F30 |
ZRE210..RHD..GEN;MZEA11,ZRE211,ZWE21#..D,N;ZRE210..LHD..(D,N)..(EUR,GCC,GEN) |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-02D60 |
ZRE211,ZWE211..G..(GCC,GEN) |
1 | ||
| 82154-02D50 |
ZRE210..RHD..GEN;MZEA11,ZRE211,ZWE21#..D,N;ZRE210..LHD..(D,N)..(EUR,GCC,GEN) |
1 | ||
| 82154-02D60 |
MZEA11..6F..N;MZEA11..RHD..6F;MZEA11,ZWE21#..CVT..(D,N);ZRE21#..LHD..N..(EUR,GCC,GEN) ILLUMINATED ENTRY SYSTEM- WITH(CENTER TRAY & *CUH & DOOR) |
1 | ||
| 82187 - WIRE, REAR WINDOW, NO.2 | ||||
| 82187-02340 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# |
1 | ||
| Common parts | ||||
| 90119-06A06 | ||||
| 90119-W0037 | ||||
ILLUST NO. 6 OF13(1901- )
FLOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-F2P80 |
ZRE21#..N..GEN WIRELESS DOOR LOCK-W/O(SMART ENTRY), W(PUSH START SWITCH)&STARTING SYSTEM-PUSH START SWITCH |
1 | ||
| 82161-F2P80 |
ZRE21#..N..GEN WIRELESS DOOR LOCK-WITH(SMART ENTRY)&OUTSIDE REAR VIEW MIRROR-*AREM & *HEA&STARTING SYSTEM-PUSH START SWITCH |
1 | ||
| 82161-F2P80 |
ZRE21#..N..GEN WIRELESS DOOR LOCK-WITH(SMART ENTRY)&OUTSIDE REAR VIEW MIRROR-*273 & *HEA&STARTING SYSTEM-PUSH START SWITCH |
1 | ||
| 82161-F2P70 |
ZRE21#..N..GEN |
1 | ||
| 82161-F2P80 |
ZRE211..G..GEN |
1 | ||
| 82199-0ZQ00 |
ZRE21#..N..GEN WIRELESS DOOR LOCK-WITH(SMART ENTRY)&OUTSIDE REAR VIEW MIRROR-*273 & *HEA&SRS AIRBAG-WITH(*DRP & SIDE & *CUSA)&STARTING SYSTEM-PUSH START SWITCH |
1 | ||
| 82199-0ZQ00 |
ZRE211..G..GEN SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 82199-0ZQ00 |
ZRE21#..N..GEN WIRELESS DOOR LOCK-WITH(SMART ENTRY)&OUTSIDE REAR VIEW MIRROR-*AREM & *HEA&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA)&STARTING SYSTEM-PUSH START SWITCH |
1 | ||
| 82199-0ZQ00 |
ZRE21#..N..GEN WIRELESS DOOR LOCK-W/O(SMART ENTRY), W(PUSH START SWITCH)&SRS AIR BAG-WITH(*DRP &SIDE & *CUSA)&STARTING SYSTEM-PUSH START SWITCH |
1 | ||
| 82199-0ZP90 |
ZRE21#..(D,N)..GEN SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 82161-F2P71 |
ZRE21#..LHD..N..GEN |
1 | ||
| 82161-F2P81 |
ZRE21#..LHD..N..GEN WIRELESS DOOR LOCK-W/O(SMART ENTRY), W(PUSH START SWITCH)&STARTING SYSTEM-PUSH START SWITCH |
1 | ||
| 82161-F2P81 |
ZRE21#..LHD..N..GEN WIRELESS DOOR LOCK-WITH(SMART ENTRY)&OUTSIDE REAR VIEW MIRROR-*AREM & *HEA&STARTING SYSTEM-PUSH START SWITCH |
1 | ||
| 82161-F2P81 |
ZRE211..G..GEN |
1 | ||
| 82161-F2P81 |
ZRE21#..LHD..N..GEN WIRELESS DOOR LOCK-WITH(SMART ENTRY)&OUTSIDE REAR VIEW MIRROR-*273 & *HEA&STARTING SYSTEM-PUSH START SWITCH |
1 | ||
| 82199-0ZQ01 |
ZRE21#..LHD..N..GEN WIRELESS DOOR LOCK-WITH(SMART ENTRY)&OUTSIDE REAR VIEW MIRROR-*AREM & *HEA&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA)&STARTING SYSTEM-PUSH START SWITCH |
1 | ||
| 82199-0ZP91 |
ZRE21#..LHD..(D,N)..GEN SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 82199-0ZQ01 |
ZRE211..G..GEN SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 82199-0ZQ01 |
ZRE21#..LHD..N..GEN WIRELESS DOOR LOCK-WITH(SMART ENTRY)&OUTSIDE REAR VIEW MIRROR-*273 & *HEA&SRS AIRBAG-WITH(*DRP & SIDE & *CUSA)&STARTING SYSTEM-PUSH START SWITCH |
1 | ||
| 82199-0ZQ01 |
ZRE21#..LHD..N..GEN WIRELESS DOOR LOCK-W/O(SMART ENTRY), W(PUSH START SWITCH)&SRS AIR BAG-WITH(*DRP &SIDE & *CUSA)&STARTING SYSTEM-PUSH START SWITCH |
1 | ||
| 82161-F2190 |
ZRE21#..LHD..N..GEN WIRELESS DOOR LOCK-W/O(SMART ENTRY), W(PUSH START SWITCH)&SRS AIR BAG-WITH(*DRP &SIDE & *CUSA)&STARTING SYSTEM-PUSH START SWITCH |
1 | ||
| 82161-F2180 |
ZRE21#..LHD..(D,N)..GEN SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 82161-F2190 |
ZRE21#..LHD..N..GEN WIRELESS DOOR LOCK-WITH(SMART ENTRY)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA)&STARTING SYSTEM-PUSH START SWITCH |
1 | ||
| 82161-F2190 |
ZRE211..G..GEN SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 82161-F2270 |
ZRE21#..LHD..N..GEN WIRELESS DOOR LOCK-WITH(SMART ENTRY)&STARTING SYSTEM-PUSH START SWITCH |
1 | ||
| 82161-F2260 |
ZRE21#..LHD..N..GEN |
1 | ||
| 82161-F2270 |
ZRE21#..LHD..N..GEN WIRELESS DOOR LOCK-W/O(SMART ENTRY), W(PUSH START SWITCH)&STARTING SYSTEM-PUSH START SWITCH |
1 | ||
| 82161-F2270 |
ZRE211..G..GEN |
1 | ||
| 82161-F2540 |
ZRE21#..LHD..CVT..(D,N)..GEN EGYPT SPEC&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 82161-F2550 |
ZRE21#..LHD..CVT..N..GEN EGYPT SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA)&STARTING SYSTEM-PUSH START SWITCH |
1 | ||
| 82161-F2550 |
ZRE211..G..GEN EGYPT SPEC&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA) |
1 | ||
| 82161-F2550 |
ZRE21#..LHD..CVT..N..GEN EGYPT SPEC&WIRELESS DOOR LOCK-W/O(SMART ENTRY), W(PUSH START SWITCH)&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA)&STARTING SYSTEM-PUSH START SWITCH |
1 | ||
| 82161-F2U60 |
ZRE211..G..GEN EGYPT SPEC |
1 | ||
| 82161-F2U60 |
ZRE21#..LHD..CVT..N..GEN EGYPT SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&STARTING SYSTEM-PUSH START SWITCH |
1 | ||
| 82161-F2U50 |
ZRE21#..LHD..CVT..N..GEN EGYPT SPEC |
1 | ||
| 82161-F2U60 |
ZRE21#..LHD..CVT..N..GEN EGYPT SPEC&WIRELESS DOOR LOCK-W/O(SMART ENTRY), W(PUSH START SWITCH)&STARTING SYSTEM-PUSH START SWITCH |
1 | ||
| 82169A - WIRE, FLOOR, NO.6 | ||||
| 82169-02120 |
ZRE210..N;MZEA11..6F..N;MZEA11..RHD..6F;ZRE210..LHD..D..GEN;MZEA11,ZRE211,ZWE21#..CVT..(D,N) CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82169-02120 |
ZRE210..G..RUS;MZEA11,ZRE211,ZWE21#..G |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-0ZV20 |
ZRE210..D..RUS;ZRE21#,ZWE211..(D,N)..(GCC,GEN) |
1 | ||
| 82171-0ZV40 |
ZRE211,ZWE211..G..(GCC,GEN) |
1 | ||
| 82171-0ZV40 |
ZRE21#,ZWE211..N..(GCC,GEN) INNER REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&SUN VISOR-*DRP(VANITY MIRROR & LAMP) |
1 | ||
| 82171-0ZW20 |
ZRE21#,ZWE211..N..(GCC,GEN) MOON ROOF-WITH&INNER REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&SUN VISOR-*DRP(VANITY MIRROR & LAMP) |
1 | ||
| 82171-0ZW20 |
ZRE211,ZWE211..G..(GCC,GEN) MOON ROOF-WITH |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-60220 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 90980-12373 |
ZWE21#..N;ZRE211,ZWE211..G..(GCC,GEN) |
1 | ||
| 90980-12373 |
ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211..D,N |
2 | ||
| 90980-12373 |
ZRE210..RHD..N;MZEA11,ZRE211..N;ZRE210..LHD..6F..N..GEN;ZRE210..N..(EUR,GCC,RUS) SEAT LUMBAR SUPPORT-WITH |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 90980-12373 |
ZWE21#..N;ZRE211,ZWE211..G..(GCC,GEN) |
1 | ||
| 90980-12373 |
ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211..D,N |
2 | ||
| 90980-12373 |
ZRE210..RHD..N;MZEA11,ZRE211..N;ZRE210..LHD..6F..N..GEN;ZRE210..N..(EUR,GCC,RUS) SEAT LUMBAR SUPPORT-WITH |
1 | ||
| Common parts | ||||
| 90119-06A06 | ||||
| 90119-W0037 | ||||
| 90178-W0031 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8417 | ||||
| 8601 | ||||
ILLUST NO. 8 OF13(1901- )LHD
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82192 - WIRE, FRONT SEAT, LH | ||||
| 82192-02460 |
ZRE211..LHD..N;ZRE210..LHD..6F..N..GEN;MZEA11,ZRE210..N..(EUR,GCC) SEAT LUMBAR SUPPORT-WITH |
1 | ||
| 82192-02460 |
ZWE21#..LHD..N;ZRE211,ZWE211..G..(GCC,GEN) |
1 | ||
| 8219B - WIRE, FRONT SEAT, LH NO.2 | ||||
| 8219B-02180 |
ZWE21#..LHD;ZRE210..G..RUS;MZEA11,ZRE211..G |
1 | ||
| 8219B-02180 |
ZRE211..LHD..N;ZRE210..LHD..6F..N..GEN;MZEA11,ZRE210..N..(EUR,GCC) SEAT LUMBAR SUPPORT-WITH |
1 | ||
ILLUST NO. 9 OF13(1901- )
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82715-02880 | ||||
| 82715-02F00 | ||||
| 82715-02S00 | ||||
| 82715-02S10 | ||||
| 82715-05280 | ||||
| 82715-0Z110 | ||||
| 82715-0Z120 | ||||
| 82715-0Z130 | ||||
| 82715-0Z700 | ||||
| 82715-0Z850 | ||||
| 82715-10520 | ||||
| 82715-12890 | ||||
| 82715-12A01 | ||||
| 82715-12A30 | ||||
| 82715-12T60 | ||||
| 82715-12U20 | ||||
| 82715-12V00 | ||||
| 82715-12V30 | ||||
| 82715-12W20 | ||||
| 82715-28L90 | ||||
| 82715-47740 | ||||
| 82715-47750 | ||||
| 82715-47760 | ||||
| 82715-47770 | ||||
| 82715-47790 | ||||
| 82715-47830 | ||||
| 82715-47860 | ||||
| 82715-5C050 | ||||
| 82715-5C060 | ||||
| 82715-6A460 | ||||
| 82715-F4050 | ||||
| 82715-F4060 | ||||
| 82715-K0200 | ||||
| 82715-K0230 | ||||
| 82715-K0660 | ||||
| 82729-20150 | ||||
| 90119-06A06 | ||||
| 90119-W0019 | ||||
| 90119-W0030 | ||||
| 90119-W0037 | ||||
| 90119-W0141 | ||||
| 90119-W0174 | ||||
| 90119-W0199 | ||||
| 90119-W0356 | ||||
| 91621-B0816 | ||||
| 91671-80614 | ||||
| 91671-80616 | ||||
| 91671-80816 | ||||
| 91671-80820 | ||||
| 91673-80616 | ||||
| 91673-80620 | ||||
| 91673-80625 | ||||
ILLUST NO.11 OF13(1901- )
CONNECTOR 1/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10860 | ||||
| 90980-10942 | ||||
| 90980-11016 | ||||
| 90980-11019 | ||||
| 90980-11148 | ||||
| 90980-11156 | ||||
| 90980-11194 | ||||
| 90980-11399 | ||||
| 90980-11660 | ||||
| 90980-12520 | ||||
| 90980-12732 | ||||
| 90980-12A92 | ||||
| 90980-12D34 | ||||
| 90980-12E29 | ||||
| 90980-12F30 | ||||
| 90980-WA052 | ||||
ILLUST NO.12 OF13(1901- )
CONNECTOR 2/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-78020 | ||||
| 90980-10825 | ||||
| 90980-10858 | ||||
| 90980-11148 | ||||
| 90980-11162 | ||||
| 90980-11246 | ||||
| 90980-11399 | ||||
| 90980-12380 | ||||
| 90980-12416 | ||||
| 90980-12490 | ||||
| 90980-12520 | ||||
| 90980-12572 | ||||
| 90980-12699 | ||||
| 90980-12732 | ||||
| 90980-12790 | ||||
ILLUST NO.10 OF13(1901- )
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-1E350 | ||||
| 82711-3F230 | ||||
| 82715-47810 | ||||
| 82715-47820 | ||||
| 82715-47A20 | ||||
| 82715-76790 | ||||
| 82715-F4010 | ||||
| 82715-F4120 | ||||
| 89348-50050 | ||||
| 90119-W0037 | ||||
| 90119-W0061 | ||||
| 90178-W0039 | ||||
| Linked diagrams | ||||
| 5804 | ||||
ILLUST NO.13 OF13(1901- )
CONNECTOR 3/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10619 | ||||
| 90980-10996 | ||||
| 90980-10997 | ||||
| 90980-12555 | ||||
| 90980-12760 | ||||
| 90980-12790 | ||||
| 90980-12A59 | ||||
| 90980-12B01 | ||||
| 90980-12C39 | ||||
| 90980-12D25 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
