ZRE211L-DEXGKV (2019)

Toyota Corolla (Tup)

Production Jan 2019 - Sep 9999
Engine 2ZRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1901- )ZRE21#..GCC

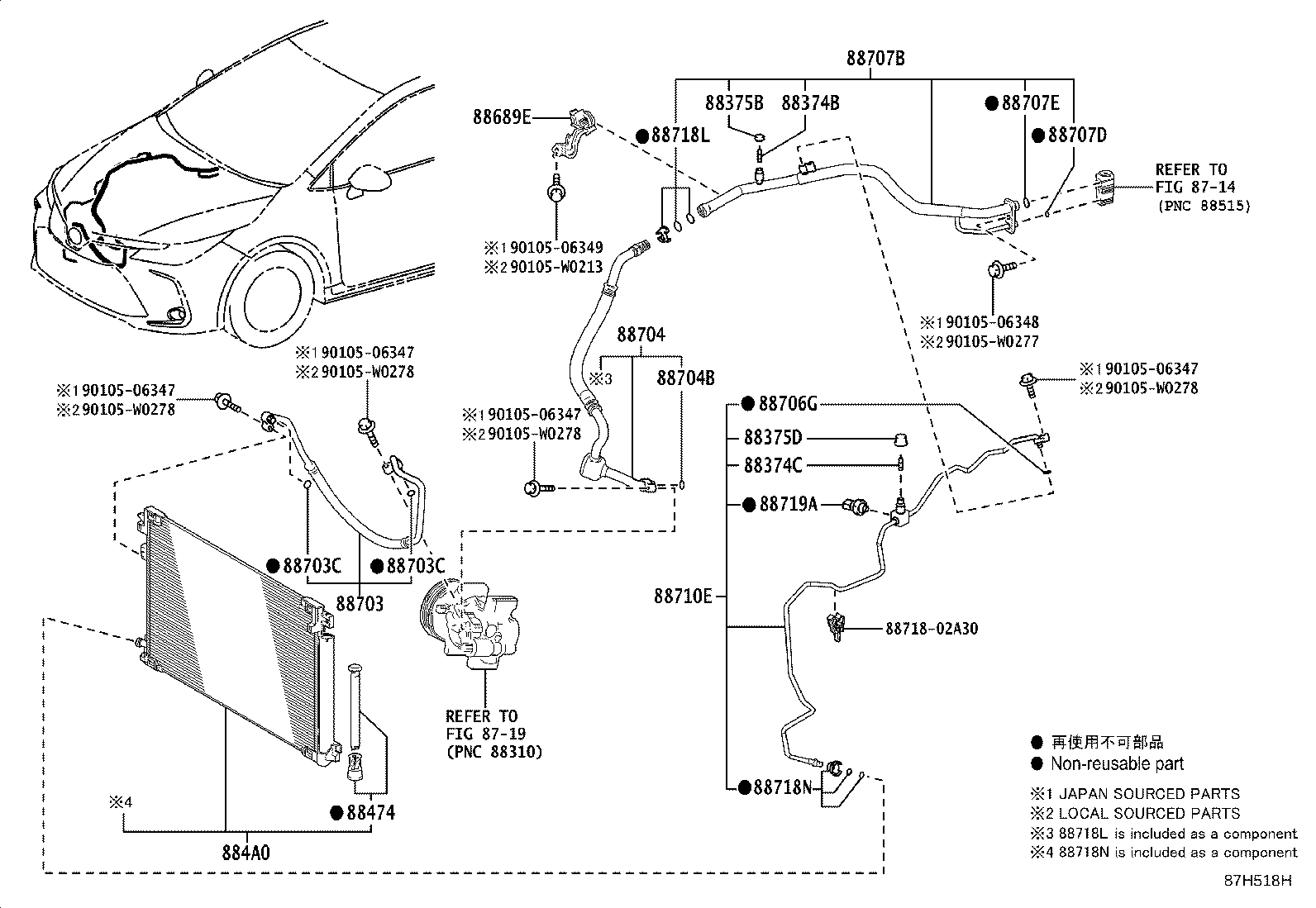

Click highlighted areas on diagram

diagram 8714 8719 88374B 88374C 88375B 88375D 88474 884A0 88689E 88703 88703C 88703C 88704 88704B 88706G 88707B 88707D 88707E 88710E 8871802A30 88718L 88718N 88719A 9010506347 9010506347 9010506347 9010506347 9010506348 9010506349 90105W0213 90105W0277 90105W0278 90105W0278 90105W0278 90105W0278
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

ZRE210..RHD..GEN;ZRE210..(G,N)..RUS;MZEA11,ZRE211,ZWE21#;ZRE210..LHD..(D,N)..(EUR,GCC,GEN)

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

ZRE210..RHD..D..GEN;ZRE210..LHD..6F..D..(GCC,GEN);ZRE210..LHD..CVT..D..(EUR,GCC,GEN);ZRE21#,ZWE211..(G,N)..(GCC,GEN,RUS)

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290

ZRE210..RHD..D..GEN;ZRE210..LHD..6F..D..(GCC,GEN);ZRE210..LHD..CVT..D..(EUR,GCC,GEN);ZRE21#,ZWE211..(G,N)..(GCC,GEN,RUS)

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30280

ZRE210..RHD..D..GEN;ZRE210..LHD..6F..D..(GCC,GEN);ZRE210..LHD..CVT..D..(EUR,GCC,GEN);ZRE21#,ZWE211..(G,N)..(GCC,GEN,RUS)

 1
88474 - DRYER, COOLER
88474-12020

ZRE210..RHD..GEN;ZRE210..(G,N)..RUS;MZEA11,ZRE211,ZWE21#;ZRE210..LHD..(D,N)..(EUR,GCC,GEN)

 1
884A0 - CONDENSER ASSY, COOLER
884A0-02120

ZRE210..RHD..D..GEN;ZRE21#..(G,N)..(GCC,GEN,RUS);ZRE210..LHD..6F..D..(GCC,GEN);ZRE210..LHD..CVT..D..(EUR,GCC,GEN)

 1
88689E - BRACKET, COOLER, NO.1
88688-02F20

ZRE21#..GCC

 1
88703 - HOSE SUB-ASSY, DISCHARGE
88703-02D20

ZRE211;ZRE210..RHD..GEN;ZRE210..(G,N)..RUS;ZRE210..LHD..(D,N)..(EUR,GCC,GEN)

 1
88703C - RING, O(FOR DISCHARGE HOSE)
90099-14120

ZRE211;ZRE210..RHD..GEN;ZRE210..(G,N)..RUS;ZRE210..LHD..(D,N)..(EUR,GCC,GEN)

ID=10.8,OD=15.6

 1
88703C - RING, O(FOR DISCHARGE HOSE)
90099-14120

ZRE211;ZRE210..RHD..GEN;ZRE210..(G,N)..RUS;ZRE210..LHD..(D,N)..(EUR,GCC,GEN)

ID=10.8,OD=15.6

 1
88704 - HOSE SUB-ASSY, SUCTION
88704-02D40

ZRE21#..GCC;ZRE21#..RHD..GEN

 1
88704B - RING, O(FOR SUCTION HOSE)
90099-14121

ZRE210..RHD..GEN;ZRE210..(G,N)..RUS;MZEA11,ZRE211,ZWE21#;ZRE210..LHD..(D,N)..(EUR,GCC,GEN)

ID=13.4,OD=18.2

 1
88706G - RING, O(FOR LIQUID TUBE)
90099-14119

ZRE211,ZWE21#;ZRE210..RHD..GEN;ZRE210..(G,N)..RUS;ZRE210..LHD..(D,N)..(EUR,GCC,GEN)

ID=6.7,OD=10.3

 1
88707B - TUBE SUB-ASSY, SUCTION, B
88710-02G70

ZRE21#..GCC

 1
88707D - RING, O(FOR SUCTION TUBE)
90099-14119

ZRE21#..GCC

ID=6.7,OD=10.3

 1
88707E - RING, O, NO.2(FOR SUCTION TUBE)
90099-14121

ZRE21#..GCC

ID=13.4,OD=18.2

 1
88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER
88710-02G80

ZRE21#..GCC

 1
88718L - CLAMP, PIPING
88718-52280

ZRE210..RHD..GEN;ZRE210..(G,N)..RUS;MZEA11,ZRE211,ZWE21#;ZRE210..LHD..(D,N)..(EUR,GCC,GEN)

 1
88718N - CLAMP, PIPING
88718-1E150

ZRE210..RHD..GEN;ZRE210..(G,N)..RUS;MZEA11,ZRE211,ZWE21#;ZRE210..LHD..(D,N)..(EUR,GCC,GEN)

 1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-11010

MZEA11..RHD;ZRE211,ZWE21#;ZRE210..RHD..GEN;ZRE210..(G,N)..RUS;ZRE210..LHD..(D,N)..(EUR,GCC,GEN)

 1
Common parts
88718-02A30
90105-06347
90105-06348
90105-06349
90105-W0213
90105-W0277
90105-W0278
Linked diagrams
8714
8719
