ZRE211L-DEXGK (2019)
Toyota Corolla (Tup)

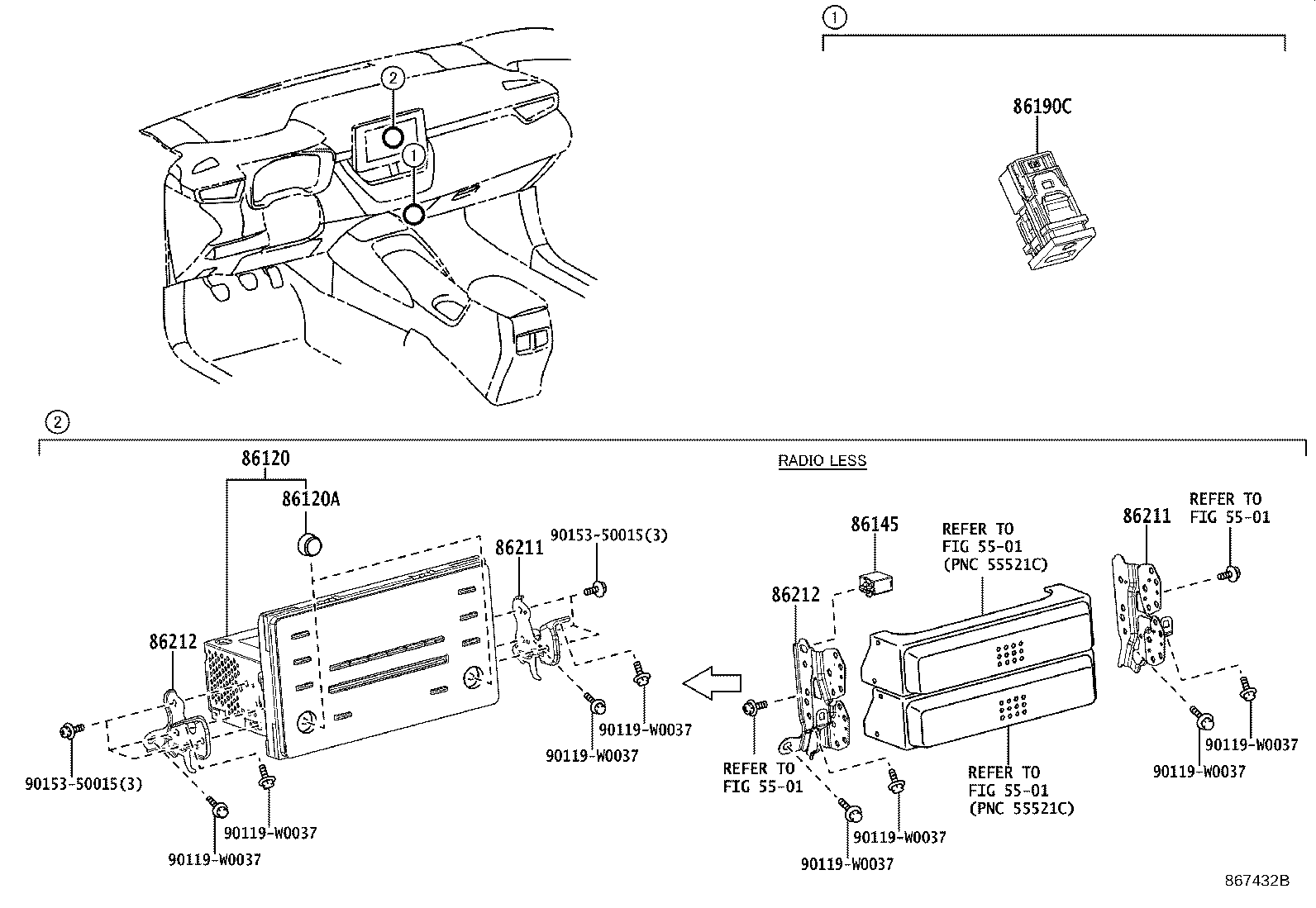

ILLUST NO. 1 OF 2(1901- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-02L70 |
ZRE21#,ZWE211..(D,N)..(GCC,GEN) DENSO TEN |
1 | ||
| 86120-02L71 |
ZRE21#,ZWE211..(D,N)..(GCC,GEN) DENSO TEN |
1 | ||
| 86120-02L70 |
ZRE211,ZWE211..G..(GCC,GEN) DENSO TEN,AUDIO(FOR OVERSEAS MARKET)-CD & *BT & USB & 6SPEAKER |
1 | ||
| 86120-02L70 |
ZRE210..D..GEN;ZRE21#,ZWE211..N..(GCC,GEN) DENSO TEN,AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 6SPEAKER |
1 | ||
| 86120-02L71 |
ZRE211,ZWE211..G..(GCC,GEN) DENSO TEN,AUDIO(FOR OVERSEAS MARKET)-CD & *BT & USB & 6SPEAKER |
1 | ||
| 86120-02L71 |
ZRE210..D..GEN;ZRE21#,ZWE211..N..(GCC,GEN) DENSO TEN,AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 6SPEAKER |
1 | ||
| 86120A - KNOB, RADIO RECEIVER SWITCH | ||||
| 90011-25305 |
ZRE210..RHD..D..GEN;ZRE21#,ZWE211..N..(GCC,GEN);MZEA11,ZRE210..LHD..D..(EUR,GCC,GEN) |
2 | ||
| 90011-25305 |
ZRE210..D..RUS;ZRE211,ZWE211..G..(GCC,GEN);MZEA11,ZRE210,ZWE21#..LHD..N..(EUR,RUS) AUDIO(FOR OVERSEAS MARKET)-CD & *BT & USB & 6SPEAKER |
2 | ||
| 90011-25305 |
ZRE210..RHD..D..GEN;ZRE21#,ZWE211..N..(GCC,GEN);MZEA11,ZRE210..LHD..D..(EUR,GEN) AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 6SPEAKER |
2 | ||
| 86145 - CONNECTOR, ANTENNA MALE | ||||
| 86145-52010 |
ZWE213;ZRE21#..N..GEN;ZRE210..RHD..D..GEN;ZWE211..N..(EUR,GEN);ZRE210..LHD..D..(EUR,GEN);MZEA11,ZWE211..(D,G)..EUR AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 6SPEAKER |
1 | ||
| 86190C - ADAPTER ASSY, STEREO JACK, NO.1 | ||||
| 86190-33060 |
ZRE211,ZWE211;ZRE210..N..GCC;ZRE210..EUR,GEN AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 6SPEAKER |
1 | ||
| 86190-33060 |
ZRE210..(G,N)..RUS;ZRE21#,ZWE211..EUR,GCC,GEN |
1 | ||
| 86190-12070 |
ZRE211;ZRE210..N..GCC;ZRE210..RHD..GEN;MZEA11,ZWE21#..LHD;ZRE210..LHD..(D,N)..(EUR,GEN) AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 6SPEAKER |
1 | ||
| 86190-12070 |
ZRE211;ZRE210..RHD..GEN;MZEA11,ZWE21#..LHD;ZRE210..(G,N)..RUS;ZRE210..LHD..(D,N)..(EUR,GCC,GEN) |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-02550 |
ZRE210..RHD..GEN;ZRE210..(G,N)..RUS;MZEA11,ZRE211,ZWE21#;ZRE210..LHD..(D,N)..(EUR,GCC,GEN) |
1 | ||
| 86211-02560 |
ZWE213;ZRE21#..N..GEN;ZRE210..RHD..D..GEN;ZWE211..N..(EUR,GEN);ZRE210..LHD..D..(EUR,GEN);MZEA11,ZWE211..(D,G)..EUR AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 6SPEAKER |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-02550 |
ZRE210..RHD..GEN;ZRE210..(G,N)..RUS;MZEA11,ZRE211,ZWE21#;ZRE210..LHD..(D,N)..(EUR,GCC,GEN) |
1 | ||
| 86211-02560 |
ZWE213;ZRE21#..N..GEN;ZRE210..RHD..D..GEN;ZWE211..N..(EUR,GEN);ZRE210..LHD..D..(EUR,GEN);MZEA11,ZWE211..(D,G)..EUR AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 6SPEAKER |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-02550 |
ZRE210..RHD..GEN;ZRE210..(G,N)..RUS;MZEA11,ZRE211,ZWE21#;ZRE210..LHD..(D,N)..(EUR,GCC,GEN) |
1 | ||
| 86212-02560 |
ZWE213;ZRE21#..N..GEN;ZRE210..RHD..D..GEN;ZWE211..N..(EUR,GEN);ZRE210..LHD..D..(EUR,GEN);MZEA11,ZWE211..(D,G)..EUR AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 6SPEAKER |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-02550 |
ZRE210..RHD..GEN;ZRE210..(G,N)..RUS;MZEA11,ZRE211,ZWE21#;ZRE210..LHD..(D,N)..(EUR,GCC,GEN) |
1 | ||
| 86212-02560 |
ZWE213;ZRE21#..N..GEN;ZRE210..RHD..D..GEN;ZWE211..N..(EUR,GEN);ZRE210..LHD..D..(EUR,GEN);MZEA11,ZWE211..(D,G)..EUR AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 6SPEAKER |
1 | ||
| Common parts | ||||
| 90119-W0037 | ||||
| 90153-50015 | ||||
| Linked diagrams | ||||
| 5501 | ||||

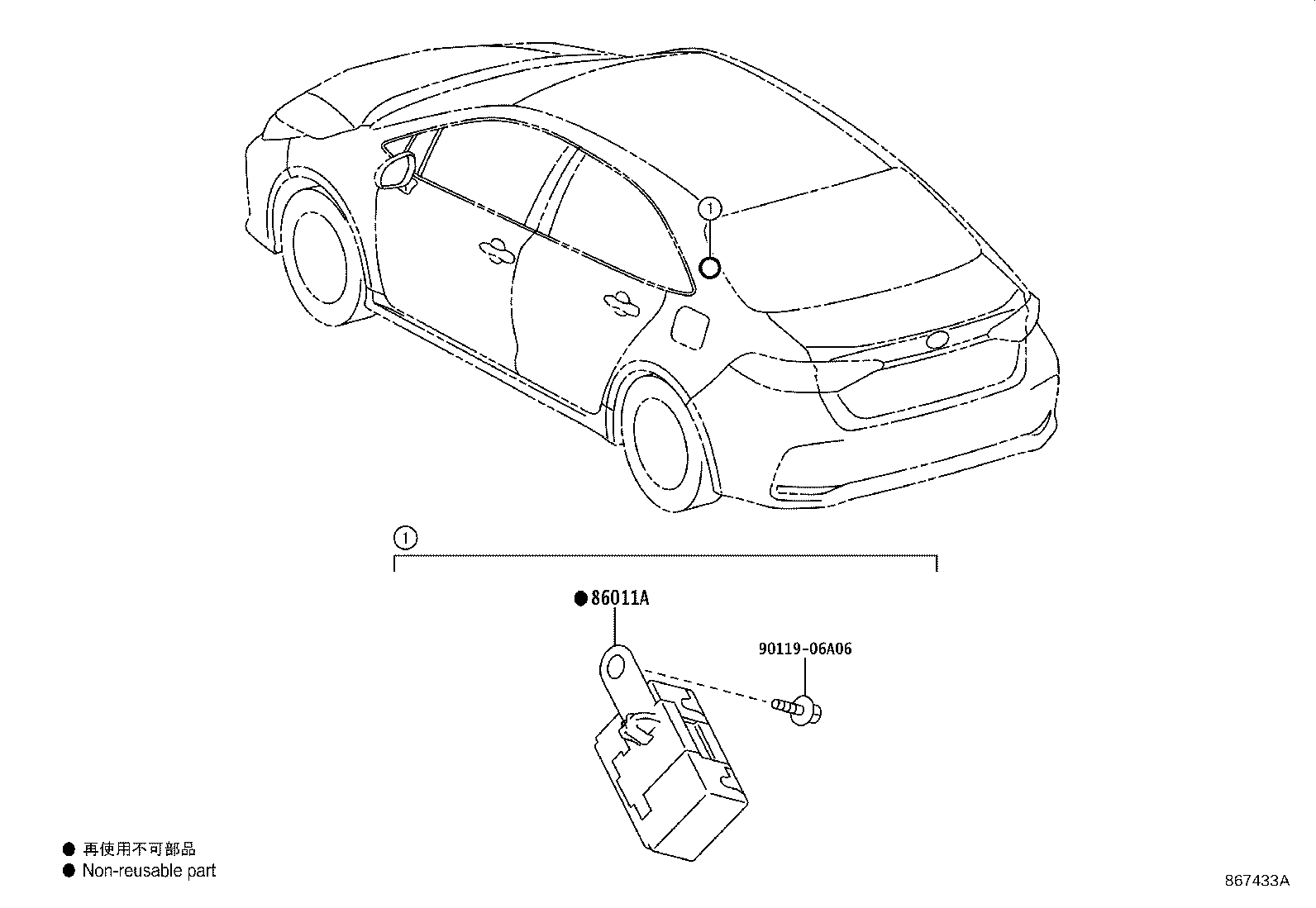

ILLUST NO. 2 OF 2(1901- )
CONDENSER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04204 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# |
1 | ||
| Common parts | ||||
| 90119-06A06 | ||||
