ZRE210R-DEXDPW (2019)
Toyota Corolla (Tup)
Production
Jan 2019
-
Sep 9999
Engine
1ZRFAE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1901- )

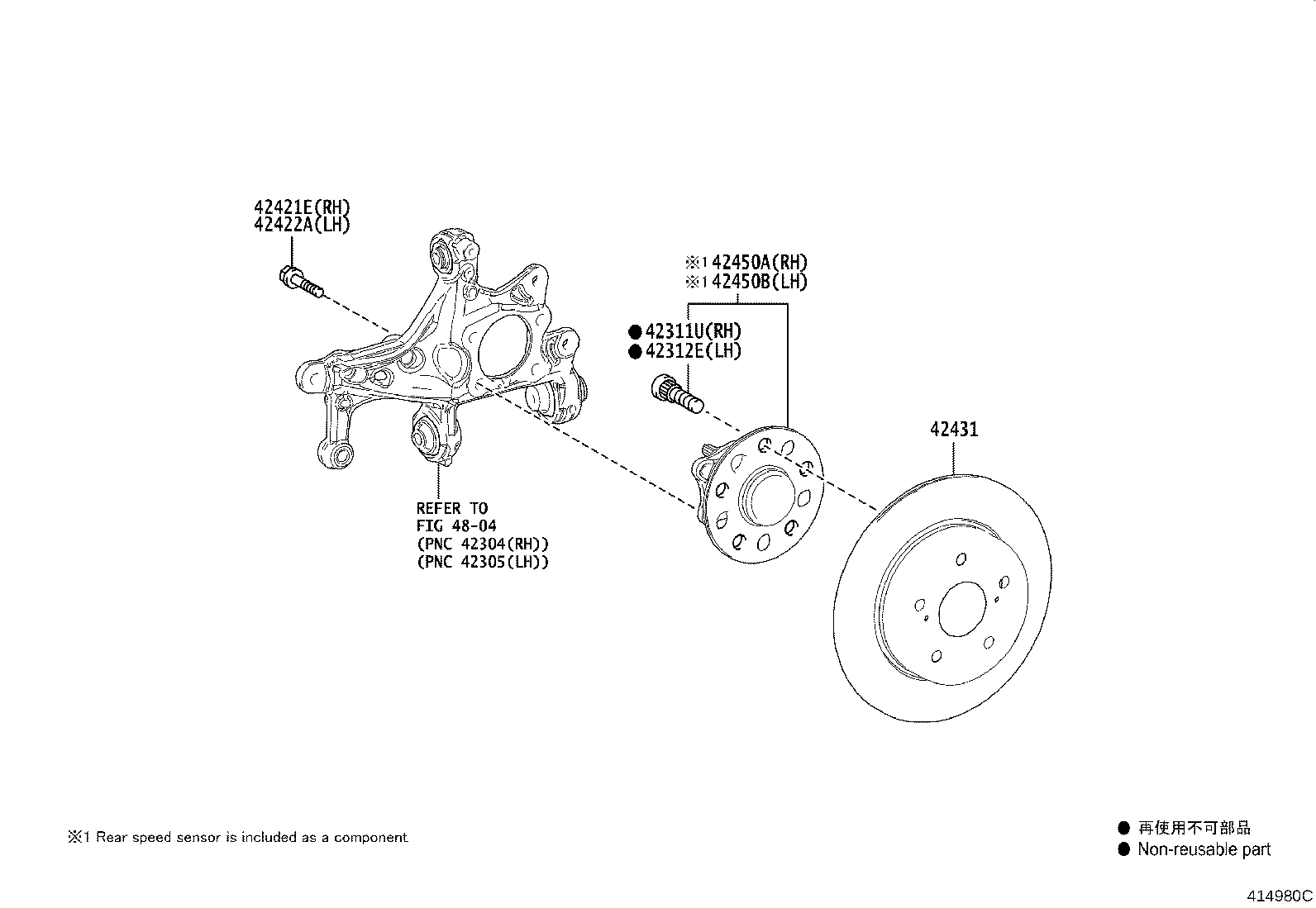

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311U - BOLT, HUB (FOR REAR AXLE RH) | ||||
| 90942-02049 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
5 | ||
| 42312E - BOLT, HUB (FOR REAR AXLE LH) | ||||
| 90942-02049 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
5 | ||
| 42421E - BOLT (FOR REAR AXLE BEARING CASE RH) | ||||
| 90105-W0164 |
ZRE210..G..EUR;ZRE210..RHD..EUR (L) |
4 | ||
| 90105-12350 |
ZRE210..G..EUR;ZRE210..RHD..EUR (J) |
4 | ||
| 42422A - BOLT (FOR REAR AXLE BEARING CASE LH) | ||||
| 90105-W0164 |
ZRE210..G..EUR;ZRE210..RHD..EUR (L) |
4 | ||
| 90105-12350 |
ZRE210..G..EUR;ZRE210..RHD..EUR (J) |
4 | ||
| 42431 - DISC, REAR | ||||
| 42431-02330 |
ZRE210..RHD..EUR LIGHT GRADE&PARKING BRAKE-CENTER LEVER |
2 | ||
| 42431-02320 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
2 | ||
| 42450A - HUB & BEARING ASSY, REAR AXLE, RH | ||||
| 42450-02270 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
1 | ||
| 42450B - HUB & BEARING ASSY, REAR AXLE, LH | ||||
| 42450-02270 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
1 | ||
| Linked diagrams | ||||
| 4804 | ||||
