ZRE210R-DEFDPW (2019)
Toyota Corolla (Tup)
(1901- )RHD

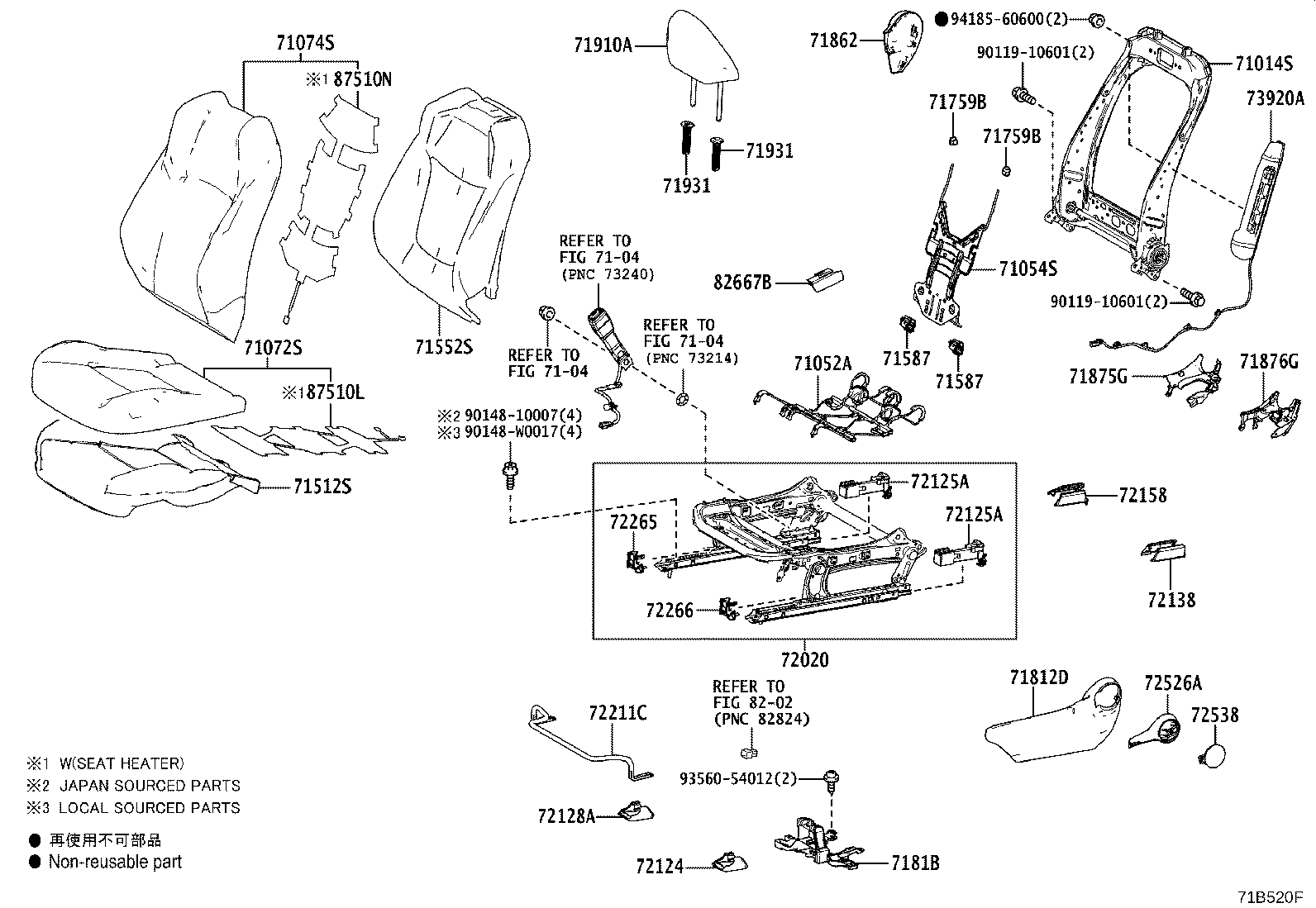

LH SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71014-F4010 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
1 | ||
| 71052A - SPRING SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71051-F4010 |
ZRE21#,ZWE211 |
1 | ||
| 71051-F4011 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
1 | ||
| 71054S - SPRING SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71053-F4010 |
ZRE210..RHD..EUR |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-0ZL80B2 |
ZRE210..RHD..EUR GRAY,TRIM2# |
1 | ||
| 71072-0ZL80E2 |
ZRE210..RHD..EUR ORCHID BROWN,TRIM0# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-0ZT20A1 |
ZRE210..RHD..EUR;ZRE210..LHD..6F..D..EUR FROMAGE,TRIM0# |
1 | ||
| 71074-0ZT20C1 |
ZRE210..RHD..EUR;ZRE210..LHD..6F..D..EUR BLACK,TRIM2# |
1 | ||
| 71074-0ZT21C1 |
ZRE210..RHD..EUR BLACK,TRIM2# |
1 | ||
| 71074-0ZT21A1 |
ZRE210..RHD..EUR FROMAGE,TRIM0# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-02330 |
ZRE210..RHD..EUR |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-02B70 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
1 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-F4010 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
4 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-F4010 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
4 | ||
| 71759B - HOOK, FRONT SEAT BACK | ||||
| 71759-F4010 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
4 | ||
| 71759B - HOOK, FRONT SEAT BACK | ||||
| 71759-F4010 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
4 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-F4030C2 |
ZRE210..RHD..EUR BLACK,TRIM0#,2# |
1 | ||
| 7181B - HOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH | ||||
| 7181B-F4010 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-F4030C2 |
ZRE210..RHD..EUR BLACK,TRIM0#,2# |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71876-F4040C2 |
ZRE210..RHD..EUR BLACK,TRIM0#,2# |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-F4030C2 |
ZRE210..RHD..EUR BLACK,TRIM0#,2# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-02S90C0 |
ZRE210..RHD..EUR BLACK,TRIM2# |
2 | ||
| 71910-02S90A0 |
ZRE210..RHD..EUR FROMAGE,TRIM0# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-F4010C1 |
ZRE210..G..EUR;ZRE210..RHD..EUR W(LOCK),BLACK,TRIM00,2# |
2 | ||
| 71930-F4010A0 |
ZRE210..G..EUR;ZRE210..RHD..EUR W(LOCK),FROMAGE,TRIM00 |
2 | ||
| 71931-F4010A0 |
ZRE210..G..EUR;ZRE210..RHD..EUR W/O(LOCK),FROMAGE,TRIM00 |
2 | ||
| 71931-F4010C1 |
ZRE210..G..EUR;ZRE210..RHD..EUR W/O(LOCK),BLACK,TRIM00,2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-F4010C1 |
ZRE210..G..EUR;ZRE210..RHD..EUR W(LOCK),BLACK,TRIM00,2# |
2 | ||
| 71930-F4010A0 |
ZRE210..G..EUR;ZRE210..RHD..EUR W(LOCK),FROMAGE,TRIM00 |
2 | ||
| 71931-F4010A0 |
ZRE210..G..EUR;ZRE210..RHD..EUR W/O(LOCK),FROMAGE,TRIM00 |
2 | ||
| 71931-F4010C1 |
ZRE210..G..EUR;ZRE210..RHD..EUR W/O(LOCK),BLACK,TRIM00,2# |
2 | ||
| 72020 - ADJUSTER ASSY, FRONT SEAT, LH | ||||
| 72020-F4031 |
ZRE210..RHD..EUR |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72123-F4010 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
1 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-F4030 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
4 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-F4030 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
4 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72123-F4010 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72137-F4010 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-02340 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
1 | ||
| 72211C - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-F4010 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
2 | ||
| 72265 - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-F4020 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
2 | ||
| 72266 - COVER, SEAT TRACK UPPER RAIL, LH | ||||
| 72265-F4020 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
2 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-F4010C2 |
ZRE210..G..EUR;ZRE210..RHD..EUR BLACK,TRIM0#,2# |
1 | ||
| 72538 - COVER, RECLINING HINGE OUTER, LH | ||||
| 72551-F4010C2 |
ZRE210..G..EUR;ZRE210..RHD..EUR BLACK,TRIM0#,2# |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-02390 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
1 | ||
| 82667B - HOLDER, CONNECTOR | ||||
| 82666-F4080 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
1 | ||
| Common parts | ||||
| 90119-10601 | ||||
| 90148-10007 | ||||
| 90148-W0017 | ||||
| 93560-54012 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
(1901- )RHD

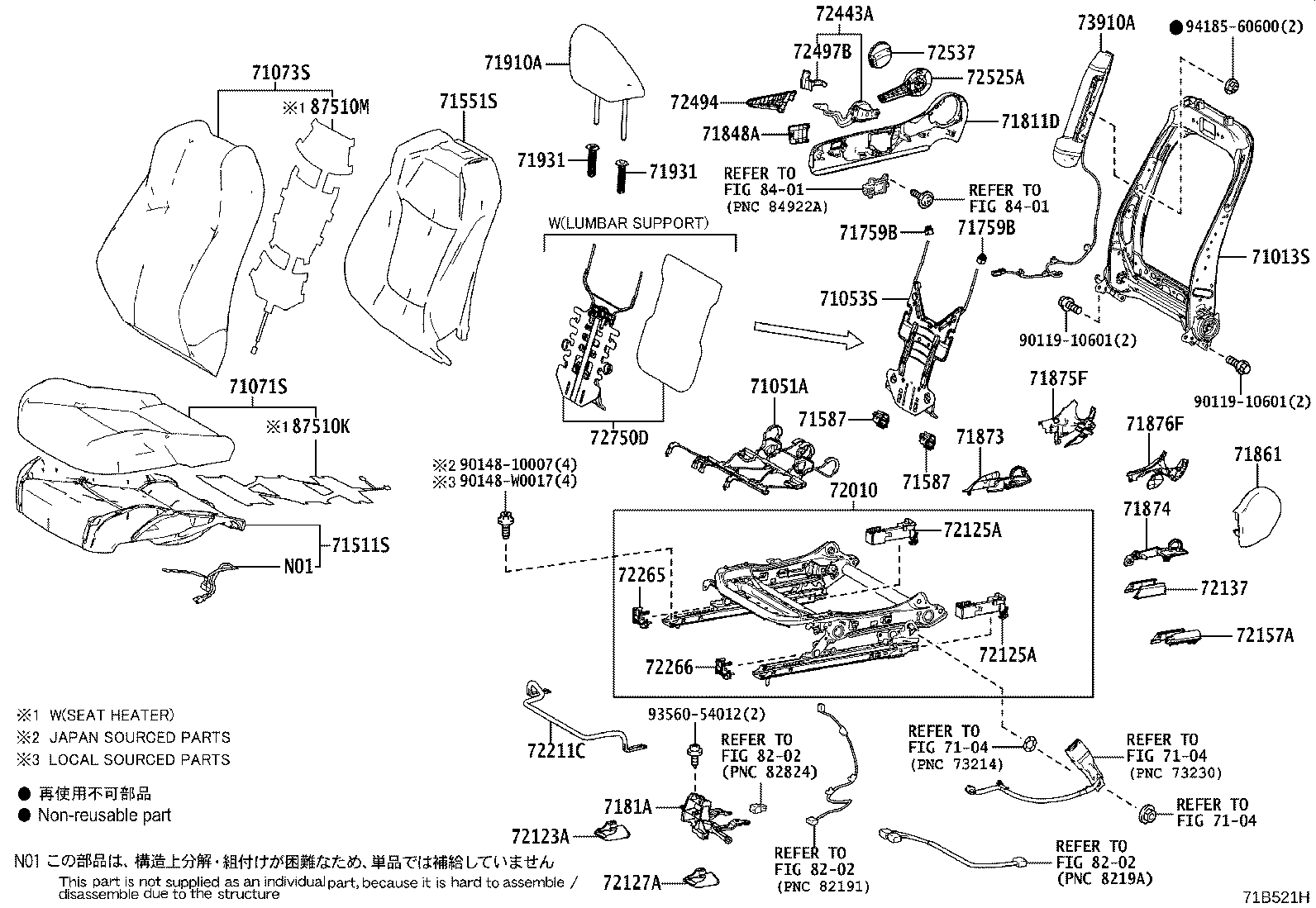

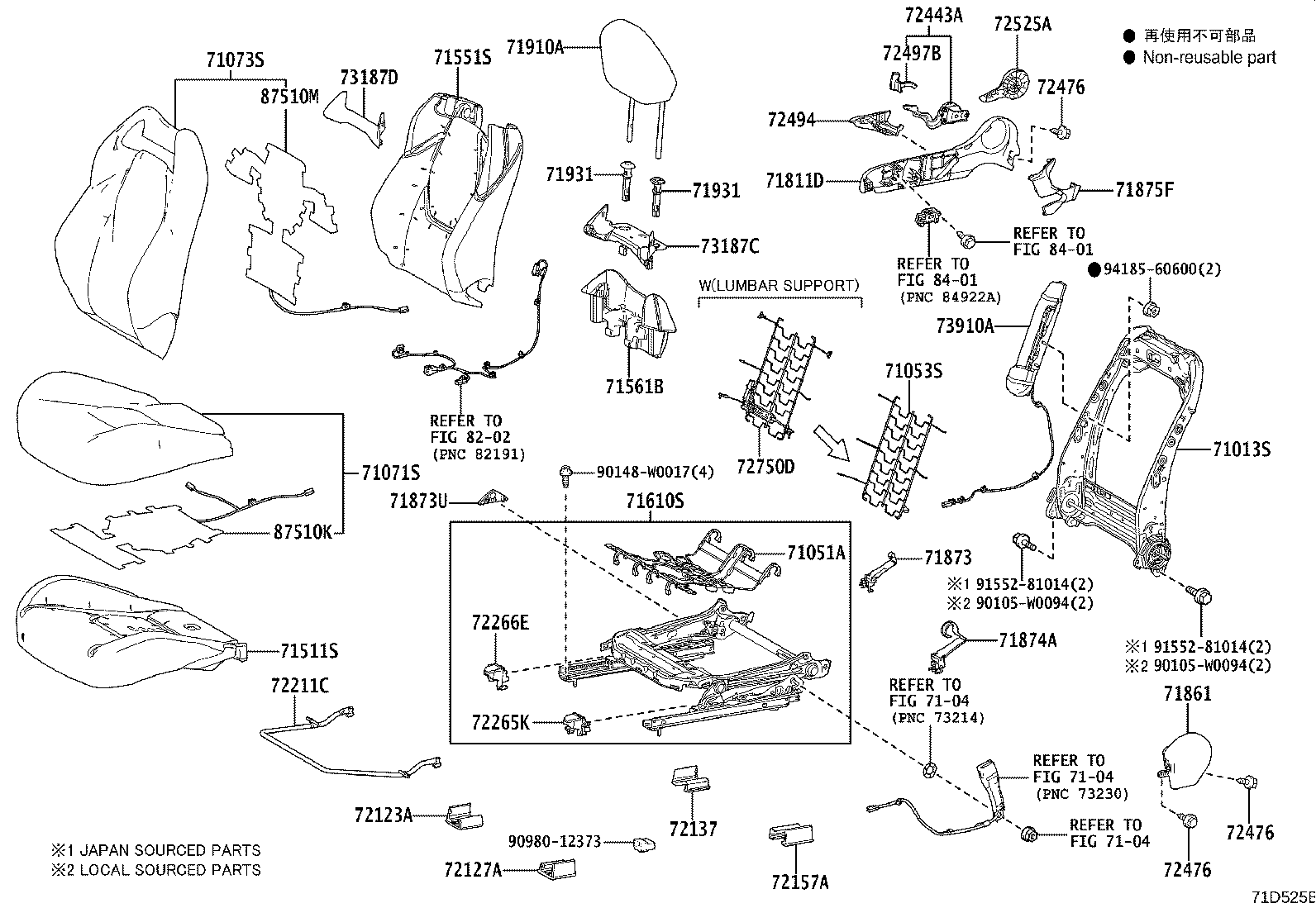

RH SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71013-F4010 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
1 | ||
| 71051A - SPRING SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71051-F4010 |
ZRE21#,ZWE211 |
1 | ||
| 71051-F4011 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
1 | ||
| 71053S - SPRING SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71053-F4010 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-0ZW60B3 |
ZRE210..RHD..EUR GRAY,TRIM2# |
1 | ||
| 71071-0ZW60E3 |
ZRE210..RHD..EUR ORCHID BROWN,TRIM0# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-0ZU10C2 |
ZRE210..RHD..EUR;ZRE210..LHD..6F..D..EUR BLACK,TRIM2# |
1 | ||
| 71073-0ZU10A2 |
ZRE210..RHD..EUR;ZRE210..LHD..6F..D..EUR FROMAGE,TRIM0# |
1 | ||
| 71073-0ZU11A2 |
ZRE210..RHD..EUR FROMAGE,TRIM0# |
1 | ||
| 71073-0ZU11C2 |
ZRE210..RHD..EUR BLACK,TRIM2# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-02D10 |
ZRE210..RHD..EUR |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-02D90 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
1 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-F4010 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
4 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-F4010 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
4 | ||
| 71759B - HOOK, FRONT SEAT BACK | ||||
| 71759-F4010 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
4 | ||
| 71759B - HOOK, FRONT SEAT BACK | ||||
| 71759-F4010 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
4 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-F4010C1 |
ZRE210..RHD..EUR BLACK,TRIM0#,2# |
1 | ||
| 7181A - HOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH | ||||
| 7181A-F4010 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
1 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-F4010C2 |
ZRE210..RHD..EUR BLACK,TRIM0#,2# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-F4010C2 |
ZRE210..RHD..EUR BLACK,TRIM0#,2# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-F4010 |
ZRE210..RHD..EUR |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71873-F4020 |
ZRE210..RHD..EUR |
1 | ||
| 71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) | ||||
| 71875-F4010C2 |
ZRE210..RHD..EUR BLACK,TRIM0#,2# |
1 | ||
| 71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT) | ||||
| 71875-F4020C2 |
ZRE210..RHD..EUR BLACK,TRIM0#,2# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-02S90C0 |
ZRE210..RHD..EUR BLACK,TRIM2# |
2 | ||
| 71910-02S90A0 |
ZRE210..RHD..EUR FROMAGE,TRIM0# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-F4010C1 |
ZRE210..G..EUR;ZRE210..RHD..EUR W(LOCK),BLACK,TRIM00,2# |
2 | ||
| 71930-F4010A0 |
ZRE210..G..EUR;ZRE210..RHD..EUR W(LOCK),FROMAGE,TRIM00 |
2 | ||
| 71931-F4010A0 |
ZRE210..G..EUR;ZRE210..RHD..EUR W/O(LOCK),FROMAGE,TRIM00 |
2 | ||
| 71931-F4010C1 |
ZRE210..G..EUR;ZRE210..RHD..EUR W/O(LOCK),BLACK,TRIM00,2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-F4010C1 |
ZRE210..G..EUR;ZRE210..RHD..EUR W(LOCK),BLACK,TRIM00,2# |
2 | ||
| 71930-F4010A0 |
ZRE210..G..EUR;ZRE210..RHD..EUR W(LOCK),FROMAGE,TRIM00 |
2 | ||
| 71931-F4010A0 |
ZRE210..G..EUR;ZRE210..RHD..EUR W/O(LOCK),FROMAGE,TRIM00 |
2 | ||
| 71931-F4010C1 |
ZRE210..G..EUR;ZRE210..RHD..EUR W/O(LOCK),BLACK,TRIM00,2# |
2 | ||
| 72010 - ADJUSTER ASSY, FRONT SEAT, RH | ||||
| 72010-F4011 |
ZRE210,ZWE211..RHD |
1 | ||
| 72010-F4012 |
ZRE210..RHD..EUR |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-F4010 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
1 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-F4030 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
4 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-F4030 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
4 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72123-F4010 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-F4010 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-02370 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
1 | ||
| 72211C - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-F4010 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
2 | ||
| 72265 - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-F4020 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
2 | ||
| 72266 - COVER, SEAT TRACK UPPER RAIL, LH | ||||
| 72265-F4020 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
2 | ||
| 72443A - GEAR, VERTICAL ADJUSTER, RH | ||||
| 72443-F4010 |
ZRE210,ZWE211..RHD |
1 | ||
| 72443-F4011 |
ZRE210,ZWE211..RHD LIGHT GRADE |
1 | ||
| 72443-F4011 |
ZRE210..RHD..EUR |
1 | ||
| 72443-F4010 |
ZRE210,ZWE211..RHD LIGHT GRADE |
1 | ||
| 72494 - HANDLE, VERTICAL ADJUSTING, RH | ||||
| 72494-F4010C2 |
ZRE210..RHD..EUR BLACK,TRIM0#,2# |
1 | ||
| 72497B - COVER, VERTICAL ADJUSTER BRACKET, RH | ||||
| 72498-F4010C1 |
ZRE210..RHD..EUR BLACK,TRIM0#,2# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-F4010C2 |
ZRE210..G..EUR;ZRE210..RHD..EUR BLACK,TRIM0#,2# |
1 | ||
| 72537 - COVER, RECLINING HINGE OUTER, RH | ||||
| 72551-F4010C2 |
ZRE210..G..EUR;ZRE210..RHD..EUR BLACK,TRIM0#,2# |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-02430 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
1 | ||
| Common parts | ||||
| 90119-10601 | ||||
| 90148-10007 | ||||
| 90148-W0017 | ||||
| 93560-54012 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
| 8401 | ||||
(2011- )RHD

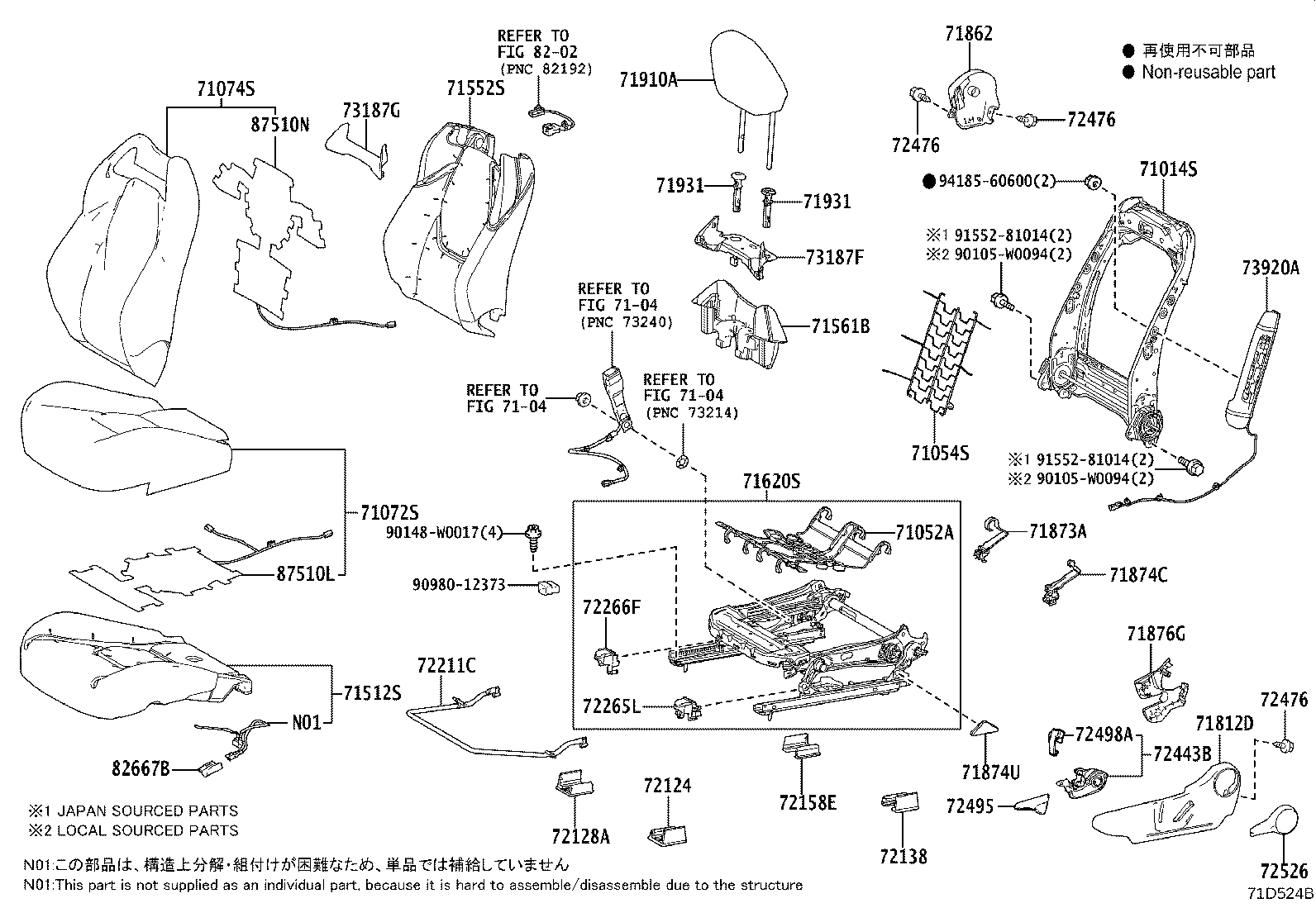

LH SEAT(GR SPORT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71014-F4010 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
1 | ||
| 71052A - SPRING SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71051-F4010 |
ZRE21#,ZWE211 |
1 | ||
| 71051-F4011 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
1 | ||
| 71054S - SPRING SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71053-F4010 |
ZRE210..RHD..EUR |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-0ZL80B2 |
ZRE210..RHD..EUR GRAY,TRIM2# |
1 | ||
| 71072-0ZL80E2 |
ZRE210..RHD..EUR ORCHID BROWN,TRIM0# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-0ZT20A1 |
ZRE210..RHD..EUR;ZRE210..LHD..6F..D..EUR FROMAGE,TRIM0# |
1 | ||
| 71074-0ZT20C1 |
ZRE210..RHD..EUR;ZRE210..LHD..6F..D..EUR BLACK,TRIM2# |
1 | ||
| 71074-0ZT21C1 |
ZRE210..RHD..EUR BLACK,TRIM2# |
1 | ||
| 71074-0ZT21A1 |
ZRE210..RHD..EUR FROMAGE,TRIM0# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-02330 |
ZRE210..RHD..EUR |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-02B70 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-F4030C2 |
ZRE210..RHD..EUR BLACK,TRIM0#,2# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-F4030C2 |
ZRE210..RHD..EUR BLACK,TRIM0#,2# |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-F4030C2 |
ZRE210..RHD..EUR BLACK,TRIM0#,2# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-02S90C0 |
ZRE210..RHD..EUR BLACK,TRIM2# |
2 | ||
| 71910-02S90A0 |
ZRE210..RHD..EUR FROMAGE,TRIM0# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-F4010C1 |
ZRE210..G..EUR;ZRE210..RHD..EUR W(LOCK),BLACK,TRIM00,2# |
2 | ||
| 71930-F4010A0 |
ZRE210..G..EUR;ZRE210..RHD..EUR W(LOCK),FROMAGE,TRIM00 |
2 | ||
| 71931-F4010A0 |
ZRE210..G..EUR;ZRE210..RHD..EUR W/O(LOCK),FROMAGE,TRIM00 |
2 | ||
| 71931-F4010C1 |
ZRE210..G..EUR;ZRE210..RHD..EUR W/O(LOCK),BLACK,TRIM00,2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-F4010C1 |
ZRE210..G..EUR;ZRE210..RHD..EUR W(LOCK),BLACK,TRIM00,2# |
2 | ||
| 71930-F4010A0 |
ZRE210..G..EUR;ZRE210..RHD..EUR W(LOCK),FROMAGE,TRIM00 |
2 | ||
| 71931-F4010A0 |
ZRE210..G..EUR;ZRE210..RHD..EUR W/O(LOCK),FROMAGE,TRIM00 |
2 | ||
| 71931-F4010C1 |
ZRE210..G..EUR;ZRE210..RHD..EUR W/O(LOCK),BLACK,TRIM00,2# |
2 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72123-F4010 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72123-F4010 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72137-F4010 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
1 | ||
| 72211C - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-F4010 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
2 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-02390 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
1 | ||
| 82667B - HOLDER, CONNECTOR | ||||
| 82666-F4080 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
1 | ||
| Common parts | ||||
| 90105-W0094 | ||||
| 90148-W0017 | ||||
| 90980-12373 | ||||
| 91552-81014 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
(2011- )RHD
RH SEAT(GR SPORT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71013-F4010 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
1 | ||
| 71051A - SPRING SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71051-F4010 |
ZRE21#,ZWE211 |
1 | ||
| 71051-F4011 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
1 | ||
| 71053S - SPRING SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71053-F4010 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-0ZW60B3 |
ZRE210..RHD..EUR GRAY,TRIM2# |
1 | ||
| 71071-0ZW60E3 |
ZRE210..RHD..EUR ORCHID BROWN,TRIM0# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-0ZU10C2 |
ZRE210..RHD..EUR;ZRE210..LHD..6F..D..EUR BLACK,TRIM2# |
1 | ||
| 71073-0ZU10A2 |
ZRE210..RHD..EUR;ZRE210..LHD..6F..D..EUR FROMAGE,TRIM0# |
1 | ||
| 71073-0ZU11A2 |
ZRE210..RHD..EUR FROMAGE,TRIM0# |
1 | ||
| 71073-0ZU11C2 |
ZRE210..RHD..EUR BLACK,TRIM2# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-02D10 |
ZRE210..RHD..EUR |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-02D90 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-F4010C1 |
ZRE210..RHD..EUR BLACK,TRIM0#,2# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-F4010C2 |
ZRE210..RHD..EUR BLACK,TRIM0#,2# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-F4010 |
ZRE210..RHD..EUR |
1 | ||
| 71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) | ||||
| 71875-F4010C2 |
ZRE210..RHD..EUR BLACK,TRIM0#,2# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-02S90C0 |
ZRE210..RHD..EUR BLACK,TRIM2# |
2 | ||
| 71910-02S90A0 |
ZRE210..RHD..EUR FROMAGE,TRIM0# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-F4010C1 |
ZRE210..G..EUR;ZRE210..RHD..EUR W(LOCK),BLACK,TRIM00,2# |
2 | ||
| 71930-F4010A0 |
ZRE210..G..EUR;ZRE210..RHD..EUR W(LOCK),FROMAGE,TRIM00 |
2 | ||
| 71931-F4010A0 |
ZRE210..G..EUR;ZRE210..RHD..EUR W/O(LOCK),FROMAGE,TRIM00 |
2 | ||
| 71931-F4010C1 |
ZRE210..G..EUR;ZRE210..RHD..EUR W/O(LOCK),BLACK,TRIM00,2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-F4010C1 |
ZRE210..G..EUR;ZRE210..RHD..EUR W(LOCK),BLACK,TRIM00,2# |
2 | ||
| 71930-F4010A0 |
ZRE210..G..EUR;ZRE210..RHD..EUR W(LOCK),FROMAGE,TRIM00 |
2 | ||
| 71931-F4010A0 |
ZRE210..G..EUR;ZRE210..RHD..EUR W/O(LOCK),FROMAGE,TRIM00 |
2 | ||
| 71931-F4010C1 |
ZRE210..G..EUR;ZRE210..RHD..EUR W/O(LOCK),BLACK,TRIM00,2# |
2 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-F4010 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72123-F4010 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-F4010 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-02370 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
1 | ||
| 72211C - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-F4010 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
2 | ||
| 72443A - GEAR, VERTICAL ADJUSTER, RH | ||||
| 72443-F4010 |
ZRE210,ZWE211..RHD |
1 | ||
| 72443-F4011 |
ZRE210,ZWE211..RHD LIGHT GRADE |
1 | ||
| 72443-F4011 |
ZRE210..RHD..EUR |
1 | ||
| 72443-F4010 |
ZRE210,ZWE211..RHD LIGHT GRADE |
1 | ||
| 72494 - HANDLE, VERTICAL ADJUSTING, RH | ||||
| 72494-F4010C2 |
ZRE210..RHD..EUR BLACK,TRIM0#,2# |
1 | ||
| 72497B - COVER, VERTICAL ADJUSTER BRACKET, RH | ||||
| 72498-F4010C1 |
ZRE210..RHD..EUR BLACK,TRIM0#,2# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-F4010C2 |
ZRE210..G..EUR;ZRE210..RHD..EUR BLACK,TRIM0#,2# |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-02430 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
1 | ||
| Common parts | ||||
| 90105-W0094 | ||||
| 90148-W0017 | ||||
| 90980-12373 | ||||
| 91552-81014 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
