ZRE210R-DEFDPW (2019)
Toyota Corolla (Tup)

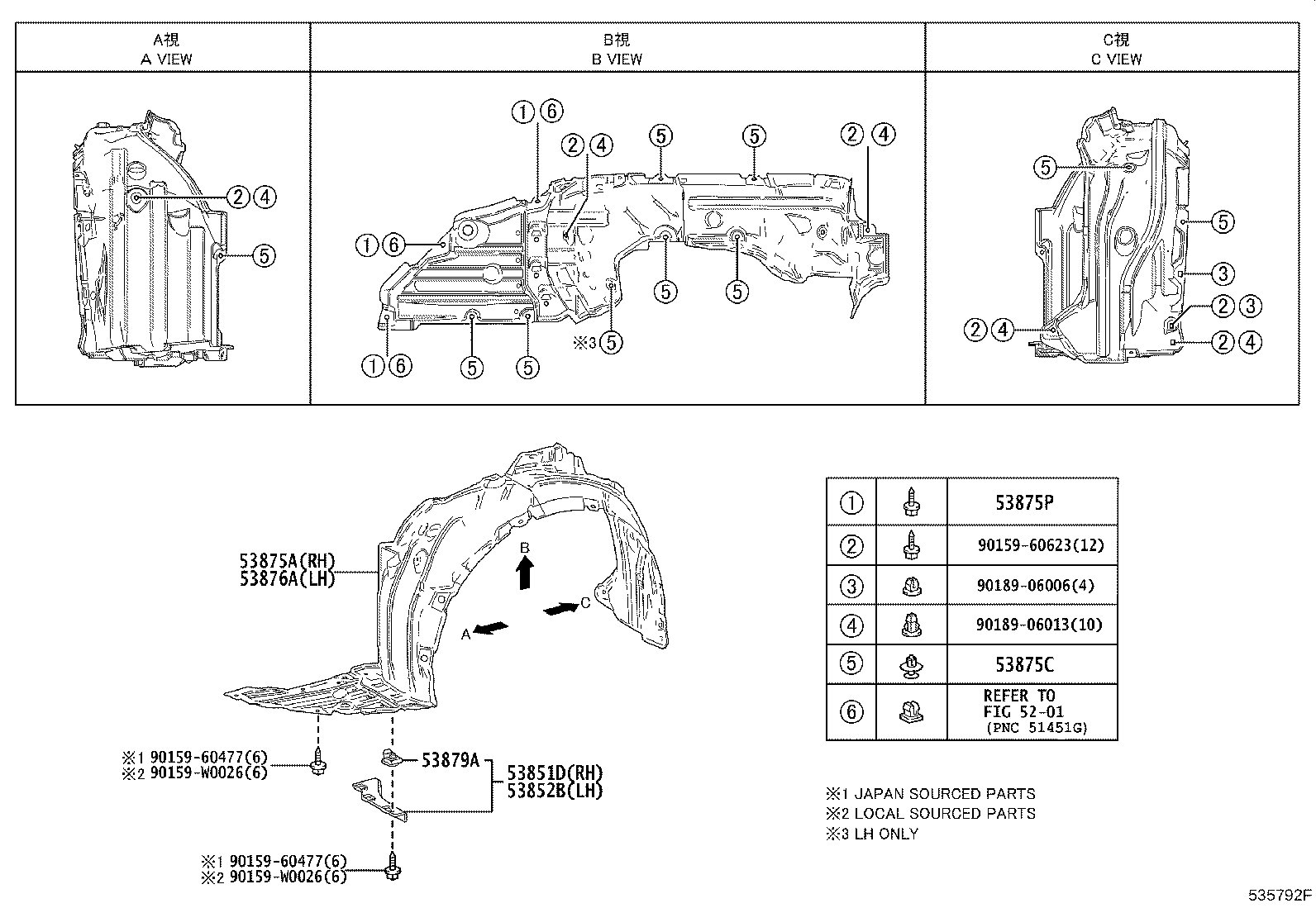

ILLUST NO. 2 OF 2(1901- )
FENDER LINER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53851D - PAD, FRONT WHEEL OPENING EXTENSION, RH | ||||
| 53851-02220 |
ZRE210..RHD..CVT;ZRE210..6F..(D,N)..EUR;ZRE210,ZWE211..CVT..N..EUR LIGHT GRADE&MUD GUARD-WITH(FRONT & REAR) |
1 | ||
| 53851-02220 |
ZRE210..RHD..CVT;ZRE210..6F..(D,N)..EUR;ZRE210,ZWE211..CVT..N..EUR LIGHT GRADE |
1 | ||
| 53851-02220 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
1 | ||
| 53852B - PAD, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53852-02200 |
ZRE210..RHD..CVT;ZRE210..6F..(D,N)..EUR;ZRE210,ZWE211..CVT..N..EUR LIGHT GRADE&MUD GUARD-WITH(FRONT & REAR) |
1 | ||
| 53852-02200 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
1 | ||
| 53852-02200 |
ZRE210..RHD..CVT;ZRE210..6F..(D,N)..EUR;ZRE210,ZWE211..CVT..N..EUR LIGHT GRADE |
1 | ||
| 53875A - LINER, FRONT FENDER, RH | ||||
| 53875-02660 |
ZRE210..RHD..CVT;ZRE210..CVT..N..EUR;ZRE210..6F..(D,N)..EUR LIGHT GRADE |
1 | ||
| 53875-02660 |
ZRE210..RHD..EUR |
1 | ||
| 53875-02660 |
ZRE210..RHD..CVT;ZRE210..CVT..N..EUR;ZRE210..6F..(D,N)..EUR LIGHT GRADE&MUD GUARD-WITH(FRONT & REAR) |
1 | ||
| 53875C - CLIP, FRONT FENDER LINER | ||||
| 90467-07214 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
1 | ||
| 90467-07214 |
ZRE210..RHD..CVT;ZRE210..6F..(D,N)..EUR;ZRE210,ZWE211..CVT..N..EUR LIGHT GRADE&MUD GUARD-WITH(FRONT & REAR) |
1 | ||
| 90467-07214 |
ZRE210..RHD..CVT;ZRE210..6F..(D,N)..EUR;ZRE210,ZWE211..CVT..N..EUR LIGHT GRADE |
1 | ||
| 53875P - SCREW, NO.1 | ||||
| 90159-60477 |
ZRE21#,ZWE211 (J) |
6 | ||
| 90159-W0026 |
ZRE21#,ZWE211 (L) |
6 | ||
| 53876A - LINER, FRONT FENDER, LH | ||||
| 53876-02710 |
ZRE210..RHD..CVT;ZRE210..CVT..N..EUR;ZRE210..6F..(D,N)..EUR LIGHT GRADE&MUD GUARD-WITH(FRONT & REAR) |
1 | ||
| 53876-02710 |
ZRE210..RHD..EUR |
1 | ||
| 53876-02710 |
ZRE210..RHD..CVT;ZRE210..CVT..N..EUR;ZRE210..6F..(D,N)..EUR LIGHT GRADE |
1 | ||
| 53879A - RETAINER, FRONT FENDER LINER | ||||
| 53879-47020 |
ZRE210..RHD..CVT;ZRE210..6F..(D,N)..EUR;ZRE210,ZWE211..CVT..N..EUR LIGHT GRADE |
6 | ||
| 53879-47020 |
ZRE210..RHD..CVT;ZRE210..6F..(D,N)..EUR;ZRE210,ZWE211..CVT..N..EUR LIGHT GRADE&MUD GUARD-WITH(FRONT & REAR) |
6 | ||
| 53879-47020 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
6 | ||
| Common parts | ||||
| 90159-60477 | ||||
| 90159-60623 | ||||
| 90159-W0026 | ||||
| 90189-06006 | ||||
| 90189-06013 | ||||
| Linked diagrams | ||||
| 5201 | ||||

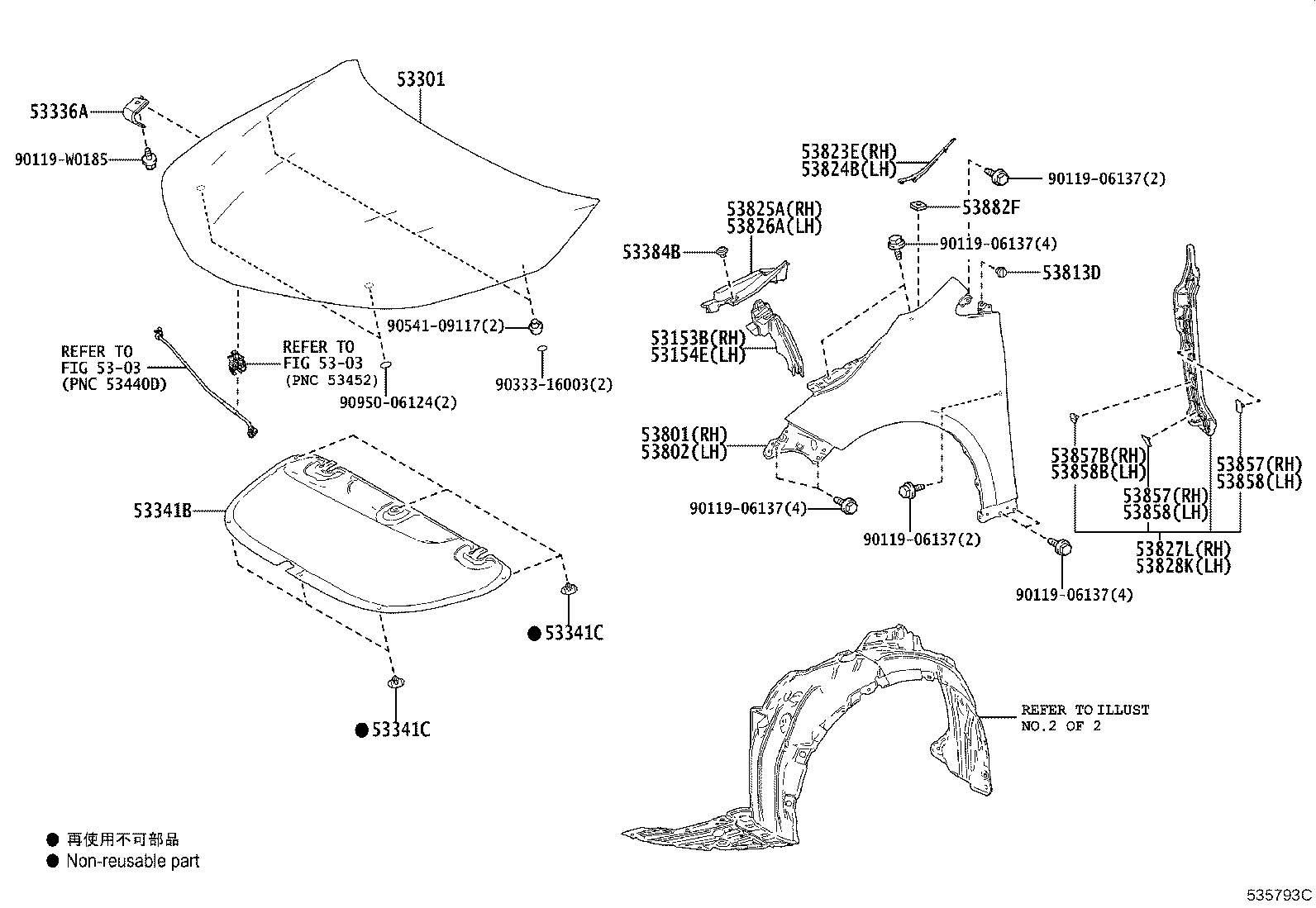

ILLUST NO. 1 OF 2(1901- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53153B - GUIDE, FRONT SIDE AIR | ||||
| 53153-02110 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
1 | ||
| 53154E - GUIDE, FRONT SIDE AIR, NO.2 | ||||
| 53154-02110 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
1 | ||
| 53301 - HOOD SUB-ASSY | ||||
| 53301-02390 |
ZRE21#,ZWE211 |
1 | ||
| 53301-02490 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
1 | ||
| 53336A - BRACKET, HOOD STAY | ||||
| 53336-02090 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
1 | ||
| 53336-02070 |
ZRE21#,ZWE211 |
1 | ||
| 53384B - CUSHION, HOOD, CENTER | ||||
| 53384-78010 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
2 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53801-02260 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53802-02280 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
1 | ||
| 53813D - EXTENSION, FRONT FENDER | ||||
| 53813-47040 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
2 | ||
| 53823E - PROTECTOR, FRONT SIDE PANEL, NO.2 RH | ||||
| 53823-02190 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
1 | ||
| 53824B - PROTECTOR, FRONT SIDE PANEL, NO.2 LH | ||||
| 53824-02190 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
1 | ||
| 53825A - PROTECTOR, FRONT FENDER, UPPER RH | ||||
| 53825-02220 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
1 | ||
| 53826A - PROTECTOR, FRONT FENDER, UPPER LH | ||||
| 53826-02220 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
1 | ||
| 53827L - PROTECTOR, FRONT FENDER SIDE PANEL, RH | ||||
| 53827-02250 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
1 | ||
| 53828K - PROTECTOR, FRONT FENDER SIDE PANEL, LH | ||||
| 53828-02250 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
1 | ||
| 53857 - RETAINER, FRONT WHEEL OPENING EXTENSION, RH | ||||
| 53857-02020 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
2 | ||
| 53857 - RETAINER, FRONT WHEEL OPENING EXTENSION, RH | ||||
| 53857-02020 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
2 | ||
| 53857B - RETAINER, FRONT WHEEL OPENING EXTENSION, RH | ||||
| 53857-02040 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
1 | ||
| 53858 - RETAINER, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53857-02020 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
2 | ||
| 53858 - RETAINER, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53857-02020 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
2 | ||
| 53858B - RETAINER, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53857-02040 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
1 | ||
| 53882F - SEAL, FRONT FENDER | ||||
| 53882-33060 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
2 | ||
| Common parts | ||||
| 90119-06137 | ||||
| 90119-W0185 | ||||
| 90333-16003 | ||||
| 90541-09117 | ||||
| 90950-06124 | ||||
| Linked diagrams | ||||
| 5303 | ||||
