ZRE210R-DEFDPW (2019)

Toyota Corolla (Tup)

Production Jan 2019 - Sep 9999
Engine 1ZRFAE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1901- )MZEA11,ZRE21#..RHD

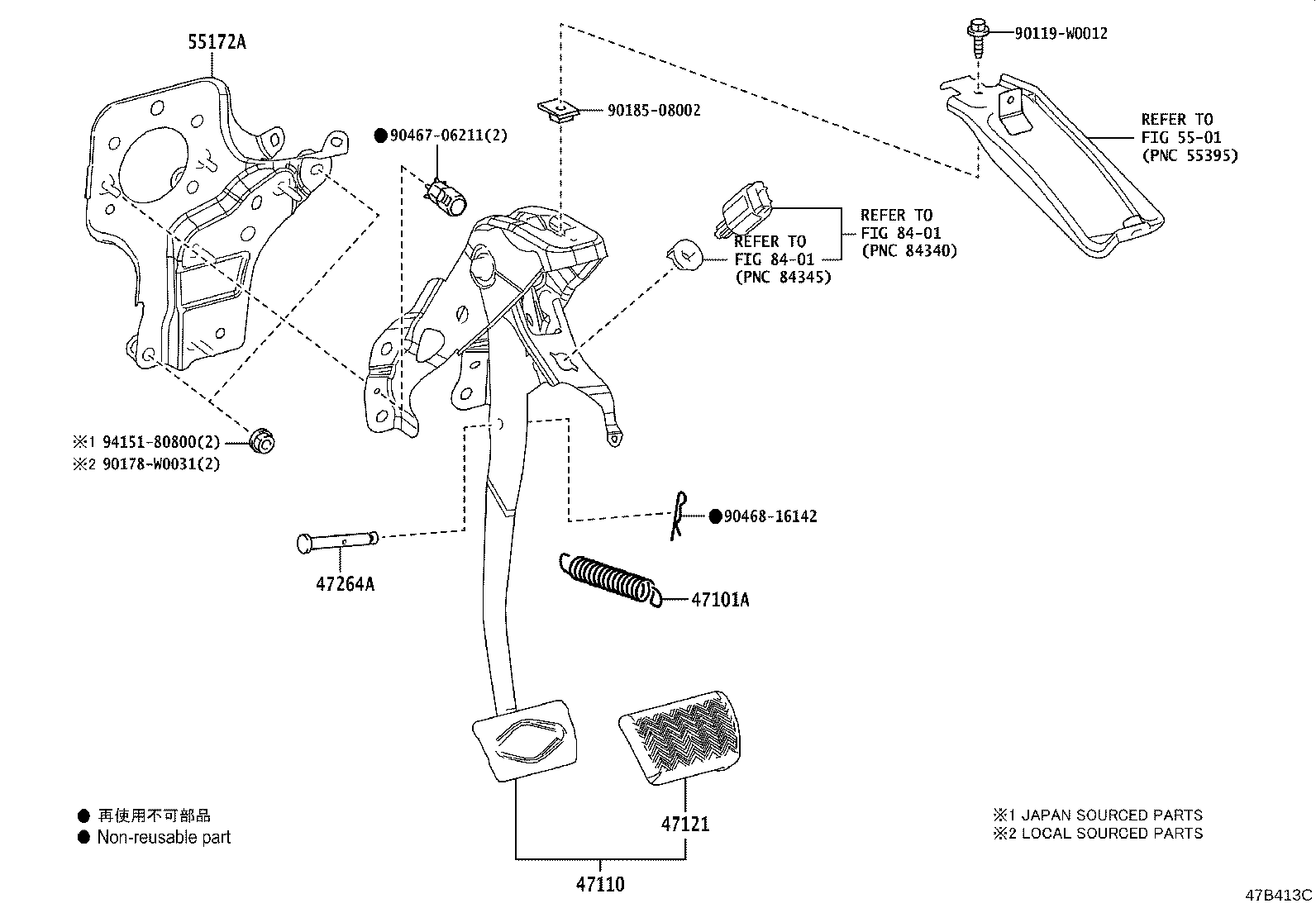

Click highlighted areas on diagram

diagram 47101A 47110 47121 47264A 5501 55172A 8401 8401 90119W0012 90178W0031 9018508002 9046706211 9046816142 9415180800
Part # Description Qty Price
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90507-15010

ZRE210..G..EUR;ZRE210..RHD..EUR

 1
47110 - SUPPORT ASSY, BRAKE PEDAL
47110-12430

ZRE210..RHD..6F..EUR

 1
47121 - PAD, BRAKE PEDAL
47121-12040

ZRE210..6F..G;ZRE210..RHD..6F..EUR

 1
47264A - PIN(FOR PUSH ROD)
90249-08221

ZRE210..6F..G;ZRE210..RHD..EUR

 1
55172A - BASE, BRAKE PEDAL SUPPORT
55172-02120

ZRE210..RHD..EUR

 1
Common parts
90119-W0012
90178-W0031
90185-08002
90467-06211
90468-16142
94151-80800
Linked diagrams
5501
8401
