ZRE210R-DEFDPW (2019)

Toyota Corolla (Tup)

Production Jan 2019 - Sep 9999
Engine 1ZRFAE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1901- )ZRE210..6F

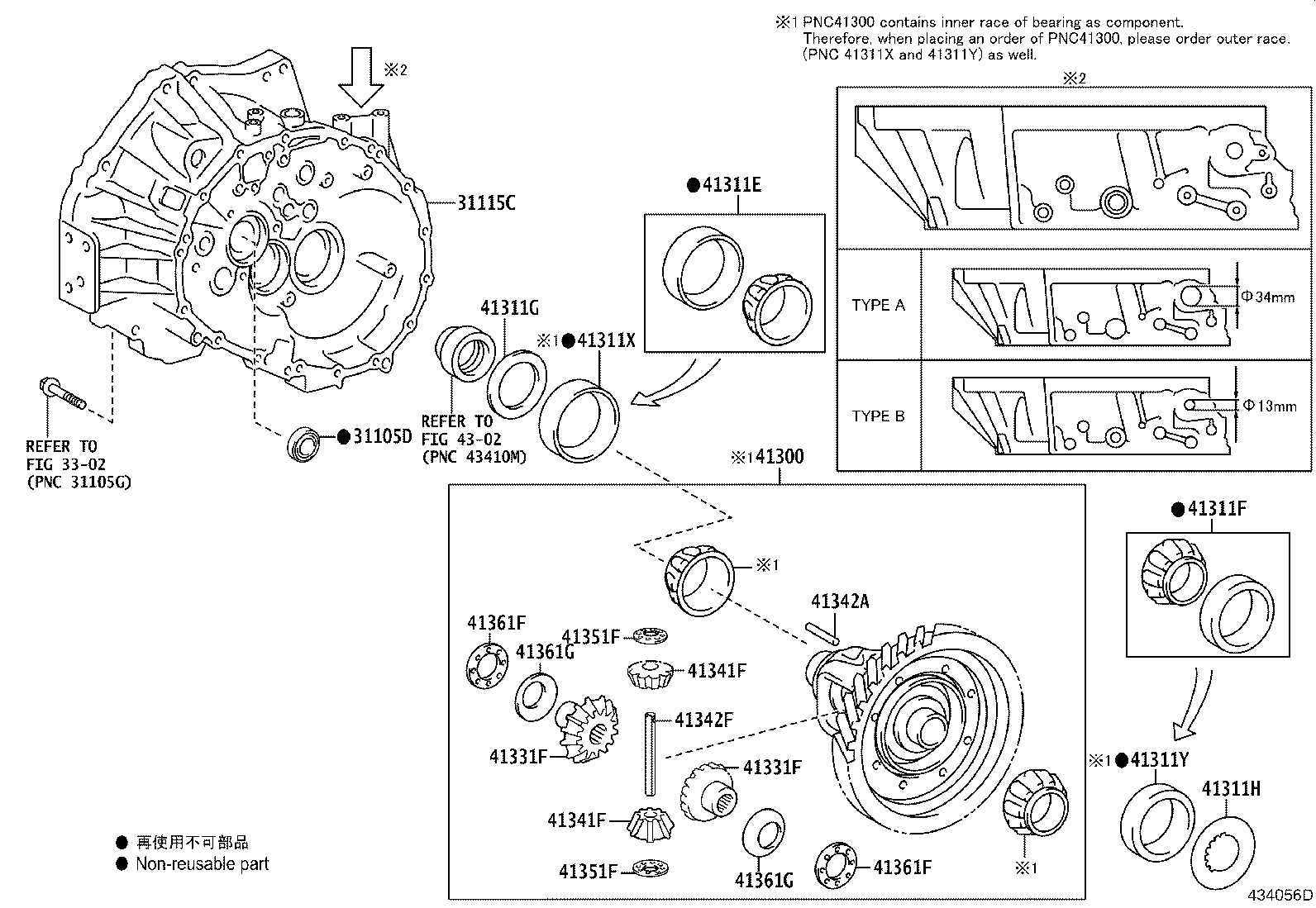

Click highlighted areas on diagram

EC60

diagram 31105D 31115C 3302 41300 41311E 41311F 41311G 41311H 41311X 41311Y 41331F 41331F 41341F 41341F 41342A 41342F 41351F 41351F 41361F 41361F 41361G 41361G 4302
Part # Description Qty Price
31105D - SEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)
90311-25030

ZRE210..6F..G;ZRE210..RHD..6F..EUR

 1
31115C - CASE, FRONT TRANSAXLE(MTM)
31115-05033

ZRE210..6F..G;ZRE210..RHD..6F..EUR

TYPE B:REFER ILLUST.

 1
31115-05031

ZRE210..6F

TYPE A:REFER ILLUST.

 1
41300 - CASE ASSY, FRONT DIFFERENTIAL, W/RING GEAR
41300-02080

ZRE210..6F..G;ZRE210..RHD..6F..EUR

 1
41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR
90080-36143

ZRE210..6F..G;ZRE210..RHD..6F..EUR

 1
41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE
90366-W0013

ZRE210..6F..G;ZRE210..RHD..6F..EUR

 1
41311G - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE FRONT)
90560-41003

ZRE210..6F..G;ZRE210..RHD..6F..EUR

T=2.1

 1
41311H - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE REAR)
90564-44039

ZRE210..6F..G;ZRE210..RHD..6F..EUR

T=2.100, MARK 10

 1
90564-44042

ZRE210..6F..G;ZRE210..RHD..6F..EUR

T=2.175, MARK 13

 1
90564-44044

ZRE210..6F..G;ZRE210..RHD..6F..EUR

T=2.225, MARK 15

 1
90564-44041

ZRE210..6F..G;ZRE210..RHD..6F..EUR

T=2.150, MARK 12

 1
90564-44040

ZRE210..6F..G;ZRE210..RHD..6F..EUR

T=2.125, MARK 11

 1
90564-44045

ZRE210..6F..G;ZRE210..RHD..6F..EUR

T=2.250, MARK 16

 1
90564-44043

ZRE210..6F..G;ZRE210..RHD..6F..EUR

T=2.200, MARK 14

 1
90564-44051

ZRE210..6F..G;ZRE210..RHD..6F..EUR

T=2.400, MARK 22

 1
90564-44049

ZRE210..6F..G;ZRE210..RHD..6F..EUR

T=2.350, MARK 20

 1
90564-44047

ZRE210..6F..G;ZRE210..RHD..6F..EUR

T=2.300, MARK 18

 1
90564-44057

ZRE210..6F..G;ZRE210..RHD..6F..EUR

T=2.550, MARK 28

 1
90564-44053

ZRE210..6F..G;ZRE210..RHD..6F..EUR

T=2.450, MARK 24

 1
90564-44046

ZRE210..6F..G;ZRE210..RHD..6F..EUR

T=2.275, MARK 17

 1
90564-44054

ZRE210..6F..G;ZRE210..RHD..6F..EUR

T=2.475, MARK 25

 1
90564-44056

ZRE210..6F..G;ZRE210..RHD..6F..EUR

T=2.525, MARK 27

 1
90564-44055

ZRE210..6F..G;ZRE210..RHD..6F..EUR

T=2.500, MARK 26

 1
90564-44048

ZRE210..6F..G;ZRE210..RHD..6F..EUR

T=2.325, MARK 19

 1
90564-44052

ZRE210..6F..G;ZRE210..RHD..6F..EUR

T=2.425, MARK 23

 1
90564-44058

ZRE210..6F..G;ZRE210..RHD..6F..EUR

T=2.575, MARK 29

 1
90564-44050

ZRE210..6F..G;ZRE210..RHD..6F..EUR

T=2.375, MARK 21

 1
90564-44064

ZRE210..6F..G;ZRE210..RHD..6F..EUR

T=2.725, MARK 35

 1
90564-44059

ZRE210..6F..G;ZRE210..RHD..6F..EUR

T=2.600, MARK 30

 1
90564-44061

ZRE210..6F..G;ZRE210..RHD..6F..EUR

T=2.650, MARK 32

 1
90564-44060

ZRE210..6F..G;ZRE210..RHD..6F..EUR

T=2.625, MARK 31

 1
90564-44065

ZRE210..6F..G;ZRE210..RHD..6F..EUR

T=2.750, MARK 36

 1
90564-44062

ZRE210..6F..G;ZRE210..RHD..6F..EUR

T=2.675, MARK 33

 1
90564-44068

ZRE210..6F..G;ZRE210..RHD..6F..EUR

T=2.825, MARK 39

 1
90564-44066

ZRE210..6F..G;ZRE210..RHD..6F..EUR

T=2.775, MARK 37

 1
90564-44063

ZRE210..6F..G;ZRE210..RHD..6F..EUR

T=2.700, MARK 34

 1
90564-44069

ZRE210..6F..G;ZRE210..RHD..6F..EUR

T=2.850, MARK 40

 1
90564-44067

ZRE210..6F..G;ZRE210..RHD..6F..EUR

T=2.800, MARK 38

 1
41311X - OUTER RACE, TAPERED ROLLER BEARING (FOR DIFF. CASE FRON
90080-36144

ZRE210..6F..G;ZRE210..RHD..6F..EUR

 1
41311Y - OUTER RACE, TAPERED ROLLER BEARING (FOR DIFF. CASE REAR
90366-W0014

ZRE210..6F..G;ZRE210..RHD..6F..EUR

 1
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-0D070

ZRE210..6F..G;ZRE210..RHD..6F..EUR

 2
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-0D070

ZRE210..6F..G;ZRE210..RHD..6F..EUR

 2
41341F - PINION, FRONT DIFFERENTIAL
41341-0D070

ZRE210..6F..G;ZRE210..RHD..6F..EUR

 2
41341F - PINION, FRONT DIFFERENTIAL
41341-0D070

ZRE210..6F..G;ZRE210..RHD..6F..EUR

 2
41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
90250-06058

ZRE210..6F..G;ZRE210..RHD..6F..EUR

 1
41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1
41342-52060

ZRE210..6F..G;ZRE210..RHD..6F..EUR

 1
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-32010

ZRE210..6F..G;ZRE210..RHD..6F..EUR

 2
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-32010

ZRE210..6F..G;ZRE210..RHD..6F..EUR

 2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-22020

ZRE210..6F..G;ZRE210..RHD..6F..EUR

T=1.00,MARK 02

 2
41361-22140

ZRE210..6F..G;ZRE210..RHD..6F..EUR

T=0.95,MARK 14

 2
41361-22160

ZRE210..6F..G;ZRE210..RHD..6F..EUR

T=1.15,MARK 16

 2
41361-48010

ZRE210..6F..G;ZRE210..RHD..6F..EUR

T=0.90,MARK 19

 2
41361-22030

ZRE210..6F..G;ZRE210..RHD..6F..EUR

T=1.10,MARK 03

 2
41361-22040

ZRE210..6F..G;ZRE210..RHD..6F..EUR

T=1.20,MARK 04

 2
41361-22150

ZRE210..6F..G;ZRE210..RHD..6F..EUR

T=1.05,MARK 15

 2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-22020

ZRE210..6F..G;ZRE210..RHD..6F..EUR

T=1.00,MARK 02

 2
41361-22140

ZRE210..6F..G;ZRE210..RHD..6F..EUR

T=0.95,MARK 14

 2
41361-22160

ZRE210..6F..G;ZRE210..RHD..6F..EUR

T=1.15,MARK 16

 2
41361-48010

ZRE210..6F..G;ZRE210..RHD..6F..EUR

T=0.90,MARK 19

 2
41361-22030

ZRE210..6F..G;ZRE210..RHD..6F..EUR

T=1.10,MARK 03

 2
41361-22040

ZRE210..6F..G;ZRE210..RHD..6F..EUR

T=1.20,MARK 04

 2
41361-22150

ZRE210..6F..G;ZRE210..RHD..6F..EUR

T=1.05,MARK 15

 2
41361G - WASHER, CONICAL SPRING(FOR CENTER DIFFERENTIAL SIDE GEA
90208-35001

ZRE210..6F..G;ZRE210..RHD..6F..EUR

 2
41361G - WASHER, CONICAL SPRING(FOR CENTER DIFFERENTIAL SIDE GEA
90208-35001

ZRE210..6F..G;ZRE210..RHD..6F..EUR

 2
Linked diagrams
3302
4302
