ZRE210R-DEFDPW (2019)

Toyota Corolla (Tup)

Production Jan 2019 - Sep 9999
Engine 1ZRFAE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1901- )1ZR#,2ZRFE

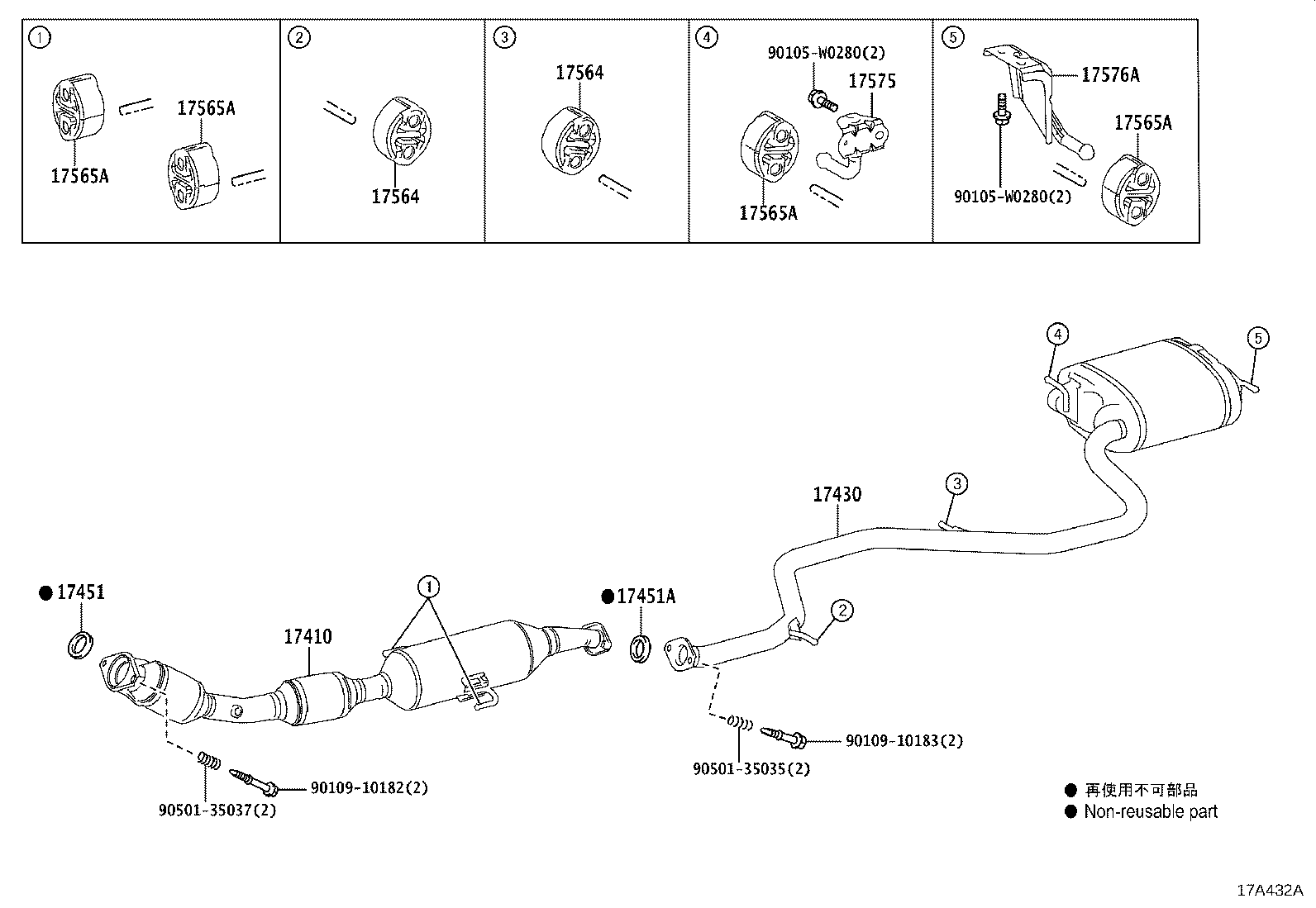

Click highlighted areas on diagram

diagram 17410 17430 17451 17451A 17564 17564 17565A 17565A 17565A 17565A 17575 17576A 90105W0280 90105W0280 9010910182 9010910183 9050135035 9050135037
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-0TD80

1ZRFAE..ZRE210..RHD

*114=TOYOTA/RT2RT3/Y

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-0T530

1ZRFAE..ZRE210..G;1ZRFAE..ZRE210..RHD

 1
17451 - GASKET, EXHAUST PIPE
17451-0R010

1ZRFAE..ZRE210..G;1ZRFAE..ZRE210..RHD

 1
17451A - GASKET, EXHAUST PIPE, NO.2
17451-0J022

1ZRFAE..ZRE210..G;1ZRFAE..ZRE210..RHD

 1
17564 - SUPPORT,EXHAUST PIPE, NO.4
17565-0T040

1ZRFAE..ZRE210..G;1ZRFAE..ZRE210..RHD

 2
17564 - SUPPORT,EXHAUST PIPE, NO.4
17565-0T040

1ZRFAE..ZRE210..G;1ZRFAE..ZRE210..RHD

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0J031

1ZRFAE..ZRE210..G;1ZRFAE..ZRE210..RHD

 4
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0J031

1ZRFAE..ZRE210..G;1ZRFAE..ZRE210..RHD

 4
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0J031

1ZRFAE..ZRE210..G;1ZRFAE..ZRE210..RHD

 4
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0J031

1ZRFAE..ZRE210..G;1ZRFAE..ZRE210..RHD

 4
17575 - BRACKET, EXHAUST PIPE SUPPORT, NO.5
17575-0T100

1ZRFAE..ZRE210..G;1ZRFAE..ZRE210..RHD

 1
17576A - BRACKET, EXHAUST PIPE SUPPORT, NO.6
17576-0T050

1ZRFAE..ZRE210..G;1ZRFAE..ZRE210..RHD

 1
Common parts
90105-W0280
90109-10182
90109-10183
90501-35035
90501-35037
