ZRE210L-DEXNPW (2019)

Toyota Corolla (Tup)

Production Jan 2019 - Sep 9999
Engine 1ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1901- )

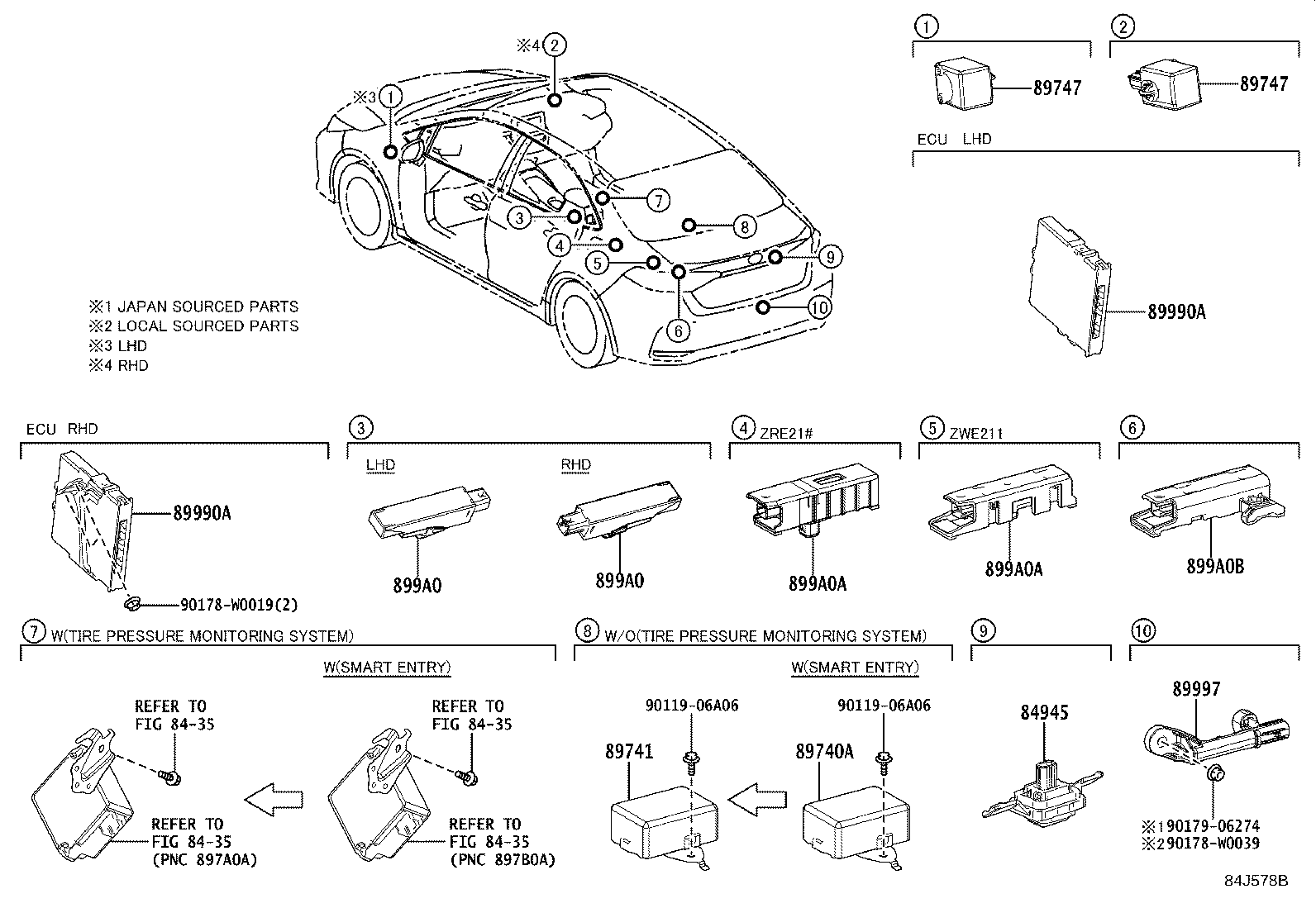

Click highlighted areas on diagram

diagram 8435 8435 8435 8435 84945 89740A 89741 89747 89747 89990A 89990A 89997 899A0 899A0 899A0A 899A0A 899A0B 9011906A06 9011906A06 90178W0019 90178W0039 9017906274
Part # Description Qty Price
84945 - SWITCH, LUGGAGE ELECTRICAL KEY
84945-12100

ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21#

 1
89747 - BUZZER, WIRELESS DOOR LOCK
89747-05010

MZEA11..6F..N;ZRE210..RHD..N;MZEA11..RHD..6F;ZRE210..CVT..N..RUS;ZRE210..N..(EUR,GCC);MZEA11,ZRE211..CVT..(D,N)..(EUR,GCC)

KEY PLATE-FOR SMART(2)&STARTING SYSTEM-PUSH START SWITCH

 1
89747 - BUZZER, WIRELESS DOOR LOCK
89747-05010

MZEA11..6F..N;ZRE210..RHD..N;MZEA11..RHD..6F;ZRE210..CVT..N..RUS;ZRE210..N..(EUR,GCC);MZEA11,ZRE211..CVT..(D,N)..(EUR,GCC)

KEY PLATE-FOR SMART(2)&STARTING SYSTEM-PUSH START SWITCH

 1
89990A - COMPUTER ASSY, SMART KEY
899H0-02180

ZRE210..CVT..N..RUS;ZRE21#..N..(EUR,GCC)

STARTING SYSTEM-PUSH START SWITCH

 1
899H0-02260

ZRE210..CVT..N..RUS;MZEA11,ZRE21#..N..(EUR,GCC)

STARTING SYSTEM-PUSH START SWITCH

 1
89990A - COMPUTER ASSY, SMART KEY
899H0-02180

ZRE210..CVT..N..RUS;ZRE21#..N..(EUR,GCC)

STARTING SYSTEM-PUSH START SWITCH

 1
899H0-02260

ZRE210..CVT..N..RUS;MZEA11,ZRE21#..N..(EUR,GCC)

STARTING SYSTEM-PUSH START SWITCH

 1
89997 - ANTENNA, ELECTRICAL KEY
89997-30100

ZRE210..RHD..N;ZRE210..CVT..N..RUS;MZEA11,ZRE21#..N..(EUR,GCC)

WIRELESS DOOR LOCK-WITH(SMART ENTRY)&STARTING SYSTEM-PUSH START SWITCH

 1
899A0 - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1
899A0-02220

ZRE210..RHD..N;ZRE210..CVT..N..RUS;MZEA11,ZRE21#..N..(EUR,GCC)

WIRELESS DOOR LOCK-WITH(SMART ENTRY)&STARTING SYSTEM-PUSH START SWITCH

 1
899A0 - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1
899A0-02220

ZRE210..RHD..N;ZRE210..CVT..N..RUS;MZEA11,ZRE21#..N..(EUR,GCC)

WIRELESS DOOR LOCK-WITH(SMART ENTRY)&STARTING SYSTEM-PUSH START SWITCH

 1
899A0A - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2
899A0-02230

ZRE210..RHD..N;ZRE210..CVT..N..RUS;ZRE21#..N..(EUR,GCC)

WIRELESS DOOR LOCK-WITH(SMART ENTRY)&STARTING SYSTEM-PUSH START SWITCH

 1
899A0A - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2
899A0-02230

ZRE210..RHD..N;ZRE210..CVT..N..RUS;ZRE21#..N..(EUR,GCC)

WIRELESS DOOR LOCK-WITH(SMART ENTRY)&STARTING SYSTEM-PUSH START SWITCH

 1
899A0B - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3
899A0-02250

ZRE210..RHD..N;ZRE210..CVT..N..RUS;MZEA11,ZRE21#..N..(EUR,GCC)

WIRELESS DOOR LOCK-WITH(SMART ENTRY)&STARTING SYSTEM-PUSH START SWITCH

 1
Common parts
90119-06A06
90178-W0019
90178-W0039
90179-06274
Linked diagrams
8435
