ZRE210L-DEXGPW (2019)
Toyota Corolla (Tup)
(1901- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64127B - SUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR | ||||
| 64127-33071 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# |
1 | ||
| 64127-33071 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
1 | ||
| 64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64401-02F20 |
MZEA11..D;ZRE210..LHD..D;ZRE210..RHD..D..GEN;ZRE21#,ZWE211..(G,N)..(GCC,GEN,RUS) |
1 | ||
| 64401-02F30 |
ZRE210..G..EUR |
1 | ||
| 64401-02F20 |
ZRE210..G..EUR BACK MONITOR-WITHOUT |
1 | ||
| 64401-02F30 |
MZEA11..D;ZRE210..LHD..D;ZRE21#,ZWE211..(G,N)..(GCC,GEN,RUS) BACK MONITOR-WITH |
1 | ||
| 64459 - CUSHION, LUGGAGE COMPARTMENT DOOR | ||||
| 90541-09069 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# |
2 | ||
| 90541-09069 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
2 | ||
| 64459 - CUSHION, LUGGAGE COMPARTMENT DOOR | ||||
| 90541-09069 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# |
2 | ||
| 90541-09069 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
2 | ||
| 64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR | ||||
| 64461-02300 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
1 | ||
| 64461-02300 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# |
1 | ||
| 64503 - ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH | ||||
| 64503-02270 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
1 | ||
| 64503-02270 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# |
1 | ||
| 64504 - ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH | ||||
| 64503-02270 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# |
1 | ||
| 64503-02270 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
1 | ||
| 64511 - SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, RH | ||||
| 64511-02270 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
1 | ||
| 64511-02270 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# |
1 | ||
| 64512 - SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, LH | ||||
| 64512-02220 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
1 | ||
| 64512-02220 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# |
1 | ||
| 64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH | ||||
| 64531-02550 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
1 | ||
| 64531-02550 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# |
1 | ||
| 64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH | ||||
| 64532-02550 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# |
1 | ||
| 64532-02550 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
1 | ||
| 64559 - PIN, LUGGAGE DOOR HINGE | ||||
| 64559-12040 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# |
2 | ||
| 64559-12040 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
2 | ||
| 64559 - PIN, LUGGAGE DOOR HINGE | ||||
| 64559-12040 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# |
2 | ||
| 64559-12040 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
2 | ||
| 64571B - COVER, LUGGAGE COMPARTMENT DOOR HINGE, RH | ||||
| 64571-02040 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
1 | ||
| 64571-02040 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# |
1 | ||
| 64571D - CLIP(FOR LUGGAGE COMPARTMENT DOOR HINGE COVER) | ||||
| 90467-07076C7 |
ZRE210..G..EUR;ZRE210..RHD..EUR BLACK |
4 | ||
| 90467-07076C7 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# BLACK |
4 | ||
| 64571D - CLIP(FOR LUGGAGE COMPARTMENT DOOR HINGE COVER) | ||||
| 90467-07076C7 |
ZRE210..G..EUR;ZRE210..RHD..EUR BLACK |
4 | ||
| 90467-07076C7 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# BLACK |
4 | ||
| 64572 - COVER, LUGGAGE COMPARTMENT DOOR HINGE, LH | ||||
| 64572-02040 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
1 | ||
| 64572-02040 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# |
1 | ||
| 64607 - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL | ||||
| 64607-02580 |
ZRE210..G..EUR |
1 | ||
| 64607-02580 |
ZRE210..G..RUS;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21#..LHD |
1 | ||
| 64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64600-02071 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
1 | ||
| 64600-02071 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# |
1 | ||
| 64621B - STRIKER, LUGGAGE COMPARTMENT DOOR LOCK | ||||
| 64621-02010 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
1 | ||
| 64621-02010 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# |
1 | ||
| 75129B - CUSHION, REAR LICENCE PLATE | ||||
| 75129-12020 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
2 | ||
| 75129-12020 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# |
2 | ||
| Common parts | ||||
| 82711-16790 | ||||
| 82711-1E300 | ||||
| 90105-06120 | ||||
| 90109-W0022 | ||||
| 90148-W0004 | ||||
| 90469-06005 | ||||
| 90959-01369 | ||||

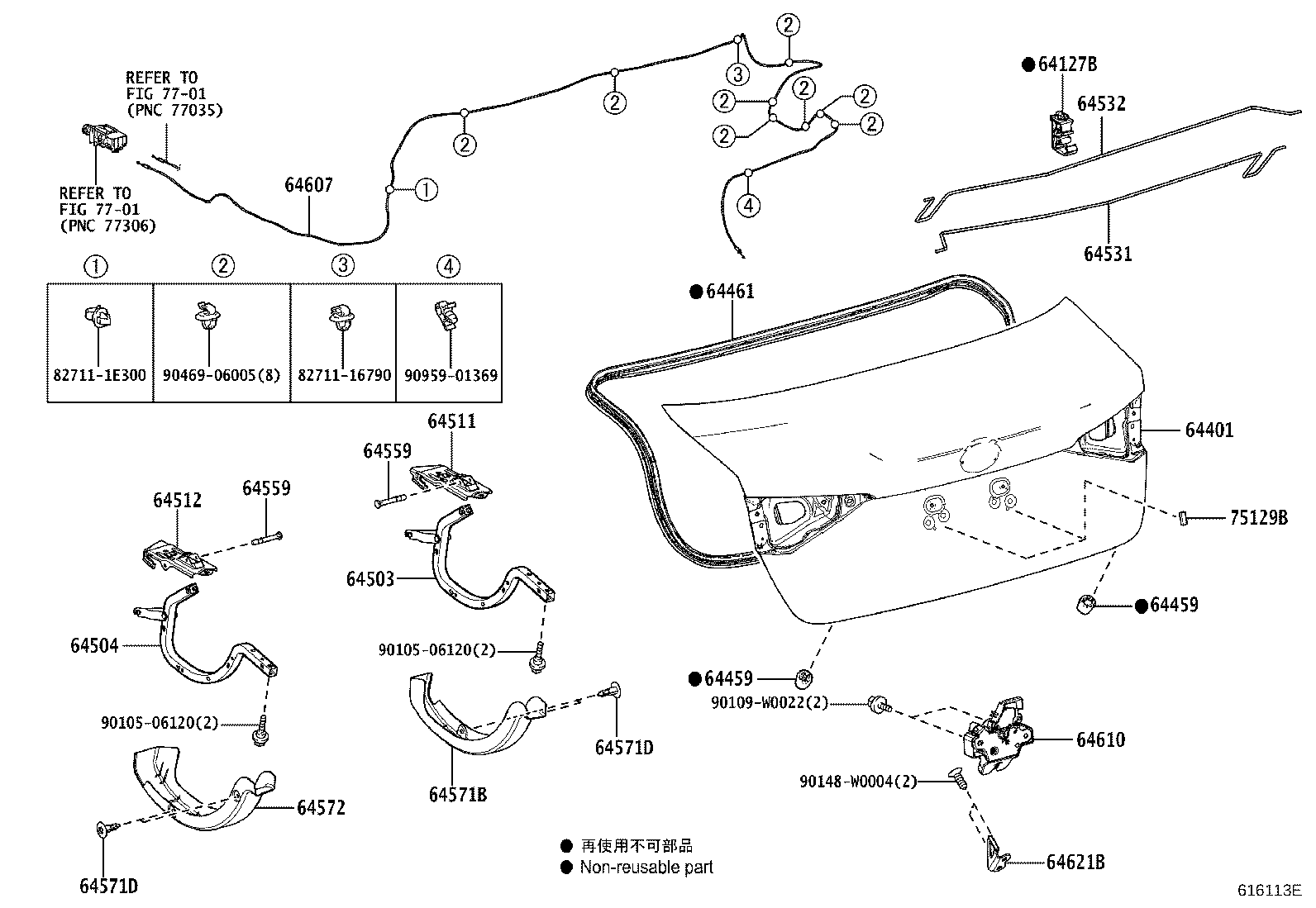

| Linked diagrams | ||||
| 7701 | ||||
