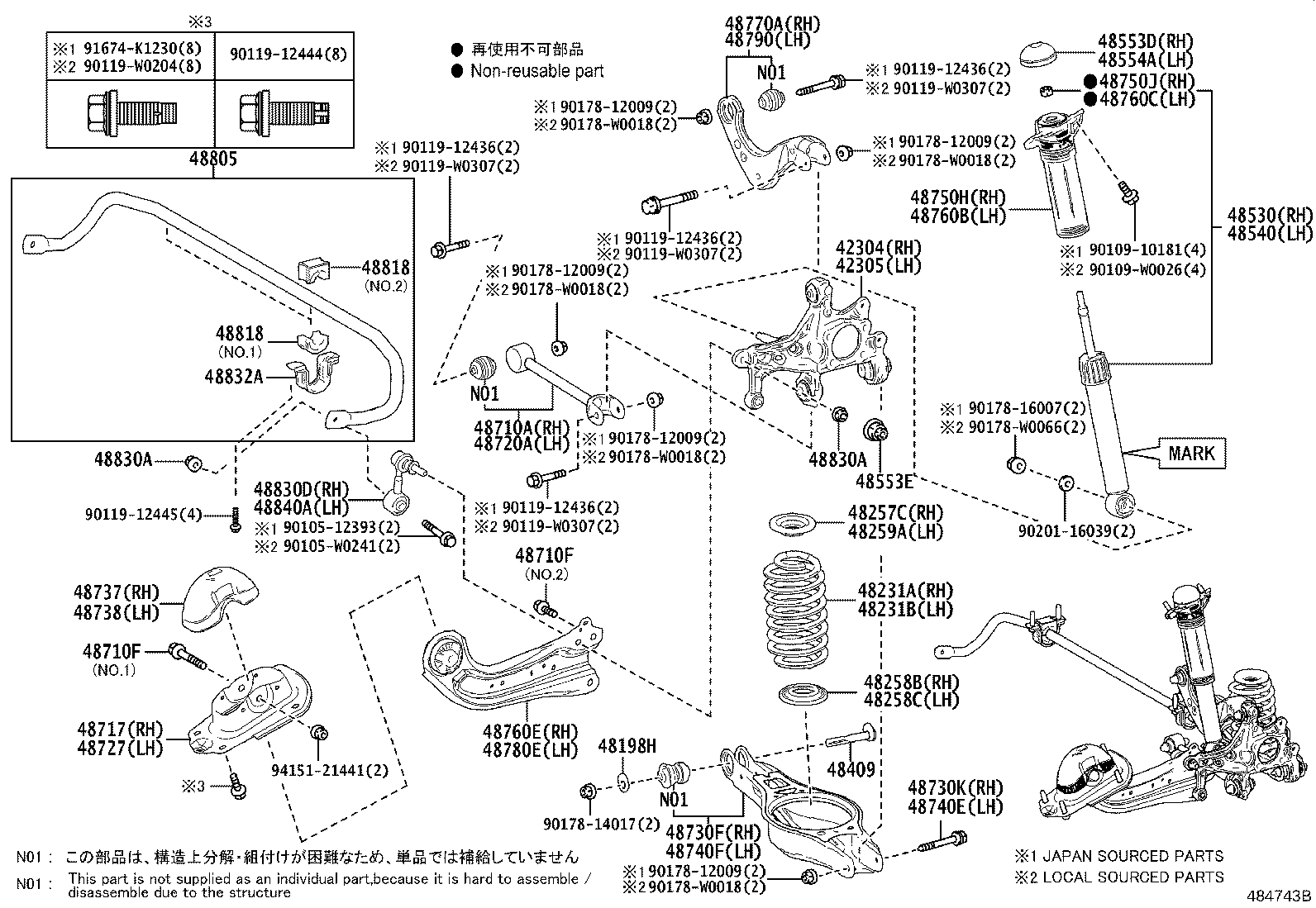

ZRE210L-DEXGPW (2019)
Toyota Corolla (Tup)
(1901- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42304 - CARRIER SUB-ASSY, REAR AXLE, RH | ||||
| 42304-02250 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
1 | ||
| 42304-02250 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# |
1 | ||
| 42305 - CARRIER SUB-ASSY, REAR AXLE, LH | ||||
| 42305-02250 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
1 | ||
| 42305-02250 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# |
1 | ||
| 48198H - CAM, CAMBER ADJUST, NO.2 | ||||
| 48198-47010 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# |
2 | ||
| 48198-47010 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
2 | ||
| 48231A - SPRING, COIL, REAR RH | ||||
| 48231-02N00 |
ZRE210..G..EUR;ZRE210..RHD..CVT..EUR |
1 | ||
| 48231-02N10 |
ZRE210..LHD..(D,N)..EUR ROUGH ROAD AREA SPEC |
1 | ||
| 48231-02N00 |
ZRE211;MZEA11..CVT..G;ZRE210..RHD..GEN;ZRE210..LHD..6F..(GCC,GEN);ZRE210..LHD..CVT..(D,N)..(EUR,GCC,GEN) |
1 | ||
| 48231B - SPRING, COIL, REAR LH | ||||
| 48231-02N00 |
ZRE210..G..EUR;ZRE210..RHD..CVT..EUR |
1 | ||
| 48231-02N10 |
ZRE210..LHD..(D,N)..EUR ROUGH ROAD AREA SPEC |
1 | ||
| 48231-02N00 |
ZRE211;MZEA11..CVT..G;ZRE210..RHD..GEN;ZRE210..LHD..6F..(GCC,GEN);ZRE210..LHD..CVT..(D,N)..(EUR,GCC,GEN) |
1 | ||
| 48257C - INSULATOR, REAR COIL SPRING, UPPER RH | ||||
| 48257-F4010 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
1 | ||
| 48257-F4010 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# |
1 | ||
| 48258B - INSULATOR, REAR COIL SPRING, LOWER RH | ||||
| 48258-F4010 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# |
1 | ||
| 48258-F4010 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
1 | ||
| 48258C - INSULATOR, REAR COIL SPRING, LOWER LH | ||||
| 48258-F4010 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
1 | ||
| 48258-F4010 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# |
1 | ||
| 48259A - INSULATOR, REAR COIL SPRING, UPPER LH | ||||
| 48257-F4010 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# |
1 | ||
| 48257-F4010 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
1 | ||
| 48409 - CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST | ||||
| 48409-47011 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
2 | ||
| 48409-47011 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48530-8Z096 |
MZEA11,ZRE211;ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N) MARK 48530-02M90 |
1 | ||
| 48530-8Z096 |
ZRE210..G..EUR;ZRE210..RHD..EUR MARK 48530-02M90 |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48530-8Z096 |
ZRE210..G..EUR;ZRE210..RHD..EUR MARK 48530-02M90 |
1 | ||
| 48530-8Z096 |
MZEA11,ZRE211;ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N) MARK 48530-02M90 |
1 | ||
| 48553D - CAP, REAR SHOCK ABSORBER, RH | ||||
| 48553-F4010 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
1 | ||
| 48553-F4010 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# |
1 | ||
| 48553E - CAP | ||||
| 48553-52030 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# |
2 | ||
| 48553-52030 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
2 | ||
| 48554A - CAP, REAR SHOCK ABSORBER, LH | ||||
| 48553-F4010 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# |
1 | ||
| 48553-F4010 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
1 | ||
| 48710A - ARM ASSY, REAR SUSPENSION, NO.1 RH | ||||
| 48710-02090 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
1 | ||
| 48710-02090 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# |
1 | ||
| 48710F - BOLT(FOR REAR TRAILING ARM) | ||||
| 90105-14195 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# (J),NO.1:SEE ILLUST |
2 | ||
| 90105-14197 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# (J),NO.2:SEE ILLUST |
4 | ||
| 90105-14195 |
ZRE210..G..EUR;ZRE210..RHD..EUR (J),NO.1:SEE ILLUST |
2 | ||
| 90105-W0242 |
ZRE210..G..EUR;ZRE210..RHD..EUR (L),NO.1:SEE ILLUST |
2 | ||
| 90105-W0273 |
ZRE210..G..EUR;ZRE210..RHD..EUR (L),NO.2:SEE ILLUST |
4 | ||
| 90105-W0242 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# (L),NO.1:SEE ILLUST |
2 | ||
| 90105-14197 |
ZRE210..G..EUR;ZRE210..RHD..EUR (J),NO.2:SEE ILLUST |
4 | ||
| 90105-W0273 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# (L),NO.2:SEE ILLUST |
4 | ||
| 48710F - BOLT(FOR REAR TRAILING ARM) | ||||
| 90105-14195 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# (J),NO.1:SEE ILLUST |
2 | ||
| 90105-14197 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# (J),NO.2:SEE ILLUST |
4 | ||
| 90105-14195 |
ZRE210..G..EUR;ZRE210..RHD..EUR (J),NO.1:SEE ILLUST |
2 | ||
| 90105-W0242 |
ZRE210..G..EUR;ZRE210..RHD..EUR (L),NO.1:SEE ILLUST |
2 | ||
| 90105-W0273 |
ZRE210..G..EUR;ZRE210..RHD..EUR (L),NO.2:SEE ILLUST |
4 | ||
| 90105-W0242 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# (L),NO.1:SEE ILLUST |
2 | ||
| 90105-14197 |
ZRE210..G..EUR;ZRE210..RHD..EUR (J),NO.2:SEE ILLUST |
4 | ||
| 90105-W0273 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# (L),NO.2:SEE ILLUST |
4 | ||
| 48717 - BRACKET, REAR SUSPENSION ARM, RH | ||||
| 48717-02060 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# |
1 | ||
| 48717-02060 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
1 | ||
| 48720A - ARM ASSY, REAR SUSPENSION, NO.1 LH | ||||
| 48710-02090 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
1 | ||
| 48710-02090 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# |
1 | ||
| 48727 - BRACKET, REAR SUSPENSION ARM, LH | ||||
| 48727-02040 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
1 | ||
| 48727-02040 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# |
1 | ||
| 48730F - ARM ASSY, REAR SUSPENSION, NO.2 RH | ||||
| 48730-F4010 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
1 | ||
| 48730-F4010 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# |
1 | ||
| 48730K - BOLT(FOR REAR SUSPENSION ARM NO.2 RH) | ||||
| 90119-12426 |
ZRE210..G..EUR;ZRE210..RHD..EUR (J) |
1 | ||
| 90119-W0278 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# (L) |
1 | ||
| 90119-W0278 |
ZRE210..G..EUR;ZRE210..RHD..EUR (L) |
1 | ||
| 90119-12426 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# (J) |
1 | ||
| 48737 - COVER, REAR SUSPENSION ARM, RH | ||||
| 48753-47010 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
1 | ||
| 48753-47010 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# |
1 | ||
| 48738 - COVER, REAR SUSPENSION ARM, LH | ||||
| 48753-47020 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
1 | ||
| 48753-47020 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# |
1 | ||
| 48740E - BOLT(FOR REAR SUSPENSION ARM NO.2 LH) | ||||
| 90119-W0278 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# (L) |
1 | ||
| 90119-12426 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# (J) |
1 | ||
| 90119-W0278 |
ZRE210..G..EUR;ZRE210..RHD..EUR (L) |
1 | ||
| 90119-12426 |
ZRE210..G..EUR;ZRE210..RHD..EUR (J) |
1 | ||
| 48740F - ARM ASSY, REAR SUSPENSION, NO.2 LH | ||||
| 48730-F4010 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# |
1 | ||
| 48730-F4010 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
1 | ||
| 48750H - SUPPORT ASSY, REAR SUSPENSION, RH | ||||
| 48750-F4010 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# |
1 | ||
| 48750-F4010 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
1 | ||
| 48750J - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH) | ||||
| 94130-61200 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
1 | ||
| 94130-61200 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# |
1 | ||
| 48760B - SUPPORT ASSY REAR SUSPENSION, LH | ||||
| 48750-F4010 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# |
1 | ||
| 48750-F4010 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
1 | ||
| 48760C - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH) | ||||
| 94130-61200 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# |
1 | ||
| 94130-61200 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
1 | ||
| 48760E - ARM ASSY, TRAILING, REAR RH | ||||
| 48760-F4010 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
1 | ||
| 48760-F4010 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# |
1 | ||
| 48770A - ARM ASSY, UPPER CONTROL, REAR RH | ||||
| 48770-F4010 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
1 | ||
| 48770-F4010 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# |
1 | ||
| 48780E - ARM ASSY, TRAILING, REAR LH | ||||
| 48780-F4010 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
1 | ||
| 48780-F4010 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# |
1 | ||
| 48790 - ARM ASSY, UPPER CONTROL, REAR LH | ||||
| 48790-F4010 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
1 | ||
| 48790-F4010 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# |
1 | ||
| 48805 - BAR SUB-ASSY, REAR STABILIZER | ||||
| 48805-02190 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
1 | ||
| 48805-02190 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# |
1 | ||
| 48818 - BUSH, STABILIZER, REAR | ||||
| 48818-02560 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# NO.2:REFER ILLUST. |
2 | ||
| 48818-02550 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# NO.1:REFER ILLUST. |
2 | ||
| 48818-02550 |
ZRE210..G..EUR;ZRE210..RHD..EUR NO.1:REFER ILLUST. |
2 | ||
| 48818-02560 |
ZRE210..G..EUR;ZRE210..RHD..EUR NO.2:REFER ILLUST. |
2 | ||
| 48818 - BUSH, STABILIZER, REAR | ||||
| 48818-02560 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# NO.2:REFER ILLUST. |
2 | ||
| 48818-02550 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# NO.1:REFER ILLUST. |
2 | ||
| 48818-02550 |
ZRE210..G..EUR;ZRE210..RHD..EUR NO.1:REFER ILLUST. |
2 | ||
| 48818-02560 |
ZRE210..G..EUR;ZRE210..RHD..EUR NO.2:REFER ILLUST. |
2 | ||
| 48830A - NUT(FOR REAR STABILIZER LINK) | ||||
| 94151-21241 |
ZRE210..G..EUR;ZRE210..RHD..EUR (J) |
4 | ||
| 90178-W0051 |
ZRE210..G..EUR;ZRE210..RHD..EUR (L) |
4 | ||
| 90178-W0051 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# (L) |
4 | ||
| 94151-21241 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# (J) |
4 | ||
| 48830A - NUT(FOR REAR STABILIZER LINK) | ||||
| 94151-21241 |
ZRE210..G..EUR;ZRE210..RHD..EUR (J) |
4 | ||
| 90178-W0051 |
ZRE210..G..EUR;ZRE210..RHD..EUR (L) |
4 | ||
| 90178-W0051 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# (L) |
4 | ||
| 94151-21241 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# (J) |
4 | ||
| 48830D - LINK ASSY, REAR STABILIZER, RH | ||||
| 48830-47010 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# |
1 | ||
| 48830-47010 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
1 | ||
| 48832A - BRACKET, REAR STABILIZER BAR, NO.1 | ||||
| 48832-02080 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# |
2 | ||
| 48832-02080 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
2 | ||
| 48840A - LINK ASSY, REAR STABILIZER, LH | ||||
| 48830-47010 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# |
1 | ||
| 48830-47010 |
ZRE210..G..EUR;ZRE210..RHD..EUR |
1 | ||
| Common parts | ||||
| 90105-12393 | ||||
| 90105-W0241 | ||||
| 90109-10181 | ||||
| 90109-W0026 | ||||
| 90119-12436 | ||||
| 90119-12444 | ||||
| 90119-12445 | ||||
| 90119-W0204 | ||||
| 90119-W0307 | ||||
| 90178-12009 | ||||
| 90178-14017 | ||||
| 90178-16007 | ||||
| 90178-W0018 | ||||
| 90178-W0066 | ||||
| 90201-16039 | ||||
| 91674-K1230 | ||||
| 94151-21441 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
