ZRE210L-DEXGPW (2019)

Toyota Corolla (Tup)

Production Jan 2019 - Sep 9999
Engine 1ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1901- )

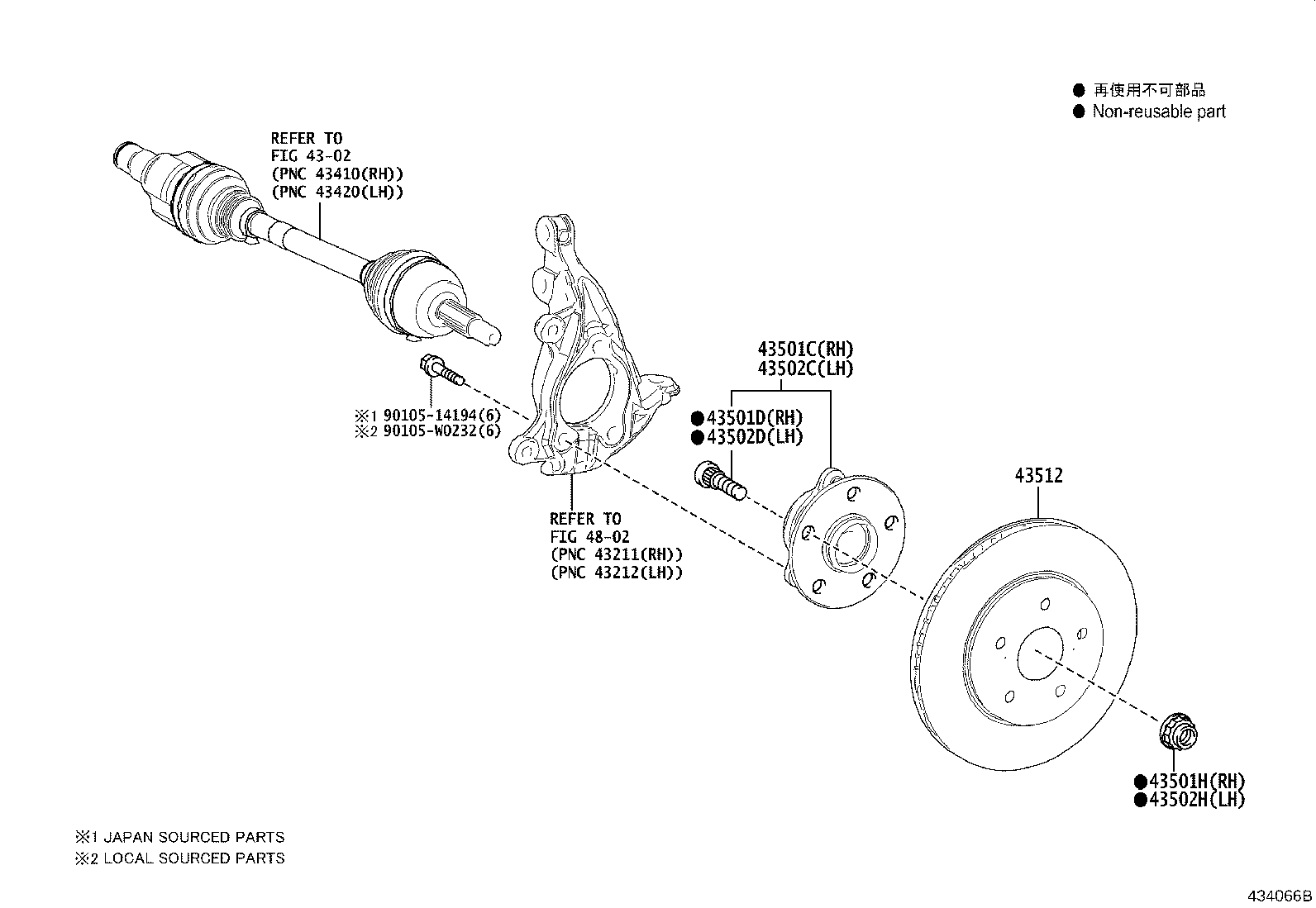

Click highlighted areas on diagram

diagram 4302 43501C 43501D 43501H 43502C 43502D 43502H 43512 4802 9010514194 90105W0232
Part # Description Qty Price
43501C - HUB SUB-ASSY, FRONT AXLE, RH
43550-F4010

ZRE210..G..EUR;ZRE210..RHD..EUR

 1
43550-F4010

ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21#

 1
43501D - BOLT, HUB (FOR FRONT AXLE RH)
90942-02049

ZRE210..G..EUR;ZRE210..RHD..EUR

 5
90942-02049

ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21#

 5
43501H - NUT (FOR FRONT AXLE SHAFT RH)
90177-22001

ZRE210..G..EUR;ZRE210..RHD..EUR

 1
90177-22001

ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21#

 1
43502C - HUB SUB-ASSY, FRONT AXLE, LH
43550-F4010

ZRE210..G..EUR;ZRE210..RHD..EUR

 1
43550-F4010

ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21#

 1
43502D - BOLT, HUB (FOR FRONT AXLE LH)
90942-02049

ZRE210..G..EUR;ZRE210..RHD..EUR

 5
90942-02049

ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21#

 5
43502H - NUT (FOR FRONT AXLE SHAFT LH)
90177-22001

ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21#

 1
90177-22001

ZRE210..G..EUR;ZRE210..RHD..EUR

 1
43512 - DISC, FRONT
43512-02390

ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21#

 2
43512-02390

ZRE210..G..EUR;ZRE210..RHD..EUR

 2
Common parts
90105-14194
90105-W0232
Linked diagrams
4302
4802
