ZRE210L-DEXGPW (2019)

Toyota Corolla (Tup)

Production Jan 2019 - Sep 9999
Engine 1ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1901- )1ZRFAE

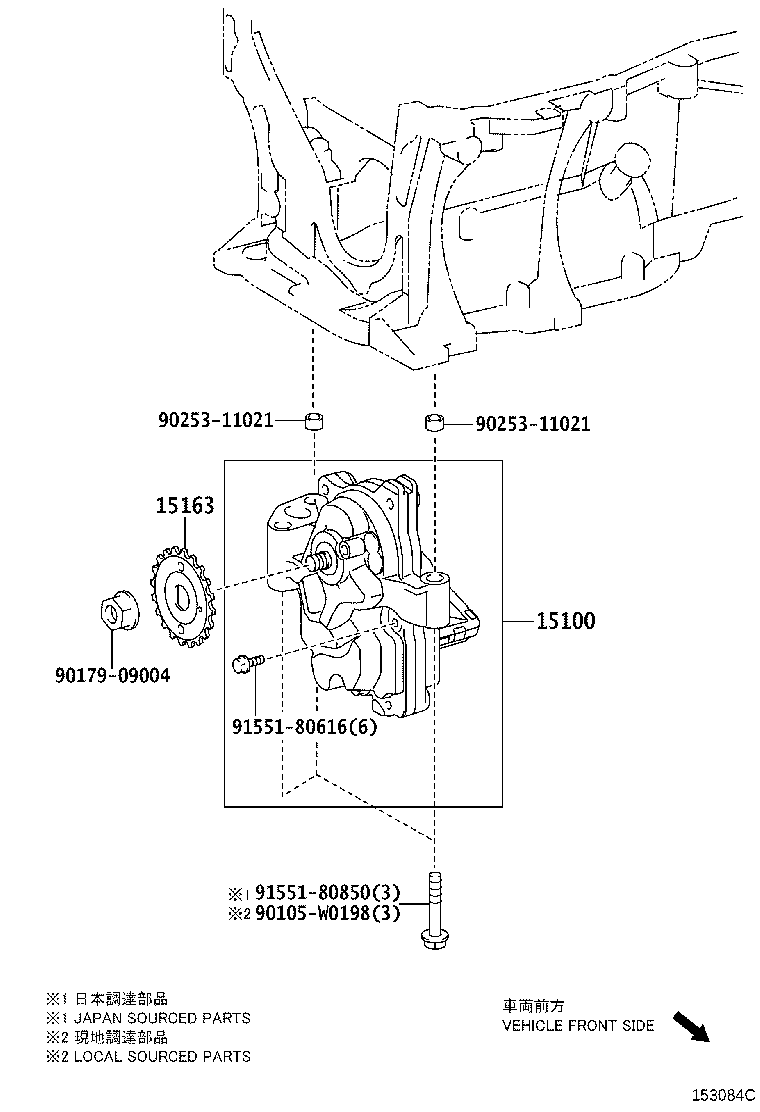

Click highlighted areas on diagram

diagram 15100 15163 90105W0198 9017909004 9025311021 9025311021 9155180616 9155180850
Part # Description Qty Price
15100 - PUMP ASSY, OIL
15100-0T041

1ZRFAE..ZRE210..G;1ZRFAE..ZRE210..RHD

(L)

 1
15100-0T041

1ZRFAE..ZRE210..LHD..(D,N)

(L)

 1
15100-37021

1ZRFAE..ZRE210..G;1ZRFAE..ZRE210..RHD

(J)

 1
15100-37021

1ZRFAE..ZRE210..LHD..(D,N)

(J)

 1
15163 - GEAR, OIL PUMP DRIVE SHAFT
15163-0H010

1ZRFE,2ZR#..ZRE21#,ZWE21#;1ZRFAE..ZRE210..LHD..(D,N)

(L)

 1
15163-0H010

1ZRFAE..ZRE210..G;1ZRFAE..ZRE210..RHD

(L)

 1
15163-28010

1ZRFAE..ZRE210..G;1ZRFAE..ZRE210..RHD

(J)

 1
15163-28010

1ZRFE,2ZR#..ZRE21#,ZWE21#;1ZRFAE..ZRE210..LHD..(D,N)

(J)

 1
Common parts
90105-W0198
90179-09004
90253-11021
91551-80616
91551-80850
