ZRE210L-DEXDPW (2019)

Toyota Corolla (Tup)

Production Jan 2019 - Sep 9999
Engine 1ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1901- )

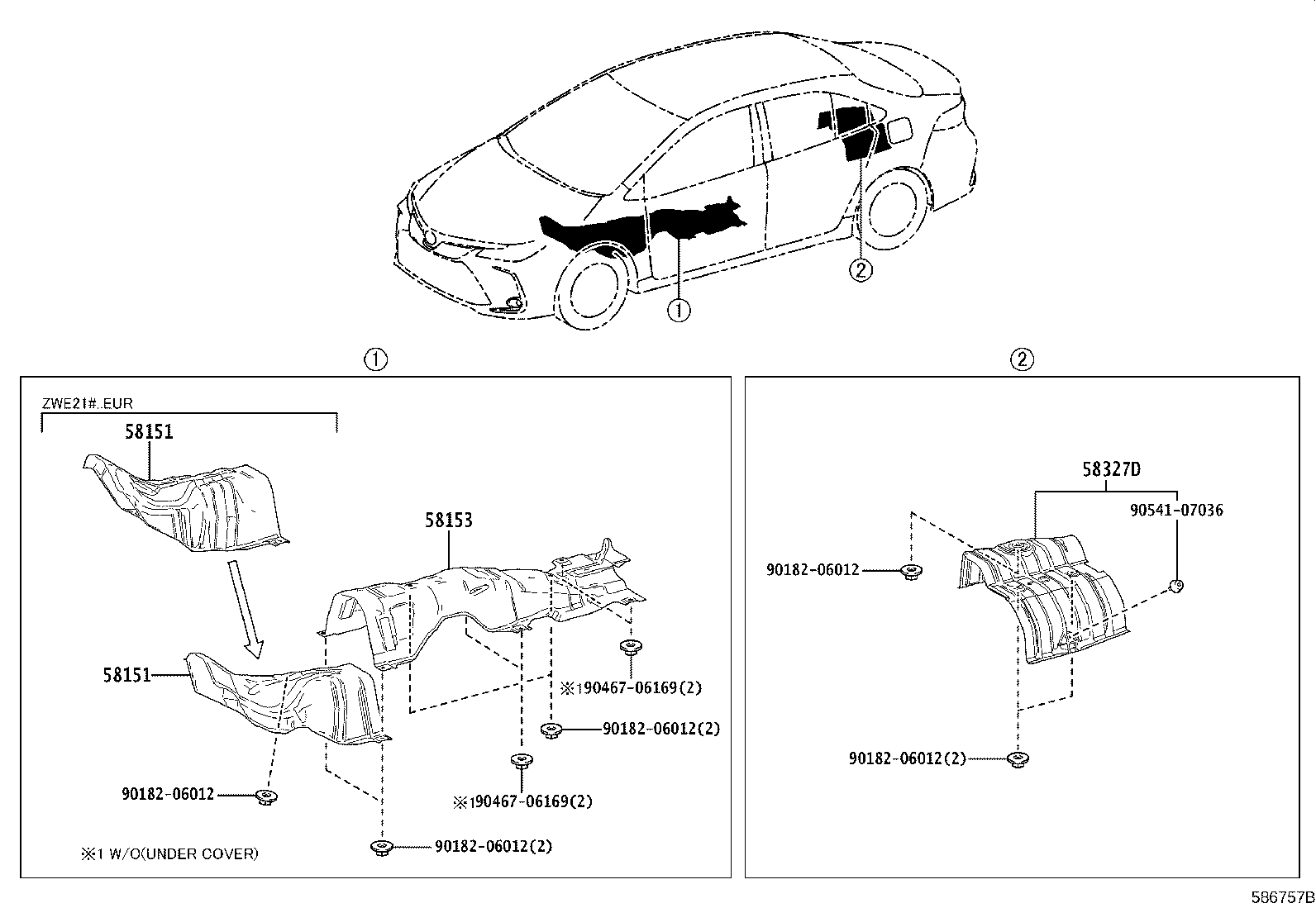

Click highlighted areas on diagram

diagram 58151 58151 58153 58327D 9018206012 9018206012 9018206012 9018206012 9018206012 9046706169 9046706169 9054107036
Part # Description Qty Price
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58151-02580

ZRE211;ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N)

 1
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58151-02580

ZRE211;ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N)

 1
58153 - INSULATOR, FRONT FLOOR HEAT, NO.2
58153-02380

ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21#

 1
58327D - INSULATOR, MAIN MUFFLER HEAT, UPPER
58327-02271

ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21#

 1
58327-02270

ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21#

 1
Common parts
90182-06012
90467-06169
90541-07036
