ZRE210L-DEXDPW (2019)
Toyota Corolla (Tup)
(1901- )

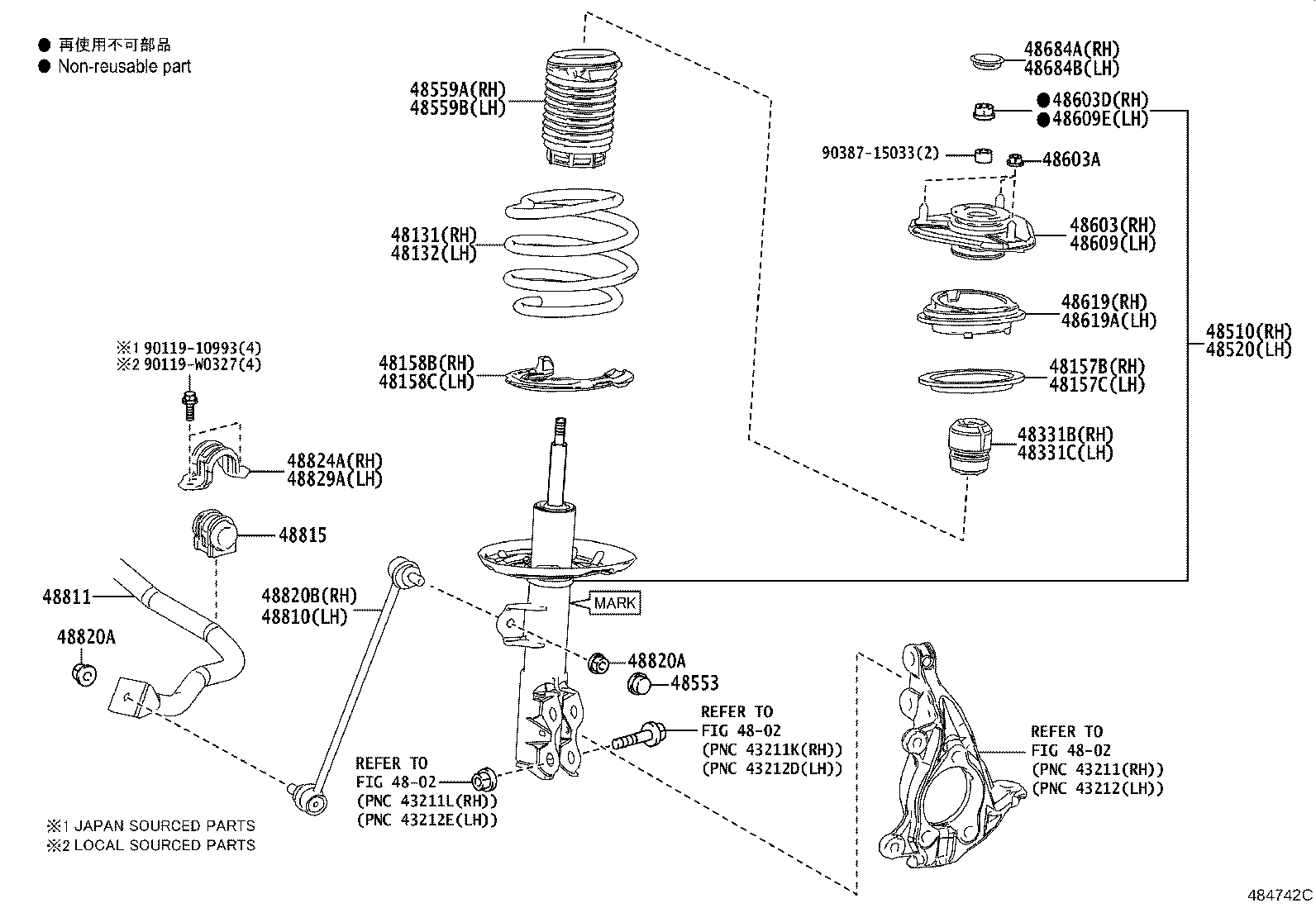

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-0Z291 |
MZEA11,ZRE211;ZRE210..RHD..GEN;ZRE210..LHD..(D,N)..(EUR,GCC,GEN) |
1 | ||
| 48131-0Z311 |
ZRE210..LHD..(D,N)..EUR ROUGH ROAD AREA SPEC |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-0Z291 |
MZEA11,ZRE211;ZRE210..RHD..GEN;ZRE210..LHD..(D,N)..(EUR,GCC,GEN) |
1 | ||
| 48131-0Z311 |
ZRE210..LHD..(D,N)..EUR ROUGH ROAD AREA SPEC |
1 | ||
| 48157B - INSULATOR, FRONT COIL SPRING, UPPER RH | ||||
| 48157-F4010 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# |
1 | ||
| 48157C - INSULATOR, FRONT COIL SPRING, UPPER LH | ||||
| 48157-F4010 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# |
1 | ||
| 48158B - INSULATOR, FRONT COIL SPRING, LOWER RH | ||||
| 48158-F4010 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# |
1 | ||
| 48158C - INSULATOR, FRONT COIL SPRING, LOWER LH | ||||
| 48158-F4010 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# |
1 | ||
| 48331B - BUMPER, FRONT SPRING, RH | ||||
| 48331-02170 |
ZRE210..RHD..GEN;MZEA11,ZRE211,ZWE21#;ZRE210..LHD..(D,N)..(EUR,GCC,GEN) |
1 | ||
| 48331-02180 |
ZRE210..LHD..(D,N)..EUR ROUGH ROAD AREA SPEC |
1 | ||
| 48331C - BUMPER, FRONT SPRING, LH | ||||
| 48331-02180 |
ZRE210..LHD..(D,N)..EUR ROUGH ROAD AREA SPEC |
1 | ||
| 48331-02170 |
ZRE210..RHD..GEN;MZEA11,ZRE211,ZWE21#;ZRE210..LHD..(D,N)..(EUR,GCC,GEN) |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-8Z499 |
ZRE210..LHD..(D,N)..EUR MARK 48510-02P61,ROUGH ROAD AREA SPEC |
1 | ||
| 48510-8Z378 |
MZEA11,ZRE211;ZRE210..RHD..GEN;ZRE210..LHD..(D,N)..(EUR,GCC,GEN) MARK 48510-02P00 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48520-8Z230 |
MZEA11,ZRE211;ZRE210..RHD..GEN;ZRE210..LHD..(D,N)..(EUR,GCC,GEN) MARK 48520-02P00 |
1 | ||
| 48520-8Z340 |
ZRE210..LHD..(D,N)..EUR MARK 48520-02P61,ROUGH ROAD AREA SPEC |
1 | ||
| 48553 - CAP, SHOCK ABSORBER, UPPER | ||||
| 48553-52030 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# |
2 | ||
| 48559A - COVER, FRONT SHOCK ABSORBER DUST, RH NO.1 | ||||
| 48559-F4010 |
ZRE21#,ZWE211 |
1 | ||
| 48559-F4011 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# |
1 | ||
| 48559B - COVER, FRONT SHOCK ABSORBER DUST, LH NO.1 | ||||
| 48559-F4011 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# |
1 | ||
| 48559-F4010 |
ZRE21#,ZWE211 |
1 | ||
| 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH | ||||
| 48609-F4010 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# |
1 | ||
| 48603A - NUT(FOR FRONT SUSPENSION SUPPORT) | ||||
| 90178-10029 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# (J) |
6 | ||
| 90178-W0060 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# (L) |
6 | ||
| 48603D - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH) | ||||
| 90177-14005 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# |
1 | ||
| 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH | ||||
| 48609-F4010 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# |
1 | ||
| 48609E - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH) | ||||
| 90177-14005 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# |
1 | ||
| 48619 - BEARING, STRUT MOUNTING, RH | ||||
| 48619-F4010 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# |
1 | ||
| 48619A - BEARING, STRUT MOUNTING, LH | ||||
| 48619-F4010 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# |
1 | ||
| 48684A - COVER, FRONT SUSPENSION SUPPORT DUST, RH | ||||
| 48684-52010 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# |
1 | ||
| 48684B - COVER, FRONT SUSPENSION SUPPORT DUST, LH | ||||
| 48684-52010 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# |
1 | ||
| 48810 - LINK ASSY, FRONT STABILIZER, LH | ||||
| 48820-47040 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-02350 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-02380 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# |
2 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 94151-21241 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# (J) |
4 | ||
| 90178-W0051 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# (L) |
4 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 94151-21241 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# (J) |
4 | ||
| 90178-W0051 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# (L) |
4 | ||
| 48820B - LINK ASSY, FRONT STABILIZER, RH | ||||
| 48820-47040 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# |
1 | ||
| 48824A - BRACKET, FRONT STABILIZER, NO.1 RH | ||||
| 48824-F4010 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# |
1 | ||
| 48829A - BRACKET, FRONT STABILIZER, NO.1 LH | ||||
| 48824-F4010 |
ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21# |
1 | ||
| Common parts | ||||
| 90119-10993 | ||||
| 90119-W0327 | ||||
| 90387-15033 | ||||
| Linked diagrams | ||||
| 4802 | ||||
