ZRE210L-DEXDPW (2019)

Toyota Corolla (Tup)

Production Jan 2019 - Sep 9999
Engine 1ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1901- )1ZR#,2ZRFE..CVT

Click highlighted areas on diagram

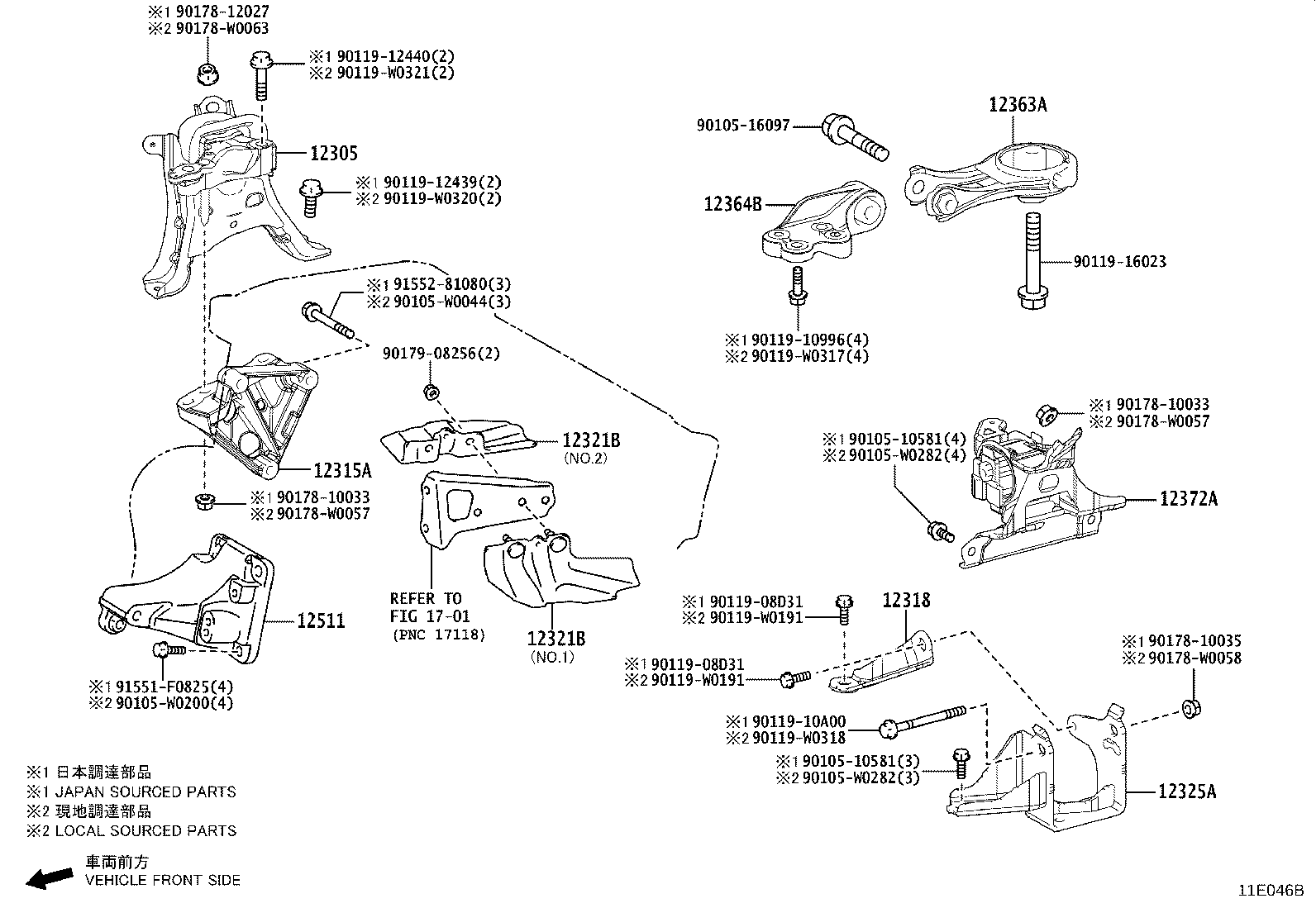

diagram 12305 12315A 12318 12321B 12321B 12325A 12363A 12364B 12372A 12511 1701 9010510581 9010510581 9010516097 90105W0044 90105W0200 90105W0282 90105W0282 9011908D31 9011908D31 9011910996 9011910A00 9011912439 9011912440 9011916023 90119W0191 90119W0191 90119W0317 90119W0318 90119W0320 90119W0321 9017810033 9017810033 9017810035 9017812027 90178W0057 90178W0057 90178W0058 90178W0063 9017908256 91551F0825 9155281080
Part # Description Qty Price
12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12305-0T371

1ZRFE,2ZRFE..ZRE21#;1ZRFAE..ZRE210..LHD..(D,N)

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-37060

1ZRFE,2ZR#..ZRE21#,ZWE21#;1ZRFAE..ZRE210..LHD..(D,N)

 1
12318 - STAY, ENGINE MOUNTING, LH
12318-0Y010

1ZRFE,2ZRFE..ZRE21#..CVT;1ZRFAE..ZRE210..LHD..CVT..(D,N)

 1
12321B - INSULATOR SUB-ASSY, DRIVE SHAFT HEAT
43409-12060

1ZRFE,2ZRFE..ZRE21#;1ZRFAE..ZRE210..LHD..(D,N)

NO.1

 1
43498-12051

1ZRFE,2ZRFE..ZRE21#;1ZRFAE..ZRE210..LHD..(D,N)

NO.2

 1
12321B - INSULATOR SUB-ASSY, DRIVE SHAFT HEAT
43409-12060

1ZRFE,2ZRFE..ZRE21#;1ZRFAE..ZRE210..LHD..(D,N)

NO.1

 1
43498-12051

1ZRFE,2ZRFE..ZRE21#;1ZRFAE..ZRE210..LHD..(D,N)

NO.2

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-0Y220

1ZRFE,2ZRFE..ZRE21#..CVT;1ZRFAE..ZRE210..LHD..CVT..(D,N)

 1
12363A - ROD, ENGINE MOVING CONTROL
12363-0T130

1ZRFE,2ZRFE..ZRE21#..CVT;1ZRFAE..ZRE210..LHD..CVT..(D,N)

 1
12364B - ROD, ENGINE MOVING CONTROL, NO.2
12364-0T070

1ZRFE,2ZR#..ZRE21#,ZWE21#..CVT;1ZRFAE..ZRE210..LHD..CVT..(D,N)

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-0T620

1ZRFE,2ZRFE..ZRE21#..CVT;1ZRFAE..ZRE210..LHD..CVT..(D,N)

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-37010

1ZRFE,2ZRFE..ZRE21#;1ZRFAE..ZRE210..LHD..(D,N)

(J)

 1
12511-0T020

1ZRFE,2ZRFE..ZRE21#;1ZRFAE..ZRE210..LHD..(D,N)

(L)

 1
Common parts
90105-10581
90105-16097
90105-W0044
90105-W0200
90105-W0282
90119-08D31
90119-10996
90119-10A00
90119-12439
90119-12440
90119-16023
90119-W0191
90119-W0317
90119-W0318
90119-W0320
90119-W0321
90178-10033
90178-10035
90178-12027
90178-W0057
90178-W0058
90178-W0063
90179-08256
91551-F0825
91552-81080
Linked diagrams
1701
