ZRE210L-DEFNPW (2019)

Toyota Corolla (Tup)

Production Jan 2019 - Sep 9999
Engine 1ZRFAE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1901- )6F

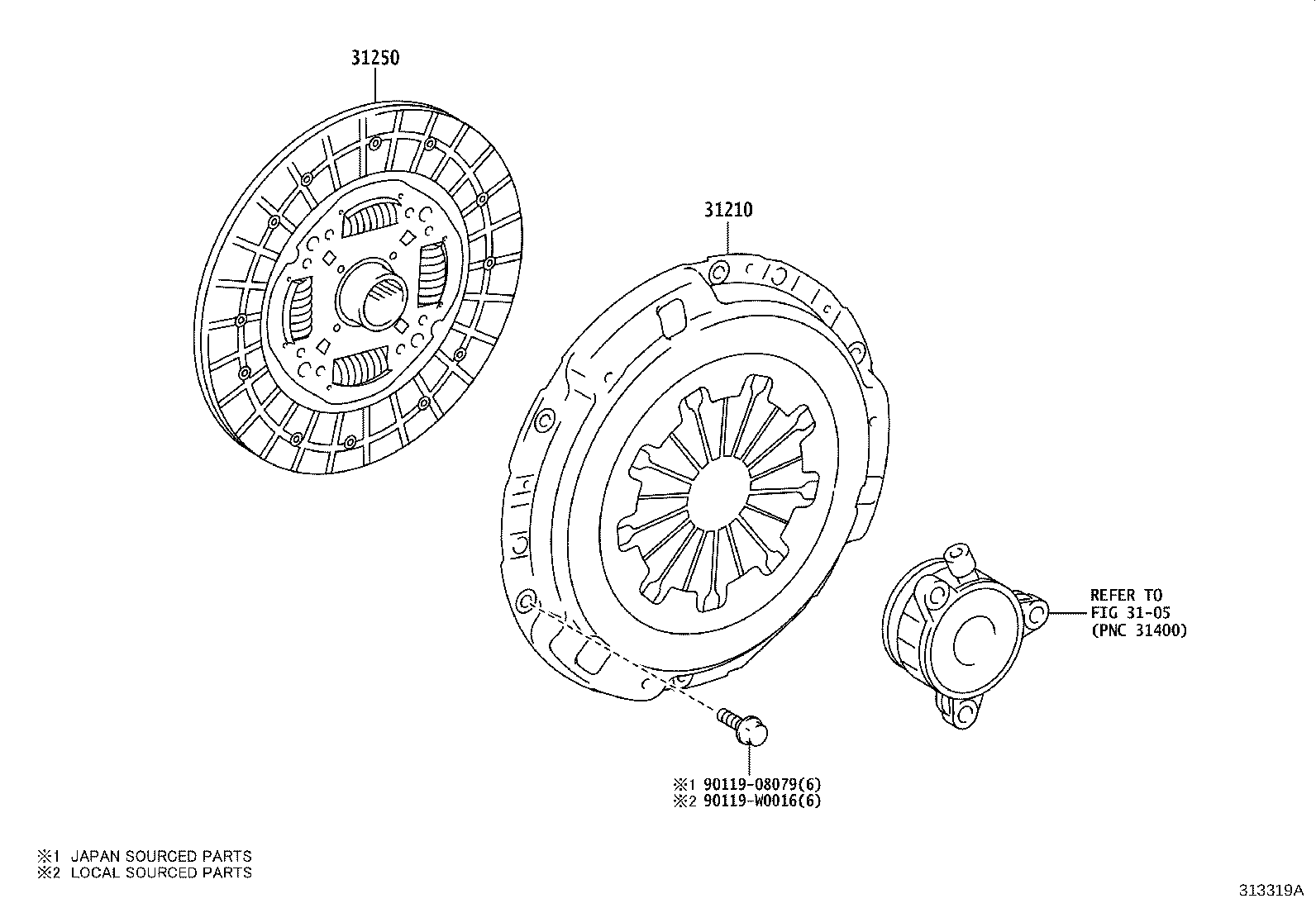

Click highlighted areas on diagram

diagram 3105 31210 31250 9011908079 90119W0016
Part # Description Qty Price
31210 - COVER ASSY, CLUTCH
31210-02370

ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N)

 1
31250 - DISC ASSY, CLUTCH
31250-05141

ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N)

 1
Common parts
90119-08079
90119-W0016
Linked diagrams
3105
