ZRE210L-DEFGPW (2019)

Toyota Corolla (Tup)

Production Jan 2019 - Sep 9999
Engine 1ZRFAE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1901- )

Click highlighted areas on diagram

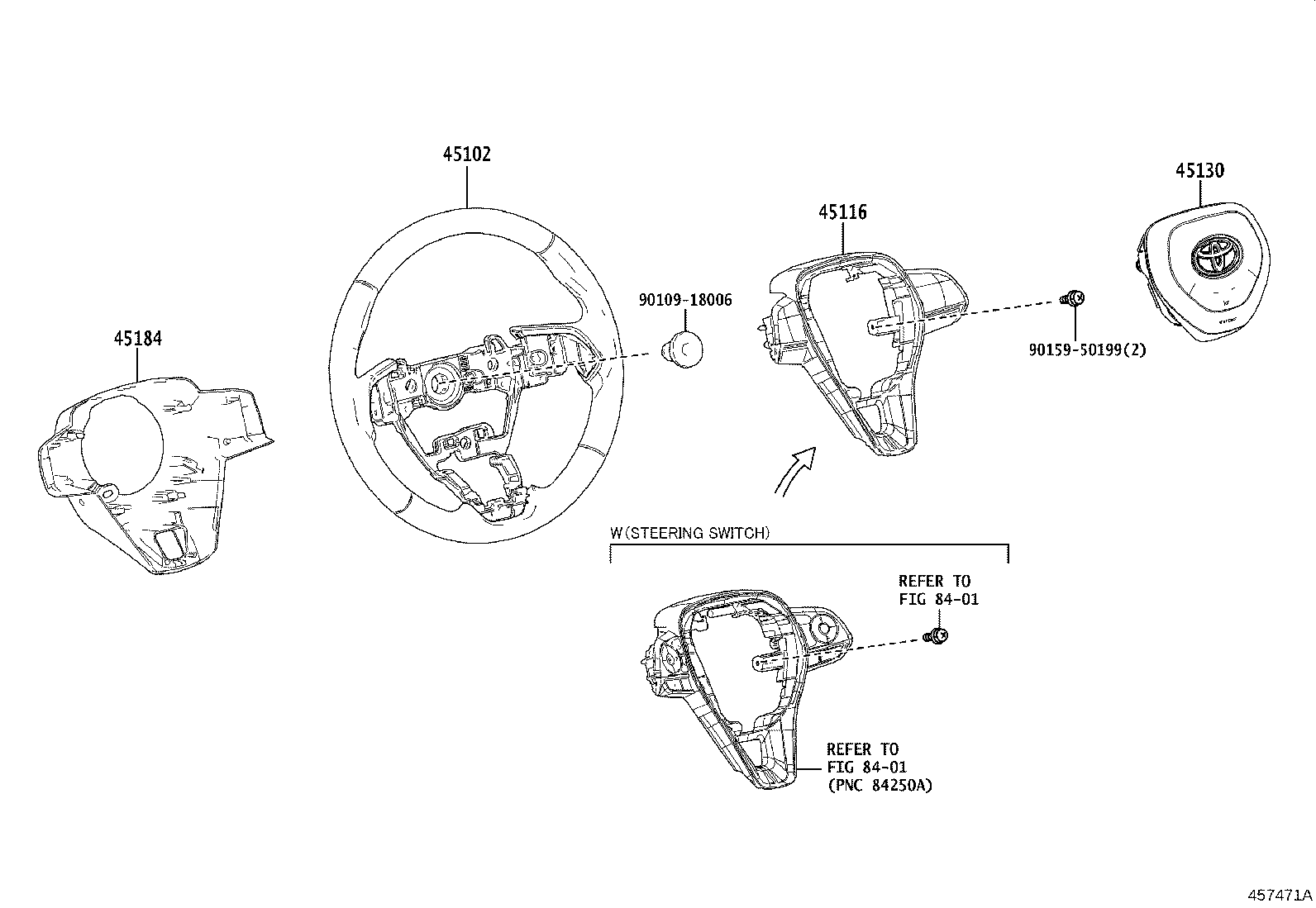

diagram 45102 45116 45130 45184 8401 8401 9010918006 9015950199
Part # Description Qty Price
45102 - WHEEL SUB-ASSY, STEERING
45102-02830C0

ZRE210..G..EUR

BLACK,TRIM0#,2#

 1
45102-02820C0

ZRE210..G..EUR;ZRE210..RHD..EUR

STEERING WHEEL-3-SPOKE, LEATHER,BLACK,TRIM0#,2#

 1
45102-02790C0

MZEA11..D;ZRE210..LHD..D;ZRE210..RHD..D..GEN

BLACK,TRIM0#,2#

 1
45102-02820C0

ZRE210..RHD..D..GEN;MZEA11,ZWE21#..(D,G)..EUR;ZRE210..LHD..D..(EUR,GCC,GEN)

STEERING WHEEL-3-SPOKE, LEATHER,BLACK,TRIM0#,2#

 1
45116 - ORNAMENT, STEERING WHEEL, NO.1
45116-02210

ZRE210..LHD..6F..D..EUR

TOYOTA SAFETY SENSE-WITHOUT&CRUISE CONTROL-WITHOUT&STEERING SWITCH-WITHOUT&SPEED LIMITER CONTROL-WITHOUT&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 6SPEAKER

 1
45116-02210

ZRE210..LHD..6F..D..EUR

TOYOTA SAFETY SENSE-WITHOUT&CRUISE CONTROL-WITHOUT&STEERING SWITCH-WITHOUT&SPEED LIMITER CONTROL-WITHOUT&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & SPEAKER LESS

 1
45130 - BUTTON ASSY, HORN
45130-02830C0

ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21#

BLACK,TRIM0#,2#

 1
45130-02830C0

ZRE210..G..EUR;ZRE210..RHD..EUR

BLACK,TRIM0#,2#

 1
45184 - COVER, STEERING WHEEL BOSS, LOWER
45184-02470C0

ZRE210..G..EUR;ZRE210..RHD..EUR

BLACK,TRIM0#,2#

 1
45184-02470C0

ZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21#

BLACK,TRIM0#,2#

 1
Common parts
90109-18006
90159-50199
Linked diagrams
8401
