ZRE210L-DEFDPW (2019)

Toyota Corolla (Tup)

Production Jan 2019 - Sep 9999
Engine 1ZRFAE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1901- )LHD

Click highlighted areas on diagram

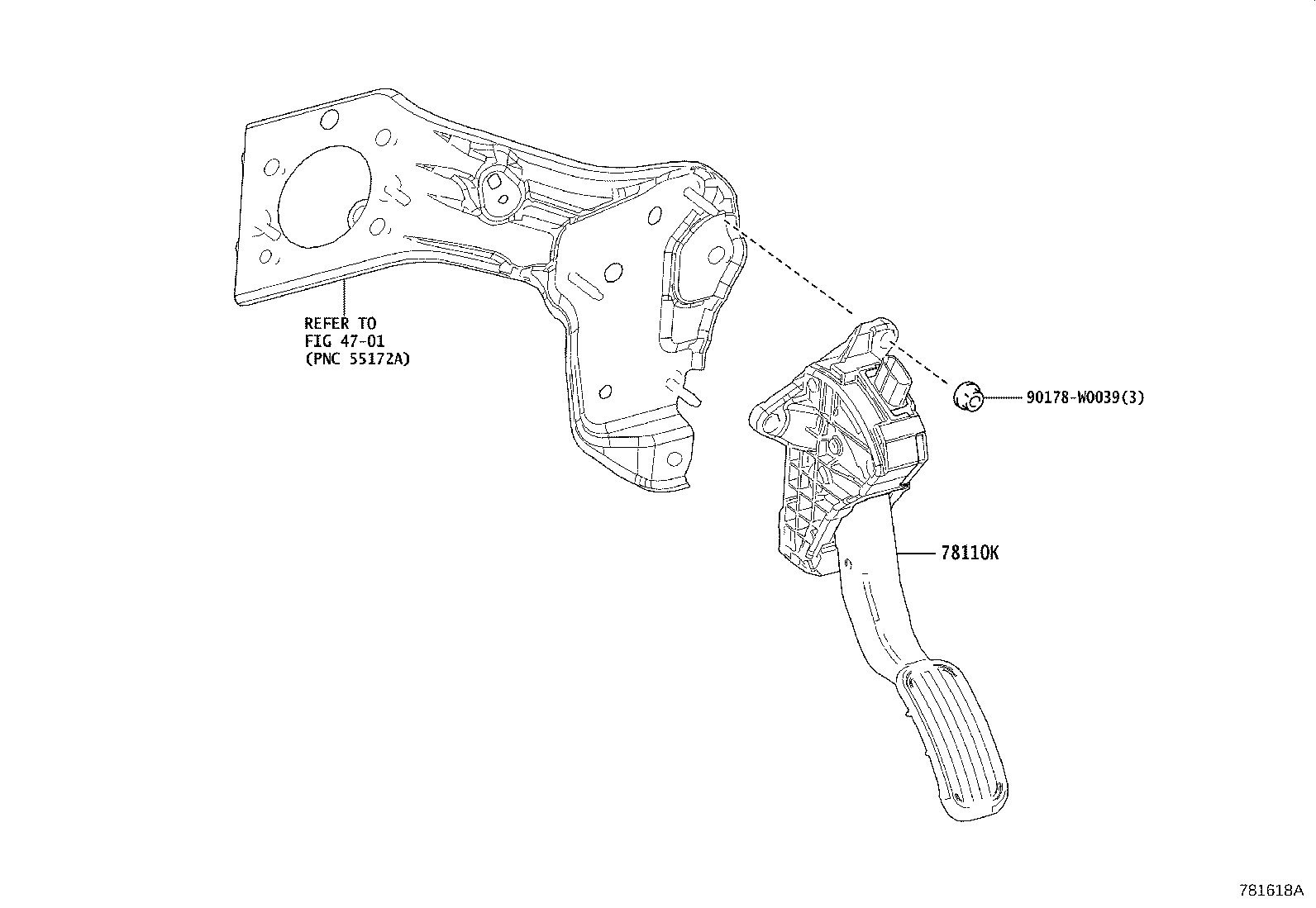

diagram 4701 78110K 90178W0039
Part # Description Qty Price
78110K - ROD ASSY, ACCELERATOR PEDAL(W/SENSOR)
78110-02200

ZRE210..LHD..6F..EUR

SPEED LIMITER CONTROL-WITHOUT

 1
78110-02210

ZRE210..LHD..EUR;ZRE211,ZWE211..LHD;ZRE210..LHD..CVT..(GCC,GEN,RUS)

 1
78110-02201

MZEA11..LHD..6F;ZRE210..LHD..6F..(D,N)..EUR

SPEED LIMITER CONTROL-WITHOUT

 1
78110-02211

ZRE210..LHD..(D,N)..EUR;MZEA11,ZRE211,ZWE21#..LHD;ZRE210..LHD..CVT..(GCC,GEN,RUS)

 1
Common parts
90178-W0039
Linked diagrams
4701
