MZEA11R-DEFDBW (2020)
Toyota Corolla (Tup)
Production
Nov 2020
-
Sep 9999
Engine
M15AFKS
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(2011- )M15AFKS

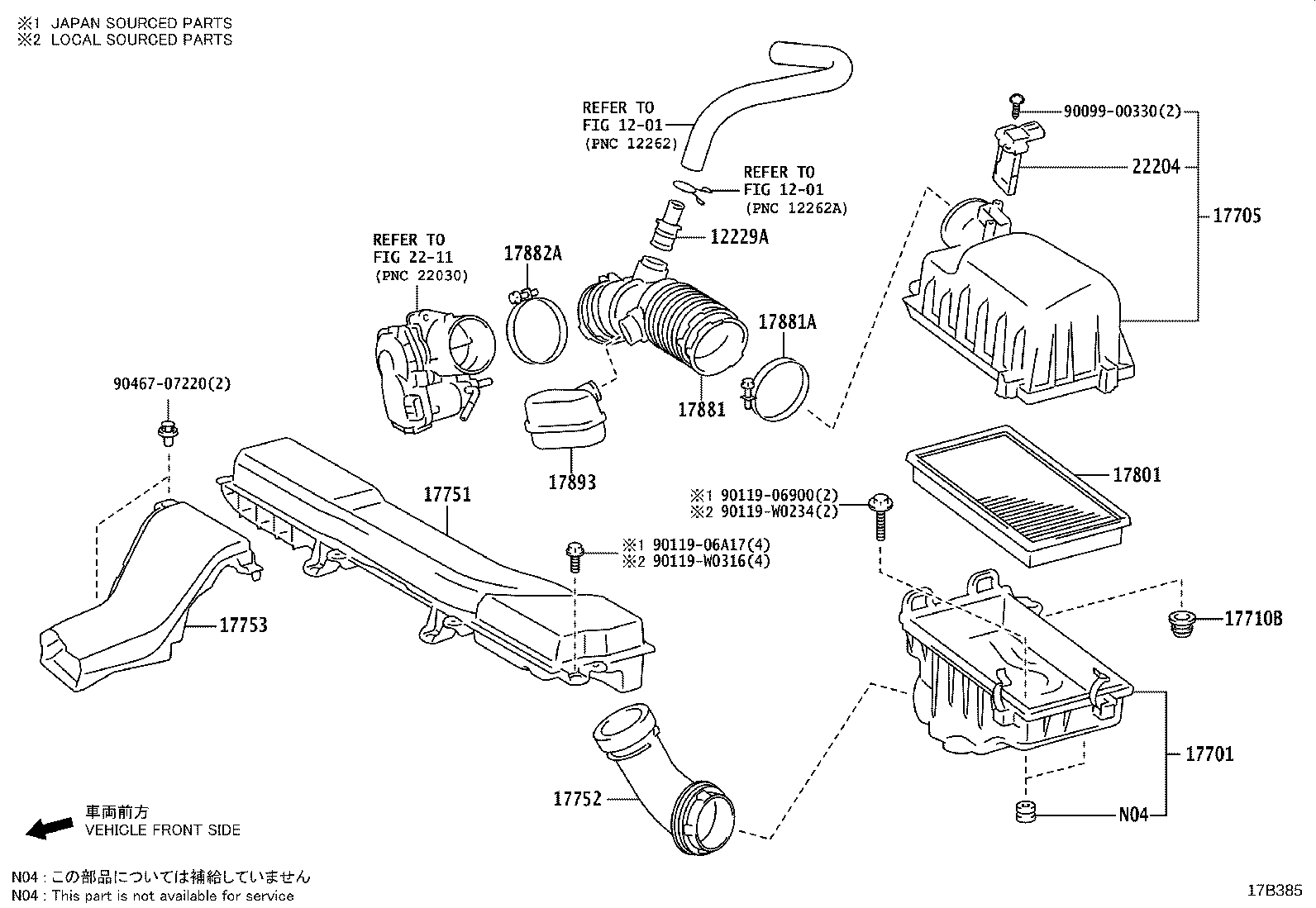

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12229A - PIPE, VENTILATION | ||||
| 12229-0T020 |
M15AFKS..MZEA11 |
1 | ||
| 17701 - CASE SUB-ASSY, AIR CLEANER | ||||
| 17701-F2021 |
M15AFKS..MZEA11 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-F3010 |
M15AFKS..MZEA11 |
1 | ||
| 17710B - GROMMET | ||||
| 90480-18006 |
M15AFKS..MZEA11 |
1 | ||
| 17751 - INLET, AIR CLEANER, NO.1 | ||||
| 17751-F3030 |
M15AFKS..MZEA11 |
1 | ||
| 17752 - INLET, AIR CLEANER, NO.2 | ||||
| 17752-F3030 |
M15AFKS..MZEA11 |
1 | ||
| 17753 - INLET, AIR CLEANER, NO.3 | ||||
| 17753-0T080 |
M15AFKS..MZEA11 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-77050 |
M15AFKS..MZEA11 (J) |
1 | ||
| 17801-0T060 |
M15AFKS..MZEA11 (L) |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-F3010 |
M15AFKS..MZEA11 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10730 |
M15AFKS..MZEA11 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10710 |
M15AFKS..MZEA11 |
1 | ||
| 17893 - RESONATOR, INTAKE AIR | ||||
| 17893-F3010 |
M15AFKS..MZEA11 |
1 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-24010 |
M15AFKS..MZEA11 |
1 | ||
| Common parts | ||||
| 90099-00330 | ||||
| 90119-06900 | ||||
| 90119-06A17 | ||||
| 90119-W0234 | ||||
| 90119-W0316 | ||||
| 90467-07220 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 2211 | ||||
