MZEA11L-DEXNBW (2020)
Toyota Corolla (Tup)
(2011- )MZEA11..CVT
K320
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35111C - HOUSING, TRANSAXLE | ||||
| 35105-K0020 |
MZEA11..CVT |
1 | ||
| 35759A - GEAR, REDUCTION DRIVEN | ||||
| 35705-12110 |
MZEA11..CVT |
1 | ||
| 41211A - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT) | ||||
| 90366-25030 |
MZEA11..CVT |
1 | ||
| 41211B - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR) | ||||
| 90366-29016 |
MZEA11..CVT |
1 | ||
| 41221 - GEAR, FRONT DIFFERENTIAL RING | ||||
| 41221-12740 |
MZEA11..CVT |
1 | ||
| 41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET) | ||||
| 90105-12379 |
ZRE210..G..RUS;MZEA11,ZRE211..CVT;ZRE210..RHD..CVT..GEN;ZRE210..LHD..CVT..(D,N) |
8 | ||
| 41231A - NUT, DRIVE PINION LOCK | ||||
| 90179-32006 |
ZRE210..G..RUS;MZEA11,ZRE211..CVT;ZRE210..RHD..CVT..GEN;ZRE210..LHD..CVT..(D,N) |
1 | ||
| 41302F - CASE SUB-ASSY, FRONT DIFFERENTIAL | ||||
| 41301-K0020 |
MZEA11..CVT |
1 | ||
| 41311C - SHIM (FOR FRONT DIFFERENTIAL CASE REAR) | ||||
| 90564-58002 |
MZEA11..CVT T=1.76 |
1 | ||
| 90564-58008 |
MZEA11..CVT T=1.94 |
1 | ||
| 90564-58005 |
MZEA11..CVT T=1.85 |
1 | ||
| 90564-58009 |
MZEA11..CVT T=1.97 |
1 | ||
| 90564-58003 |
MZEA11..CVT T=1.79 |
1 | ||
| 90564-58006 |
MZEA11..CVT T=1.88 |
1 | ||
| 90564-58004 |
MZEA11..CVT T=1.82 |
1 | ||
| 90564-58007 |
MZEA11..CVT T=1.91 |
1 | ||
| 90564-58011 |
MZEA11..CVT T=2.03 |
1 | ||
| 90564-58014 |
MZEA11..CVT T=2.12 |
1 | ||
| 90564-58020 |
MZEA11..CVT T=2.30 |
1 | ||
| 90564-58018 |
MZEA11..CVT T=2.24 |
1 | ||
| 90564-58019 |
MZEA11..CVT T=2.27 |
1 | ||
| 90564-58016 |
MZEA11..CVT T=2.18 |
1 | ||
| 90564-58010 |
MZEA11..CVT T=2.00 |
1 | ||
| 90564-58017 |
MZEA11..CVT T=2.21 |
1 | ||
| 90564-58015 |
MZEA11..CVT T=2.15 |
1 | ||
| 90564-58021 |
MZEA11..CVT T=2.33 |
1 | ||
| 90564-58013 |
MZEA11..CVT T=2.09 |
1 | ||
| 90564-58012 |
MZEA11..CVT T=2.06 |
1 | ||
| 41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR | ||||
| 90366-40149 |
MZEA11..CVT |
1 | ||
| 41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE | ||||
| 90366-44010 |
MZEA11..CVT |
1 | ||
| 41311G - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE FRONT) | ||||
| 90564-44085 |
MZEA11..CVT T=2.04, MARK R |
1 | ||
| 90564-44075 |
MZEA11..CVT T=1.74, MARK F |
1 | ||
| 90564-44077 |
MZEA11..CVT T=1.80, MARK H |
1 | ||
| 90564-44080 |
MZEA11..CVT T=1.89, MARK L |
1 | ||
| 90564-44074 |
MZEA11..CVT T=1.71, MARK E |
1 | ||
| 90564-44078 |
MZEA11..CVT T=1.83, MARK J |
1 | ||
| 90564-44081 |
MZEA11..CVT T=1.92, MARK M |
1 | ||
| 90564-44076 |
MZEA11..CVT T=1.77, MARK G |
1 | ||
| 90564-44089 |
MZEA11..CVT T=2.16, MARK V |
1 | ||
| 90564-44096 |
MZEA11..CVT T=2.37 |
1 | ||
| 90564-44093 |
MZEA11..CVT T=2.28 |
1 | ||
| 90564-44095 |
MZEA11..CVT T=2.34 |
1 | ||
| 90564-44088 |
MZEA11..CVT T=2.13, MARK U |
1 | ||
| 90564-44083 |
MZEA11..CVT T=1.98, MARK P |
1 | ||
| 90564-44092 |
MZEA11..CVT T=2.25, MARK Y |
1 | ||
| 90564-44079 |
MZEA11..CVT T=1.86, MARK K |
1 | ||
| 90564-44084 |
MZEA11..CVT T=2.01, MARK Q |
1 | ||
| 90564-44087 |
MZEA11..CVT T=2.10, MARK T |
1 | ||
| 90564-44086 |
MZEA11..CVT T=2.07, MARK S |
1 | ||
| 90564-44082 |
MZEA11..CVT T=1.95, MARK N |
1 | ||
| 90564-44091 |
MZEA11..CVT T=2.22, MARK X |
1 | ||
| 90564-44094 |
MZEA11..CVT T=2.31 |
1 | ||
| 90564-44090 |
MZEA11..CVT T=2.19, MARK W |
1 | ||

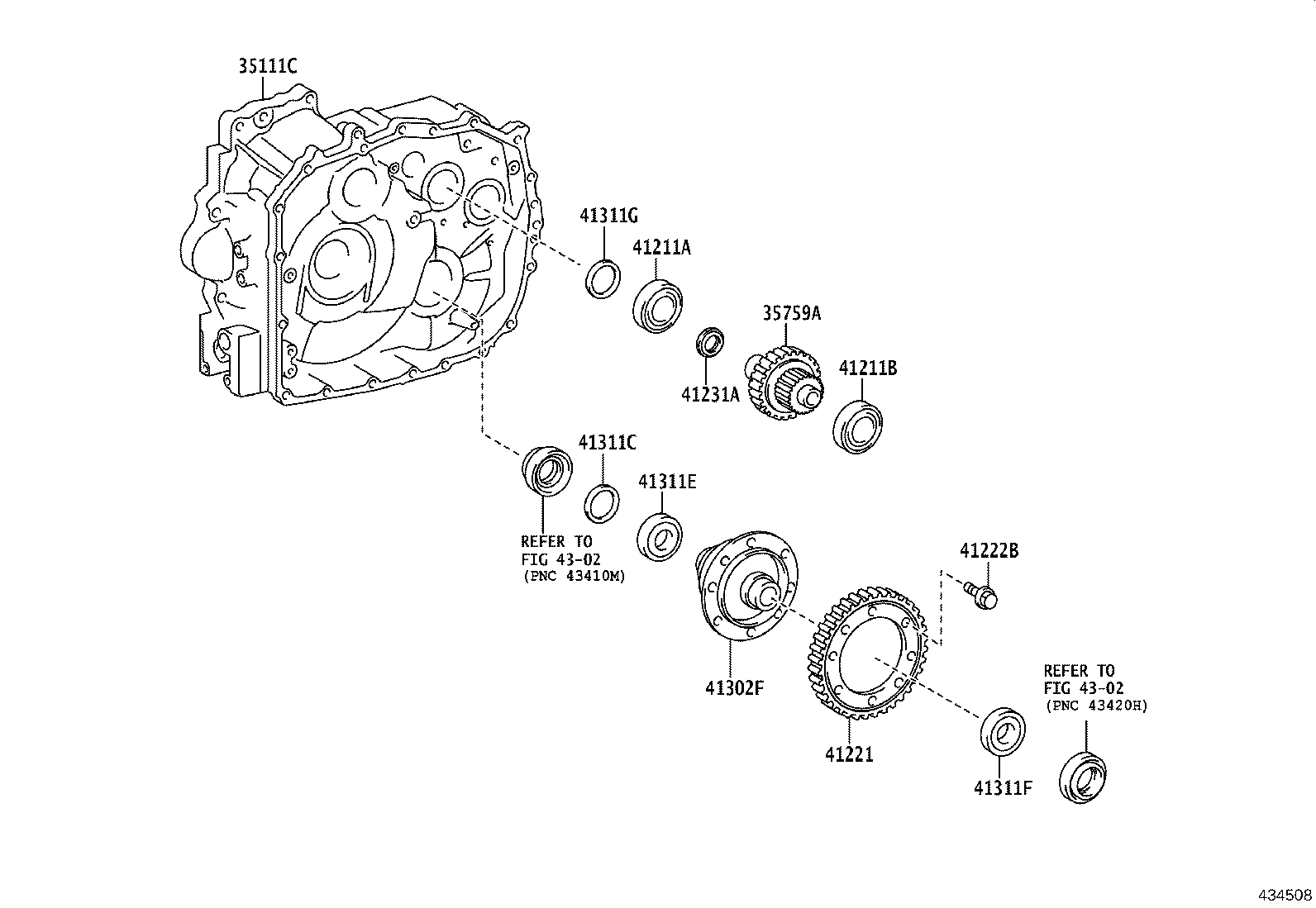

| Linked diagrams | ||||
| 4302 | ||||
