MZEA11L-DEXGBW (2020)

Toyota Corolla (Tup)

Production Nov 2020 - Sep 9999
Engine M15AFKS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2011- )M15AFKS..CVT

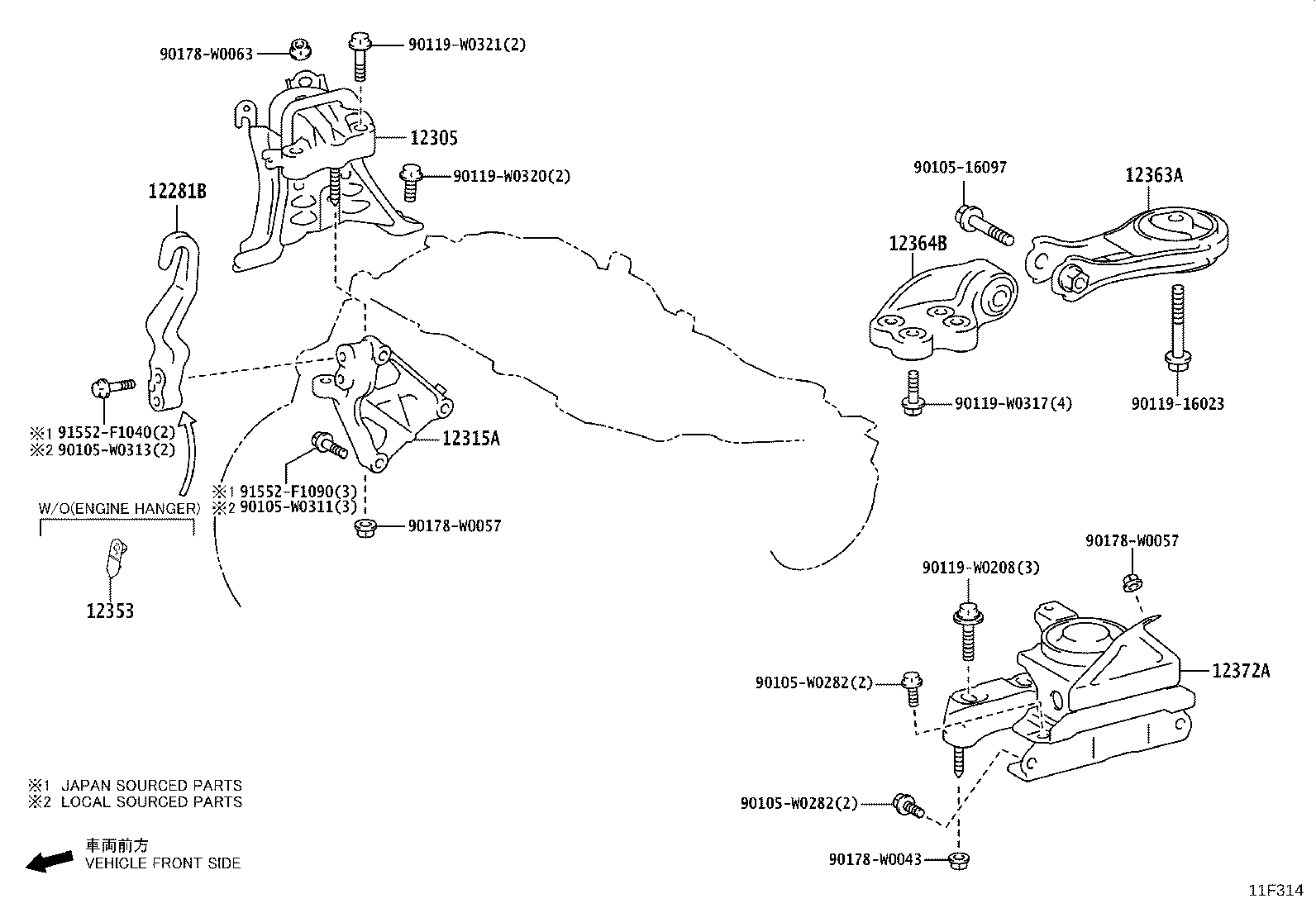

Click highlighted areas on diagram

diagram 12281B 12305 12315A 12353 12363A 12364B 12372A 9010516097 90105W0282 90105W0282 90105W0311 90105W0313 9011916023 90119W0208 90119W0317 90119W0320 90119W0321 90178W0043 90178W0057 90178W0057 90178W0063 91552F1040 91552F1090
Part # Description Qty Price
12281B - HANGER, ENGINE, NO.1
12281-25030

M15AFKS..MZEA11

 1
12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12305-F3030

M15AFKS..MZEA11

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-F3010

M15AFKS..MZEA11

 1
12353 - CAP, ENGINE MOUNTING BRACKET
12353-15010

M15AFKS..MZEA11

 1
12363A - ROD, ENGINE MOVING CONTROL
12363-F3010

M15AFKS..MZEA11..CVT

 1
12364B - ROD, ENGINE MOVING CONTROL, NO.2
12364-F3010

M15AFKS..MZEA11..CVT

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-F3060

M15AFKS..MZEA11..CVT

 1
Common parts
90105-16097
90105-W0282
90105-W0311
90105-W0313
90119-16023
90119-W0208
90119-W0317
90119-W0320
90119-W0321
90178-W0043
90178-W0057
90178-W0063
91552-F1040
91552-F1090
