MZEA11L-DEFGBW (2020)

Toyota Corolla (Tup)

Production Nov 2020 - Sep 9999
Engine M15AFKS
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(2011- )MZEA11..6F

Click highlighted areas on diagram

EC6D

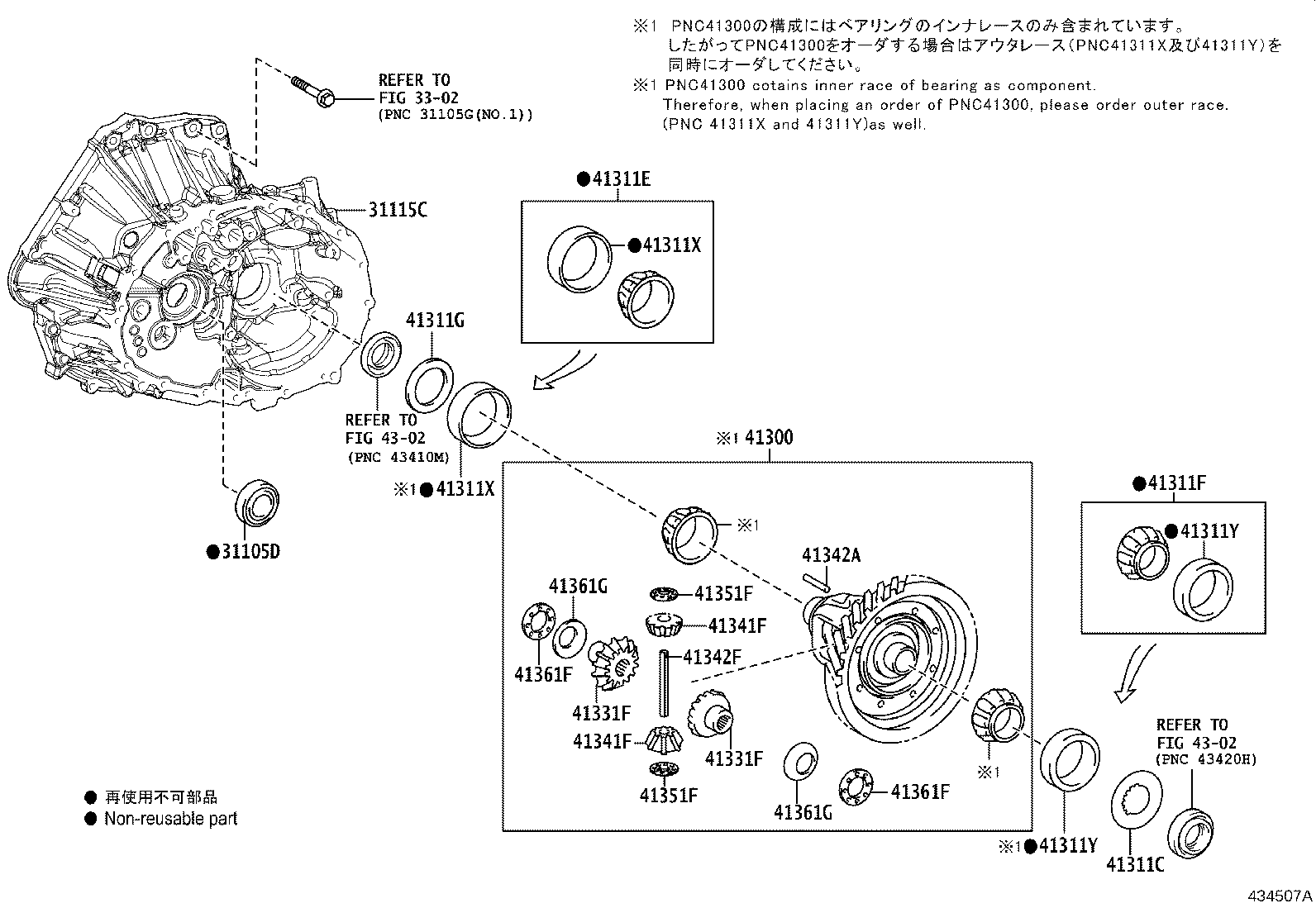

diagram 31105D 31115C 3302 41300 41311C 41311E 41311F 41311G 41311X 41311X 41311Y 41311Y 41331F 41331F 41341F 41341F 41342A 41342F 41351F 41351F 41361F 41361F 41361G 41361G 4302 4302
Part # Description Qty Price
31105D - SEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)
90311-25030

MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N)

 1
31115C - CASE, FRONT TRANSAXLE(MTM)
31115-K0010

MZEA11..6F

 1
41300 - CASE ASSY, FRONT DIFFERENTIAL, W/RING GEAR
41300-02070

MZEA11..6F;ZRE210..6F..(GCC,GEN,RUS)

 1
41311C - SHIM (FOR FRONT DIFFERENTIAL CASE REAR)
90564-44050

MZEA11..6F

T=2.375, MARK 21

 1
90564-44052

MZEA11..6F

T=2.425, MARK 23

 1
90564-44051

MZEA11..6F

T=2.400, MARK 22

 1
90564-44039

MZEA11..6F

T=2.100, MARK 10

 1
90564-44055

MZEA11..6F

T=2.500, MARK 26

 1
90564-44045

MZEA11..6F

T=2.250, MARK 16

 1
90564-44058

MZEA11..6F

T=2.575, MARK 29

 1
90564-44056

MZEA11..6F

T=2.525, MARK 27

 1
90564-44059

MZEA11..6F

T=2.600, MARK 30

 1
90564-44043

MZEA11..6F

T=2.200, MARK 14

 1
90564-44068

MZEA11..6F

T=2.825, MARK 39

 1
90564-44060

MZEA11..6F

T=2.625, MARK 31

 1
90564-44054

MZEA11..6F

T=2.475, MARK 25

 1
90564-44057

MZEA11..6F

T=2.550, MARK 28

 1
90564-44053

MZEA11..6F

T=2.450, MARK 24

 1
90564-44042

MZEA11..6F

T=2.175, MARK 13

 1
90564-44061

MZEA11..6F

T=2.650, MARK 32

 1
90564-44062

MZEA11..6F

T=2.675, MARK 33

 1
90564-44065

MZEA11..6F

T=2.750, MARK 36

 1
90564-44066

MZEA11..6F

T=2.775, MARK 37

 1
90564-44064

MZEA11..6F

T=2.725, MARK 35

 1
90564-44063

MZEA11..6F

T=2.700, MARK 34

 1
90564-44069

MZEA11..6F

T=2.850, MARK 40

 1
90564-44067

MZEA11..6F

T=2.800, MARK 38

 1
90564-44040

MZEA11..6F

T=2.125, MARK 11

 1
90564-44046

MZEA11..6F

T=2.275, MARK 17

 1
90564-44044

MZEA11..6F

T=2.225, MARK 15

 1
90564-44047

MZEA11..6F

T=2.300, MARK 18

 1
90564-44041

MZEA11..6F

T=2.150, MARK 12

 1
90564-44048

MZEA11..6F

T=2.325, MARK 19

 1
90564-44049

MZEA11..6F

T=2.350, MARK 20

 1
41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR
90080-36143

MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N)

 1
41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE
90366-W0013

MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N)

 1
41311G - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE FRONT)
90560-41003

MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N)

T=2.1

 1
41311X - OUTER RACE, TAPERED ROLLER BEARING (FOR DIFF. CASE FRON
90080-36144

MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N)

 1
41311X - OUTER RACE, TAPERED ROLLER BEARING (FOR DIFF. CASE FRON
90080-36144

MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N)

 1
41311Y - OUTER RACE, TAPERED ROLLER BEARING (FOR DIFF. CASE REAR
90366-W0014

MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N)

 1
41311Y - OUTER RACE, TAPERED ROLLER BEARING (FOR DIFF. CASE REAR
90366-W0014

MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N)

 1
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-0D070

MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N)

 2
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-0D070

MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N)

 2
41341F - PINION, FRONT DIFFERENTIAL
41341-0D070

MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N)

 2
41341F - PINION, FRONT DIFFERENTIAL
41341-0D070

MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N)

 2
41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
90250-06058

MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N)

 1
41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1
41342-52060

MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N)

 1
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-32010

MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N)

 2
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-32010

MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N)

 2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-22020

MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N)

T=1.00,MARK 02

 2
41361-22160

MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N)

T=1.15,MARK 16

 2
41361-22030

MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N)

T=1.10,MARK 03

 2
41361-22150

MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N)

T=1.05,MARK 15

 2
41361-22040

MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N)

T=1.20,MARK 04

 2
41361-48010

MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N)

T=0.90,MARK 19

 2
41361-22140

MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N)

T=0.95,MARK 14

 2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-22020

MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N)

T=1.00,MARK 02

 2
41361-22160

MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N)

T=1.15,MARK 16

 2
41361-22030

MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N)

T=1.10,MARK 03

 2
41361-22150

MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N)

T=1.05,MARK 15

 2
41361-22040

MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N)

T=1.20,MARK 04

 2
41361-48010

MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N)

T=0.90,MARK 19

 2
41361-22140

MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N)

T=0.95,MARK 14

 2
41361G - WASHER, CONICAL SPRING(FOR CENTER DIFFERENTIAL SIDE GEA
90208-35001

MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N)

 2
41361G - WASHER, CONICAL SPRING(FOR CENTER DIFFERENTIAL SIDE GEA
90208-35001

MZEA11..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..(D,N)

 2
