MZEA12L-DEXSBJ (2019)
Toyota Corolla (Mexico)
Production
Mar 2019
-
Jul 2020
Engine
M20AFKS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1903- )MZEA12..CVT

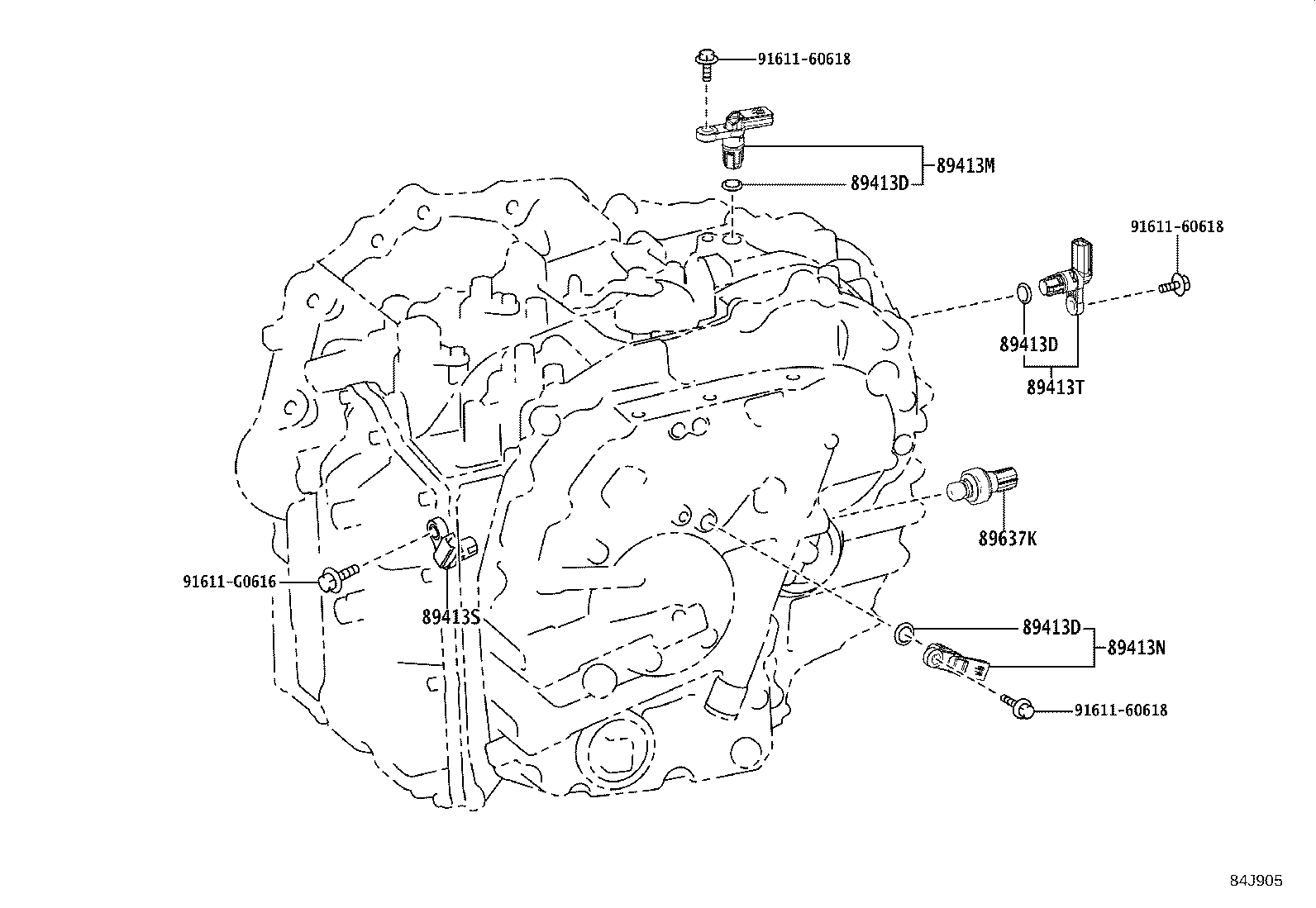

Click highlighted areas on diagram
K120
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89413D - RING, O(FOR TRANSMISSION REVOLUTION SENSOR) | ||||
| 90301-11008 |
MZEA12..CVT |
3 | ||
| 89413D - RING, O(FOR TRANSMISSION REVOLUTION SENSOR) | ||||
| 90301-11008 |
MZEA12..CVT |
3 | ||
| 89413D - RING, O(FOR TRANSMISSION REVOLUTION SENSOR) | ||||
| 90301-11008 |
MZEA12..CVT |
3 | ||
| 89413M - SENSOR, TRANSMISSION REVOLUTION, (NOUT) | ||||
| 89413-12010 |
MZEA12..CVT |
1 | ||
| 89413N - SENSOR, TRANSMISSION REVOLUTION, (NT) | ||||
| 89413-12010 |
MZEA12..CVT |
1 | ||
| 89413S - SENSOR, TRANSMISSION REVOLUTION (NC) | ||||
| 89413-11021 |
MZEA12..CVT |
1 | ||
| 89413T - SENSOR, TRANSMISSION REVOLUTION (NSS) | ||||
| 89413-12010 |
MZEA12..CVT |
1 | ||
| 89637K - SENSOR, OIL PRESSURE | ||||
| 89637-12040 |
MZEA12..CVT |
1 | ||
| Common parts | ||||
| 91611-60618 | ||||
| 91611-G0616 | ||||
