MZEA12L-DEXSBJ (2019)

Toyota Corolla (Mexico)

Production Mar 2019 - Jul 2020
Engine M20AFKS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1903- )M20AFKS..CVT

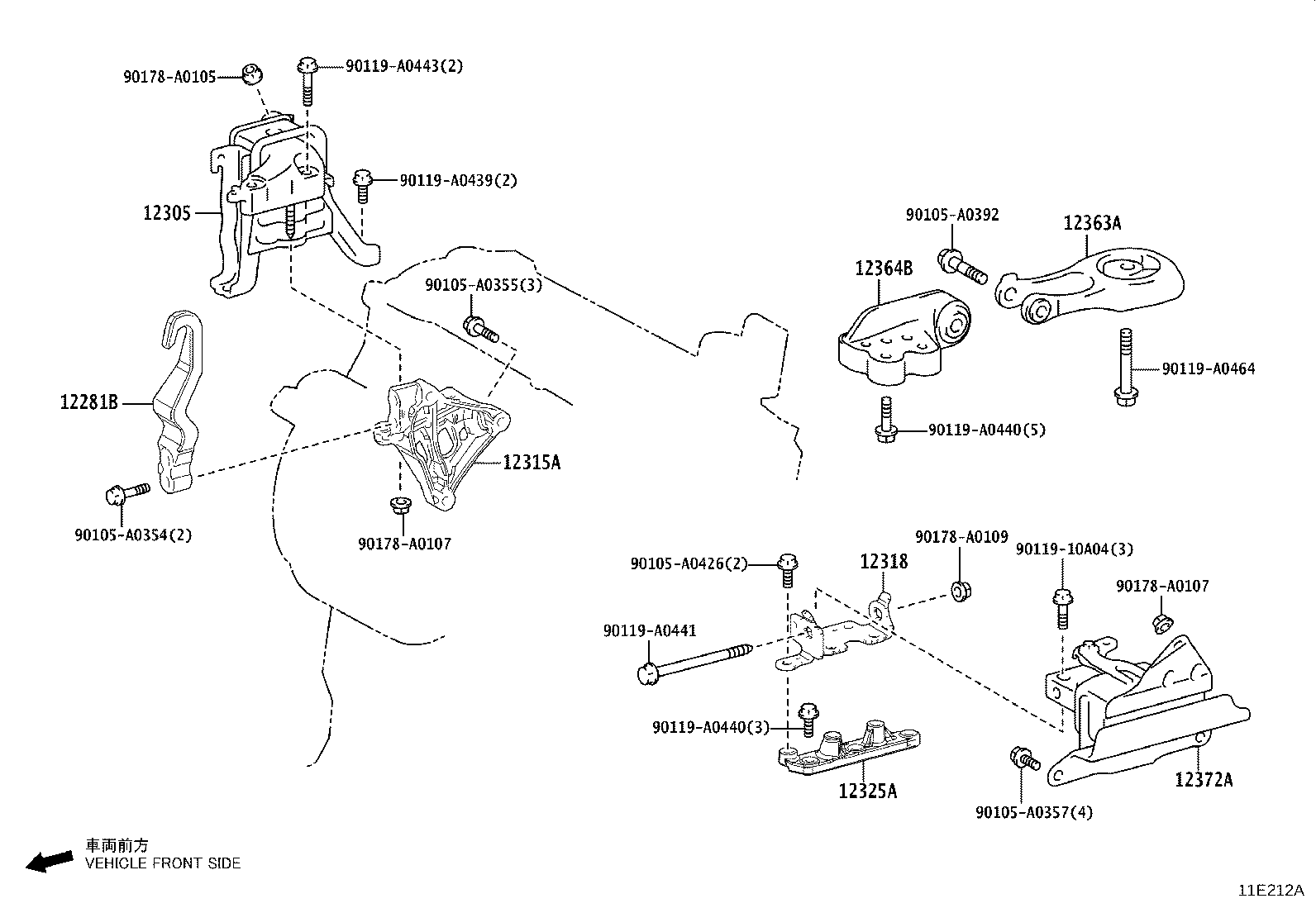

Click highlighted areas on diagram

diagram 12281B 12305 12315A 12318 12325A 12363A 12364B 12372A 90105A0354 90105A0355 90105A0357 90105A0392 90105A0426 9011910A04 90119A0439 90119A0440 90119A0440 90119A0441 90119A0443 90119A0464 90178A0105 90178A0107 90178A0107 90178A0109
Part # Description Qty Price
12281B - HANGER, ENGINE, NO.1
12281-25030

M20AFKS..MZEA12

 1
12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12305-F2010

M20AFKS..MZEA12

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-F2070

M20AFKS..MZEA12

 1
12318 - STAY, ENGINE MOUNTING, LH
12318-F2010

M20AFKS..MZEA12..CVT

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-F2010

M20AFKS..MZEA12..CVT

 1
12363A - ROD, ENGINE MOVING CONTROL
12363-F2010

M20AFKS..MZEA12..CVT

 1
12364B - ROD, ENGINE MOVING CONTROL, NO.2
12364-F2010

M20AFKS..MZEA12..CVT

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-F2010

M20AFKS..MZEA12..CVT

 1
Common parts
90105-A0354
90105-A0355
90105-A0357
90105-A0392
90105-A0426
90119-10A04
90119-A0439
90119-A0440
90119-A0441
90119-A0443
90119-A0464
90178-A0105
90178-A0107
90178-A0109
