Toyota Corolla (mexico) MZEA12 WIRING & CLAMP

MZEA12L-DEFSBJ (2019)

Toyota Corolla (Mexico)

Production Mar 2019 - Jul 2020

Engine M20AFKS

Transmission 6F MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 8(1903- )MZEA12

Click highlighted areas on diagram

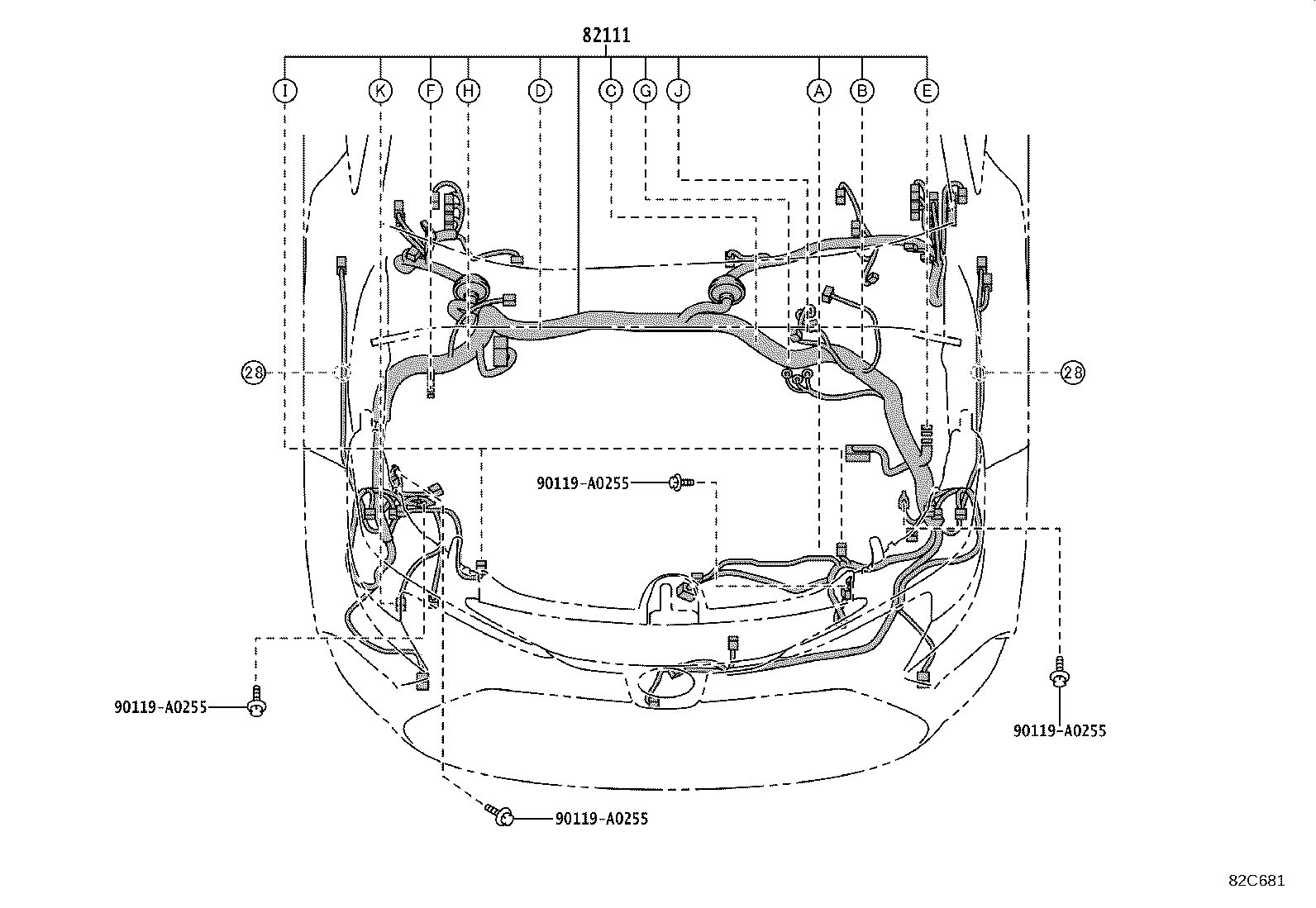

ENGINE ROOM 1/2

Part #	Description	Period	Qty
82111 - WIRE, ENGINE ROOM MAIN
82111-F2D30	MZEA12..6F	03/2019 - 07/2020	1
Common parts
90119-A0255

ILLUST NO. 1 OF 8(1903- )MZEA12

Click highlighted areas on diagram

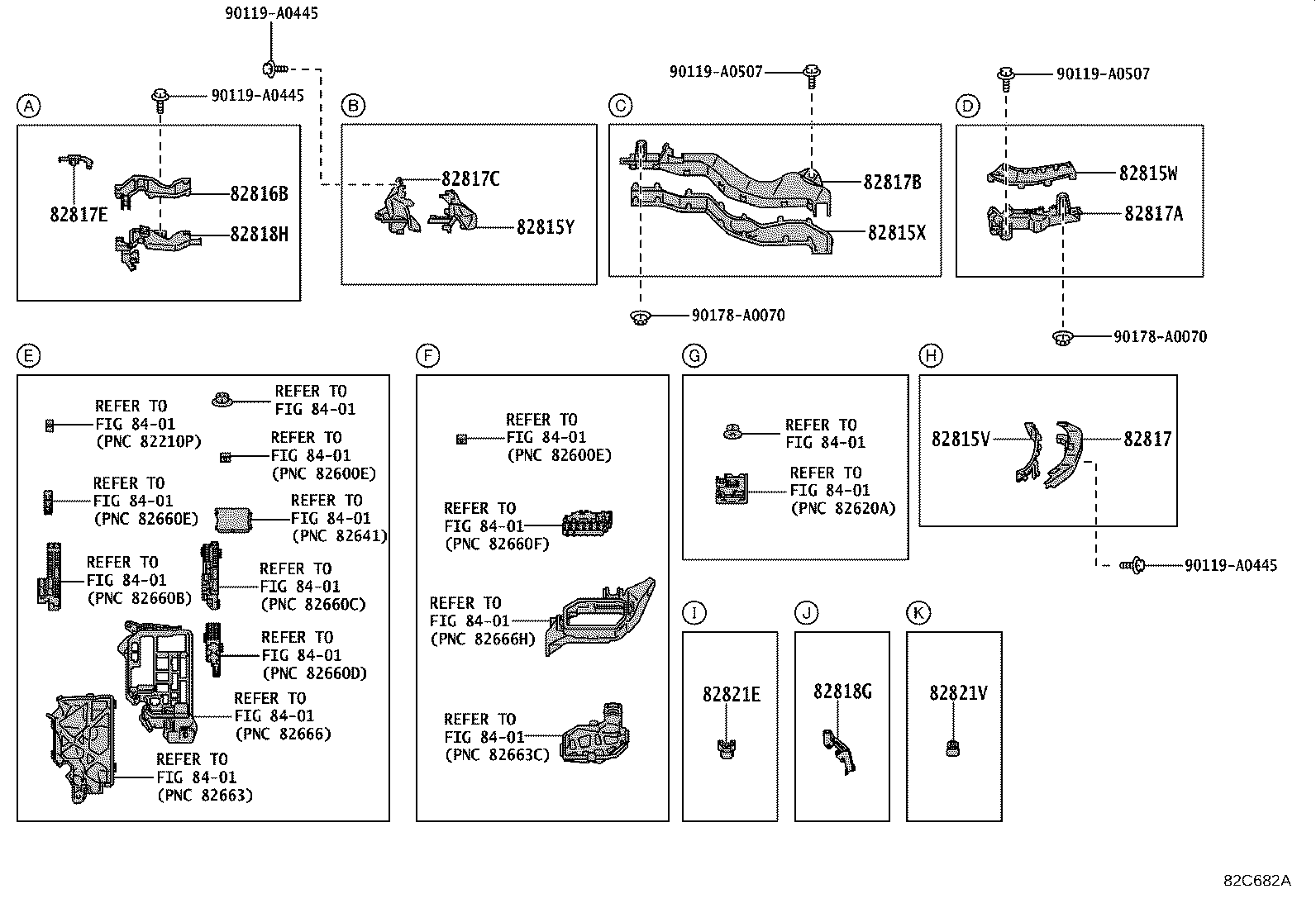

ENGINE ROOM 2/2

Part #	Description	Period	Qty
82815V - COVER, WIRING HARNESS PROTECTOR, NO.1
82815-12L00	MZEA12,ZRE212	03/2019 - 07/2020	1
82815W - COVER, WIRING HARNESS PROTECTOR, NO.2
82815-12L10	MZEA12,ZRE212	03/2019 - 07/2020	1
82815X - COVER, WIRING HARNESS PROTECTOR, NO.3
82815-12L20	MZEA12,ZRE212	03/2019 - 07/2020	1
82815Y - COVER, WIRING HARNESS PROTECTOR, NO.4
82815-12L30	MZEA12,ZRE212	03/2019 - 07/2020	1
82816B - COVER, WIRING HARNESS PROTECTOR, NO.1
82815-12D10	MZEA12	03/2019 - 07/2020	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-12Y70	MZEA12,ZRE212	03/2019 - 07/2020	1
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-12Y80	MZEA12,ZRE212	03/2019 - 07/2020	1
82817B - PROTECTOR, WIRING HARNESS, NO.3
82817-12Y90	MZEA12,ZRE212	03/2019 - 07/2020	1
82817C - PROTECTOR, WIRING HARNESS, NO.4
82817-12Z00	MZEA12,ZRE212	03/2019 - 07/2020	1
82817E - PROTECTOR, WIRING HARNESS, NO.6
82817-12Z10	MZEA12,ZRE212	03/2019 - 07/2020	1
82818G - PROTECTOR, WIRING HARNESS, NO.8
82817-12W30	MZEA12,ZRE212	03/2019 - 07/2020	1
82818H - PROTECTOR, WIRING HARNESS, NO.9
82817-12V50	MZEA12	03/2019 - 07/2020	1
82821E - COVER, CONNECTOR
82821-30650	MZEA12,ZRE212	03/2019 - 07/2020	2
82821V - COVER, CONNECTOR
82821-35050	MZEA12,ZRE212	03/2019 - 07/2020	1
Common parts
90119-A0445
90119-A0507
90178-A0070
Linked diagrams
8401

ILLUST NO. 2 OF 8(1903- )MZEA12..6F

Click highlighted areas on diagram

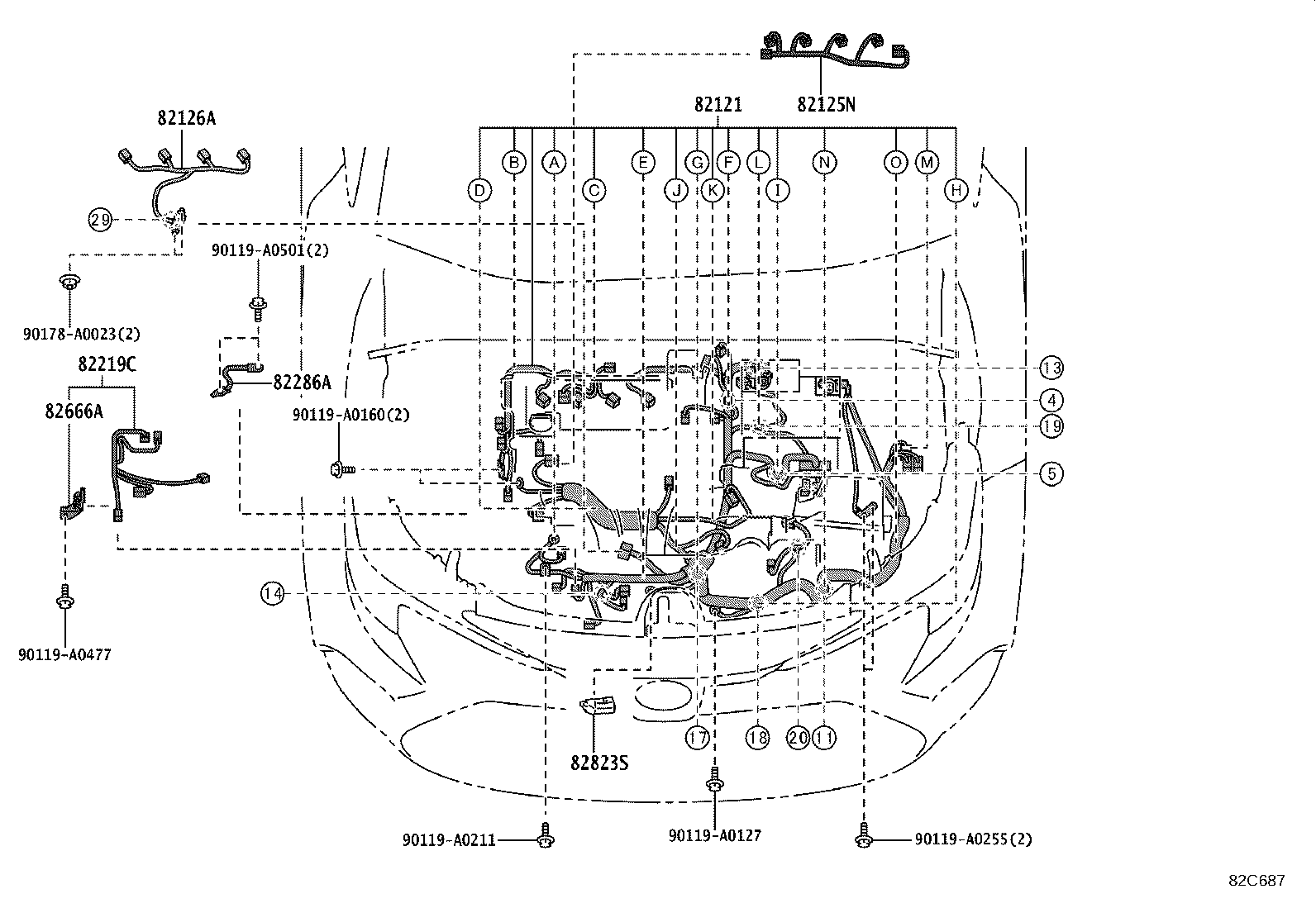

ENGINE 1/2

Part #	Description	Period	Qty
82121 - WIRE, ENGINE
82121-0ZL10	MZEA12..6F	03/2019 - 07/2020	1
82125N - WIRE, ENGINE, NO.5
82125-02590	MZEA12	03/2019 - 07/2020	1
82126A - WIRE, ENGINE, NO.6
82126-02180	MZEA12	03/2019 - 07/2020	1
82219C - WIRE, SENSOR
82219-02040	MZEA12	03/2019 - 07/2020	1
82286A - WIRE, EARTH, NO.2
82286-02070	MZEA12	03/2019 - 07/2020	1
82666A - HOLDER, CONNECTOR NO.2
82666-12490	MZEA12	03/2019 - 07/2020	1
82823S - CAP, STARTER TERMINAL
28192-F2090	MZEA12	03/2019 - 07/2020	1
Common parts
90119-A0127
90119-A0160
90119-A0211
90119-A0255
90119-A0477
90119-A0501
90178-A0023

ILLUST NO. 2 OF 8(1903- )MZEA12..6F

Click highlighted areas on diagram

ENGINE 2/2

Part #	Description	Period	Qty

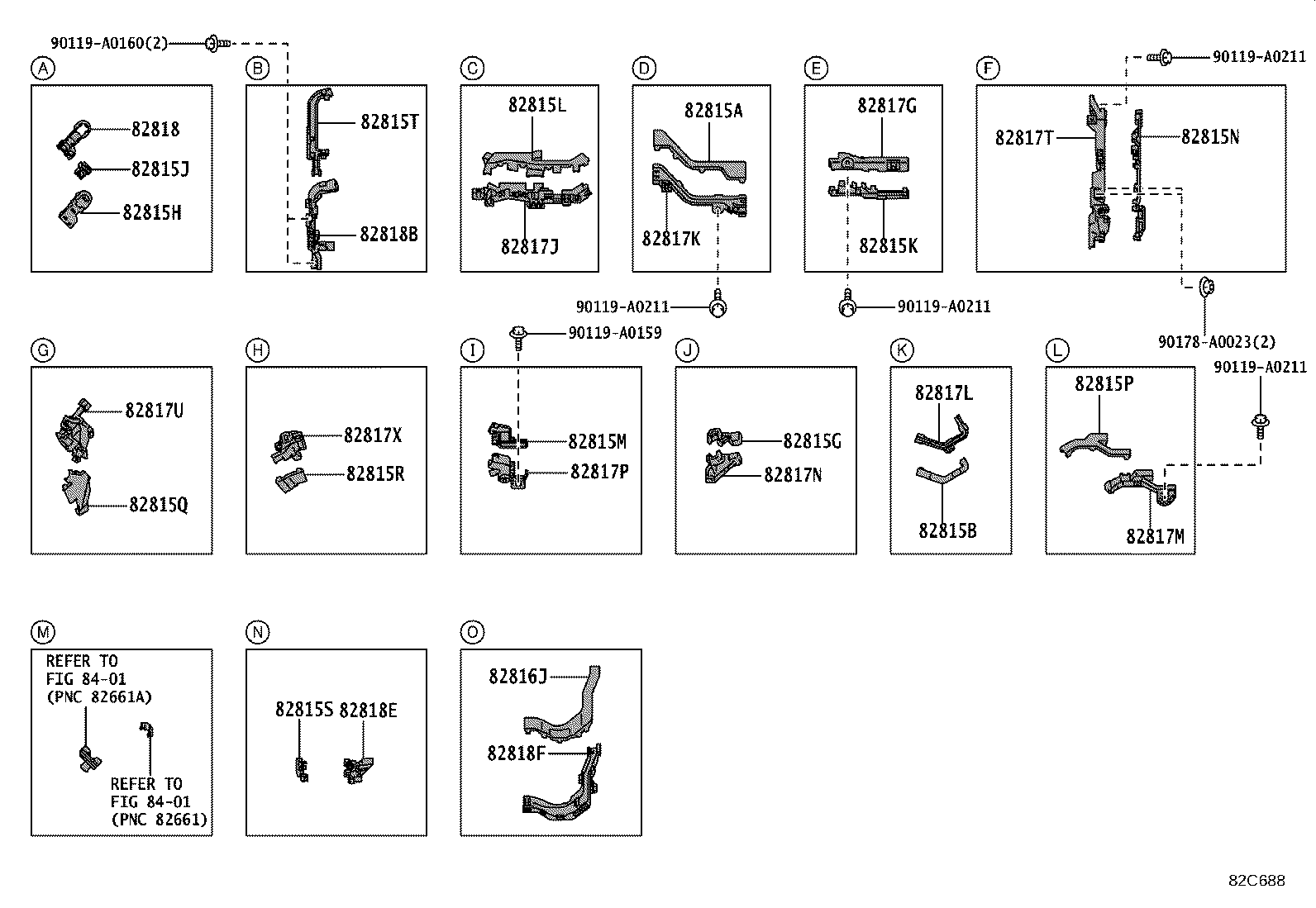

82815A - COVER, WIRING HARNESS PROTECTOR
82815-12D80	MZEA12	03/2019 - 07/2020	1
82815B - COVER, WIRING HARNESS PROTECTOR
82815-12E90	MZEA12	03/2019 - 07/2020	1
82815G - COVER, WIRING HARNESS PROTECTOR NO.5
82815-12E80	MZEA12	03/2019 - 07/2020	1
82815H - COVER, WIRING HARNESS PROTECTOR NO.6
82815-33J10	MZEA12	03/2019 - 07/2020	1
82815J - COVER, WIRING HARNESS PROTECTOR, NO.7
82815-33L00	MZEA12	03/2019 - 07/2020	1
82815K - COVER, WIRING HARNESS PROTECTOR, NO.8
82815-12E00	MZEA12	03/2019 - 07/2020	1
82815L - COVER, WIRING HARNESS PROTECTOR, NO.9
82815-12D60	MZEA12	03/2019 - 07/2020	1
82815M - COVER, WIRING HARNESS PROTECTOR, NO.10
82815-12E70	MZEA12	03/2019 - 07/2020	1
82815N - COVER, WIRING HARNESS PROTECTOR, NO.11
82815-12E10	MZEA12	03/2019 - 07/2020	1
82815P - COVER, WIRING HARNESS PROTECTOR, NO.12
82815-12F20	MZEA12..6F	03/2019 - 07/2020	1
82815Q - COVER, WIRING HARNESS PROTECTOR, NO.13
82815-12E20	MZEA12	03/2019 - 07/2020	1
82815R - COVER, WIRING HARNESS PROTECTOR, NO.14
82815-12E30	MZEA12	03/2019 - 07/2020	1
82815S - COVER, WIRING HARNESS PROTECTOR, NO.15
82815-12F60	MZEA12	03/2019 - 07/2020	1
82815T - COVER, WIRING HARNESS PROTECTOR, NO.16
82815-12B00	MZEA12	03/2019 - 07/2020	1
82816J - COVER, WIRING HARNESS PROTECTOR, NO.7
82815-12F70	MZEA12	03/2019 - 07/2020	1
82817G - PROTECTOR, WIRING HARNESS, NO.8
82817-12S00	MZEA12	03/2019 - 07/2020	1
82817J - PROTECTOR, WIRING HARNESS, NO.9
82817-12R60	MZEA12	03/2019 - 07/2020	1
82817K - PROTECTOR, WIRING HARNESS, NO.10
82817-12R80	MZEA12	03/2019 - 07/2020	1
82817L - PROTECTOR, WIRING HARNESS, NO.11
82817-12S90	MZEA12	03/2019 - 07/2020	1
82817M - PROTECTOR, WIRING HARNESS, NO.12
82817-12T20	MZEA12..6F	03/2019 - 07/2020	1
82817N - PROTECTOR, WIRING HARNESS, NO.13
82817-12S80	MZEA12	03/2019 - 07/2020	1
82817P - PROTECTOR, WIRING HARNESS, NO.14
82817-12S70	MZEA12	03/2019 - 07/2020	1
82817T - PROTECTOR, WIRING HARNESS, NO.15
82817-12S10	MZEA12	03/2019 - 07/2020	1
82817U - PROTECTOR, WIRING HARNESS, NO.16
82817-12S20	MZEA12	03/2019 - 07/2020	1
82817X - PROTECTOR, WIRING HARNESS, NO.17
82817-12S30	MZEA12	03/2019 - 07/2020	1
82818 - PROTECTOR, WIRING HARNESS, NO.2
82817-33S70	MZEA12	03/2019 - 07/2020	1
82818B - PROTECTOR, WIRING HARNESS, NO.3
82817-12V00	MZEA12	03/2019 - 07/2020	1
82818E - PROTECTOR, WIRING HARNESS, NO.6
82817-12T60	MZEA12	03/2019 - 07/2020	1
82818F - PROTECTOR, WIRING HARNESS, NO.7
82817-12T70	MZEA12	03/2019 - 07/2020	1
Common parts
90119-A0159
90119-A0160
90119-A0211
90178-A0023
Linked diagrams
8401

ILLUST NO. 3 OF 8(1903- )

Click highlighted areas on diagram

INSTRUMENT PANEL

Part #	Description	Period	Qty

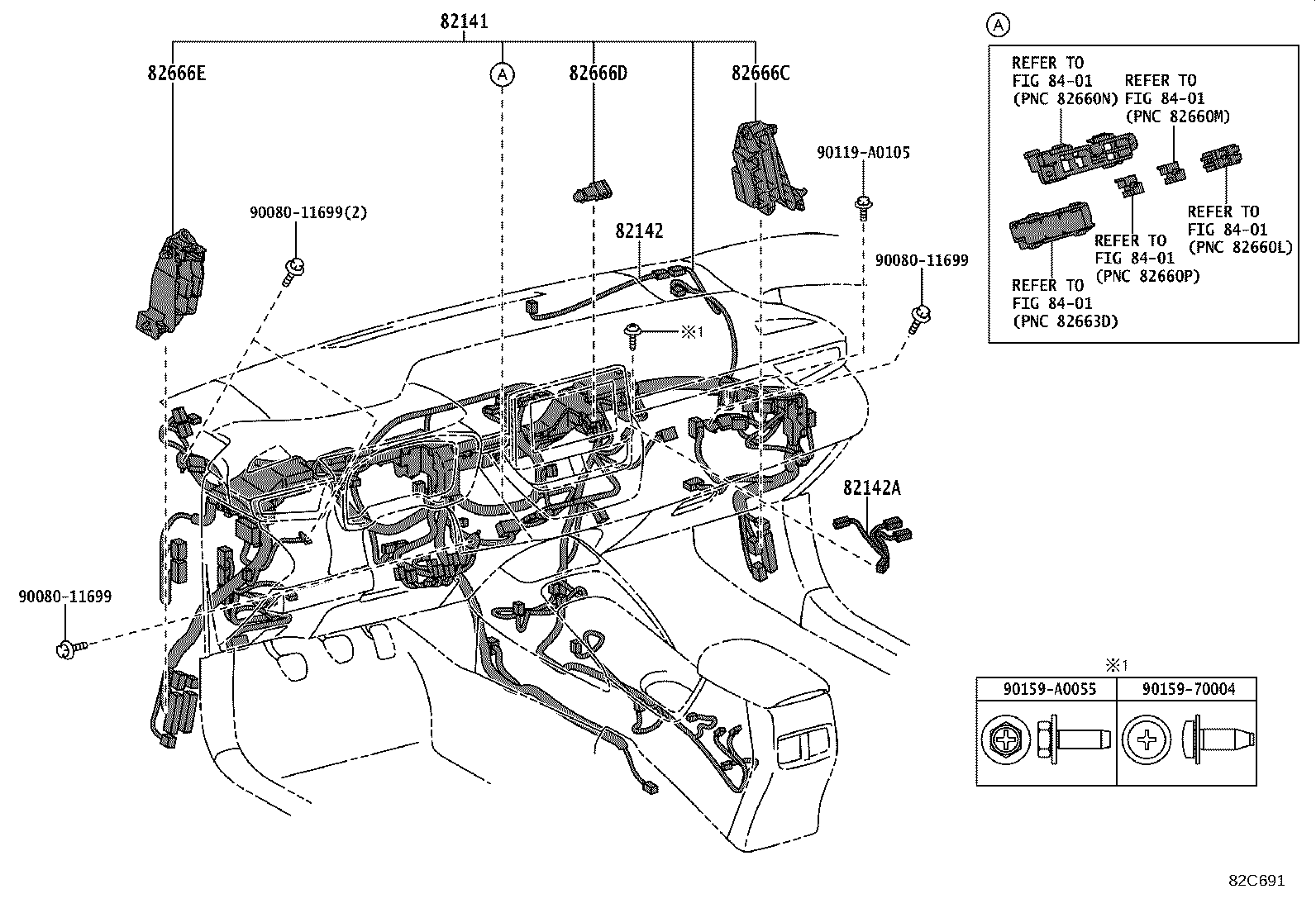

82141 - WIRE, INSTRUMENT PANEL
82141-F2480	MZEA12,ZRE212..6F	03/2019 - 07/2020	1
82142 - WIRE, INSTRUMENT PANEL, NO.2
82142-02K40	MZEA12,ZRE212..L,S LIGHT CONTROL SYSTEM-WITH(AUTO LIGHT CONTROL SYSTEM)	03/2019 - 07/2020	1
82142A - WIRE, INSTRUMENT PANEL, NO.2
82140-02530	MZEA12,ZRE212	03/2019 - 07/2020	1
82666C - HOLDER, CONNECTOR NO.4
82666-12680	MZEA12,ZRE212	03/2019 - 07/2020	1
82666D - HOLDER, CONNECTOR NO.5
82666-26180	MZEA12,ZRE212	03/2019 - 07/2020	1
82666E - HOLDER, CONNECTOR NO.6
82666-12670	MZEA12,ZRE212	03/2019 - 07/2020	1
Common parts
90080-11699
90119-A0105
90159-70004
90159-A0055
Linked diagrams
8401

ILLUST NO. 4 OF 8(1903- )

Click highlighted areas on diagram

DOOR

Part #	Description	Period	Qty
82151 - WIRE, FRONT DOOR, RH
82151-0ZW90	MZEA12,ZRE212	03/2019 - 07/2020	1
82152 - WIRE, FRONT DOOR, LH
82152-0ZV70	MZEA12,ZRE212	03/2019 - 07/2020	1
82153 - WIRE, REAR DOOR, NO.1
82153-02E80	MZEA12,ZRE212	03/2019 - 07/2020	1
82154 - WIRE, REAR DOOR, NO.2
82154-02D00	MZEA12,ZRE212	03/2019 - 07/2020	1
Common parts
90080-11699

ILLUST NO. 6 OF 8(1903- )

Click highlighted areas on diagram

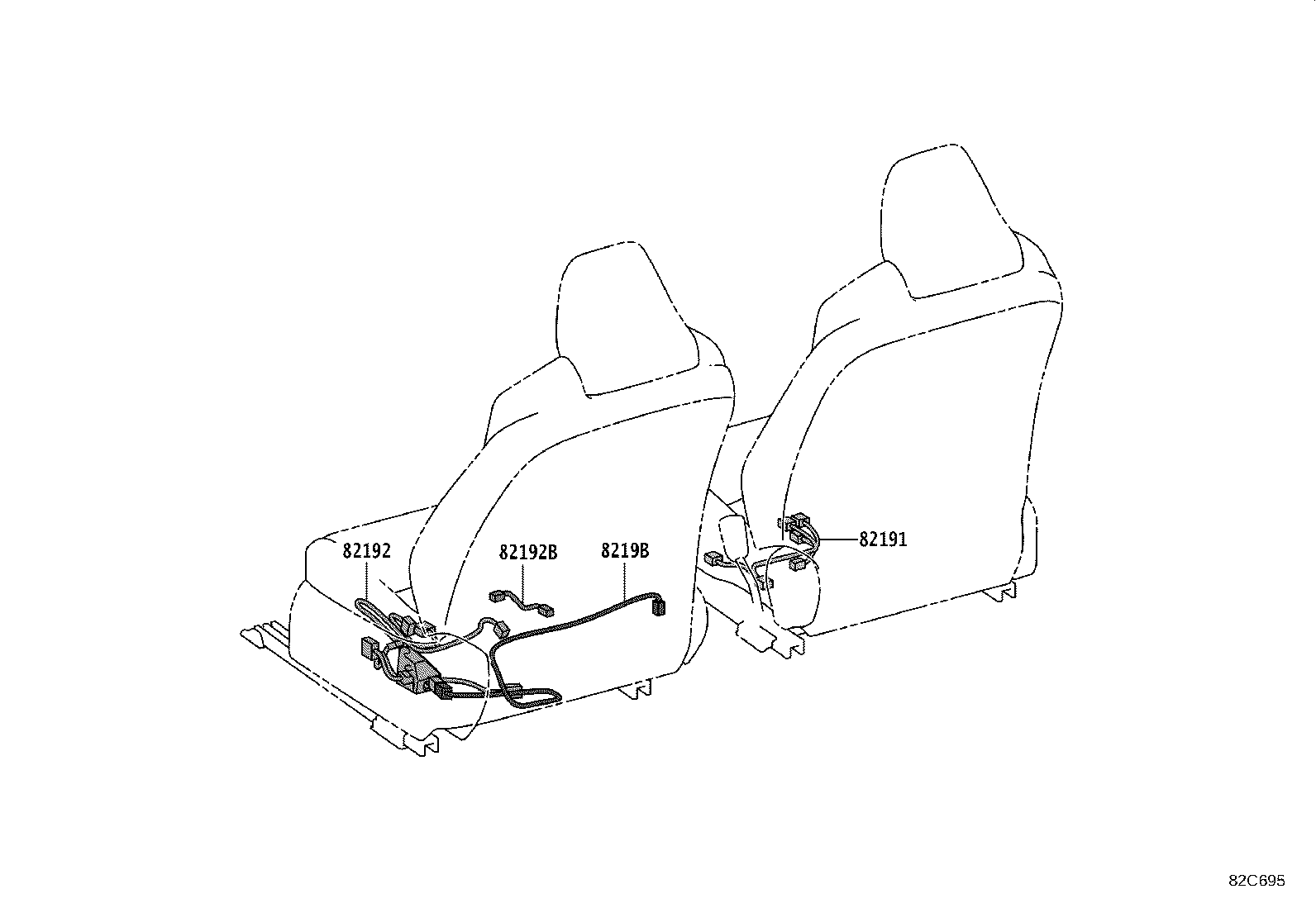

SEAT

Part #	Description	Period	Qty
82191 - WIRE, FRONT SEAT, RH
82191-02190	MZEA12,ZRE212	03/2019 - 07/2020	1
82192 - WIRE, FRONT SEAT, LH
82192-02210	MZEA12,ZRE212..L,S SEAT COVER MATERIAL-SPORT LEATHER&FRONT SEAT SLIDE-WITH(DRS:POWER SEAT & PAS:MANUAL SEAT)	03/2019 - 07/2020	1
82192-02310	MZEA12,ZRE212..L,S SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER & PASSENGER)	03/2019 - 07/2020	1
82192-02220	MZEA12,ZRE212..L,S SEAT COVER MATERIAL-SPORT LEATHER&FRONT SEAT SLIDE-WITH(DRS:POWER SEAT & PAS:MANUAL SEAT)&SEAT HEATER-WITH(DRIVER & PASSENGER)	03/2019 - 07/2020	1
82192-02330	MZEA12,ZRE212..L,S SEAT COVER MATERIAL-SPORT LEATHER&FRONT SEAT SLIDE-WITH(DRS:POWER SEAT & PAS:MANUAL SEAT)&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER & PASSENGER)	03/2019 - 07/2020	1
82192B - WIRE, FRONT SEAT, LH NO.2
82192-0R130	MZEA12,ZRE212..L,S SEAT COVER MATERIAL-SPORT LEATHER&FRONT SEAT SLIDE-WITH(DRS:POWER SEAT & PAS:MANUAL SEAT)&SEAT HEATER-WITH(DRIVER & PASSENGER)	03/2019 - 07/2020	1
82192-0R130	MZEA12,ZRE212..L,S SEAT COVER MATERIAL-SPORT LEATHER&FRONT SEAT SLIDE-WITH(DRS:POWER SEAT & PAS:MANUAL SEAT)	03/2019 - 07/2020	1
82192-0R130	MZEA12,ZRE212..L,S SEAT COVER MATERIAL-SPORT LEATHER&FRONT SEAT SLIDE-WITH(DRS:POWER SEAT & PAS:MANUAL SEAT)&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER & PASSENGER)	03/2019 - 07/2020	1
8219B - WIRE, FRONT SEAT, LH NO.2
8219B-02210	MZEA12,ZRE212..L,S SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER & PASSENGER)	03/2019 - 07/2020	1
8219B-02200	MZEA12,ZRE212..L,S SEAT COVER MATERIAL-SPORT LEATHER&FRONT SEAT SLIDE-WITH(DRS:POWER SEAT & PAS:MANUAL SEAT)	03/2019 - 07/2020	1
8219B-02220	MZEA12,ZRE212..L,S SEAT COVER MATERIAL-SPORT LEATHER&FRONT SEAT SLIDE-WITH(DRS:POWER SEAT & PAS:MANUAL SEAT)&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER & PASSENGER)	03/2019 - 07/2020	1
8219B-02200	MZEA12,ZRE212..L,S SEAT COVER MATERIAL-SPORT LEATHER&FRONT SEAT SLIDE-WITH(DRS:POWER SEAT & PAS:MANUAL SEAT)&SEAT HEATER-WITH(DRIVER & PASSENGER)	03/2019 - 07/2020	1

ILLUST NO. 7 OF 8(1903- )

Click highlighted areas on diagram

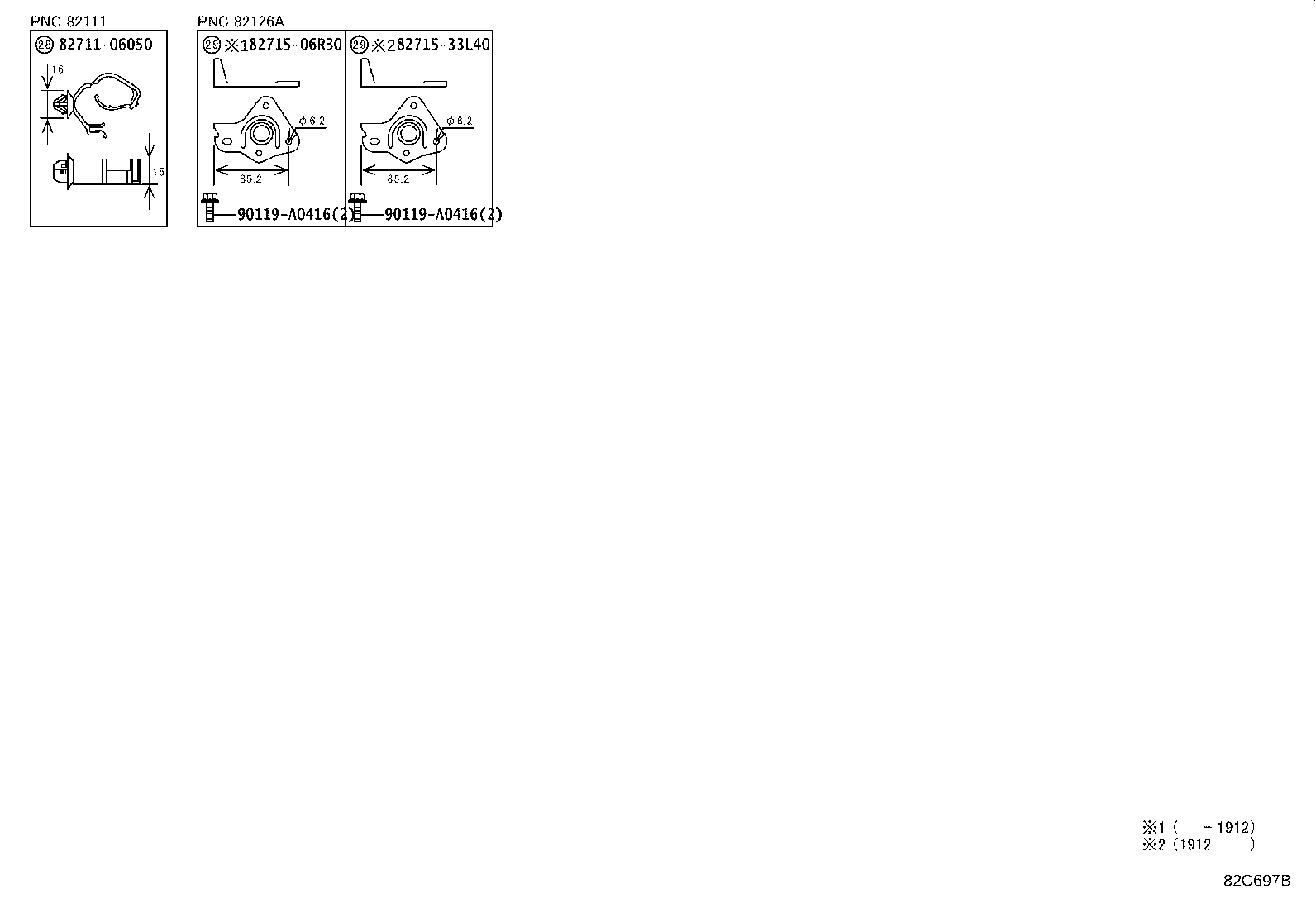

CLAMP & BRACKET 2/2

Part #	Description	Period	Qty	Price
Common parts
82711-06050
82715-06R30
82715-33L40
90119-A0416

ILLUST NO. 5 OF 8(1903- )MZEA12

Click highlighted areas on diagram

FLOOR & ROOF

Part #	Description	Period	Qty

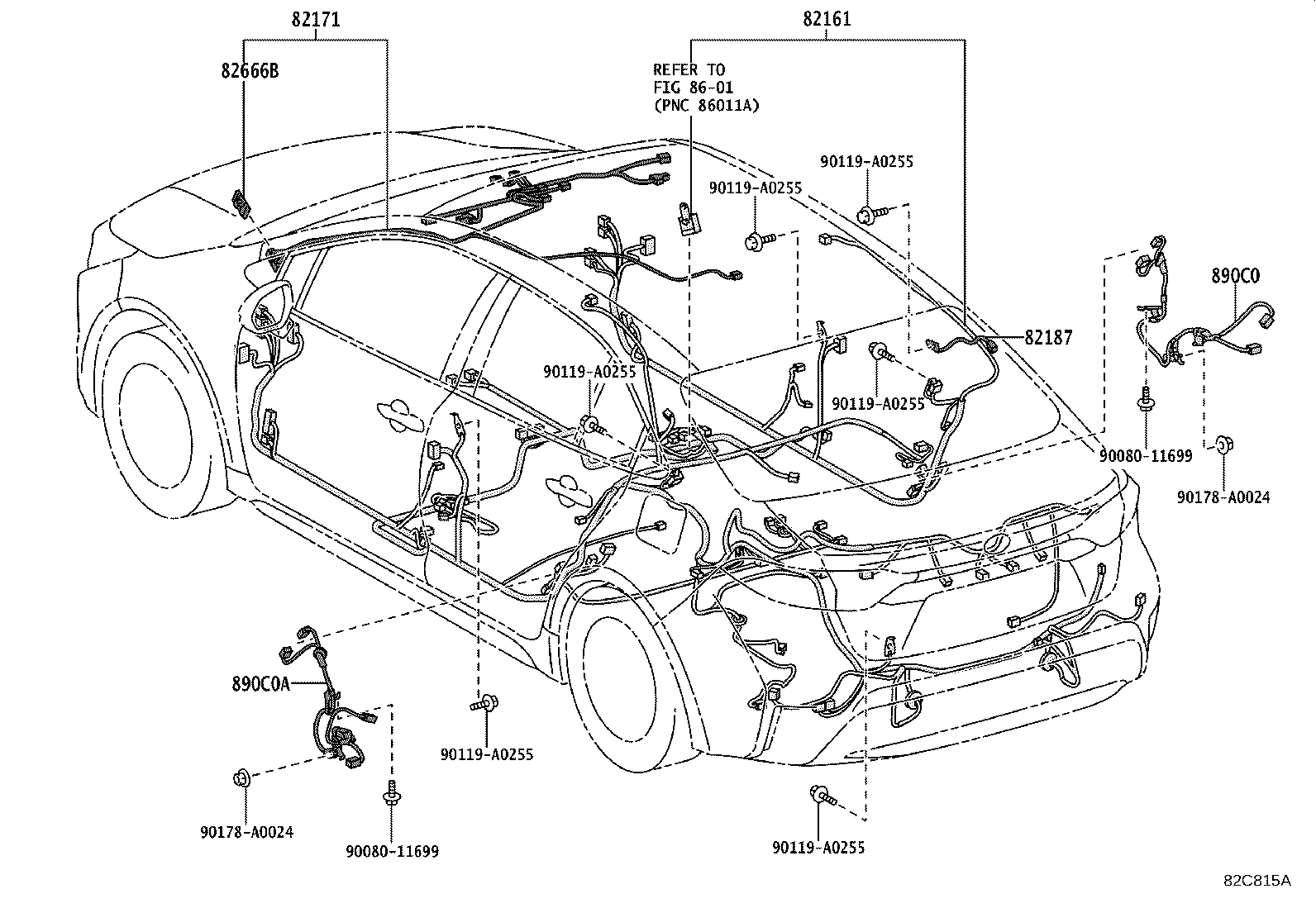

82161 - WIRE, FLOOR
82199-0Z570	MZEA12..6F SEAT COVER MATERIAL-SPORT LEATHER&BACK MONITOR-CAMERA & WIRE HARNESS	03/2019 - 07/2020	1
82199-02R60	MZEA12..6F BACK MONITOR-CAMERA & WIRE HARNESS	03/2019 - 07/2020	1
82199-0Z520	MZEA12..6F SEAT COVER MATERIAL-SPORT LEATHER	03/2019 - 07/2020	1
82199-0ZA60	MZEA12..6F	03/2019 - 07/2020	1
82171 - WIRE, ROOF, NO.1
82171-0ZG40	MZEA12,ZRE212	03/2019 - 07/2020	1
82171-0ZG50	MZEA12,ZRE212..L,S INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE	03/2019 - 07/2020	1
82171-0ZQ70	MZEA12,ZRE212..L,S MOON ROOF-WITH	03/2019 - 07/2020	1
82171-0ZQ80	MZEA12,ZRE212..L,S MOON ROOF-WITH&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE	03/2019 - 07/2020	1
82187 - WIRE, REAR WINDOW, NO.2
82187-02330	MZEA12,ZRE212	03/2019 - 07/2020	1
82666B - HOLDER, CONNECTOR NO.3
82666-60220	MZEA12,ZRE212	03/2019 - 07/2020	1
Common parts
90080-11699
90119-A0255
90178-A0024
Linked diagrams
8601

ILLUST NO. 7 OF 8(1903- )

Click highlighted areas on diagram

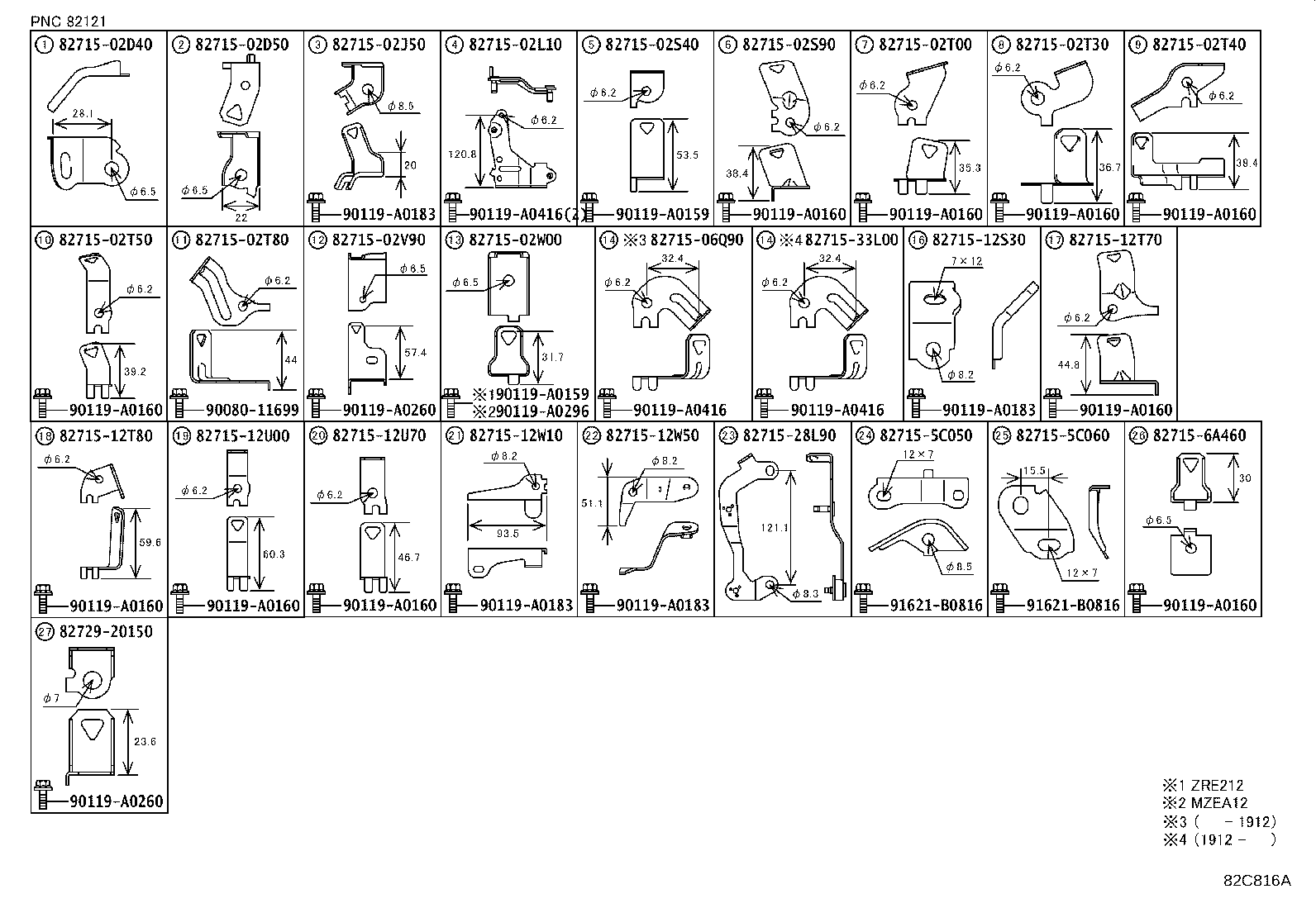

CLAMP & BRACKET 1/2

Part #	Description	Period	Qty	Price
Common parts
82715-02D40
82715-02D50
82715-02J50
82715-02L10
82715-02S40
82715-02S90
82715-02T00
82715-02T30
82715-02T40
82715-02T50
82715-02T80
82715-02V90
82715-02W00
82715-06Q90
82715-12S30
82715-12T70
82715-12T80
82715-12U00
82715-12U70
82715-12W10
82715-12W50
82715-28L90
82715-33L00
82715-5C050
82715-5C060
82715-6A460
82729-20150
90080-11699
90119-A0159
90119-A0160
90119-A0183
90119-A0260
90119-A0296
90119-A0416
91621-B0816

ILLUST NO. 8 OF 8(1903- )

Click highlighted areas on diagram

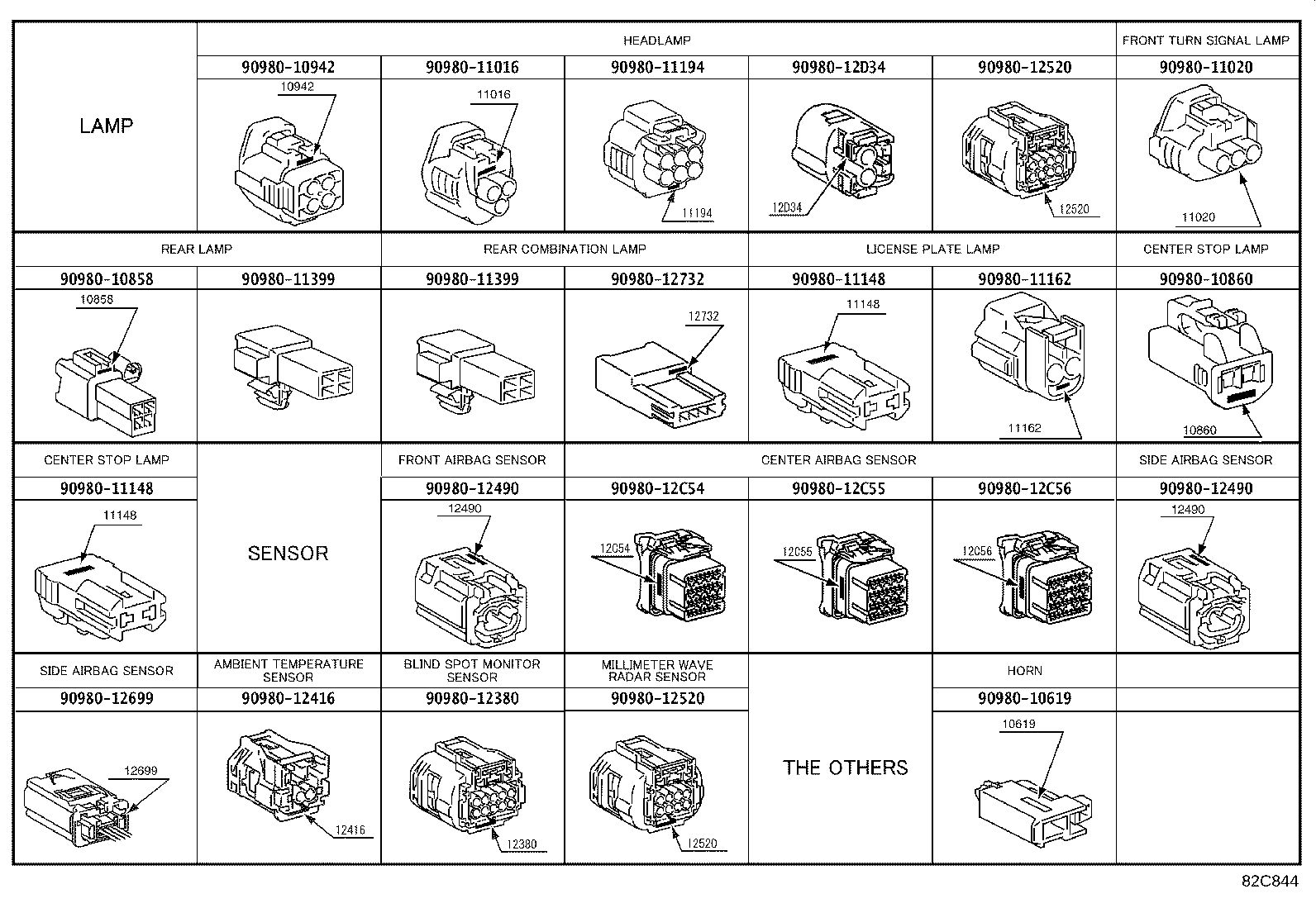

CONNECTOR 1/2

Part #	Description	Period	Qty	Price
Common parts
90980-10619
90980-10858
90980-10860
90980-10942
90980-11016
90980-11020
90980-11148
90980-11162
90980-11194
90980-11399
90980-12380
90980-12416
90980-12490
90980-12520
90980-12699
90980-12732
90980-12C54
90980-12C55
90980-12C56
90980-12D34

ILLUST NO. 8 OF 8(1903- )

Click highlighted areas on diagram

CONNECTOR 2/2

Part #	Description	Period	Qty	Price
Common parts

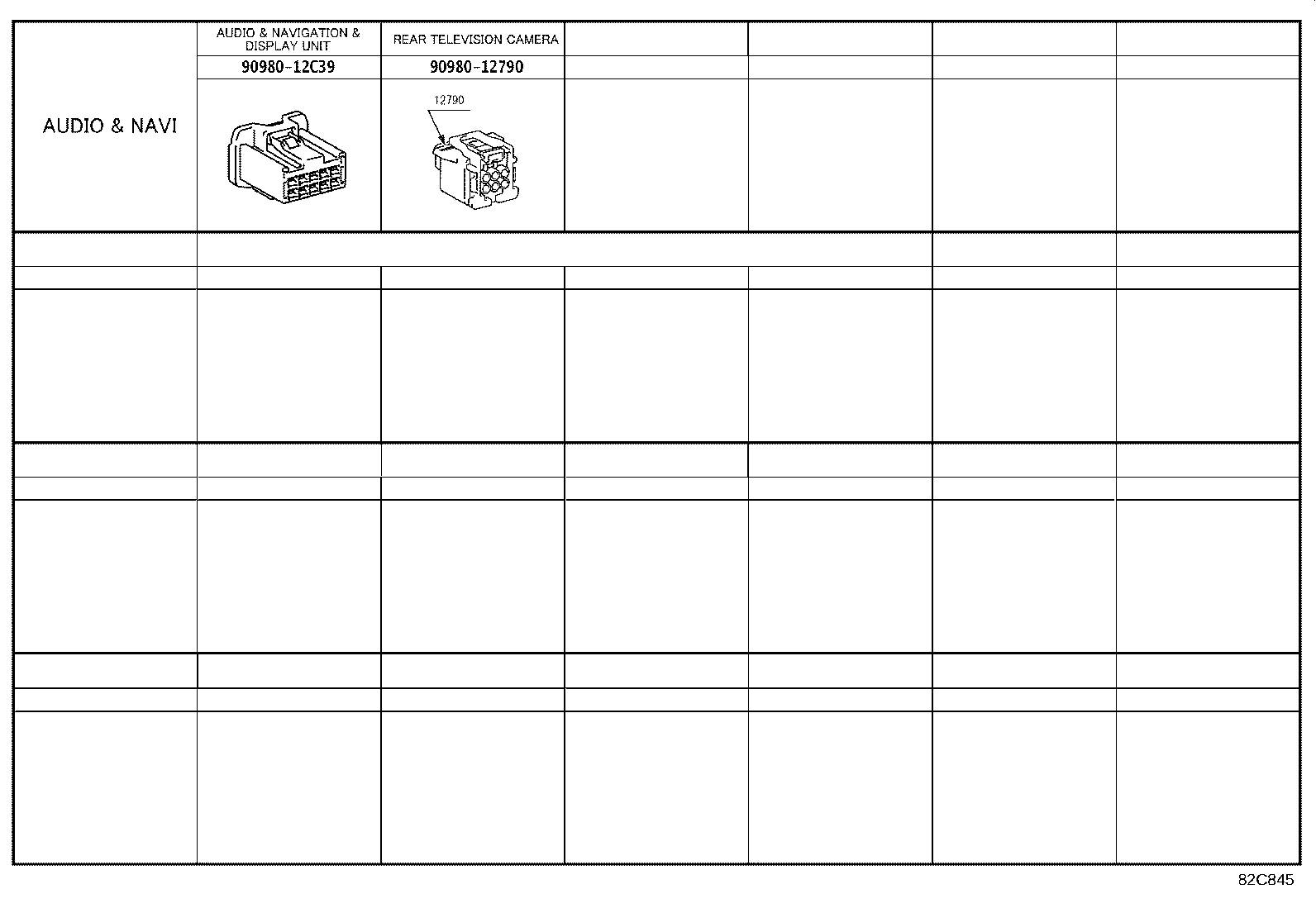

90980-12790
90980-12C39
