MZEA12L-DEFSBJ (2019)

Toyota Corolla (Mexico)

Production Mar 2019 - Jul 2020
Engine M20AFKS
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1903- )

Click highlighted areas on diagram

diagram 55300 55306A 55307C 55308B 55312A 55317E 55318F 55328 55328C 55330B 55349C 55395 55401E 55401F 55472C 55473B 55538A 55961 55962 73960A 8202 9008011699 9008015073 90105A0280 90105A0343 9011908C96 90119A0105 90119A0261 90119A0312 90119A0454 9015960613 90159A0055 90178A0023 90178A0024 9017906274 9017906278 9018305094 9046705171 9167380616
Part # Description Qty Price
55300 - PANEL ASSY, INSTRUMENT, UPPER
55300-02090C0

MZEA12,ZRE212..D,S

BLACK,TRIM1#,2#

 1
55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55306-02490

MZEA12,ZRE212

 1
55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55307-02490

MZEA12,ZRE212

 1
55308B - BRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3
55308-02130

MZEA12,ZRE212

 1
55312A - CLIP, INSTRUMENT PANEL
90467-07217

MZEA12,ZRE212

 2
55317E - PANEL, INSTRUMENT SIDE, NO.1
55317-02670C0

MZEA12,ZRE212..D,S

BLACK,TRIM1#,2#

 1
55318F - PANEL, INSTRUMENT SIDE, NO.2
55318-02300C0

MZEA12,ZRE212..D,S

BLACK,TRIM1#,2#

 1
55328 - PIN, INSTRUMENT PANEL, NO.1
55328-0E060

MZEA12,ZRE212

 2
55328C - PIN, INSTRUMENT PANEL, NO.2
55328-02880

MZEA12,ZRE212

 2
55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL
55330-02A30

MZEA12,ZRE212..6F

 1
55349C - CUSHION, INSTRUMENT PANEL
55349-02320

MZEA12,ZRE212

 1
55395 - BRACKET, INSTRUMENT PANEL TO PEDAL
55395-02030

MZEA12,ZRE212

 1
55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY
55400-02060C0

MZEA12,ZRE212..D,S

BLACK,TRIM1#,2#

 1
55401F - CLIP(FOR SAFETY PAD)
52161-02020

MZEA12,ZRE212

 3
55472C - PANEL, INSTRUMENT PANEL SPEAKER, NO.1
55472-02030C0

MZEA12,ZRE212..D,S

BLACK,TRIM1#,2#

 1
55473B - PANEL, INSTRUMENT PANEL SPEAKER, NO.2
55473-02020C0

MZEA12,ZRE212..D,S

BLACK,TRIM1#,2#

 1
55538A - COVER, COOLER SWITCH HOLE
55538-02090C0

MZEA12

BLACK,TRIM2#

 1
55538-02090C0

MZEA12

LIGHT CONTROL SYSTEM-WITH(AUTO LIGHT CONTROL SYSTEM),BLACK,TRIM2#

 1
55538-02090C0

MZEA12

LIGHT CONTROL SYSTEM-WITH(*ALC & DRL OFF SWITCH)&AIR CONDITIONER-AUTO AIR CONDITIONER,BLACK,TRIM2#

 1
55538-02090C0

MZEA12

LIGHT CONTROL SYSTEM-WITH(AUTO LIGHT CONTROL SYSTEM)&AIR CONDITIONER-AUTO AIR CONDITIONER,BLACK,TRIM2#

 1
55538-02090C0

MZEA12

LIGHT CONTROL SYSTEM-WITH(*ALC & DRL OFF SWITCH),BLACK,TRIM2#

 1
55538-02090C0

MZEA12

AIR CONDITIONER-AUTO AIR CONDITIONER,BLACK,TRIM2#

 1
55961 - NOZZLE, SIDE DEFROSTER, NO.1
55961-02230C0

MZEA12,ZRE212..D,S

BLACK,TRIM1#,2#

 1
55962 - NOZZLE, SIDE DEFROSTER, NO.2
55962-02190C0

MZEA12,ZRE212..D,S

BLACK,TRIM1#,2#

 1
73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
73960-02310

MZEA12,ZRE212

 1
Common parts
90080-11699
90080-15073
90105-A0280
90105-A0343
90119-08C96
90119-A0105
90119-A0261
90119-A0312
90119-A0454
90159-60613
90159-A0055
90178-A0023
90178-A0024
90179-06274
90179-06278
90183-05094
90467-05171
91673-80616
Linked diagrams
8202

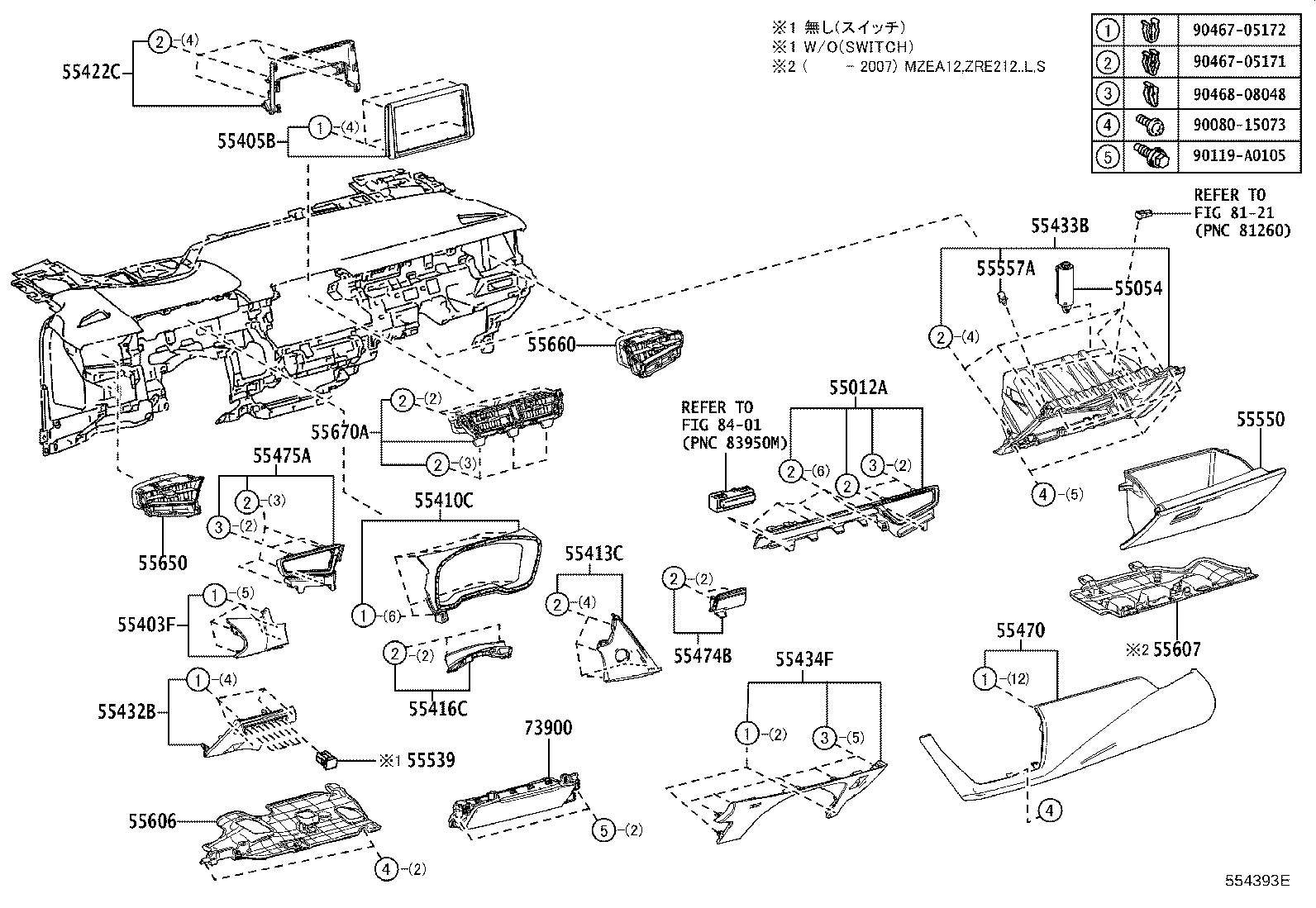

ILLUST NO. 2 OF 2(1903-2107)D ; (1903- )L,S

Click highlighted areas on diagram

diagram 55012A 55054 55403F 55405B 55410C 55413C 55416C 55422C 55432B 55433B 55434F 55470 55474B 55475A 55539 55550 55557A 55606 55607 55650 55660 55670A 73900 8121 8401 9008015073 90119A0105 9046705171 9046705172 9046808048
Part # Description Qty Price
55012A - GARNISH SUB-ASSY, INSTRUMENT PANEL, NO.2
55012-02200C0

MZEA12

BLACK,TRIM2#

 1
55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR
55054-47010

MZEA12

 1
55403F - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH
55403-02610B1

MZEA12

COOL GRAY,TRIM1#,22,23

 1
55403-02610C0

MZEA12

BLACK,TRIM20,21

 1
55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER
55405-02F50B0

MZEA12

SILVER,TRIM2#

 1
55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH
55410-02650C0

MZEA12

SEAT COVER MATERIAL-SPORT LEATHER,BLACK,TRIM2#

 1
55410-02610C0

MZEA12,ZRE212..D,S

BLACK,TRIM1#,2#

 1
55413C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER NO.2
55413-02600C0

MZEA12

BLACK,TRIM20,21

 1
55413-02600B1

MZEA12

COOL GRAY,TRIM1#,22,23

 1
55416C - RETAINER, INSTRUMENT CLUSTER FINISH PANEL
55416-02310

MZEA12,ZRE212

 1
55422C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER UPPER
55422-02700C0

MZEA12,ZRE212..D,S

BLACK,TRIM1#,2#

 1
55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER
55432-02780C0

MZEA12,ZRE212..D,S

BLACK,TRIM1#,2#

 1
55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2
55433-02540C0

MZEA12,ZRE212..D,S

BLACK,TRIM1#,2#

 1
55434F - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER
55434-02310C0

MZEA12,ZRE212..D,S

BLACK,TRIM1#,2#

 1
55470 - GARNISH ASSY, INSTRUMENT CLUSTER FINISH PANEL
55470-02480B1

MZEA12

COOL GRAY,TRIM22,23

 1
55470-02480C0

MZEA12

BLACK,TRIM20,21

 1
55474B - GARNISH, INSTRUMENT CLUSTER FINISH PANEL
55474-02130B0

MZEA12

SILVER,TRIM2#

 1
55475A - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.2
55475-02080C1

MZEA12

BLACK,TRIM2#

 1
55539 - COVER, SPARE SWITCH HOLE
55539-06110

MZEA12,ZRE212

 1
55550 - DOOR ASSY, GLOVE COMPARTMENT
55550-02430C0

MZEA12,ZRE212..D,S

BLACK,TRIM1#,2#

 1
55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK
55557-52030

MZEA12,ZRE212

 2
55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1
55606-02250

MZEA12,ZRE212

 1
55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2
55607-02280

MZEA12,ZRE212..L,S

 1
55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1
55650-02820

MZEA12

 1
55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2
55660-02490

MZEA12

 1
55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER
55670-02790

MZEA12

 1
73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1
73900-02190C0

MZEA12,ZRE212..D,S

BLACK,TRIM1#,2#

 1
Common parts
90080-15073
90119-A0105
90467-05171
90467-05172
90468-08048
Linked diagrams
8121
8401
