MZEA12L-DEFSBJ (2019)

Toyota Corolla (Mexico)

Production Mar 2019 - Jul 2020
Engine M20AFKS
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1903- )M20AFKS

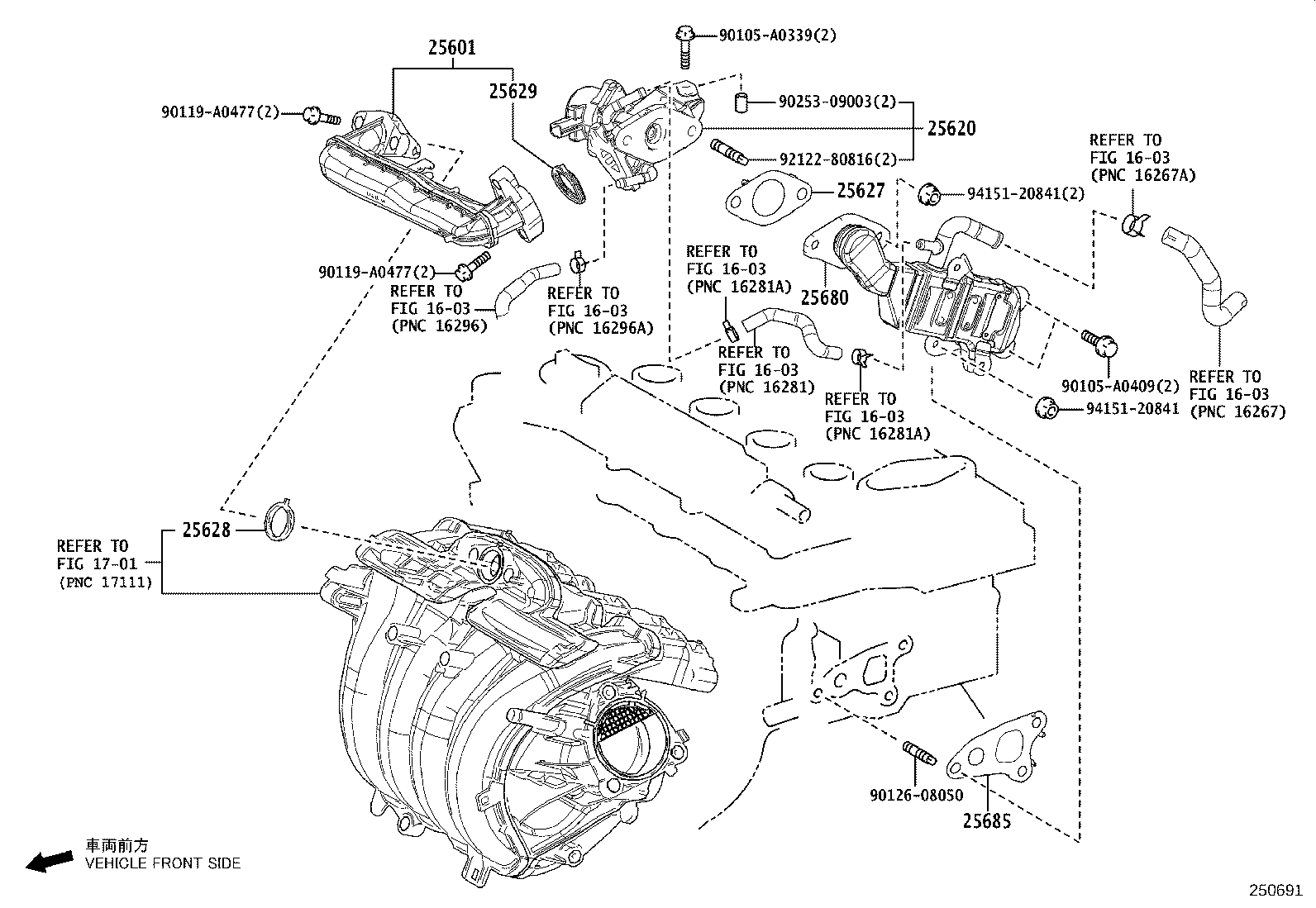

Click highlighted areas on diagram

diagram 1603 1603 1603 1603 1603 1603 1603 1701 25601 25620 25627 25628 25629 25680 25685 90105A0339 90105A0409 90119A0477 90119A0477 9012608050 9025309003 9212280816 9415120841 9415120841
Part # Description Qty Price
25601 - PIPE SUB-ASSY, EGR, NO.1
25601-F2011

M20AFKS..MZEA12

 1
25620 - VALVE ASSY, EGR
25620-F2010

M20AFKS..MZEA12

(L)

 1
25620-24050

M20AFKS..MZEA12

(J)

 1
25627 - GASKET, EGR VALVE
25627-F2010

M20AFKS..MZEA12

 1
25628 - GASKET, EGR INLET
25628-25010

M20AFKS..MZEA12

 1
25629 - GASKET, EGR VALVE ADAPTER
25629-25010

M20AFKS..MZEA12

 1
25680 - COOLER ASSY, EGR
25680-24010

M20AFKS..MZEA12

 1
25685 - GASKET, EGR COOLER, NO.1
25685-25011

M20AFKS..MZEA12

 1
Common parts
90105-A0339
90105-A0409
90119-A0477
90126-08050
90253-09003
92122-80816
94151-20841
Linked diagrams
1603
1701
