MZEA12L-DEFSBJ (2019)
Toyota Corolla (Mexico)
Production
Mar 2019
-
Jul 2020
Engine
M20AFKS
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1903- )M20AFKS

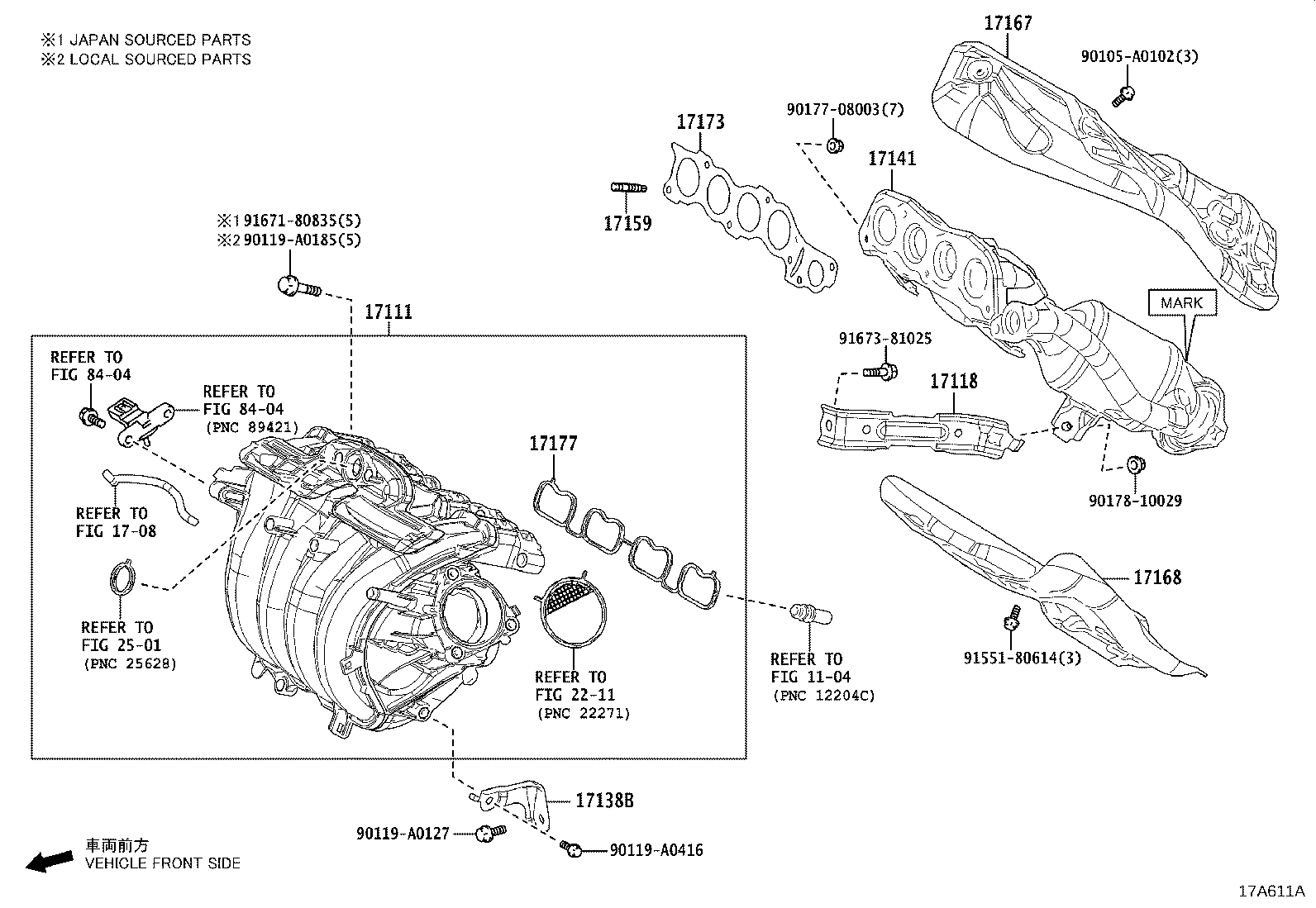

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17111 - MANIFOLD, INTAKE | ||||
| 17120-F2010 |
M20AFKS..MZEA12 |
1 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-24010 |
M20AFKS..MZEA12 |
1 | ||
| 17138B - STAY, INTAKE MANIFOLD | ||||
| 17138-F2010 |
M20AFKS..MZEA12 |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-F2010 |
M20AFKS..MZEA12 (L) |
1 | ||
| 17141-24060 |
M20AFKS..MZEA12 (J) |
1 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90126-A0019 |
M20AFKS..MZEA12 |
7 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-24030 |
M20AFKS..MZEA12 |
1 | ||
| 17167-24030 |
M20AFKS..MZEA12 (J) |
1 | ||
| 17167-F2050 |
M20AFKS..MZEA12 (L) |
1 | ||
| 17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 | ||||
| 17168-24030 |
M20AFKS..MZEA12 |
1 | ||
| 17168-24030 |
M20AFKS..MZEA12 (J) |
1 | ||
| 17168-F2050 |
M20AFKS..MZEA12 (L) |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-F2010 |
M20AFKS..MZEA12 |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17171-24020 |
M20AFKS..MZEA12 |
1 | ||
| Common parts | ||||
| 90105-A0102 | ||||
| 90119-A0127 | ||||
| 90119-A0185 | ||||
| 90119-A0416 | ||||
| 90177-08003 | ||||
| 90178-10029 | ||||
| 91551-80614 | ||||
| 91671-80835 | ||||
| 91673-81025 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1708 | ||||
| 2211 | ||||
| 2501 | ||||
| 8404 | ||||
