MZEA12L-DEFSBJ (2019)
Toyota Corolla (Mexico)
(1903- )M20AFKS

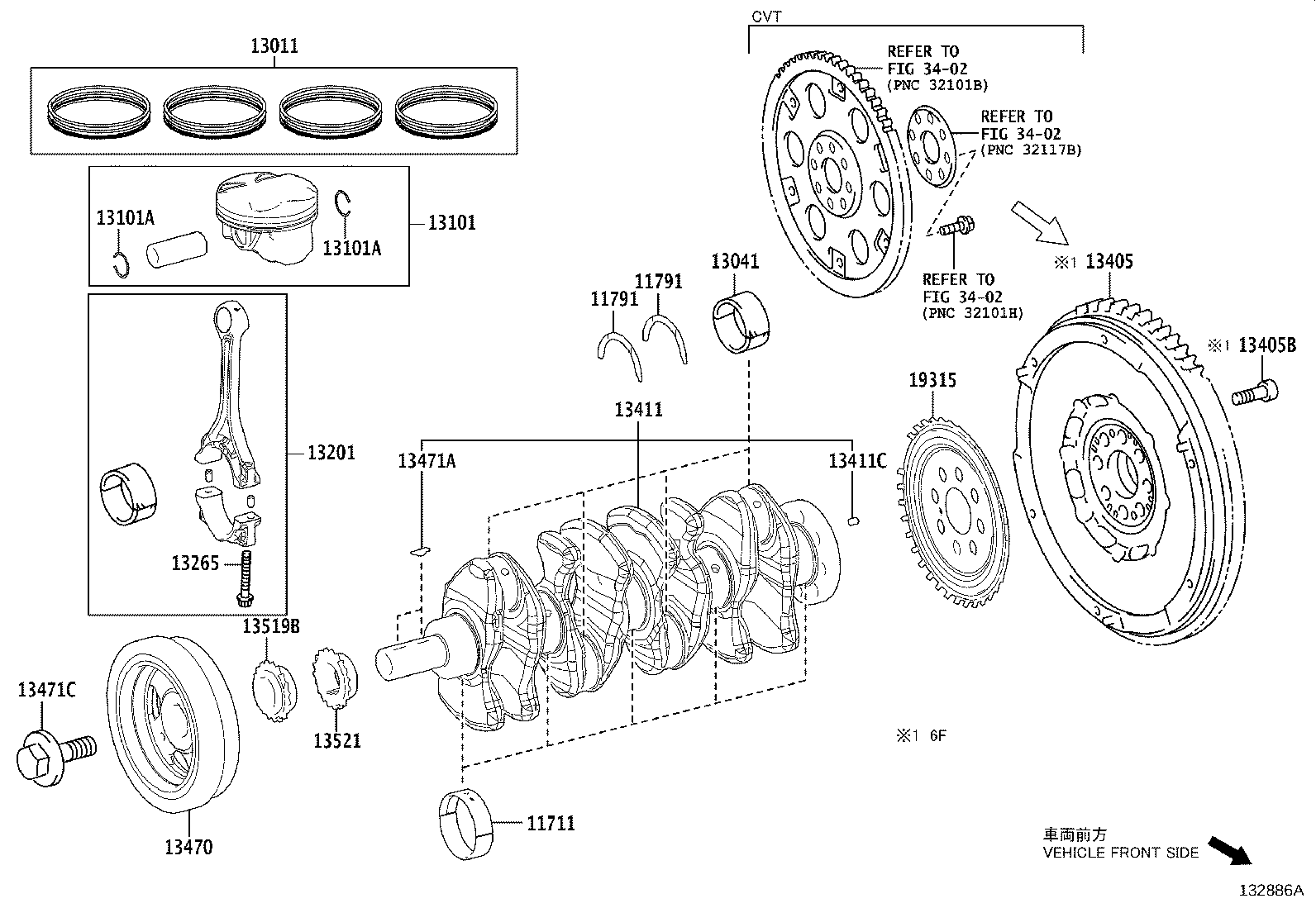

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-F201005 |
M20AFKS..MZEA12 MARK 5,REFER REPAIR MANUAL |
5 | ||
| 11701-F201003 |
M20AFKS..MZEA12 MARK 3,REFER REPAIR MANUAL |
5 | ||
| 11701-F201006 |
M20AFKS..MZEA12 MARK 6,REFER REPAIR MANUAL |
5 | ||
| 11701-F201002 |
M20AFKS..MZEA12 MARK 2,REFER REPAIR MANUAL |
5 | ||
| 11701-F201004 |
M20AFKS..MZEA12 MARK 4,REFER REPAIR MANUAL |
5 | ||
| 11701-F201001 |
M20AFKS..MZEA12 MARK 1,REFER REPAIR MANUAL |
5 | ||
| 11791 - WASHER, CRANKSHAFT THRUST, UPPER | ||||
| 11791-15030 |
M20AFKS..MZEA12 STD,(J) |
2 | ||
| 11791-24030 |
M20AFKS..MZEA12 STD,(J) |
2 | ||
| 11791-F2011 |
M20AFKS..MZEA12 STD,(L) |
2 | ||
| 11791 - WASHER, CRANKSHAFT THRUST, UPPER | ||||
| 11791-15030 |
M20AFKS..MZEA12 STD,(J) |
2 | ||
| 11791-24030 |
M20AFKS..MZEA12 STD,(J) |
2 | ||
| 11791-F2011 |
M20AFKS..MZEA12 STD,(L) |
2 | ||
| 13011 - RING SET, PISTON | ||||
| 13011-24040 |
M20AFKS..MZEA12 STD,(J) |
1 | ||
| 13011-F2010 |
M20AFKS..MZEA12 STD,(L) |
1 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-F203001 |
M20AFKS..MZEA12 MARK 1,REFER REPAIR MANUAL |
4 | ||
| 13041-F203003 |
M20AFKS..MZEA12 MARK 3,REFER REPAIR MANUAL |
4 | ||
| 13041-F203002 |
M20AFKS..MZEA12 MARK 2,REFER REPAIR MANUAL |
4 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13101-F2010 |
M20AFKS..MZEA12 STD |
4 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90520-19019 |
M20AFKS..MZEA12 |
8 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90520-19019 |
M20AFKS..MZEA12 |
8 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-F9050C0 |
M20AFKS..MZEA12 MARK C,REFER REPAIR MANUAL |
4 | ||
| 13201-F9050B0 |
M20AFKS..MZEA12 MARK B,REFER REPAIR MANUAL |
4 | ||
| 13201-F9050A0 |
M20AFKS..MZEA12 MARK A,REFER REPAIR MANUAL |
4 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-25020 |
M20AFKS..MZEA12 (J) |
8 | ||
| 13265-F0010 |
M20AFKS..MZEA12 (L) |
8 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13450-24020 |
M20AFKS..MZEA12..6F |
1 | ||
| 13405B - BOLT, FLYWHEEL SETTING | ||||
| 90110-12015 |
M20AFKS..MZEA12..6F |
8 | ||
| 13411 - CRANKSHAFT | ||||
| 13401-F2010 |
M20AFKS..MZEA12 (L) |
1 | ||
| 13401-24010 |
M20AFKS..MZEA12 (J) |
1 | ||
| 13411C - PIN, STRAIGHT(FOR CRANKSHAFT) | ||||
| 90250-06035 |
M20AFKS..MZEA12 |
1 | ||
| 13470 - PULLEY ASSY, CRANKSHAFT | ||||
| 13470-24010 |
M20AFKS..MZEA12 |
1 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90280-04001 |
M20AFKS..MZEA12 |
2 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90119-A0265 |
M20AFKS..MZEA12 |
1 | ||
| 13519B - SPROCKET, OIL PUMP DRIVE | ||||
| 13519-F2010 |
M20AFKS..MZEA12 |
1 | ||
| 13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING | ||||
| 13521-F2010 |
M20AFKS..MZEA12 |
1 | ||
| 19315 - PLATE, CRANK ANGLE SENSOR, NO.1 | ||||
| 19315-F2010 |
M20AFKS..MZEA12 |
1 | ||
| Linked diagrams | ||||
| 3402 | ||||
