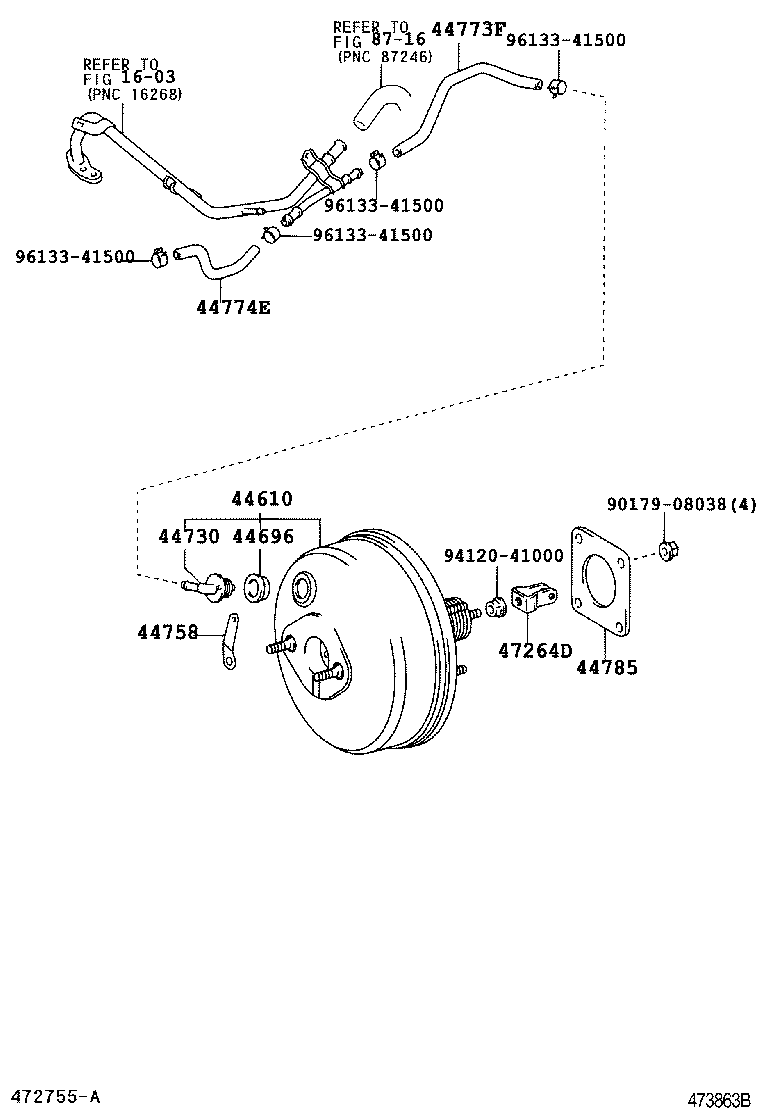

Toyota Corolla (china) ZZE122 BRAKE BOOSTER & VACUUM TUBE

Part #	Description	Period	Qty
44610 - BOOSTER ASSY, BRAKE
44610-1E600	ZZE122 (J)	02/2004 - 05/2007	1
44610-02310	ZZE122 (L)	07/2005 - 05/2007	1
44696 - GROMMET, CHECK VALVE
90480-24439	ZZE122	02/2004 - 05/2007	1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-12070	ZZE122	02/2004 - 05/2007	1
44758 - BRACKET, VACUUM CHECK VALVE
44758-02020	ZZE122	02/2004 - 05/2007	1
44773F - HOSE, UNION TO CHECK VALVE
44773-12870	ZZE122	02/2004 - 05/2007	1
44774E - HOSE, UNION TO CONNECTOR TUBE
44774-12730	ZZE122	02/2004 - 05/2007	1
44785 - GASKET, BRAKE BOOSTER
44785-02030	ZZE122	02/2004 - 05/2007	1
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-12060	ZZE122	02/2004 - 05/2007	1
Common parts
90179-08038
94120-41000
96133-41500
Linked diagrams
1603
8716

ZZE122L-GEPSKC (2004)
