Toyota Corolla (china) ZZE122 VENTILATION HOSE

ZZE122L-GEPSKC (2004)

Toyota Corolla (China)

Production Aug 2004 - May 2007

Engine 1ZZFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

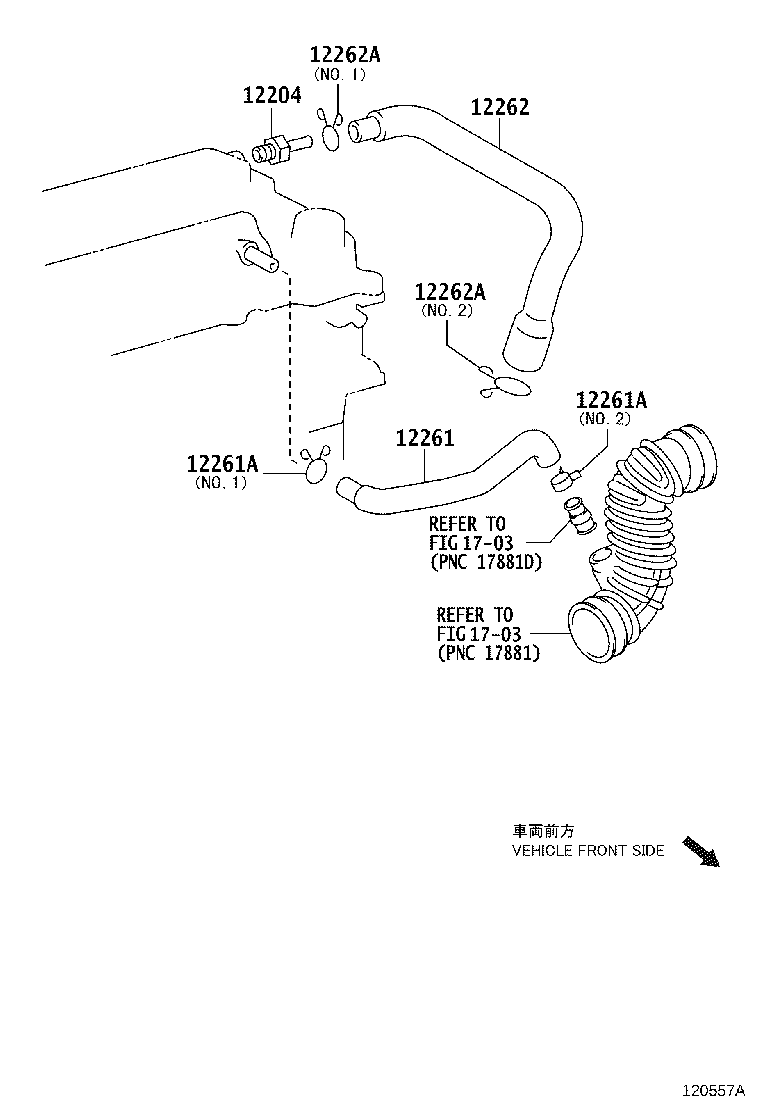

(0506-0606)

Click highlighted areas on diagram

BEIJING SPEC

Part #	Description	Period	Qty
12204 - VALVE SUB-ASSY, VENTILATION
12204-22050	1ZZFE..ZZE122	08/2004 - 06/2005	1
12204-22051	1ZZFE..ZZE122	06/2005 - 05/2007	1
12261 - HOSE, VENTILATION
12261-22050	1ZZFE..ZZE122 (J)	02/2004 - 06/2006	1
12261-0D080	1ZZFE..ZZE122 (L)	02/2004 - 06/2006	1
12261-22070	1ZZFE..ZZE122	06/2006 - 05/2007	1
12261-22070	1ZZFE..ZZE122 BEIJING SPEC,REFER TO FIG 22-11	06/2005 - 06/2006	1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
96134-52600	1ZZFE..ZZE122 BEIJING SPEC,REFER TO FIG 22-11,NO.2	06/2005 - 06/2006	1
96134-52600	1ZZFE..ZZE122 NO.2	06/2006 - 05/2007	1
90467-21152	1ZZFE..ZZE122 BEIJING SPEC,REFER TO FIG 22-11,NO.1	06/2005 - 06/2006	1
90467-21152	1ZZFE..ZZE122 NO.1	06/2006 - 05/2007	1
90467-21152	1ZZFE..ZZE122	02/2004 - 06/2006	2
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
96134-52600	1ZZFE..ZZE122 BEIJING SPEC,REFER TO FIG 22-11,NO.2	06/2005 - 06/2006	1
96134-52600	1ZZFE..ZZE122 NO.2	06/2006 - 05/2007	1
90467-21152	1ZZFE..ZZE122 BEIJING SPEC,REFER TO FIG 22-11,NO.1	06/2005 - 06/2006	1
90467-21152	1ZZFE..ZZE122 NO.1	06/2006 - 05/2007	1
90467-21152	1ZZFE..ZZE122	02/2004 - 06/2006	2
12262 - HOSE, VENTILATION, NO.2
12262-22040	1ZZFE..ZZE122 (J)	02/2004 - 06/2006	1
12262-22040	1ZZFE..ZZE122	06/2006 - 05/2007	1
12262-0D090	1ZZFE..ZZE122 (L)	02/2004 - 06/2006	1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-19003	1ZZFE..ZZE122 NO.2	02/2004 - 06/2006	1
90466-18002	1ZZFE..ZZE122 BEIJING SPEC,REFER TO FIG 22-11,NO.2	06/2005 - 06/2006	1
90466-18002	1ZZFE..ZZE122 NO.2	06/2006 - 05/2007	1
90467-13103	1ZZFE..ZZE122 NO.1	02/2004 - 05/2007	1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-19003	1ZZFE..ZZE122 NO.2	02/2004 - 06/2006	1
90466-18002	1ZZFE..ZZE122 BEIJING SPEC,REFER TO FIG 22-11,NO.2	06/2005 - 06/2006	1
90466-18002	1ZZFE..ZZE122 NO.2	06/2006 - 05/2007	1
90467-13103	1ZZFE..ZZE122 NO.1	02/2004 - 05/2007	1
Linked diagrams
1703

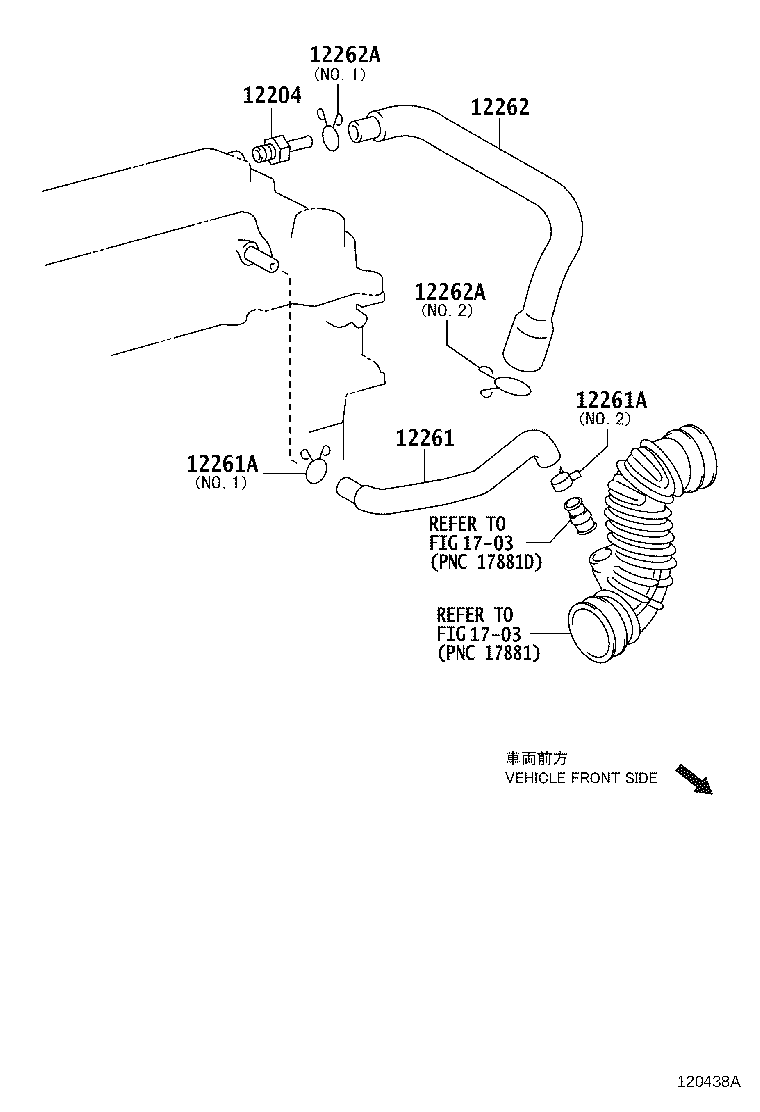

(0606-0705)

Click highlighted areas on diagram

Part #	Description	Period	Qty
12204 - VALVE SUB-ASSY, VENTILATION
12204-22050	1ZZFE..ZZE122	08/2004 - 06/2005	1
12204-22051	1ZZFE..ZZE122	06/2005 - 05/2007	1
12261 - HOSE, VENTILATION
12261-22050	1ZZFE..ZZE122 (J)	02/2004 - 06/2006	1
12261-0D080	1ZZFE..ZZE122 (L)	02/2004 - 06/2006	1
12261-22070	1ZZFE..ZZE122	06/2006 - 05/2007	1
12261-22070	1ZZFE..ZZE122 BEIJING SPEC,REFER TO FIG 22-11	06/2005 - 06/2006	1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
96134-52600	1ZZFE..ZZE122 BEIJING SPEC,REFER TO FIG 22-11,NO.2	06/2005 - 06/2006	1
96134-52600	1ZZFE..ZZE122 NO.2	06/2006 - 05/2007	1
90467-21152	1ZZFE..ZZE122 BEIJING SPEC,REFER TO FIG 22-11,NO.1	06/2005 - 06/2006	1
90467-21152	1ZZFE..ZZE122 NO.1	06/2006 - 05/2007	1
90467-21152	1ZZFE..ZZE122	02/2004 - 06/2006	2
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
96134-52600	1ZZFE..ZZE122 BEIJING SPEC,REFER TO FIG 22-11,NO.2	06/2005 - 06/2006	1
96134-52600	1ZZFE..ZZE122 NO.2	06/2006 - 05/2007	1
90467-21152	1ZZFE..ZZE122 BEIJING SPEC,REFER TO FIG 22-11,NO.1	06/2005 - 06/2006	1
90467-21152	1ZZFE..ZZE122 NO.1	06/2006 - 05/2007	1
90467-21152	1ZZFE..ZZE122	02/2004 - 06/2006	2
12262 - HOSE, VENTILATION, NO.2
12262-22040	1ZZFE..ZZE122 (J)	02/2004 - 06/2006	1
12262-22040	1ZZFE..ZZE122	06/2006 - 05/2007	1
12262-0D090	1ZZFE..ZZE122 (L)	02/2004 - 06/2006	1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-19003	1ZZFE..ZZE122 NO.2	02/2004 - 06/2006	1
90466-18002	1ZZFE..ZZE122 BEIJING SPEC,REFER TO FIG 22-11,NO.2	06/2005 - 06/2006	1
90466-18002	1ZZFE..ZZE122 NO.2	06/2006 - 05/2007	1
90467-13103	1ZZFE..ZZE122 NO.1	02/2004 - 05/2007	1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-19003	1ZZFE..ZZE122 NO.2	02/2004 - 06/2006	1
90466-18002	1ZZFE..ZZE122 BEIJING SPEC,REFER TO FIG 22-11,NO.2	06/2005 - 06/2006	1
90466-18002	1ZZFE..ZZE122 NO.2	06/2006 - 05/2007	1
90467-13103	1ZZFE..ZZE122 NO.1	02/2004 - 05/2007	1
Linked diagrams
1703

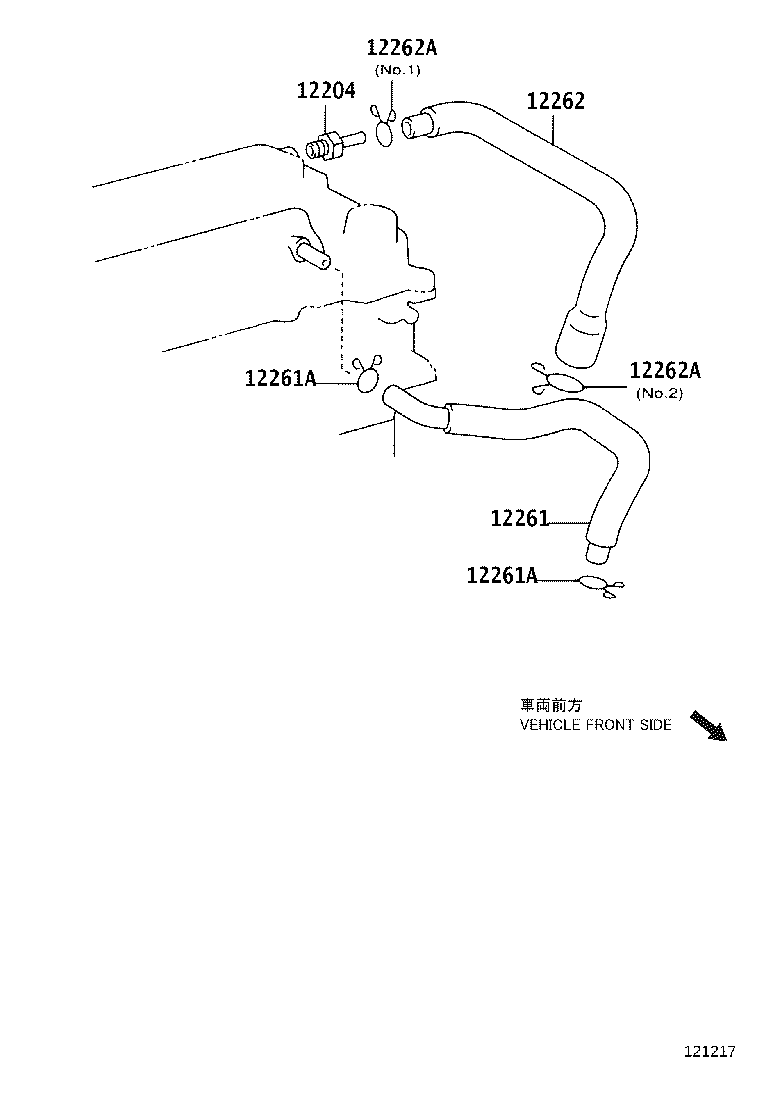

(0402-0606)

Click highlighted areas on diagram

Part #	Description	Period	Qty
12204 - VALVE SUB-ASSY, VENTILATION
12204-22050	1ZZFE..ZZE122	08/2004 - 06/2005	1
12204-22051	1ZZFE..ZZE122	06/2005 - 05/2007	1
12261 - HOSE, VENTILATION
12261-22050	1ZZFE..ZZE122 (J)	02/2004 - 06/2006	1
12261-0D080	1ZZFE..ZZE122 (L)	02/2004 - 06/2006	1
12261-22070	1ZZFE..ZZE122	06/2006 - 05/2007	1
12261-22070	1ZZFE..ZZE122 BEIJING SPEC,REFER TO FIG 22-11	06/2005 - 06/2006	1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
96134-52600	1ZZFE..ZZE122 BEIJING SPEC,REFER TO FIG 22-11,NO.2	06/2005 - 06/2006	1
96134-52600	1ZZFE..ZZE122 NO.2	06/2006 - 05/2007	1
90467-21152	1ZZFE..ZZE122 BEIJING SPEC,REFER TO FIG 22-11,NO.1	06/2005 - 06/2006	1
90467-21152	1ZZFE..ZZE122 NO.1	06/2006 - 05/2007	1
90467-21152	1ZZFE..ZZE122	02/2004 - 06/2006	2
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
96134-52600	1ZZFE..ZZE122 BEIJING SPEC,REFER TO FIG 22-11,NO.2	06/2005 - 06/2006	1
96134-52600	1ZZFE..ZZE122 NO.2	06/2006 - 05/2007	1
90467-21152	1ZZFE..ZZE122 BEIJING SPEC,REFER TO FIG 22-11,NO.1	06/2005 - 06/2006	1
90467-21152	1ZZFE..ZZE122 NO.1	06/2006 - 05/2007	1
90467-21152	1ZZFE..ZZE122	02/2004 - 06/2006	2
12262 - HOSE, VENTILATION, NO.2
12262-22040	1ZZFE..ZZE122 (J)	02/2004 - 06/2006	1
12262-22040	1ZZFE..ZZE122	06/2006 - 05/2007	1
12262-0D090	1ZZFE..ZZE122 (L)	02/2004 - 06/2006	1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-19003	1ZZFE..ZZE122 NO.2	02/2004 - 06/2006	1
90466-18002	1ZZFE..ZZE122 BEIJING SPEC,REFER TO FIG 22-11,NO.2	06/2005 - 06/2006	1
90466-18002	1ZZFE..ZZE122 NO.2	06/2006 - 05/2007	1
90467-13103	1ZZFE..ZZE122 NO.1	02/2004 - 05/2007	1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-19003	1ZZFE..ZZE122 NO.2	02/2004 - 06/2006	1
90466-18002	1ZZFE..ZZE122 BEIJING SPEC,REFER TO FIG 22-11,NO.2	06/2005 - 06/2006	1
90466-18002	1ZZFE..ZZE122 NO.2	06/2006 - 05/2007	1
90467-13103	1ZZFE..ZZE122 NO.1	02/2004 - 05/2007	1
