ZZE122L-GEPEKC (2004)

Toyota Corolla (China)

Production Feb 2004 - May 2007
Engine 1ZZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0402- )1ZZFE

Click highlighted areas on diagram

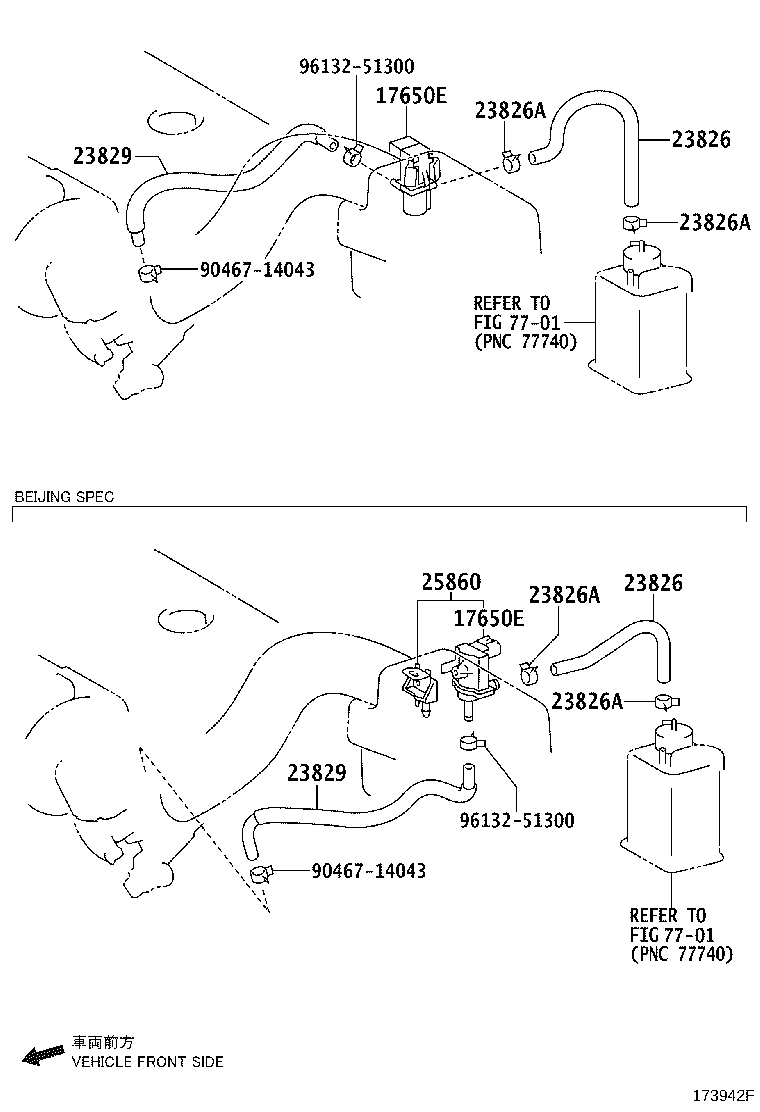

diagram 17650E 17650E 23826 23826 23826A 23826A 23826A 23826A 23829 23829 25860 7701 7701 9046714043 9046714043 9613251300 9613251300
Part # Description Qty Price
17650E - VALVE, VACUUM SWITCHING
90910-12257

1ZZFE..ZZE122

 1
90910-12273

1ZZFE..ZZE122

 1
90910-12273

1ZZFE..ZZE122

BEIJING SPEC,REFER TO FIG 22-11

 1
17650E - VALVE, VACUUM SWITCHING
90910-12257

1ZZFE..ZZE122

 1
90910-12273

1ZZFE..ZZE122

 1
90910-12273

1ZZFE..ZZE122

BEIJING SPEC,REFER TO FIG 22-11

 1
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-21030

1ZZFE..ZZE122

 1
23826-22140

1ZZFE..ZZE122

BEIJING SPEC,REFER TO FIG 22-11

 1
23826-22140

1ZZFE..ZZE122

 1
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-21030

1ZZFE..ZZE122

 1
23826-22140

1ZZFE..ZZE122

BEIJING SPEC,REFER TO FIG 22-11

 1
23826-22140

1ZZFE..ZZE122

 1
23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
96132-51100

1ZZFE..ZZE122

 2
23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
96132-51100

1ZZFE..ZZE122

 2
23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
96132-51100

1ZZFE..ZZE122

 2
23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
96132-51100

1ZZFE..ZZE122

 2
23829 - HOSE, FUEL VAPOR FEED, NO.3
23829-0D070

1ZZFE..ZZE122

(L)

 1
23829-22110

1ZZFE..ZZE122

 1
23829-22110

1ZZFE..ZZE122

BEIJING SPEC,REFER TO FIG 22-11

 1
23829-22080

1ZZFE..ZZE122

(J)

 1
23829 - HOSE, FUEL VAPOR FEED, NO.3
23829-0D070

1ZZFE..ZZE122

(L)

 1
23829-22110

1ZZFE..ZZE122

 1
23829-22110

1ZZFE..ZZE122

BEIJING SPEC,REFER TO FIG 22-11

 1
23829-22080

1ZZFE..ZZE122

(J)

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-28130

1ZZFE..ZZE122

BEIJING SPEC,REFER TO FIG 22-11

 1
25860-28130

1ZZFE..ZZE122

 1
Common parts
90467-14043
96132-51300
Linked diagrams
7701
