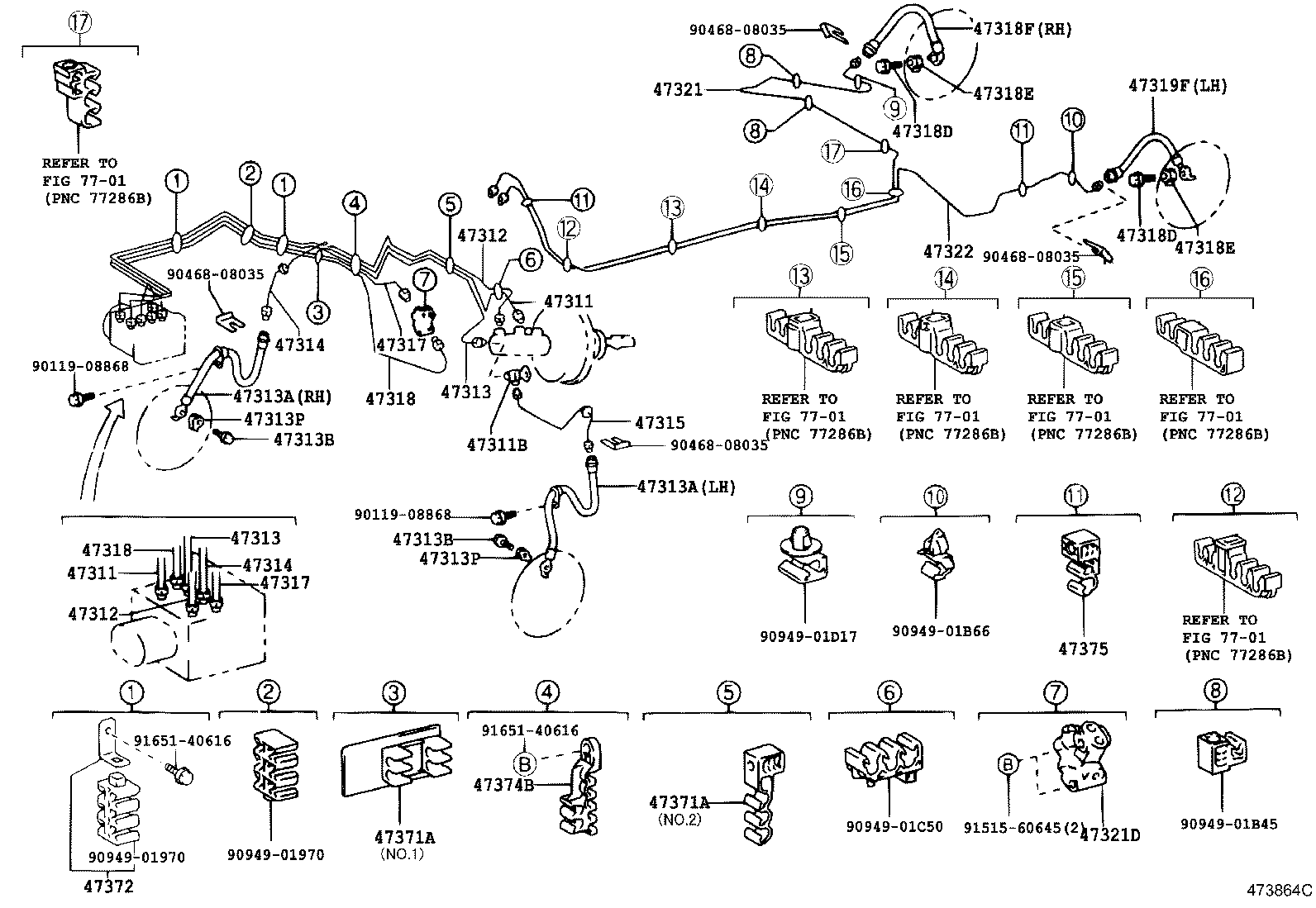

Toyota Corolla (china) ZZE122 BRAKE TUBE & CLAMP

Part #	Description	Period	Qty
47311 - TUBE, FRONT BRAKE, NO.1
47311-02470	ZZE122	02/2004 - 05/2007	1
47311 - TUBE, FRONT BRAKE, NO.1
47311-02470	ZZE122	02/2004 - 05/2007	1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90904-12051	ZZE122	02/2004 - 05/2007	1
47312 - TUBE, FRONT BRAKE, NO.2
47312-02350	ZZE122	02/2004 - 05/2007	1
47312 - TUBE, FRONT BRAKE, NO.2
47312-02350	ZZE122	02/2004 - 05/2007	1
47313 - TUBE, FRONT BRAKE, NO.3
47313-02420	ZZE122	02/2004 - 05/2007	1
47313 - TUBE, FRONT BRAKE, NO.3
47313-02420	ZZE122	02/2004 - 05/2007	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-T2021	ZZE122 RH	02/2004 - 10/2006	1
90947-T2022	ZZE122 LH	02/2004 - 10/2006	1
90947-C2021	ZZE122 RH	11/2006 - 05/2007	1
90947-C2022	ZZE122 LH	11/2006 - 05/2007	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-T2021	ZZE122 RH	02/2004 - 10/2006	1
90947-T2022	ZZE122 LH	02/2004 - 10/2006	1
90947-C2021	ZZE122 RH	11/2006 - 05/2007	1
90947-C2022	ZZE122 LH	11/2006 - 05/2007	1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058	ZZE122	02/2004 - 05/2007	2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058	ZZE122	02/2004 - 05/2007	2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020	ZZE122	02/2004 - 05/2007	2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020	ZZE122	02/2004 - 05/2007	2
47314 - TUBE, FRONT BRAKE, NO.4
47314-02400	ZZE122	02/2004 - 05/2007	1
47314 - TUBE, FRONT BRAKE, NO.4
47314-02400	ZZE122	02/2004 - 05/2007	1
47315 - TUBE, FRONT BRAKE, NO.5
47315-02350	ZZE122	02/2004 - 05/2007	1
47317 - TUBE, FRONT BRAKE, NO.7
47317-02330	ZZE122	02/2004 - 05/2007	1
47317 - TUBE, FRONT BRAKE, NO.7
47317-02330	ZZE122	02/2004 - 05/2007	1
47318 - TUBE, FRONT BRAKE, NO.8
47318-02350	ZZE122	02/2004 - 05/2007	1
47318 - TUBE, FRONT BRAKE, NO.8
47318-02350	ZZE122	02/2004 - 05/2007	1
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058	ZZE122	02/2004 - 05/2007	2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058	ZZE122	02/2004 - 05/2007	2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020	ZZE122	02/2004 - 05/2007	2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020	ZZE122	02/2004 - 05/2007	2
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-T2020	ZZE122	02/2004 - 10/2006	1
90947-C2020	ZZE122	11/2006 - 05/2007	1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-T2020	ZZE122	02/2004 - 10/2006	1
90947-C2020	ZZE122	11/2006 - 05/2007	1
47321 - TUBE, REAR BRAKE, NO.1
47321-02180	ZZE122	02/2004 - 05/2007	1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90904-12088	ZZE122	02/2004 - 05/2007	1
47322 - TUBE, REAR BRAKE, NO.2
47322-02180	ZZE122	02/2004 - 05/2007	1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-52010	ZZE122 NO.2	02/2004 - 05/2007	1
47371-12230	ZZE122 NO.1	02/2004 - 05/2007	1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-52010	ZZE122 NO.2	02/2004 - 05/2007	1
47371-12230	ZZE122 NO.1	02/2004 - 05/2007	1
47372 - CLAMP, BRAKE TUBE, NO.2
47374-12050	ZZE122	02/2004 - 05/2007	2
47374B - CLAMP, BRAKE TUBE, NO.4
47372-52010	ZZE122	02/2004 - 05/2007	1
47375 - CLAMP, BRAKE TUBE, NO.5
77299-32030	ZZE122	02/2004 - 05/2007	2
Common parts
90119-08868
90468-08035
90949-01970
90949-01B45
90949-01B66
90949-01C50
90949-01D17
91515-60645
91651-40616
Linked diagrams
7701

ZZE122L-GEMSKC (2005)

ILLUST NO. 1 OF 2(0402-0705)

ILLUST NO. 2 OF 2(0402-0705)

Part Price Details

Part #	Description	Period	Qty

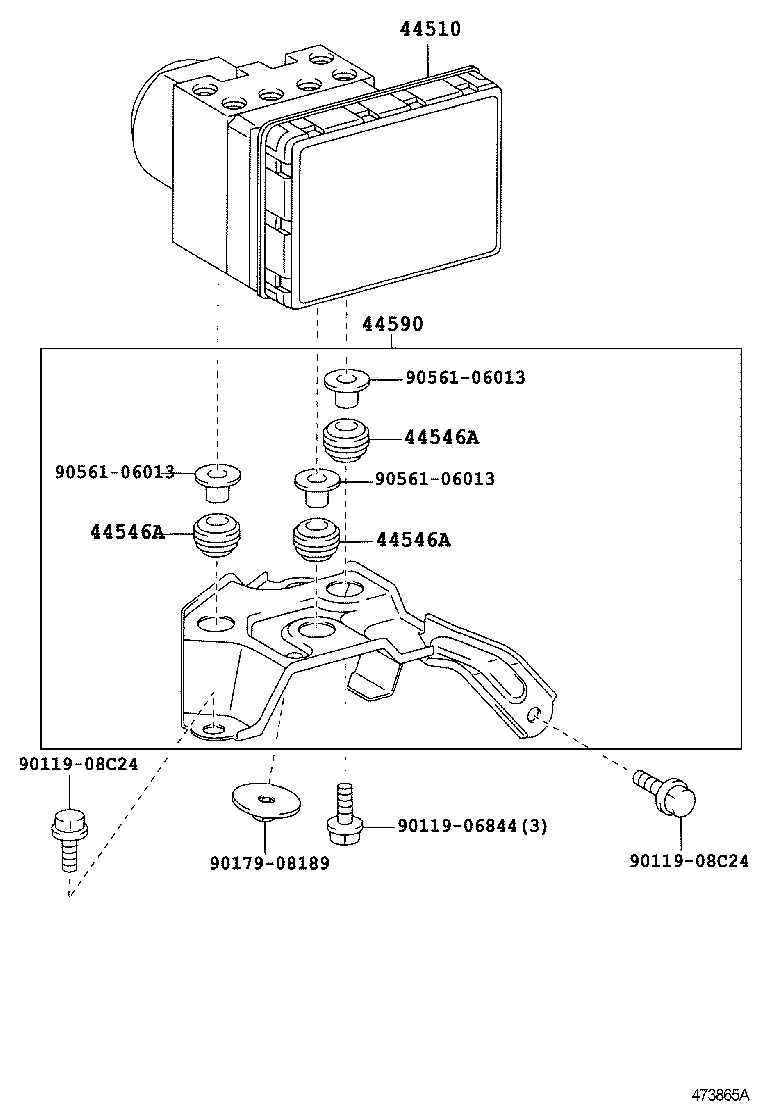

44510 - ACTUATOR ASSY, BRAKE
44050-13070	ZZE122	02/2004 - 05/2007	1
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12100	ZZE122	02/2004 - 05/2007	3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12100	ZZE122	02/2004 - 05/2007	3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12100	ZZE122	02/2004 - 05/2007	3
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-12060	ZZE122	02/2004 - 05/2007	1
Common parts
90119-06844
90119-08C24
90179-08189
90561-06013
