ZZE122L-GEMEKC (2005)
Toyota Corolla (China)

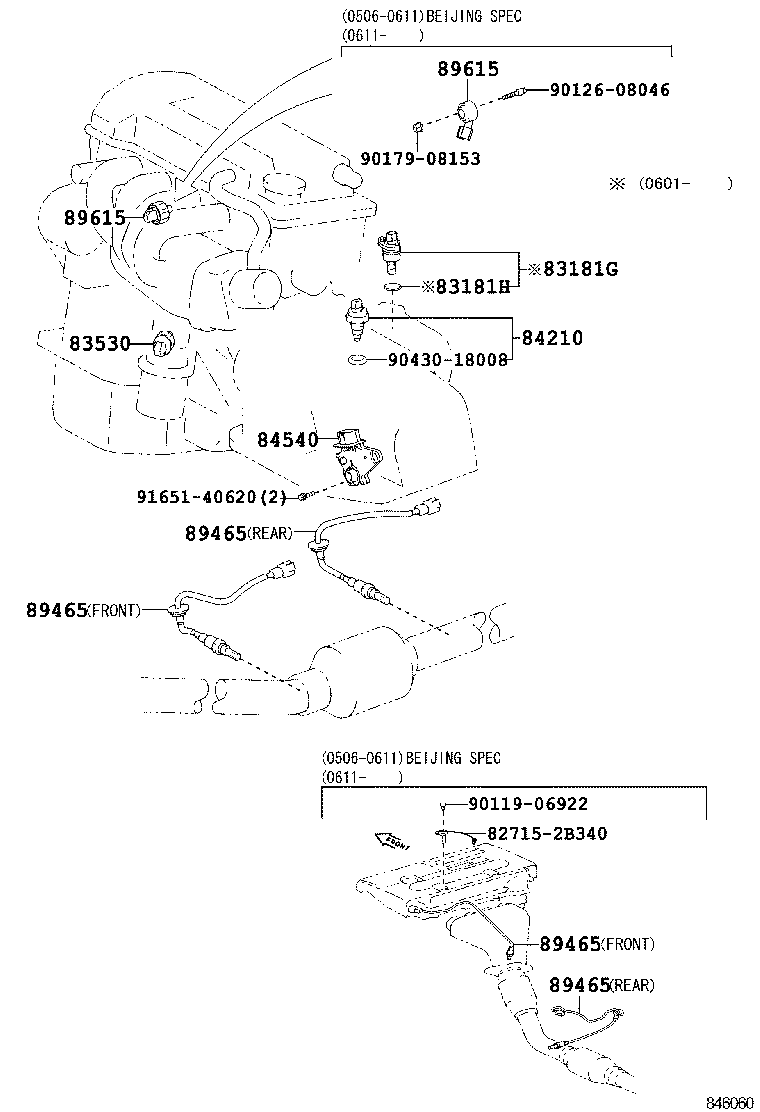

ILLUST NO. 1 OF 7(0402-0705)
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83181G - SENSOR, SPEEDOMETER | ||||
| 83181-12020 |
ZZE122..5F..GLI |
1 | ||
| 83181H - RING, O (FOR SPEEDOMETER SENSOR) | ||||
| 96711-24030 |
ZZE122..5F..GLI |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-60020 |
ZZE122 YAZAKI |
1 | ||
| 83530-28020 |
ZZE122 DENSO |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
ZZE122..5F |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-12750 |
ZZE122 BEIJING SPEC,REFER TO FIG 22-11,FRONT |
1 | ||
| 89465-12760 |
ZZE122 REAR |
1 | ||
| 89465-12700 |
ZZE122 REAR |
1 | ||
| 89465-12620 |
ZZE122 FRONT |
1 | ||
| 89465-12760 |
ZZE122 BEIJING SPEC,REFER TO FIG 22-11,REAR |
1 | ||
| 89465-12750 |
ZZE122 FRONT |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-12750 |
ZZE122 BEIJING SPEC,REFER TO FIG 22-11,FRONT |
1 | ||
| 89465-12760 |
ZZE122 REAR |
1 | ||
| 89465-12700 |
ZZE122 REAR |
1 | ||
| 89465-12620 |
ZZE122 FRONT |
1 | ||
| 89465-12760 |
ZZE122 BEIJING SPEC,REFER TO FIG 22-11,REAR |
1 | ||
| 89465-12750 |
ZZE122 FRONT |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-12750 |
ZZE122 BEIJING SPEC,REFER TO FIG 22-11,FRONT |
1 | ||
| 89465-12760 |
ZZE122 REAR |
1 | ||
| 89465-12700 |
ZZE122 REAR |
1 | ||
| 89465-12620 |
ZZE122 FRONT |
1 | ||
| 89465-12760 |
ZZE122 BEIJING SPEC,REFER TO FIG 22-11,REAR |
1 | ||
| 89465-12750 |
ZZE122 FRONT |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-12750 |
ZZE122 BEIJING SPEC,REFER TO FIG 22-11,FRONT |
1 | ||
| 89465-12760 |
ZZE122 REAR |
1 | ||
| 89465-12700 |
ZZE122 REAR |
1 | ||
| 89465-12620 |
ZZE122 FRONT |
1 | ||
| 89465-12760 |
ZZE122 BEIJING SPEC,REFER TO FIG 22-11,REAR |
1 | ||
| 89465-12750 |
ZZE122 FRONT |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
ZZE122 BEIJING SPEC,REFER TO FIG 22-11 |
1 | ||
| 89615-20090 |
ZZE122 |
1 | ||
| 89615-12120 |
ZZE122 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
ZZE122 BEIJING SPEC,REFER TO FIG 22-11 |
1 | ||
| 89615-20090 |
ZZE122 |
1 | ||
| 89615-12120 |
ZZE122 |
1 | ||
| Common parts | ||||
| 82715-2B340 | ||||
| 90119-06922 | ||||
| 90126-08046 | ||||
| 90179-08153 | ||||
| 90430-18008 | ||||
| 91651-40620 | ||||

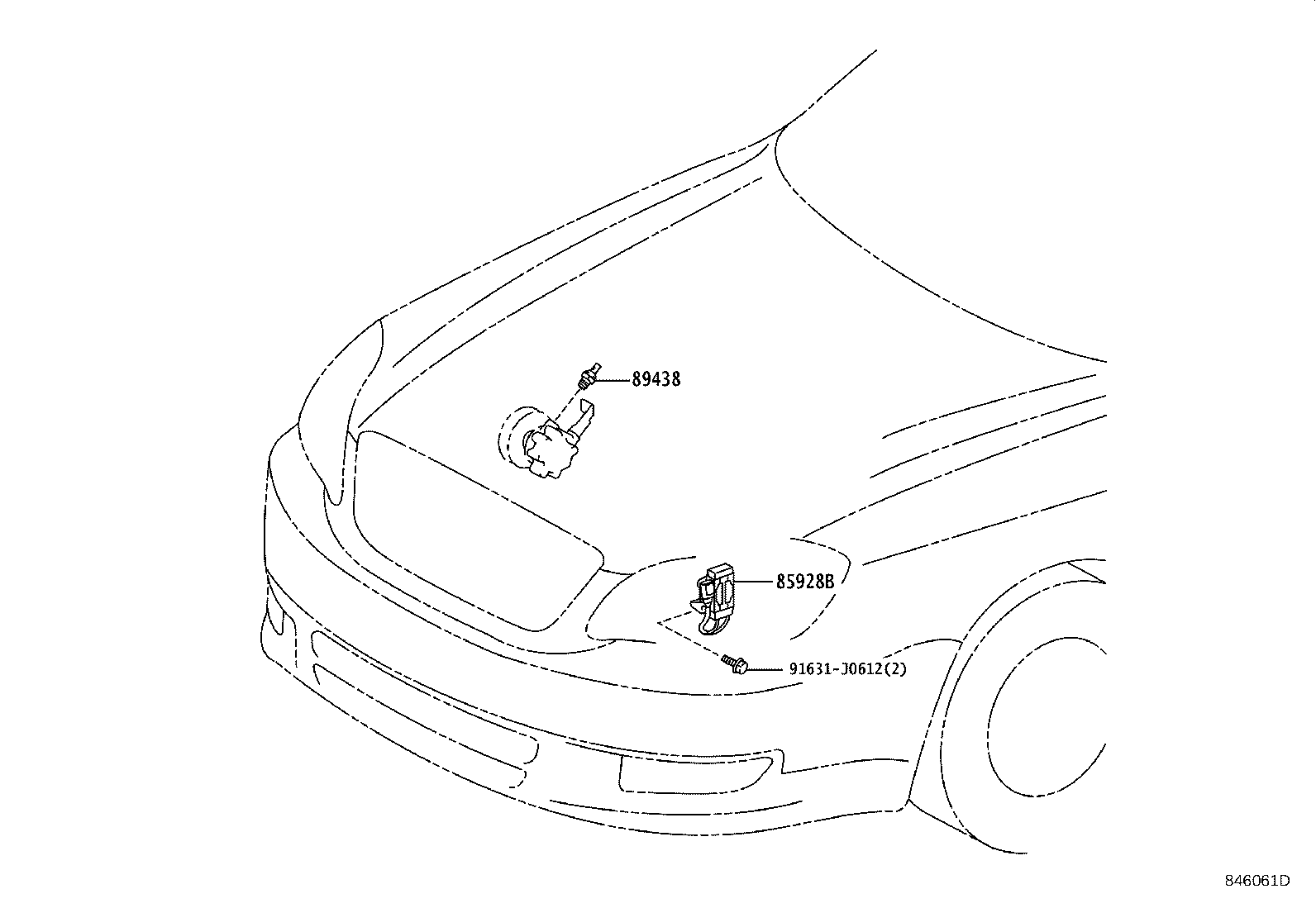

ILLUST NO. 2 OF 7(0402-0705)
ENGINE ROOM 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85928B - RESISTOR, COOLING FAN | ||||
| 85928-12010 |
ZZE122 |
1 | ||
| 89438 - SWITCH, POWER STEERING OIL PRESSURE | ||||
| 89438-33010 |
ZZE122 |
1 | ||
| Common parts | ||||
| 91631-J0612 | ||||
ILLUST NO. 4 OF 7(0402-1210)
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-28010 |
1ZZFE..ZZE122 |
1 | ||
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-T2005 |
1ZZFE..ZZE122 |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-02040 |
ZZE122 |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08246 |
ZZE122 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08280 |
ZZE122 30A,TERM.:FEMALE,PNK,INSTRUMENT PANEL J/B |
1 | ||
| 90982-08283 |
ZZE122 30A,TERM.:FEMALE,PNK,ENGINE ROOM J/B |
1 | ||
| 90982-08284 |
ZZE122 40A,TERM.:FEMALE,GRN,ENGINE ROOM J/B |
1 | ||
| 90982-08281 |
ZZE122 40A,TERM.:FEMALE,GRN,INSTRUMENT PANEL J/B |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08246 |
ZZE122 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08280 |
ZZE122 30A,TERM.:FEMALE,PNK,INSTRUMENT PANEL J/B |
1 | ||
| 90982-08283 |
ZZE122 30A,TERM.:FEMALE,PNK,ENGINE ROOM J/B |
1 | ||
| 90982-08284 |
ZZE122 40A,TERM.:FEMALE,GRN,ENGINE ROOM J/B |
1 | ||
| 90982-08281 |
ZZE122 40A,TERM.:FEMALE,GRN,INSTRUMENT PANEL J/B |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09010 |
ZZE122 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09008 |
ZZE122 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09013 |
ZZE122 30A,MINI FUSE,GRN |
1 | ||
| 90982-09012 |
ZZE122 25A,MINI FUSE |
1 | ||
| 90982-09009 |
ZZE122 10A,MINI FUSE,RED |
1 | ||
| 90982-09007 |
ZZE122 5A,MINI FUSE,TAN |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09010 |
ZZE122 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09008 |
ZZE122 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09013 |
ZZE122 30A,MINI FUSE,GRN |
1 | ||
| 90982-09012 |
ZZE122 25A,MINI FUSE |
1 | ||
| 90982-09009 |
ZZE122 10A,MINI FUSE,RED |
1 | ||
| 90982-09007 |
ZZE122 5A,MINI FUSE,TAN |
1 | ||
| 82611 - COVER, FUSE BLOCK | ||||
| 82611-12140 |
ZZE122 |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-12200 |
ZZE122..GLI |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-12400 |
ZZE122 |
1 | ||
| 82672B - COVER, JUNCTION BLOCK | ||||
| 82672-12410 |
ZZE122 |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-12050 |
ZZE122 |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-12060 |
ZZE122 |
1 | ||
| 82673C - BRACKET, JUNCTION BLOCK | ||||
| 82673-12080 |
ZZE122 |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-12150 |
ZZE122 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32050 |
ZZE122 |
1 | ||
| 84340-47020 |
ZZE122 |
1 | ||
| 84340-47020 |
ZZE122 BEIJING SPEC,REFER TO FIG 22-11 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-33010 |
ZZE122 |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-T4002 |
ZZE122 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-T2005 |
ZZE122..GLI |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-T2005 |
ZZE122 |
1 | ||
| 85930 - RELAY ASSY, POWER WINDOW | ||||
| 90987-T2005 |
ZZE122 |
1 | ||
| Common parts | ||||
| 90159-50295 | ||||
| 90159-60546 | ||||
| 90159-60547 | ||||
| 90159-C0002 | ||||
| 90178-C0032 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8404 | ||||
ILLUST NO. 5 OF 7(0402-1210)
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84162A - SWITCH, REAR FOG LAMP | ||||
| 84165-12060 |
ZZE122 |
1 | ||
| 84162C - BULB (FOR REAR FOG LAMP SWITCH) | ||||
| 90010-09012 |
ZZE122 14V40MA,W(GREEN CAP) |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-12450 |
ZZE122..GLI |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10310 |
ZZE122..GLI 14V 0.91W |
1 | ||
| 84656A - BEZEL, SWITCH | ||||
| 84656-12140A0 |
ZZE122..GLI,GLXI IVORY,TRIM0# |
1 | ||
| 84656-12130A0 |
ZZE122..5F..GLI ELECTRIC REMOTE CONTROL DOOR MIRROR,IVORY,TRIM0# |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-12190 |
ZZE122..GLI |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 90010-01060 |
ZZE122..GLI 14V0.84W,W/GREEN CAP |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-52030 |
ZZE122..5F..GLI ELECTRIC REMOTE CONTROL DOOR MIRROR |
1 | ||
| 84872-52040 |
ZZE122 |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-12240 |
ZZE122 |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-12240 |
ZZE122 |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90010-01065 |
ZZE122 14V1.4W,W(GREEN CAP) |
1 | ||
| 85510 - SOCKET & RETAINER ASSY, CIGARLIGHTER | ||||
| 85510-16040 |
ZZE122 |
1 | ||
| 85510 - SOCKET & RETAINER ASSY, CIGARLIGHTER | ||||
| 85510-16040 |
ZZE122 |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-28010 |
ZZE122 TYPE B:REFER ILLUST. |
1 | ||
| 85513-12020 |
ZZE122 TYPE A:REFER ILLUST. |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-28010 |
ZZE122 TYPE B:REFER ILLUST. |
1 | ||
| 85513-12020 |
ZZE122 TYPE A:REFER ILLUST. |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-28010 |
ZZE122 TYPE B:REFER ILLUST. |
1 | ||
| 85513-12020 |
ZZE122 TYPE A:REFER ILLUST. |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-12110 |
ZZE122 |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
ZZE122 |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
ZZE122 |
1 | ||
| 88607C - LAMP SUB-ASSY, INDICATOR | ||||
| 90010-03044 |
ZZE122..GLI 14V0.84W,W/GREEN CAP |
1 | ||
| Linked diagrams | ||||
| 8302 | ||||
| 8410 | ||||
| 8417 | ||||

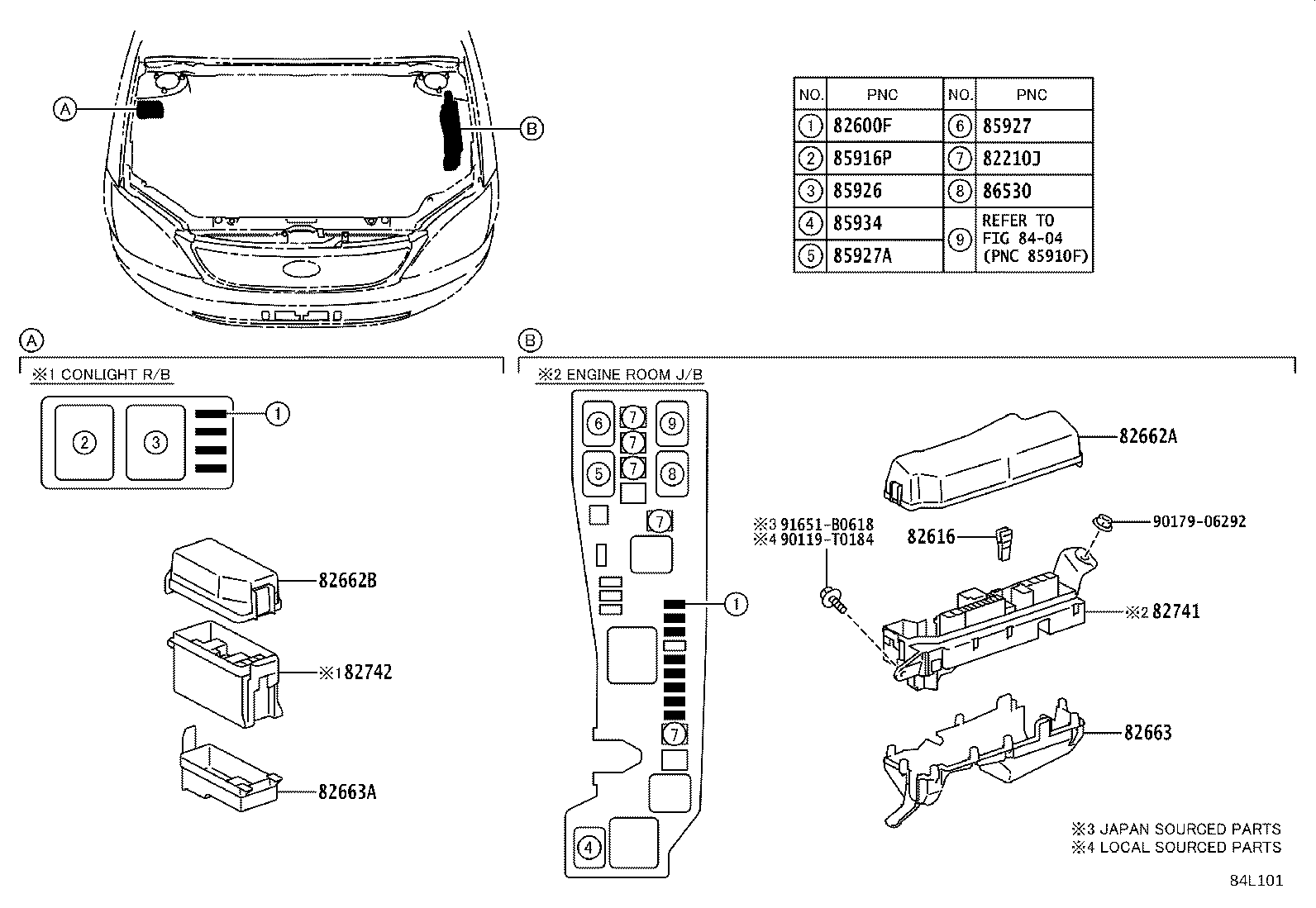

ILLUST NO. 3 OF 7(0402-0705)
ENGINE ROOM 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210J - FUSIBLE LINK | ||||
| 90982-08246 |
ZZE122 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08280 |
ZZE122 30A,TERM.:FEMALE,PNK,INSTRUMENT PANEL J/B |
1 | ||
| 90982-08283 |
ZZE122 30A,TERM.:FEMALE,PNK,ENGINE ROOM J/B |
1 | ||
| 90982-08284 |
ZZE122 40A,TERM.:FEMALE,GRN,ENGINE ROOM J/B |
1 | ||
| 90982-08281 |
ZZE122 40A,TERM.:FEMALE,GRN,INSTRUMENT PANEL J/B |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09010 |
ZZE122 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09008 |
ZZE122 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09013 |
ZZE122 30A,MINI FUSE,GRN |
1 | ||
| 90982-09012 |
ZZE122 25A,MINI FUSE |
1 | ||
| 90982-09009 |
ZZE122 10A,MINI FUSE,RED |
1 | ||
| 90982-09007 |
ZZE122 5A,MINI FUSE,TAN |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-20010 |
ZZE122 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-12221 |
ZZE122 |
1 | ||
| 82662-12220 |
ZZE122 |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-12010 |
ZZE122 |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-12020 |
ZZE122 |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02027 |
ZZE122 (J) |
1 | ||
| 90987-T2005 |
ZZE122 (L) |
1 | ||
| 90987-T2005 |
ZZE122 |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-T4001 |
ZZE122 |
1 | ||
| 90987-04004 |
ZZE122 (J) |
1 | ||
| 90987-T4001 |
ZZE122 (L) |
1 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90987-02028 |
ZZE122 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-T2005 |
ZZE122 |
1 | ||
| Common parts | ||||
| 90119-T0184 | ||||
| 90179-06292 | ||||
| 91651-B0618 | ||||
| Linked diagrams | ||||
| 8404 | ||||
