ZWE183L-GEXVBC (2019)

Toyota Corolla (China)

Production Mar 2019 - Sep 9999
Engine 8ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1903- )

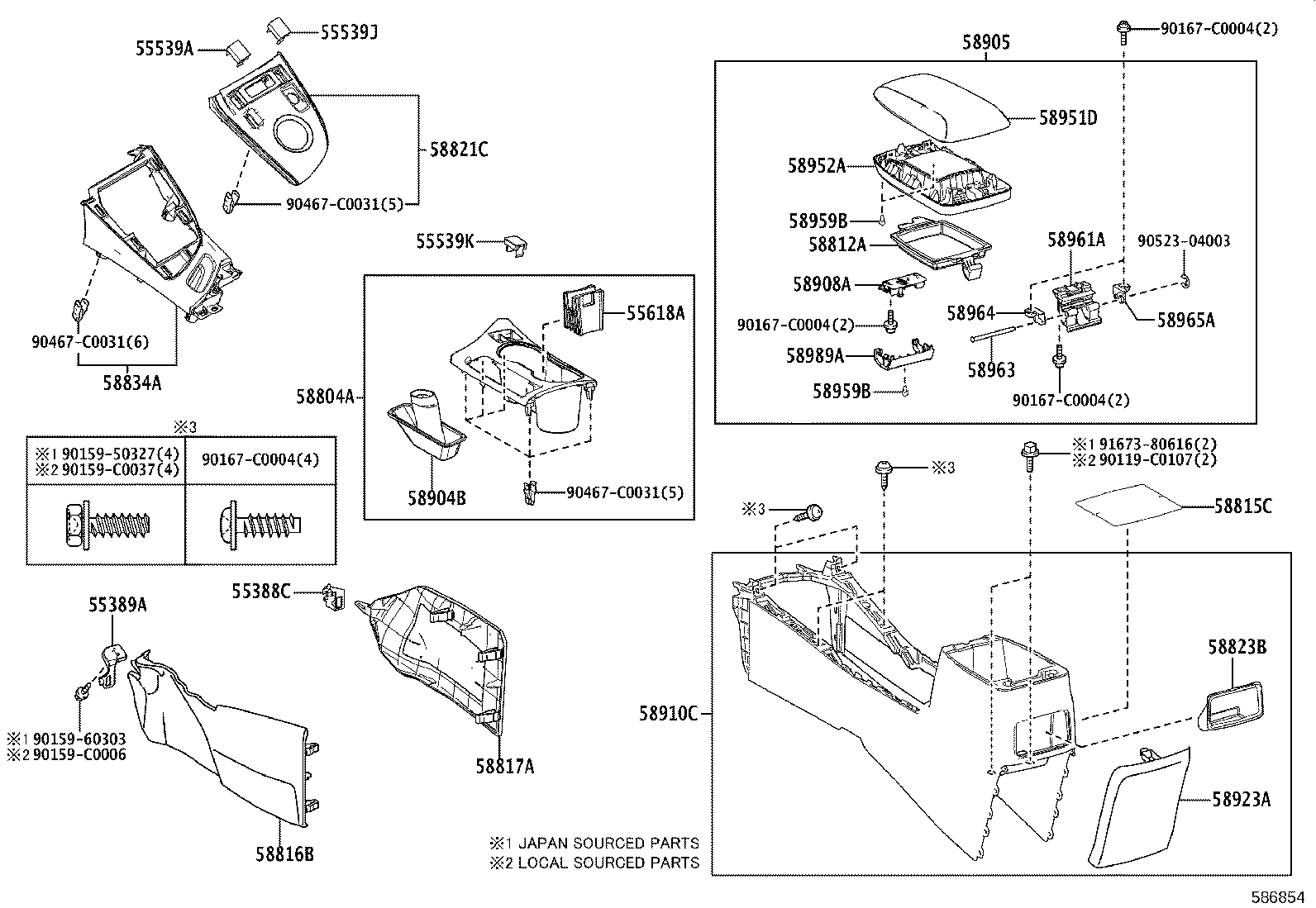

Click highlighted areas on diagram

diagram 55388C 55389A 55539A 55539J 55539K 55618A 58804A 58812A 58815C 58816B 58817A 58821C 58823B 58834A 58904B 58905 58908A 58910C 58923A 58951D 58952A 58959B 58959B 58961A 58963 58964 58965A 58989A 90119C0107 9015950327 9015960303 90159C0006 90159C0037 90167C0004 90167C0004 90167C0004 90167C0004 90467C0031 90467C0031 90467C0031 9052304003 9167380616
Part # Description Qty Price
55388C - BRACKET, CONSOLE MOUNTING, RH
55388-02180

ZWE183

 1
55389A - BRACKET, CONSOLE MOUNTING, LH
55389-02160

ZWE183

 1
55539A - COVER, SPARE SWITCH HOLE
55539-0R020C0

ZWE183

BLACK,TRIM0#,2#,4#

 1
55539J - COVER, SPARE SWITCH HOLE
55539-0R020C0

ZWE183..PREM

AUDIO-AVN(ACCESSORY) & 6SPEAKER,BLACK,TRIM0#,2#,4#

 1
55539-0R020C0

ZWE183

BLACK,TRIM0#,2#,4#

 1
55539-0R020C0

ZWE183..GLXI,PREM

AUDIO-*DA(ACCESSORY) & *BT & 6SPEAKER,BLACK,TRIM0#,2#,4#

 1
55618A - HOLDER, CONSOLE BOX CUP
55618-02290C0

ZWE183

BLACK,TRIM0#,2#,4#

 1
58804A - PANEL SUB-ASSY, CONSOLE, UPPER
58804-02431C0

ZWE183

BLACK,TRIM0#,2#,4#

 1
58812A - BOX, CONSOLE, LOWER
58812-02310C0

ZWE183

BLACK,TRIM0#,2#,4#

 1
58815C - CARPET, CONSOLE BOX
58815-02370

ZWE183

 1
58816B - INSERT, CONSOLE BOX
58816-02430C0

ZWE183

BLACK,TRIM0#,2#,4#

 1
58817A - INSERT, CONSOLE BOX, FRONT NO.2
58817-02440C0

ZWE183

BLACK,TRIM0#,2#,4#

 1
58821C - PANEL, CONSOLE, UPPER
58821-02501

ZWE183

 1
58823B - BOX, CONSOLE COMPARTMENT
58823-02050C0

ZWE183

BLACK,TRIM0#,2#,4#

 1
58834A - COVER, CONSOLE, LOWER
58834-02030C0

ZWE183

BLACK,TRIM0#,2#,4#

 1
58904B - COVER SUB-ASSY, PARKING BRAKE HOLE
58904-02340C0

ZWE183

BLACK,TRIM0#,2#,4#

 1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-02C70C9

ZWE183..GLXI,PREM

SILVER NO.309,TRIM4#

 1
58905-02C70C2

ZWE183..GLXI,PREM

BLACK,TRIM2#

 1
58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58908-02190

ZWE183

 1
58910C - BOX ASSY, CONSOLE, REAR
58910-02A40C0

ZWE183

BLACK,TRIM0#,2#,4#

 1
58923A - PANEL, CONSOLE REAR END
58923-02290C0

ZWE183

BLACK,TRIM0#,2#,4#

 1
58951D - DOOR, CONSOLE COMPARTMENT, OUTER
58951-02B50E1

ZWE183..GLXI,PREM

SILVER NO.309,TRIM4#

 1
58951-02B50C1

ZWE183..GLXI,PREM

BLACK,TRIM2#

 1
58952A - DOOR, CONSOLE COMPARTMENT, INNER
58952-02510C0

ZWE183

BLACK,TRIM0#,2#,4#

 1
58959B - CUSHION, CONSOLE COMPARTMENT DOOR
90541-03078

ZWE183

 3
58959B - CUSHION, CONSOLE COMPARTMENT DOOR
90541-03078

ZWE183

 3
58961A - HINGE, CONSOLE COMPARTMENT DOOR MALE
58961-02210

ZWE183

 1
58963 - SHAFT, CONSOLE COMPARTMENT DOOR HINGE
58963-02170

ZWE183

 1
58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1
58964-02390

ZWE183

 1
58965A - STOPPER, CONSOLE COMPARTMENT DOOR, NO.2
58965-02400

ZWE183

 1
58989A - RETAINER, CONSOLE BOX
58989-02240C0

ZWE183

BLACK,TRIM0#,2#,4#

 1
Common parts
90119-C0107
90159-50327
90159-60303
90159-C0006
90159-C0037
90167-C0004
90467-C0031
90523-04003
91673-80616
