ZWE183L-GEXGBC (2019)
Toyota Corolla (China)
Production
Mar 2019
-
Sep 9999
Engine
8ZRFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

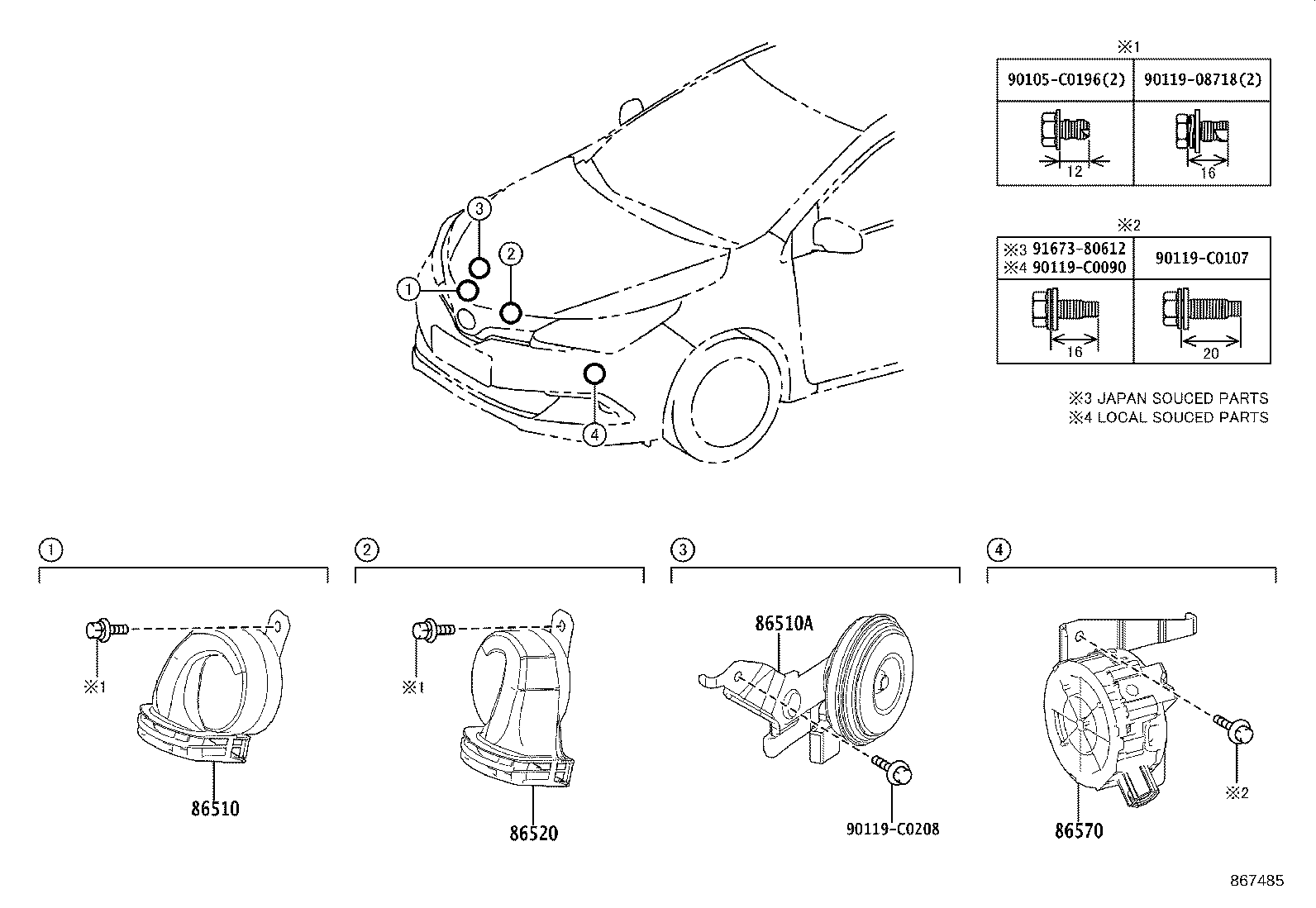

(1903-1911)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86510 - HORN ASSY, HIGH PITCHED | ||||
| 86510-12620 |
ZWE183 |
1 | ||
| 86510A - HORN ASSY, SECURITY | ||||
| 86560-02200 |
ZWE183 |
1 | ||
| 86520 - HORN ASSY, LOW PITCHED | ||||
| 86520-12740 |
ZWE183 |
1 | ||
| 86570 - SPEAKER ASSY, VEHICLE APPROACHING | ||||
| 86570-12060 |
ZWE183 |
1 | ||
| 86570-12040 |
ZWE183 |
1 | ||
| 86570-02020 |
ZWE183 |
1 | ||
| Common parts | ||||
| 90105-C0196 | ||||
| 90119-08718 | ||||
| 90119-C0090 | ||||
| 90119-C0107 | ||||
| 90119-C0208 | ||||
| 91673-80612 | ||||

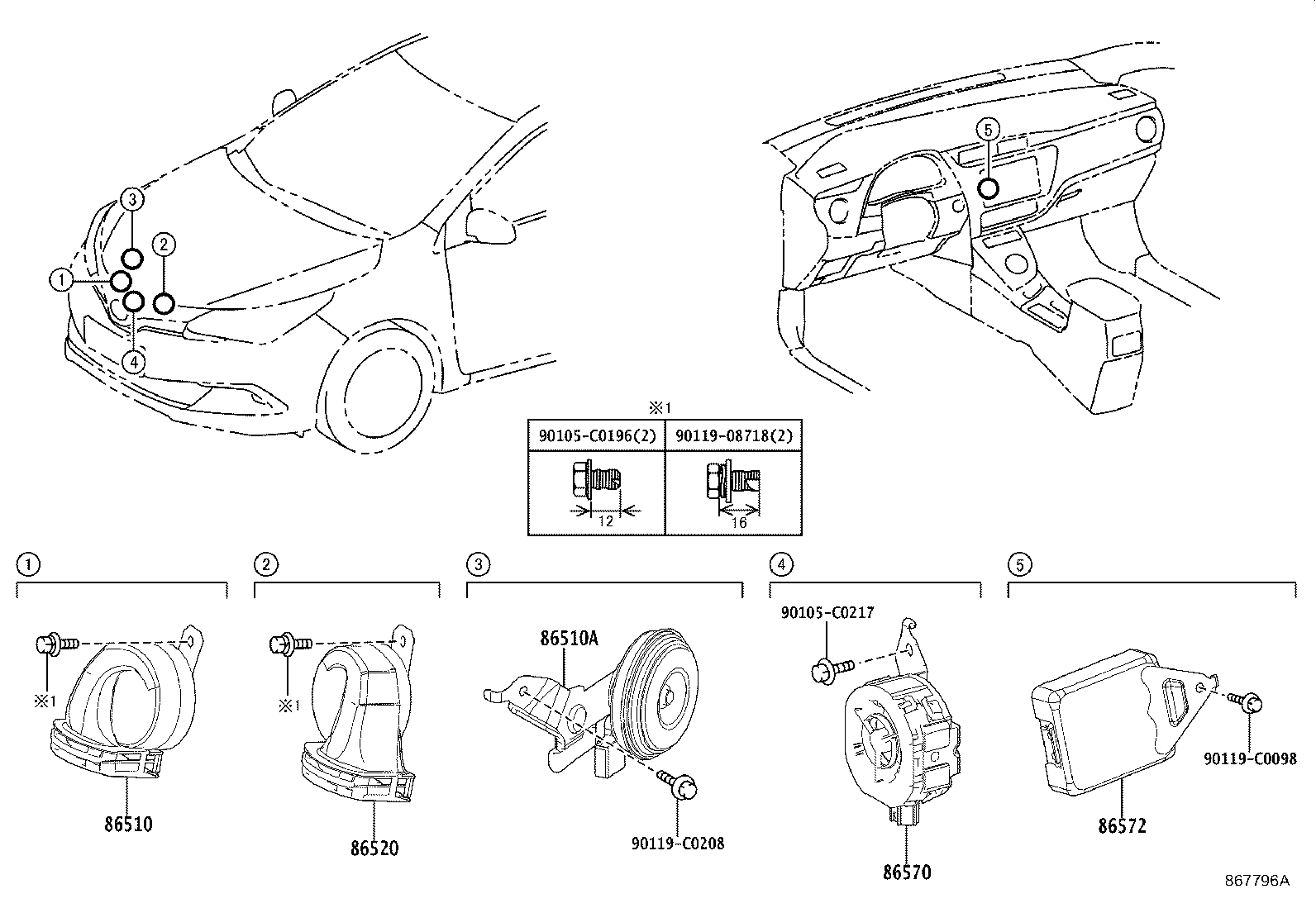

(1911- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86510 - HORN ASSY, HIGH PITCHED | ||||
| 86510-12620 |
ZWE183 |
1 | ||
| 86510A - HORN ASSY, SECURITY | ||||
| 86560-02200 |
ZWE183 |
1 | ||
| 86520 - HORN ASSY, LOW PITCHED | ||||
| 86520-12740 |
ZWE183 |
1 | ||
| 86570 - SPEAKER ASSY, VEHICLE APPROACHING | ||||
| 86570-12060 |
ZWE183 |
1 | ||
| 86570-12040 |
ZWE183 |
1 | ||
| 86570-02020 |
ZWE183 |
1 | ||
| 86572 - CONTROLLER, VEHICLE APPROACHING SPEAKER | ||||
| 86572-02030 |
ZWE183 |
1 | ||
| 86572-12100 |
ZWE183 |
1 | ||
| Common parts | ||||
| 90105-C0196 | ||||
| 90105-C0217 | ||||
| 90119-08718 | ||||
| 90119-C0098 | ||||
| 90119-C0208 | ||||
