ZWE183L-GEXGBC (2019)
Toyota Corolla (China)
Production
Mar 2019
-
Sep 9999
Engine
8ZRFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1903- )

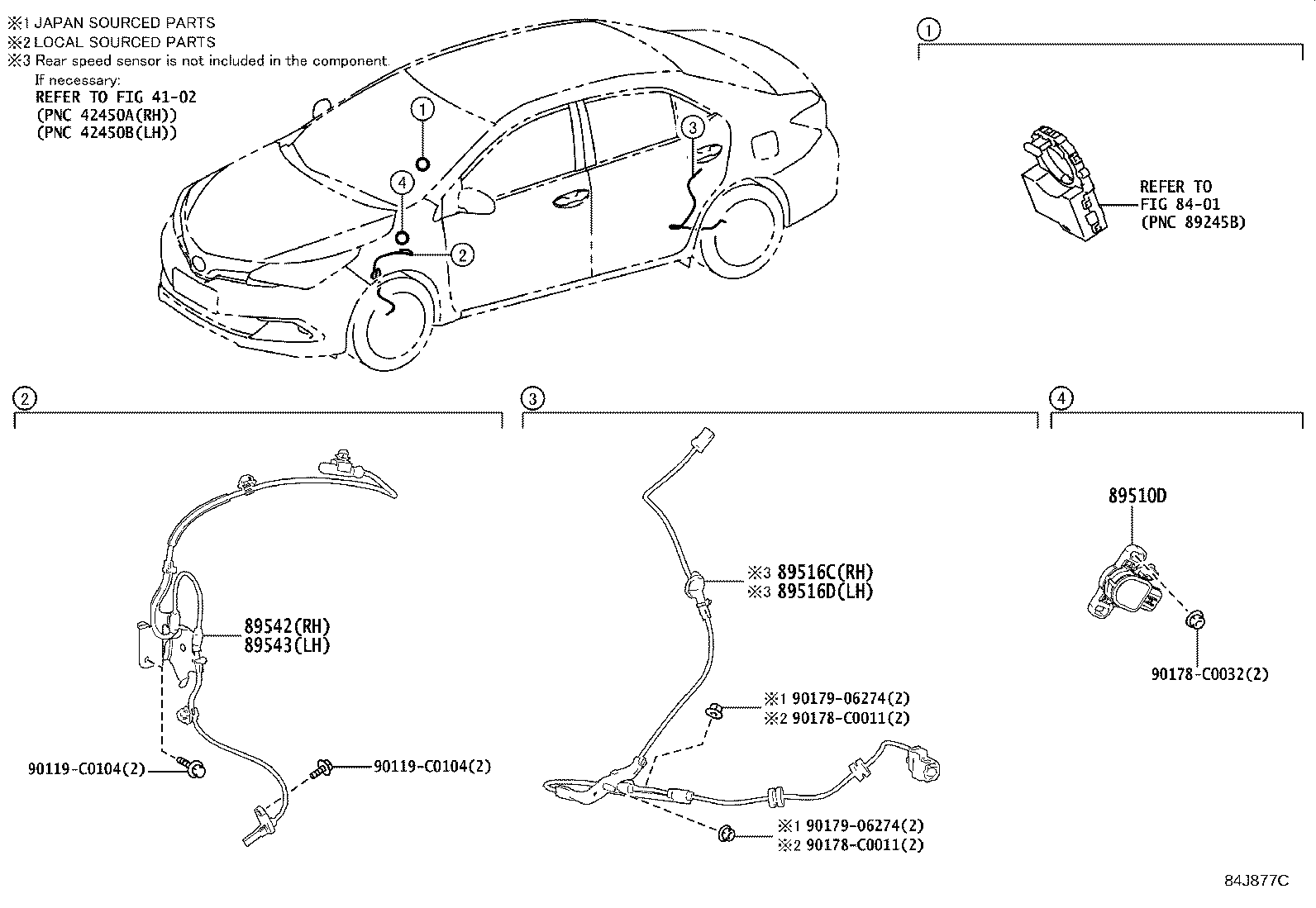

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89510D - SENSOR ASSY, BRAKE PEDAL STROKE | ||||
| 89510-12010 |
ZWE183 |
1 | ||
| 89510-02030 |
ZWE183 |
1 | ||
| 89516C - WIRE, SKID CONTROL SENSOR, RH | ||||
| 89516-02250 |
ZWE183 |
1 | ||
| 89516D - WIRE, SKID CONTROL SENSOR, LH | ||||
| 89516-02260 |
ZWE183 |
1 | ||
| 89542 - SENSOR, SPEED, FRONT RH | ||||
| 89542-02080 |
ZWE183 DENSO |
1 | ||
| 89542-02070 |
ZWE183 BOSCH |
1 | ||
| 89543 - SENSOR, SPEED, FRONT LH | ||||
| 89543-02070 |
ZWE183 BOSCH |
1 | ||
| 89543-02080 |
ZWE183 DENSO |
1 | ||
| Common parts | ||||
| 90119-C0104 | ||||
| 90178-C0011 | ||||
| 90178-C0032 | ||||
| 90179-06274 | ||||
| Linked diagrams | ||||
| 4102 | ||||
| 8401 | ||||
