ZWE183L-GEXGBC (2019)

Toyota Corolla (China)

Production Mar 2019 - Sep 9999
Engine 8ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

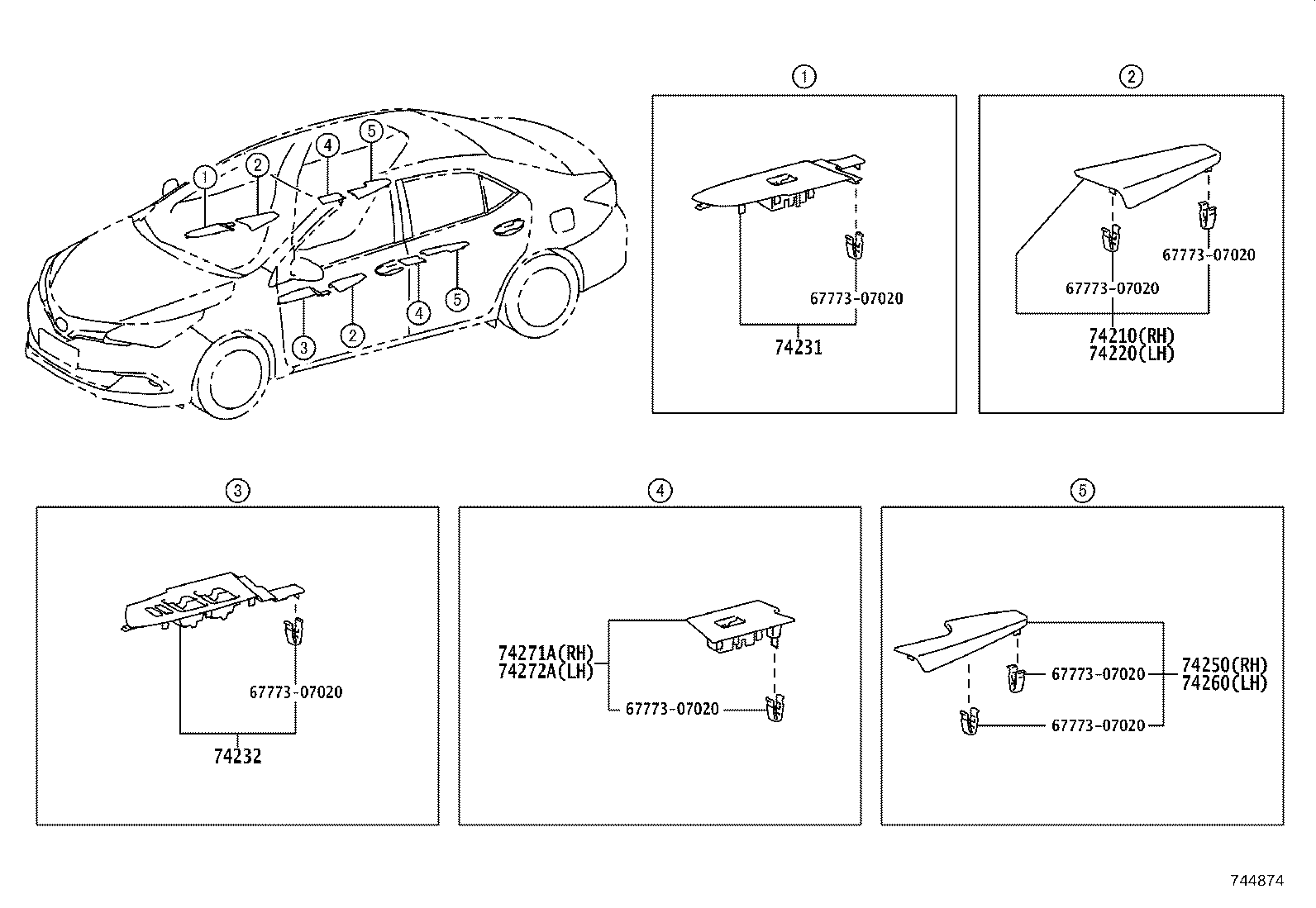

ILLUST NO. 1 OF 2(1903- )

Click highlighted areas on diagram

ARMREST

diagram 6777307020 6777307020 6777307020 6777307020 6777307020 6777307020 6777307020 74210 74220 74231 74232 74250 74260 74271A 74272A
Part # Description Qty Price
74210 - ARMREST ASSY, FRONT, RH
74210-02480C2

ZWE183..GLXI,PREM

BLACK,TRIM0#,2#,40

 1
74210-02480E0

ZWE183..GLXI,PREM

SADDLE TAN,TRIM40

 1
74220 - ARMREST ASSY, FRONT, LH
74220-02450E0

ZWE183..GLXI,PREM

SADDLE TAN,TRIM40

 1
74220-02450C2

ZWE183..GLXI,PREM

BLACK,TRIM0#,2#,40

 1
74231 - PANEL, FRONT ARMREST BASE, UPPER RH
74231-02C30C0

ZWE183

BLACK,TRIM0#,2#,4#

 1
74232 - PANEL, FRONT ARMREST BASE, UPPER LH
74232-02C80C0

ZWE183

BLACK,TRIM0#,2#,4#

 1
74250 - ARMREST ASSY, REAR RH
74250-02580E0

ZWE183..GLXI,PREM

SADDLE TAN,TRIM40

 1
74250-02580C2

ZWE183..GLXI,PREM

BLACK,TRIM0#,2#,40

 1
74260 - ARMREST ASSY, REAR LH
74260-02580C2

ZWE183..GLXI,PREM

BLACK,TRIM0#,2#,40

 1
74260-02580E0

ZWE183..GLXI,PREM

SADDLE TAN,TRIM40

 1
74271A - PANEL, REAR DOOR ARMREST BASE, UPPER RH
74271-02540C0

ZWE183

BLACK,TRIM0#,2#,4#

 1
74272A - PANEL, REAR DOOR ARMREST BASE, UPPER LH
74272-02450C0

ZWE183

BLACK,TRIM0#,2#,4#

 1
Common parts
67773-07020

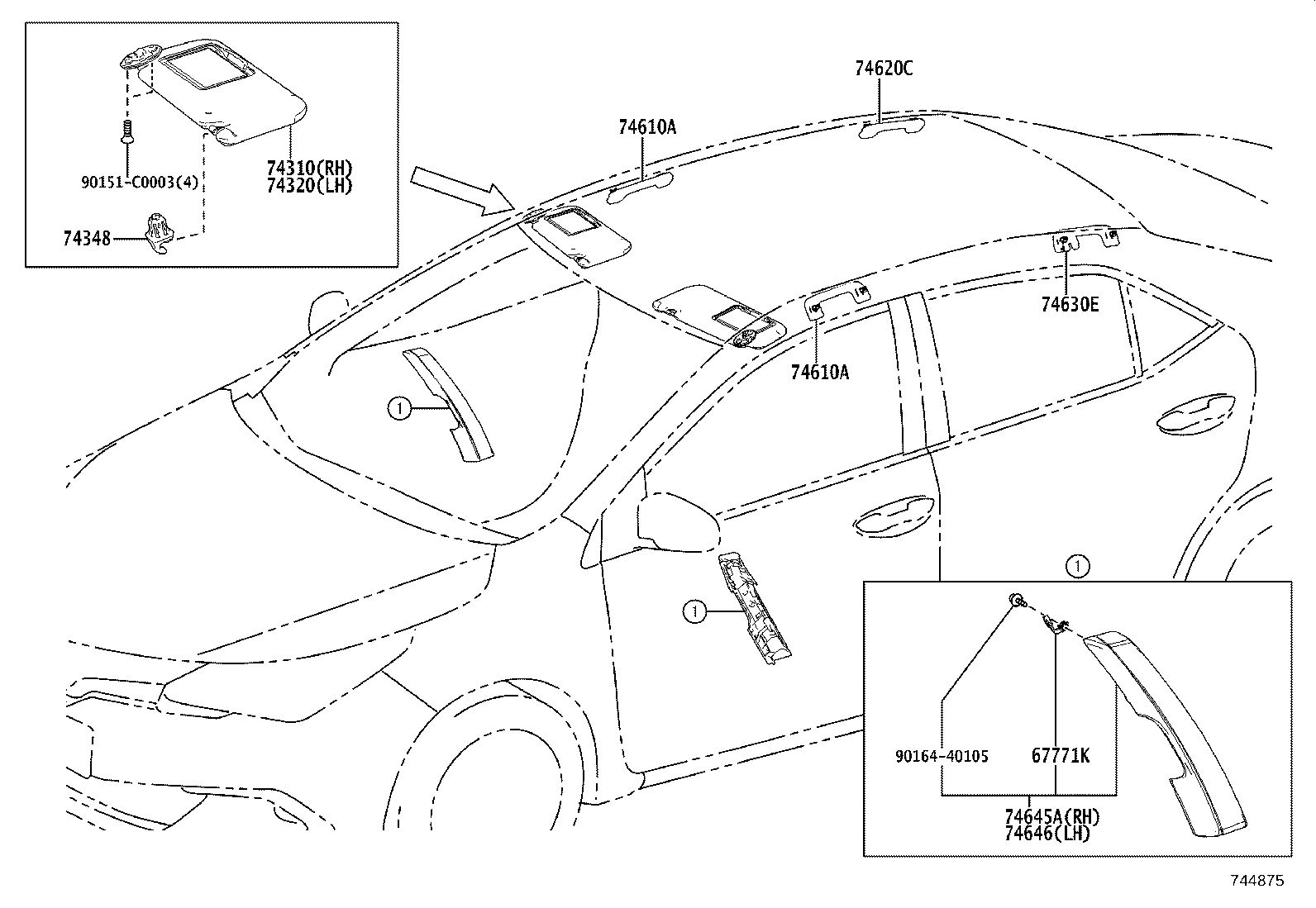

ILLUST NO. 2 OF 2(1903- )

Click highlighted areas on diagram

VISOR & ASSIST GRIP

diagram 67771K 74310 74320 74348 74610A 74610A 74620C 74630E 74645A 74646 90151C0003 9016440105
Part # Description Qty Price
67771K - RETAINER(FOR DOOR ASSIST GRIP COVER)
67771-02060

ZWE183

 2
74310 - VISOR ASSY, RH
74310-02Q10B0

ZWE183

LT.GRAY,TRIM2#,4#

 1
74320 - VISOR ASSY, LH
74320-02K50B0

ZWE183

LT.GRAY,TRIM2#,4#

 1
74348 - HOLDER, VISOR
74348-0D120B1

ZWE183

LT.GRAY,TRIM2#,4#

 2
74610A - GRIP SUB-ASSY, ASSIST
74610-0D070B1

ZWE183

LT.GRAY,TRIM2#,4#

 2
74610A - GRIP SUB-ASSY, ASSIST
74610-0D070B1

ZWE183

LT.GRAY,TRIM2#,4#

 2
74620C - GRIP ASSY, ASSIST, REAR RH
74610-0D070B1

ZWE183

LT.GRAY,TRIM2#,4#

 1
74630E - GRIP ASSY, ASSIST, REAR LH
74610-0R040B0

ZWE183

LT.GRAY,TRIM2#,4#

 1
74645A - COVER, DOOR ASSIST GRIP, RH
74645-02700B0

ZWE183

SILVER/BLACK,TRIM2#,4#

 1
74646 - COVER, DOOR ASSIST GRIP, LH
74646-02690B0

ZWE183

SILVER/BLACK,TRIM2#,4#

 1
Common parts
90151-C0003
90164-40105
